EX-4

< PERIODIC MAINTENANCE >

[MR16DDT ]

EXHAUST SYSTEM

PERIODIC MAINTENANCE

EXHAUST SYSTEM

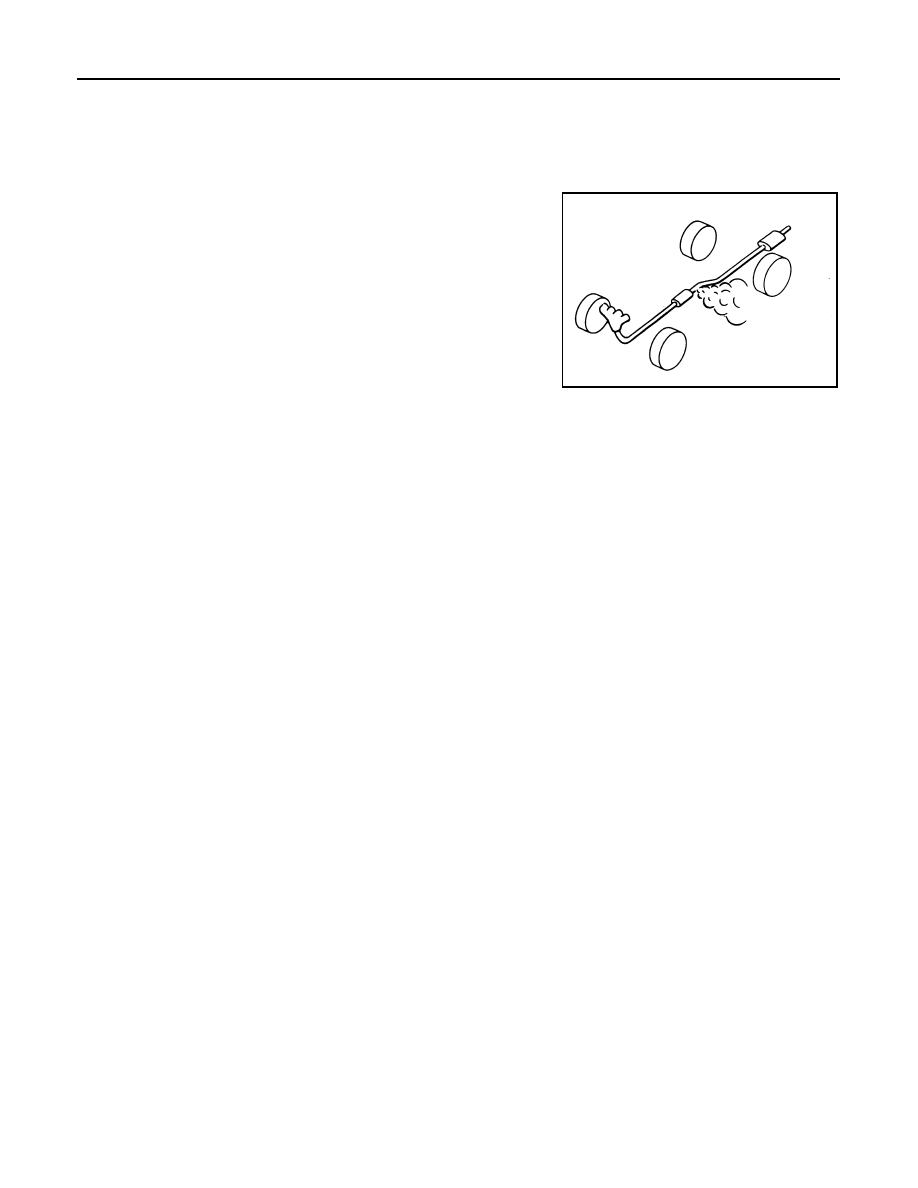

Inspection

INFOID:0000000012197613

Check exhaust pipes, muffler, and mounting for improper attach-

ment, leakage, cracks, damage or deterioration.

• If anything is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-5

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

REMOVAL AND INSTALLATION

EXHAUST SYSTEM

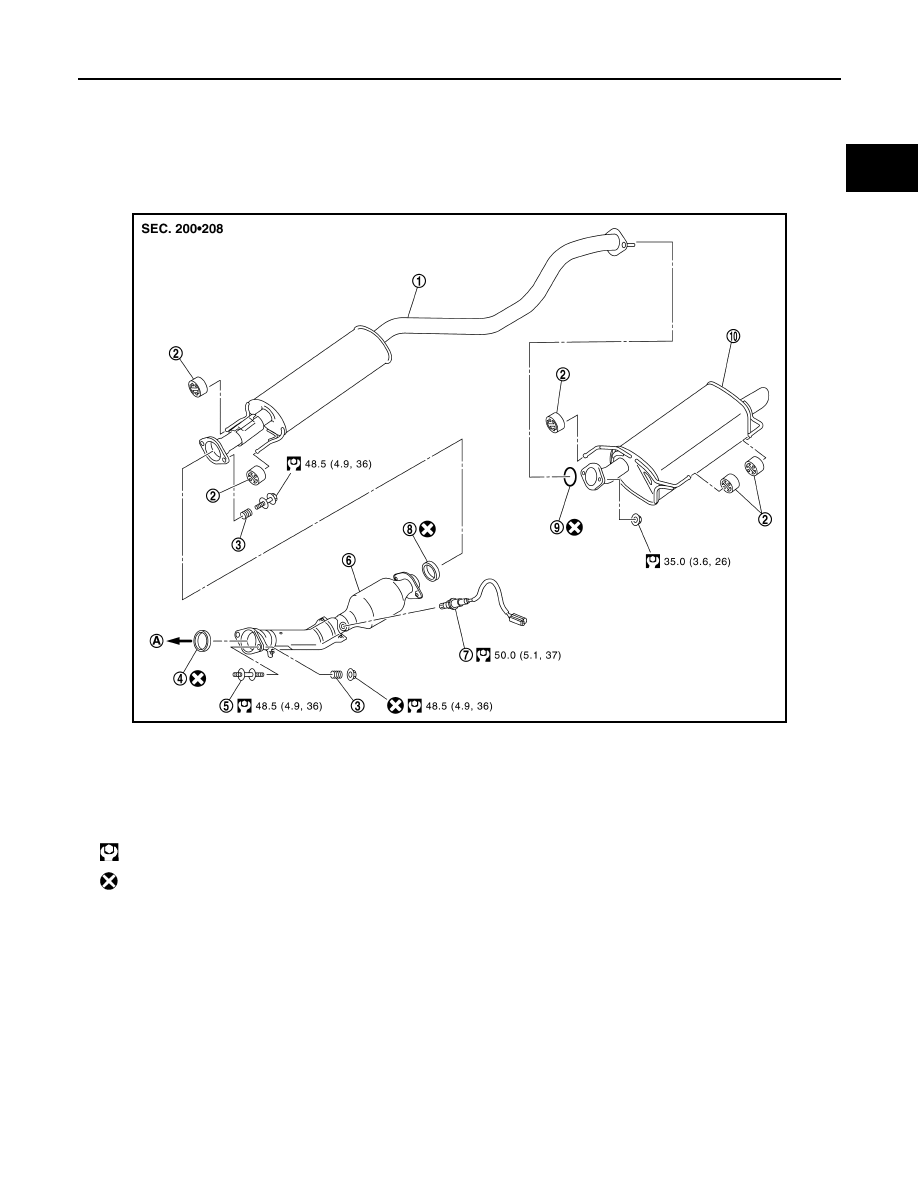

Exploded View

INFOID:0000000012197614

2WD (Standard models)

JSBIA3454GB

1.

Center muffler

2.

Mounting rubber

3.

Spring

4.

Seal bearing

5.

Stud bolt

6.

Exhaust front tube

7.

Heated oxygen sensor 2

8.

Seal bearing

9.

Ring gasket

10. Main muffler
A.

To catalyst convertor

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

EX-6

< REMOVAL AND INSTALLATION >

[MR16DDT ]

EXHAUST SYSTEM

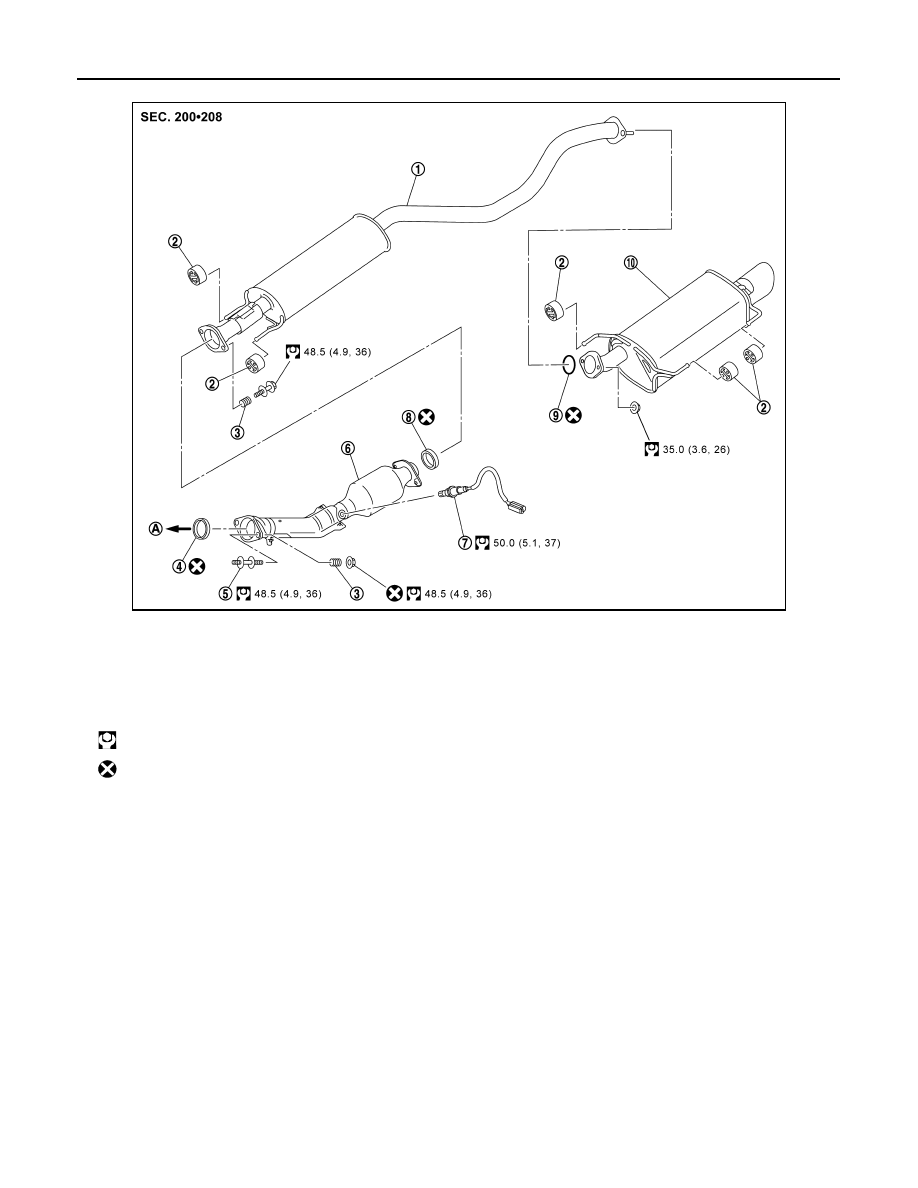

2WD (NISMO models)

JPBIA7035GB

1.

Center muffler

2.

Mounting rubber

3.

Spring

4.

Seal bearing

5.

Stud bolt

6.

Exhaust front tube

7.

Heated oxygen sensor 2

8.

Seal bearing

9.

Ring gasket

10. Main muffler
A.

To catalyst convertor

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

EXHAUST SYSTEM

EX-7

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

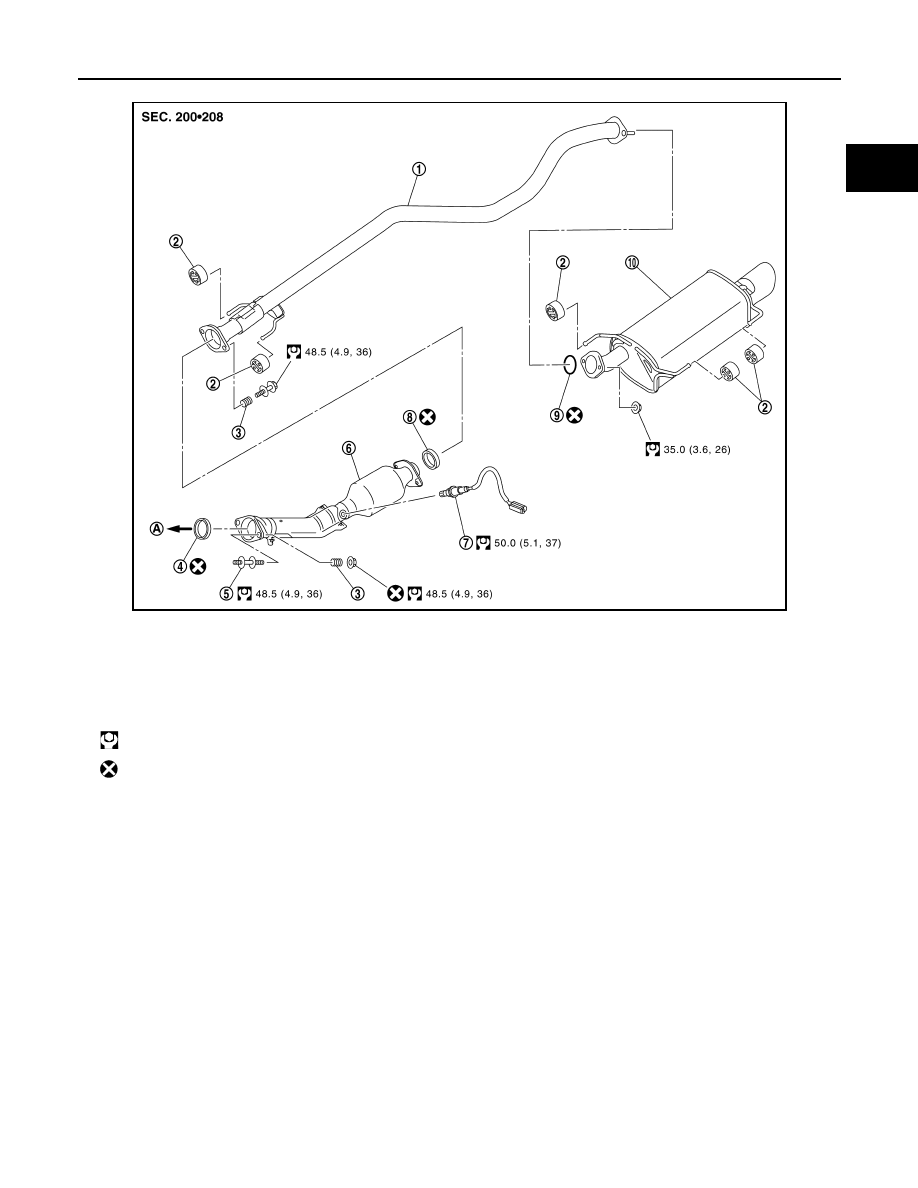

2WD (NISMO RS models)

JSBIA4459GB

1.

Center tube

2.

Mounting rubber

3.

Spring

4.

Seal bearing

5.

Stud bolt

6.

Exhaust front tube

7.

Heated oxygen sensor 2

8.

Seal bearing

9.

Ring gasket

10. Main muffler
A.

To catalyst convertor

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.
