Nissan Juke F15. Manual - part 225

DLK-80

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD FUNCTION

HAZARD FUNCTION

Component Function Check

INFOID:0000000012196644

1.

CHECK FUNCTION

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “FLASHER” in “ACTIVE TEST” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-80, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012196645

1.

CHECK HAZARD SWITCH CIRCUIT

Refer to

EXL-77, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-45, "Intermittent Incident"

.

>> INSPECTION END

Monitor item

Status

FLASHER

LH

Front turn signal lamp LH

Turns ON

RH

Front turn signal lamp RH

Turns ON

OFF

Front turn signal lamp

Turns OFF

INTELLIGENT KEY BATTERY

DLK-81

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Component Inspection

INFOID:0000000012196646

1.

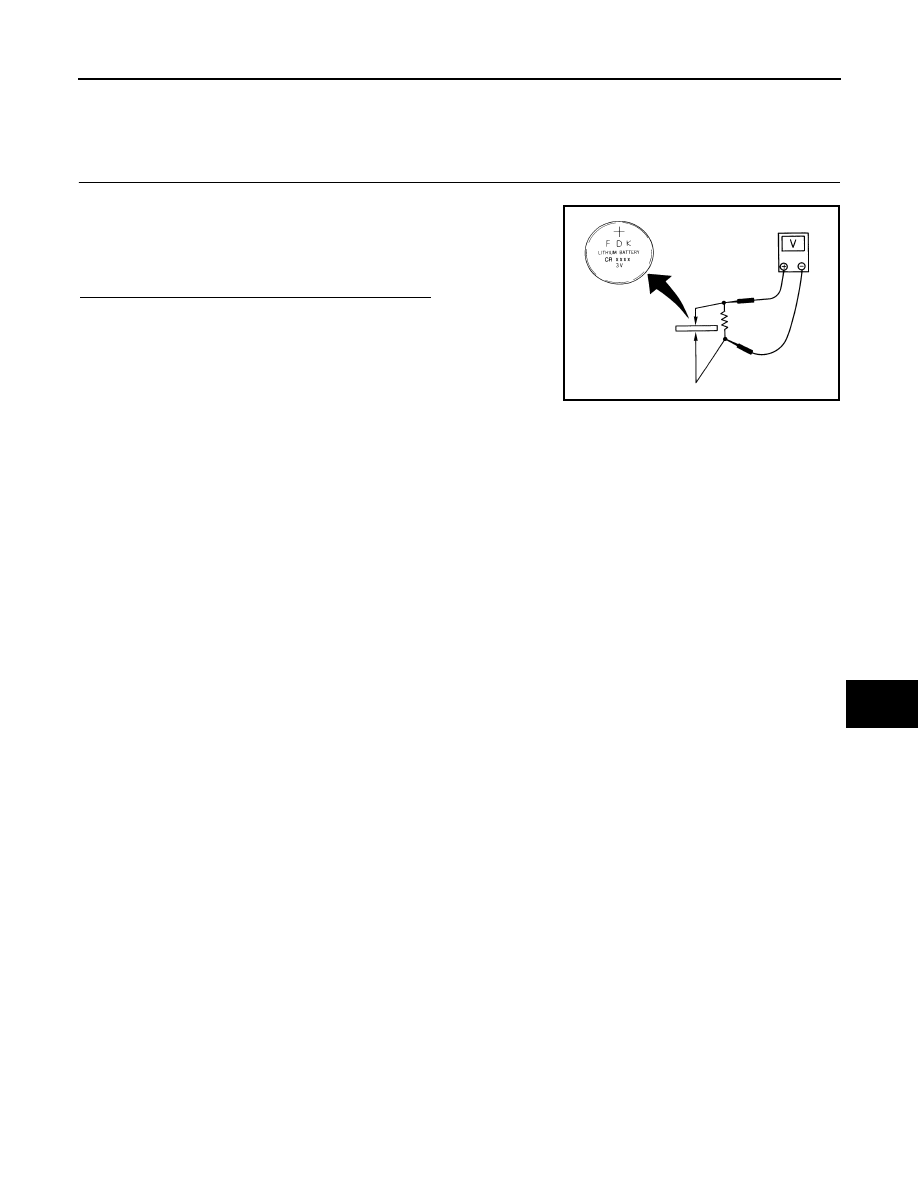

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

Ω) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> Replace Intelligent Key battery.

Standard

: Approx. 2.5 - 3.0 V

OCC0607D

DLK-82

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Component Function Check

INFOID:0000000012196647

1.

CHECK FUNCTION

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “OUTSIDE BUZZER” in “ACTIVE TEST” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Intelligent Key warning buzzer is OK.

NO

>> Refer to

DLK-82, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012196648

1.

CHECK FUSE

1. Turn ignition switch OFF.

2. Check 10 A fuse, [No. 13, located in fuse block (J/B)].
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2.

CHECK INTELLIGENT KEY WARNING BUZZER POWER SUPPLY CIRCUIT

1. Disconnect Intelligent Key warning buzzer connector.

2. Check voltage between Intelligent Key warning buzzer harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INTELLIGENT KEY WARNING BUZZER CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM harness connector and Intelligent Key warning buzzer harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

Monitor item

Status

OUTSIDE BUZZER

ON

Outside warning buzzer

Buzzer sounds

OFF

Buzzer does not sound

(+)

(–)

Voltage

(Approx.)

Intelligent Key warning buzzer

Connector

Terminal

E25

1

Ground

Battery voltage

BCM

Intelligent Key warning buzzer

Continuity

Connector

Terminal

Connector

Terminal

M70

93

E25

3

Existed

BCM

Ground

Continuity

Connector

Terminal

M70

93

Not existed

INTELLIGENT KEY WARNING BUZZER

DLK-83

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

CHECK INTELLIGENT KEY WARNING BUZZER

Refer to

DLK-83, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-94, "Removal and Installation"

.

NO

>> Replace Intelligent Key warning buzzer.

Component Inspection

INFOID:0000000012196649

1.

CHECK INTELLIGENT KEY WARNING BUZZER

1. Turn ignition switch OFF.

2. Disconnect Intelligent Key warning buzzer connector.

3. Connect battery power supply directly to Intelligent Key warning buzzer terminals and check the opera-

tion.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace Intelligent Key warning buzzer.

Intelligent Key warning buzzer

Operation

Terminal

(+)

(

−)

1

3

Buzzer sounds
