TM-558

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

OIL PAN

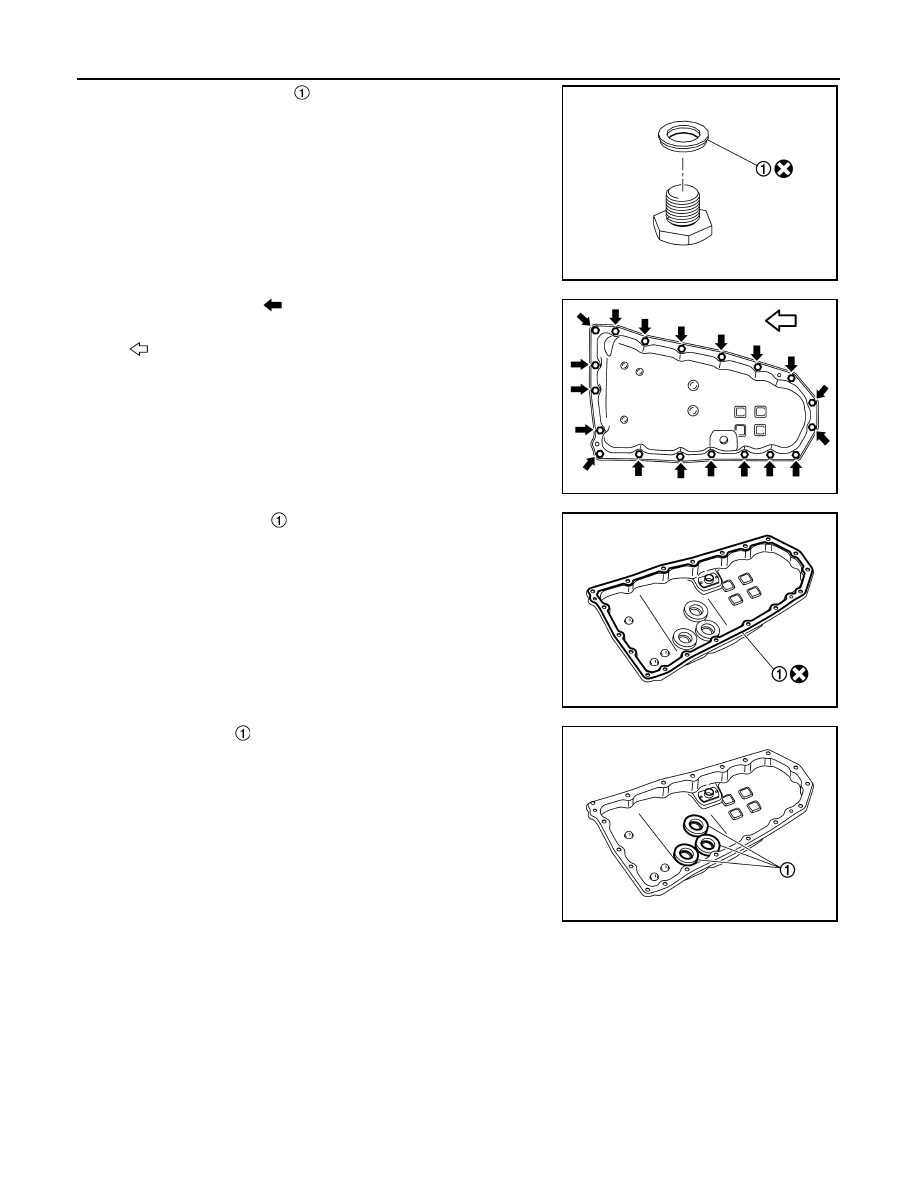

2. Remove drain plug gasket  .

3. Remove oil pan bolts (

).

4. Remove oil pan from transaxle case.

5. Remove oil pan gasket   from oil pan.

6. Remove magnets   from oil pan.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse oil pan gasket.

• Never reuse drain plug gasket.

• Never reuse O-ring.

• Completely clean the iron powder from the magnet area of oil pan and the magnets.

• Install the oil pan to the transaxle case with the following procedure.

1. Install the oil pan gasket to the oil pan.

CAUTION:

JSDIA5206ZZ

: Vehicle front

JSDIA5207ZZ

JSDIA7929ZZ

JSDIA7930ZZ

OIL PAN

TM-559

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt

hole of oil pan and transaxle case.

2. Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.

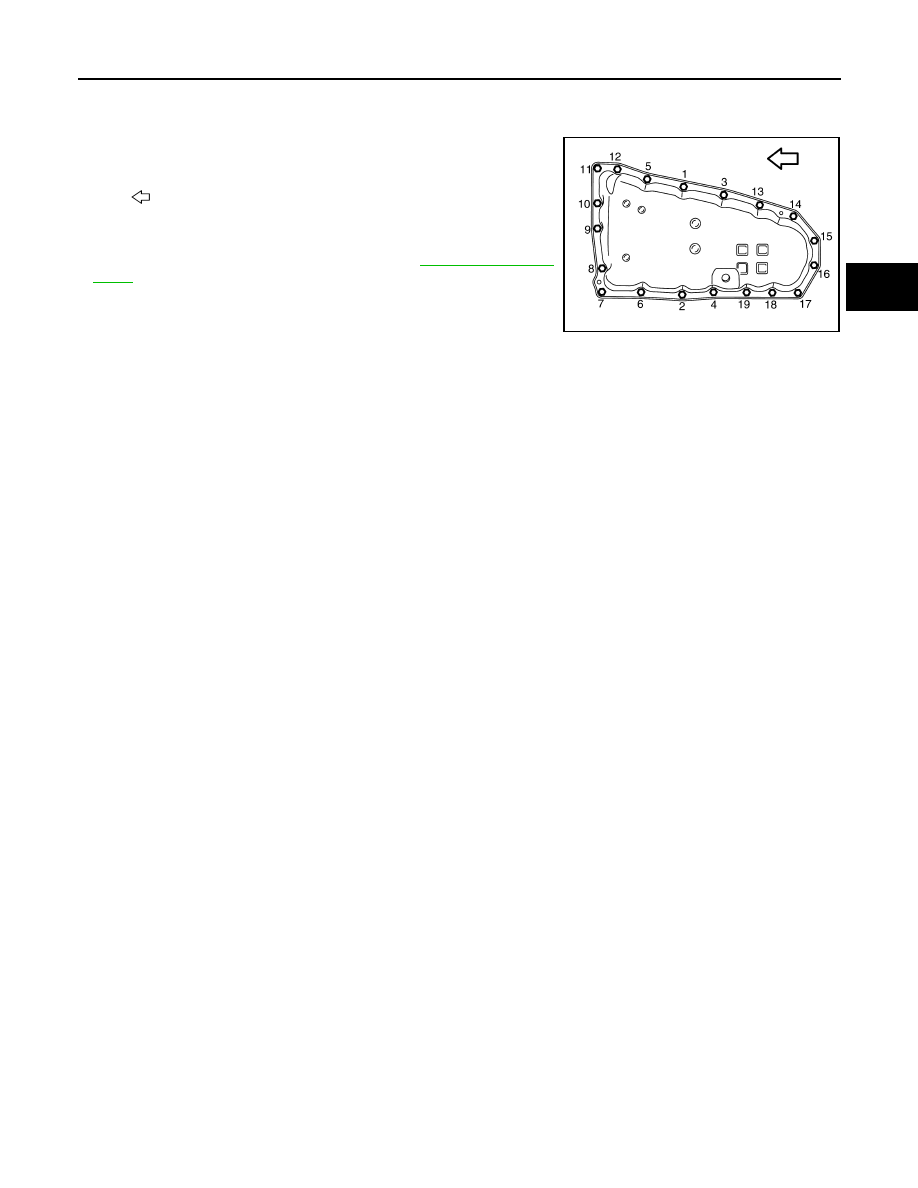

3. Tighten the oil pan bolts in the order shown to the specified

torque.

4. Tighten the oil pan bolts again clockwise from (1) shown to the

specified torque.

• Fill with CVT fluid after installation. Refer to

TM-440, "Replace-

ment"

.

Inspection

INFOID:0000000012201253

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.

• If a large amount of worn material is found, clutch plate may be worn.

• If iron powder is found, bearings, gears, or clutch plates may be worn.

• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.

Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

: Vehicle front

JSDIA5211ZZ

TM-560

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

INPUT SPEED SENSOR

INPUT SPEED SENSOR

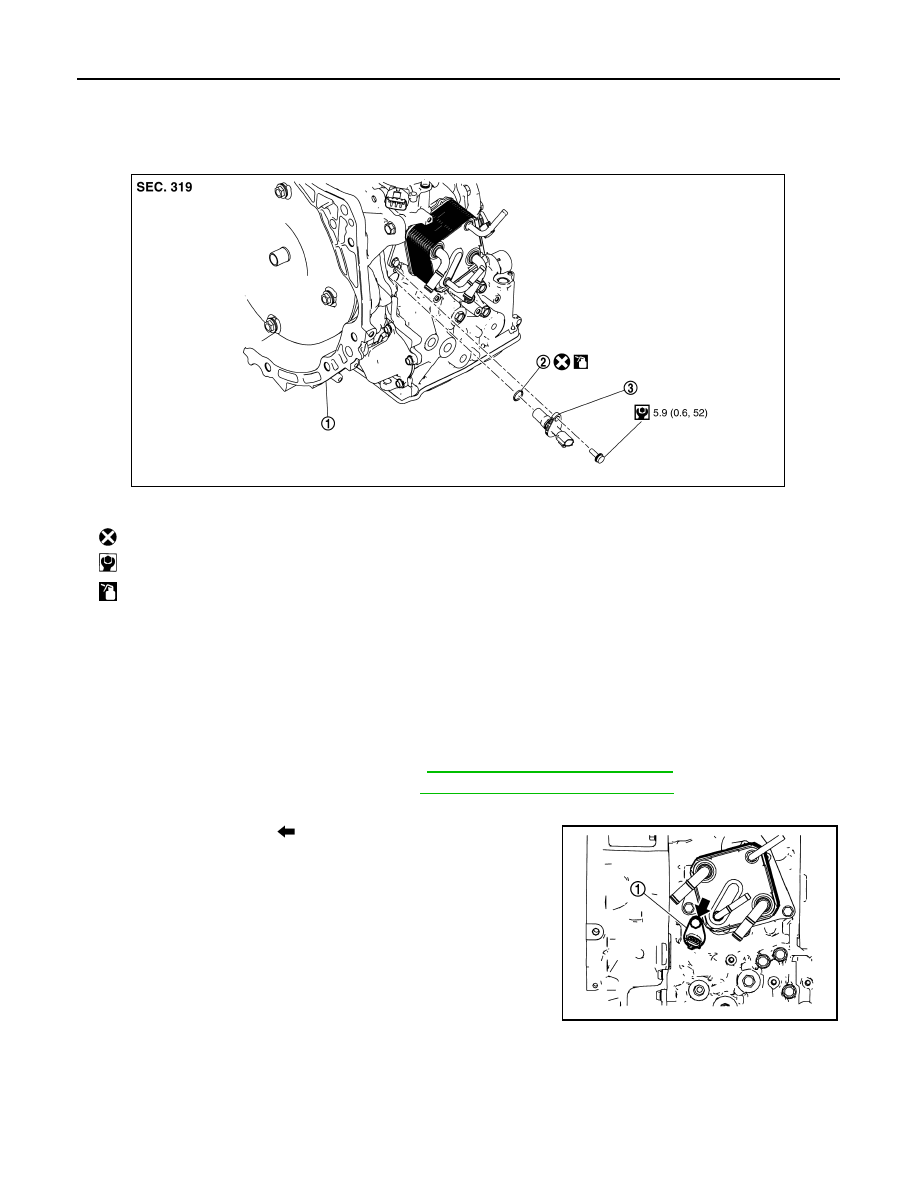

Exploded View

INFOID:0000000012201254

Removal and Installation

INFOID:0000000012201255

REMOVAL

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Turn ignition switch OFF.
2. Remove battery and battery support. Refer to

PG-105, "Removal and Installation"

.

3. Remove ECM and bracket as a set. Refer to

EC-1256, "Removal and Installation"

.

4. Disconnect input speed sensor connector.
5. Remove mounting bolt (

) and remove input speed sensor (1)

from transaxle assembly.

1.

Transaxle assembly

2.

O-ring

3.

Input speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA6059GB

JSDIA6619ZZ

INPUT SPEED SENSOR

TM-561

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

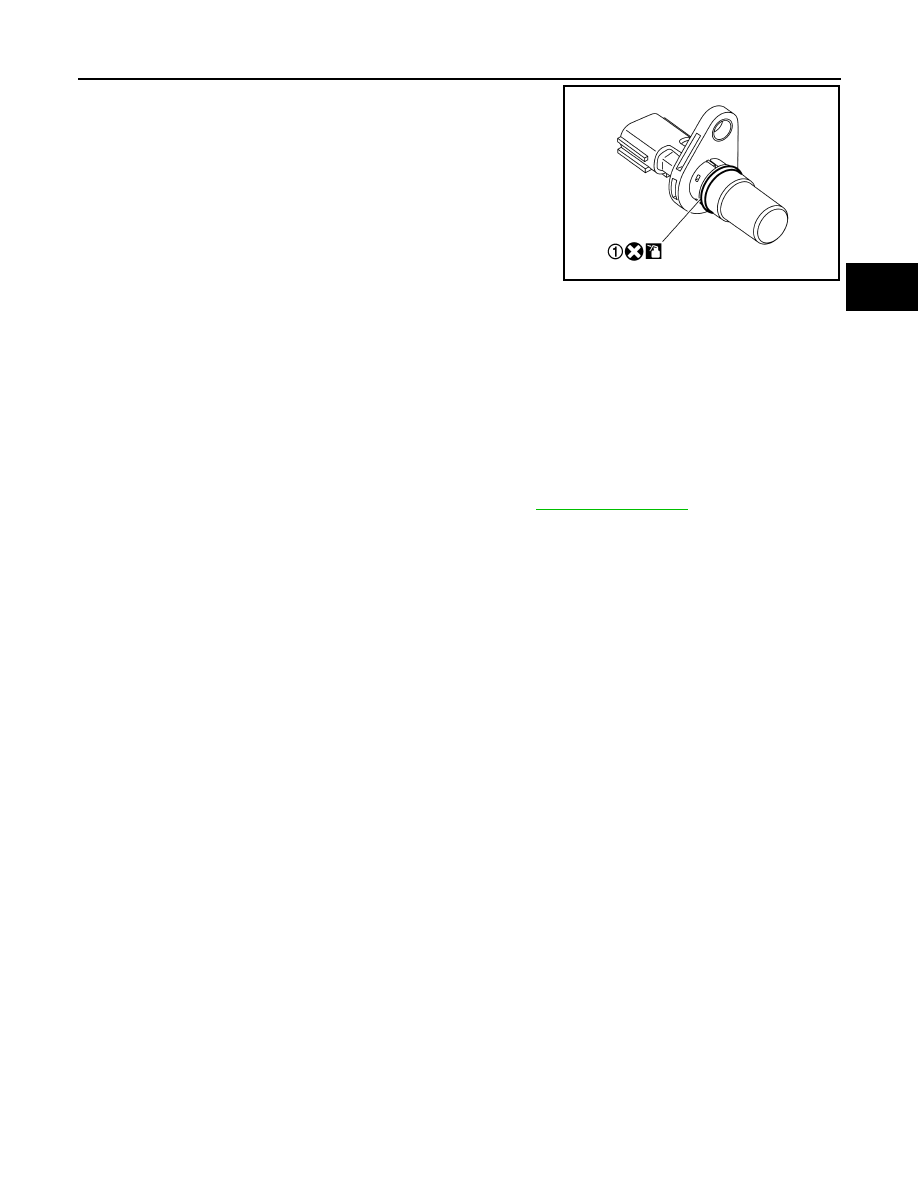

6. Remove O-ring (1) from input speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.

• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000012201256

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-441, "Adjustment"

.

JSDIA5196ZZ
