< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

TCM

TCM

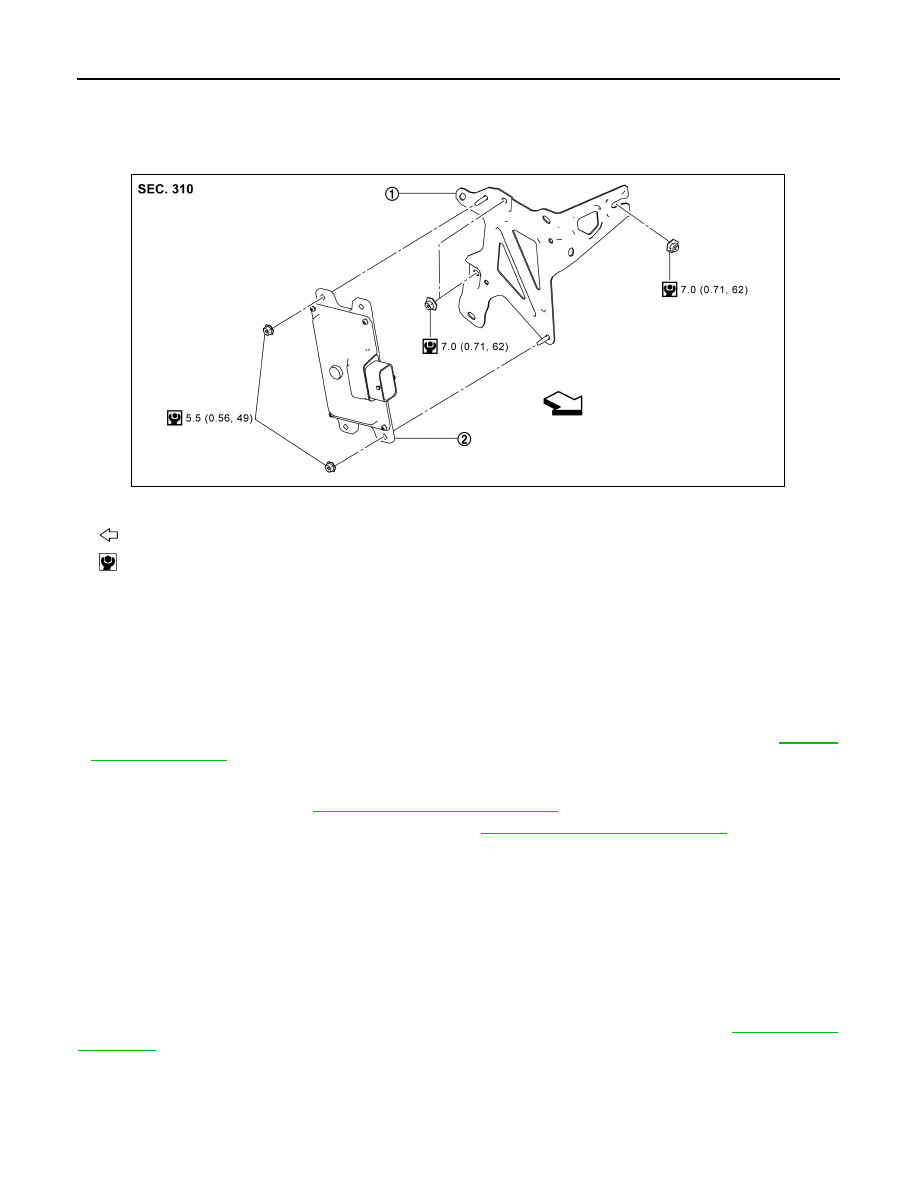

Exploded View

INFOID:0000000012201246

Removal and Installation

INFOID:0000000012201247

CAUTION:

• Never impact on TCM when removing or installing TCM.

• When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT “CON-

FORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.

• When replacing TCM and transaxle assembly simultaneously, replace transaxle assembly first and

then replace TCM.

• Before replacing TCM, perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-429,

"Work Procedure"

.

REMOVAL

1. Remove the battery. Refer to

PG-105, "Removal and Installation"

.

2. Remove air duct (inlet) and air cleaner case. Refer to

EM-192, "Removal and Installation"

.

3. Disconnect the TCM connector.
4. Remove the TCM.
5. Remove the bracket.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000012201248

ADJUSTMENT AFTER INSTALLATION

When replaced TCM, perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to

TM-429, "Work

Procedure"

.

1.

Bracket

2.

TCM

:Vehicle front

: N·m (kg-m, in-lb)

JSDIA7186GB

AIR BREATHER HOSE

TM-555

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

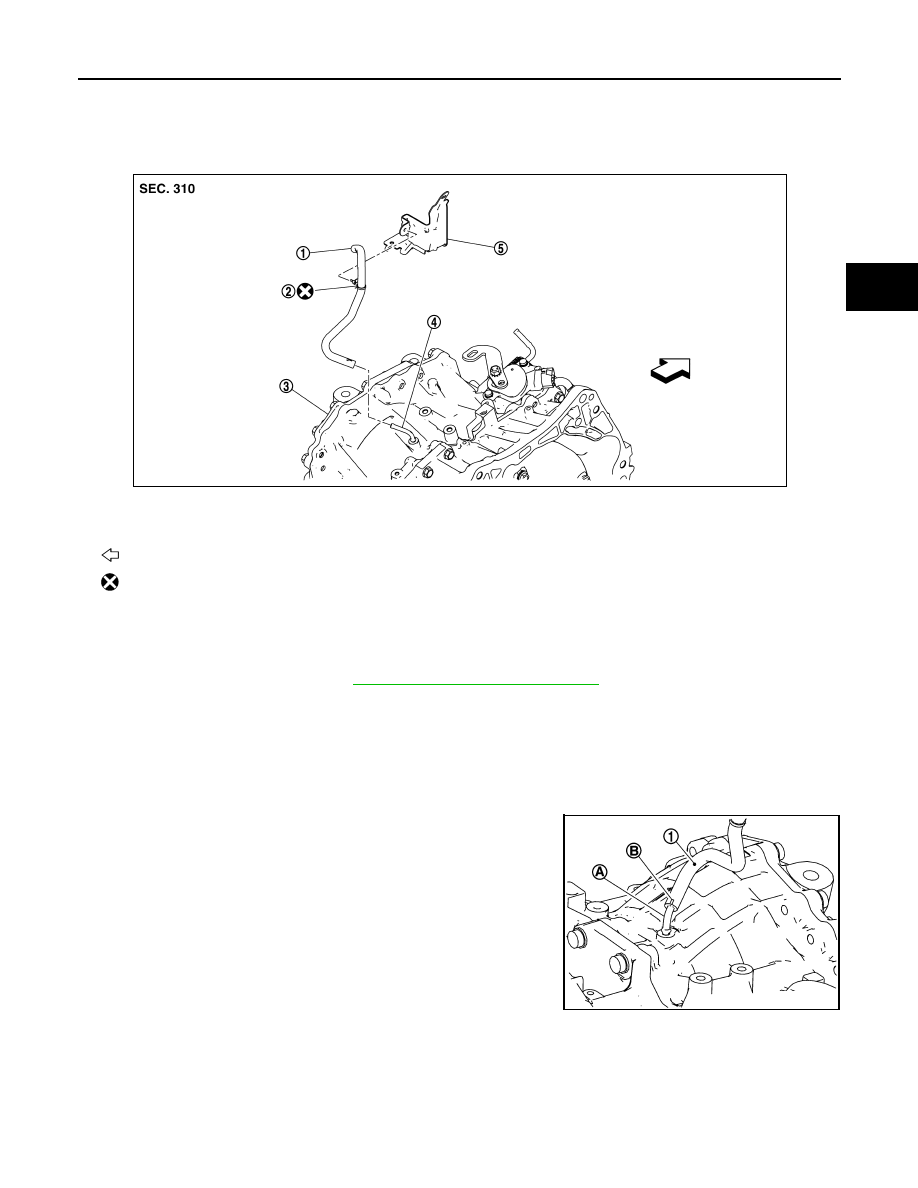

Exploded View

INFOID:0000000012201249

Removal and Installation

INFOID:0000000012201250

REMOVAL

1. Remove air cleaner case. Refer to

EM-192, "Removal and Installation"

.

2. Remove clip of air breather hose from harness bracket.
3. Remove air breather hose from transaxle assembly.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never bend the air breather hose to prevent damage to the hose.

• Insert air breather hose (1) to air breather tube (A) all the way

to the curve of the tube.

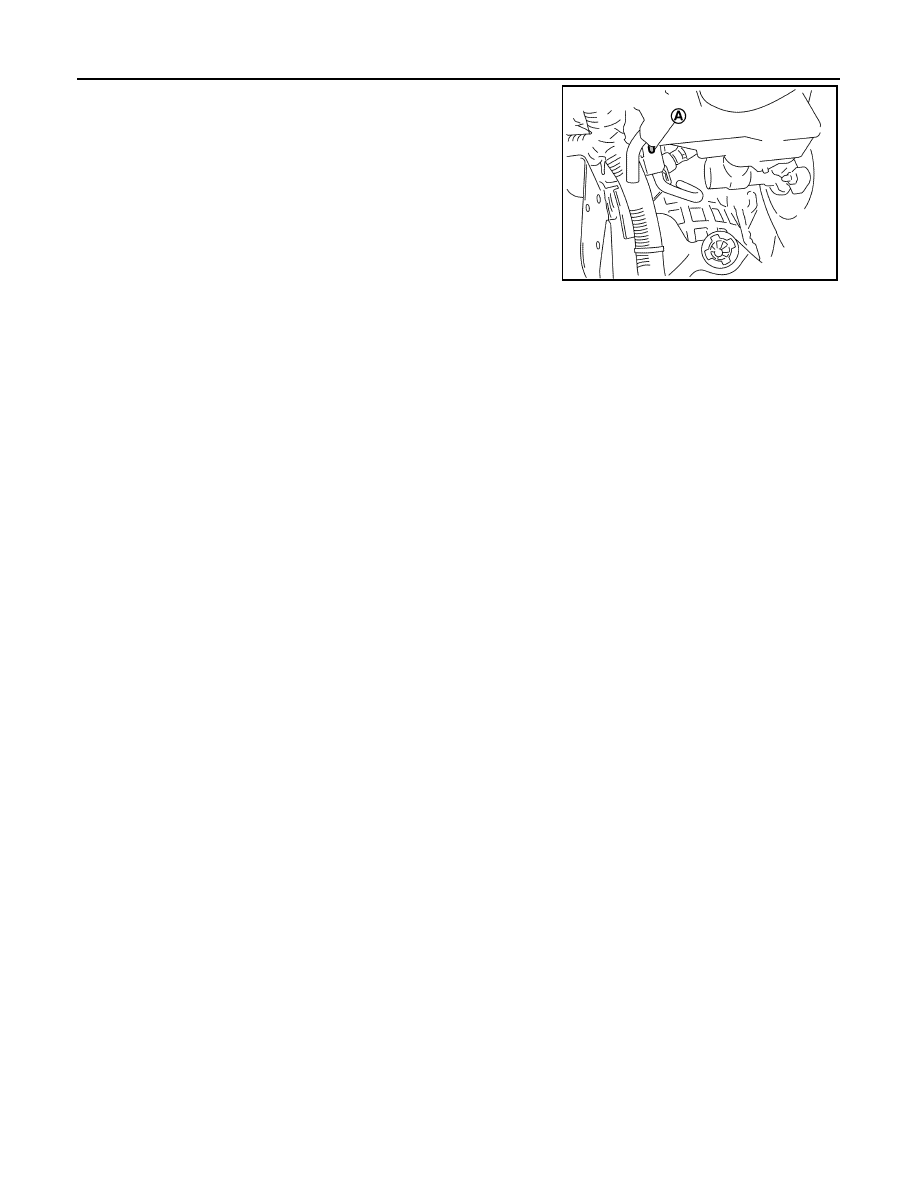

• Insert air breather hose to air breather tube so that the paint

mark (B) is facing upward.

1.

Air breather hose

2.

Clip

3.

Transaxle assembly

4.

Air breather tube

5.

Harness bracket

: Vehicle front

: Always replace after every disassembly.

JSDIA6058ZZ

JSDIA2399ZZ

TM-556

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

AIR BREATHER HOSE

• Never reuse clip (A).

• Securely install the clip to the harness bracket.

JSDIA2458ZZ

OIL PAN

TM-557

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PAN

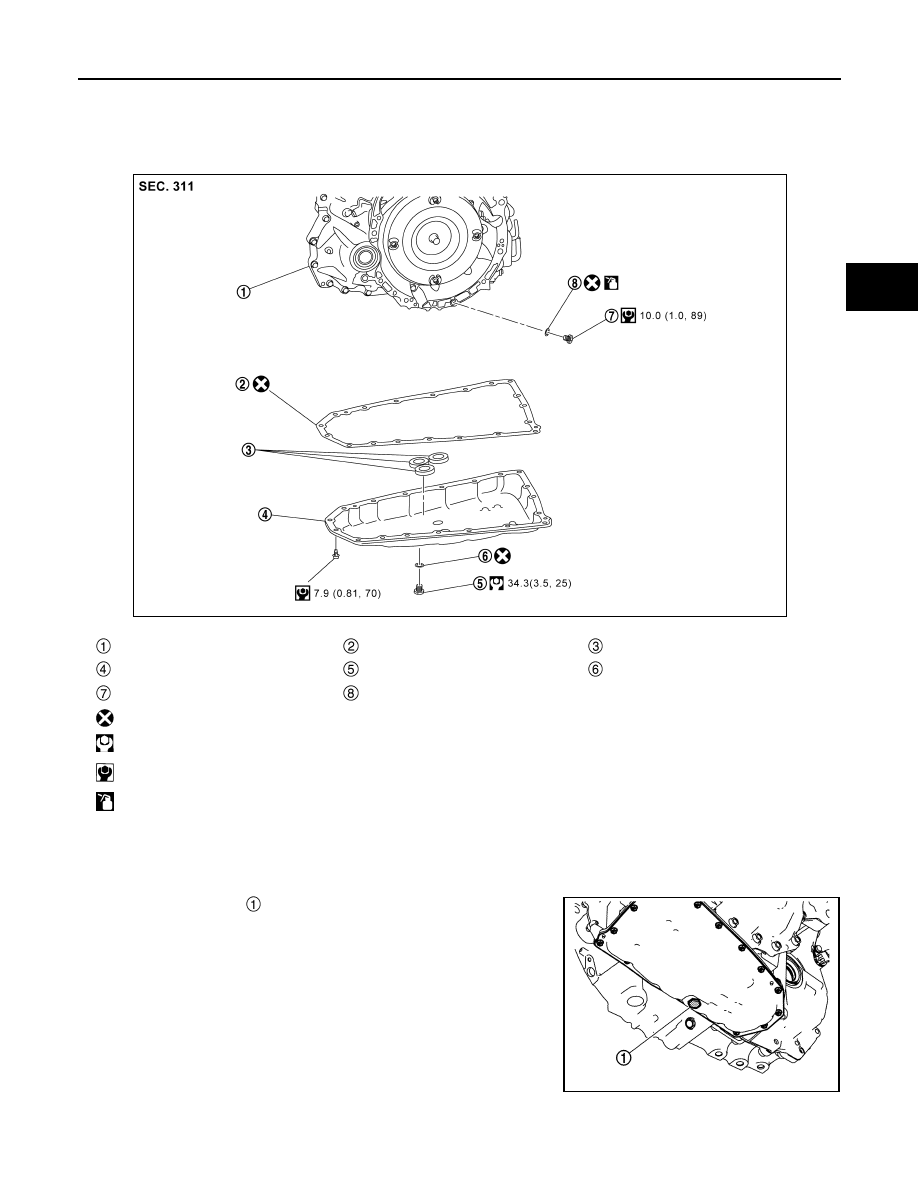

Exploded View

INFOID:0000000012201251

Removal and Installation

INFOID:0000000012201252

REMOVAL

1. Remove drain plug   from oil pan and then drain the CVT fluid.

Transaxle assembly

Oil pan gasket

Magnet

Oil pan

Drain plug

Drain plug gasket

Overflow plug

O-ring

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA7928GB
