RF-10

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000012196959

ECU

Reference

BCM

BCS-39, "Reference Value"

BCS-60, "Fail-safe"

BCS-61, "DTC Inspection Priority Chart"

BCS-62, "DTC Index"

SUNROOF SYSTEM

RF-11

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF SYSTEM

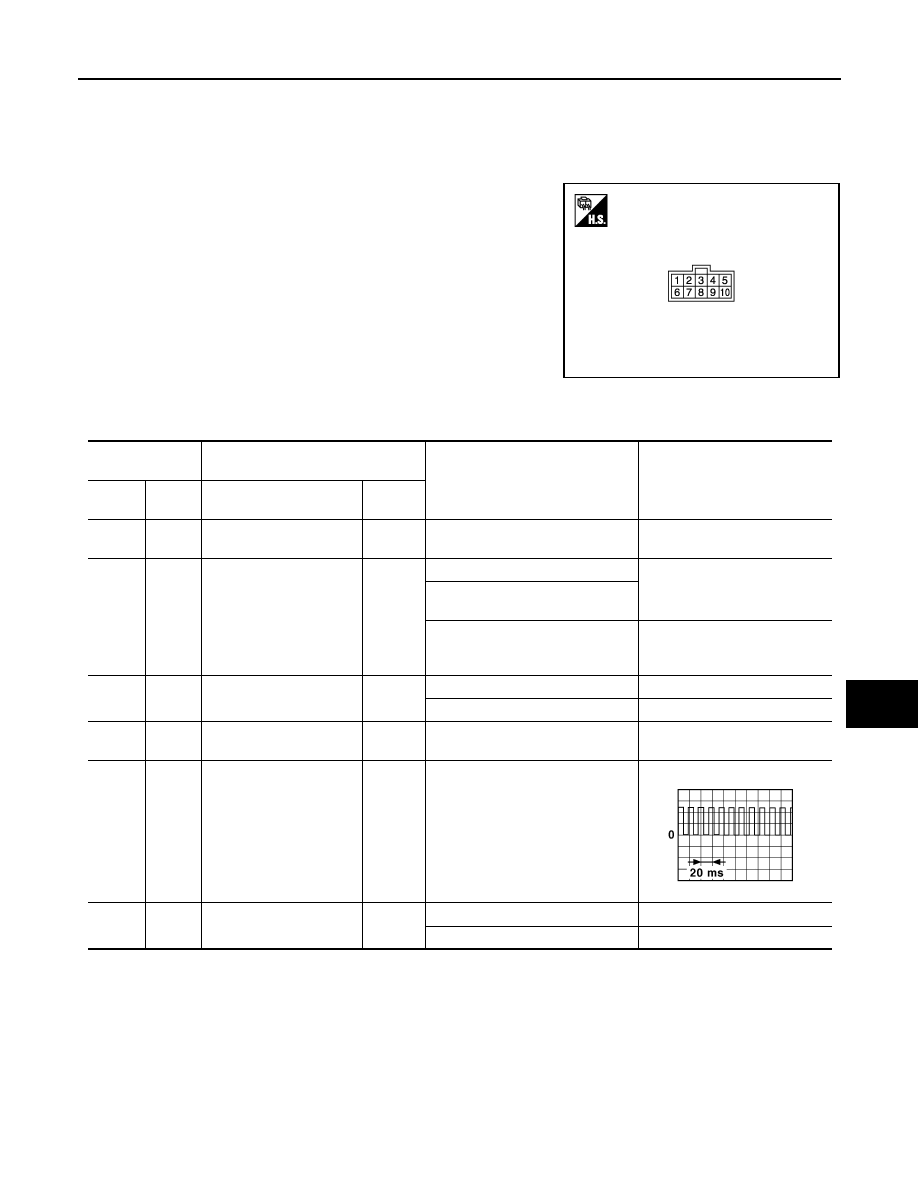

Reference Value

INFOID:0000000012196960

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground Ground

—

—

0

3

(L)

Ground Retained power signal

Input

Ignition switch ON

Battery voltage

Within 45 second after ignition
switch is turned to OFF

When driver side or passenger side
door is opened during retained pow-
er operation

0

5

(Y)

Ground Sunroof open signal

Input

Sunroof switch: Open

0

Ignition switch ON

Battery voltage

6

(P)

Ground Sunroof power supply

Input

—

Battery voltage

8

(V)

Ground

Vehicle speed signal (8-
pulse)

Input

Speedometer operated [When vehi-
cle speed is approx.40km/ h
(25MPH)]

10

(G)

Ground Sunroof close signal

Input

Sunroof switch: Close

0

Ignition switch ON

Battery voltage

JSNIA0012GB

RF-12

< WIRING DIAGRAM >

SUNROOF MOTOR ASSEMBLY

WIRING DIAGRAM

SUNROOF MOTOR ASSEMBLY

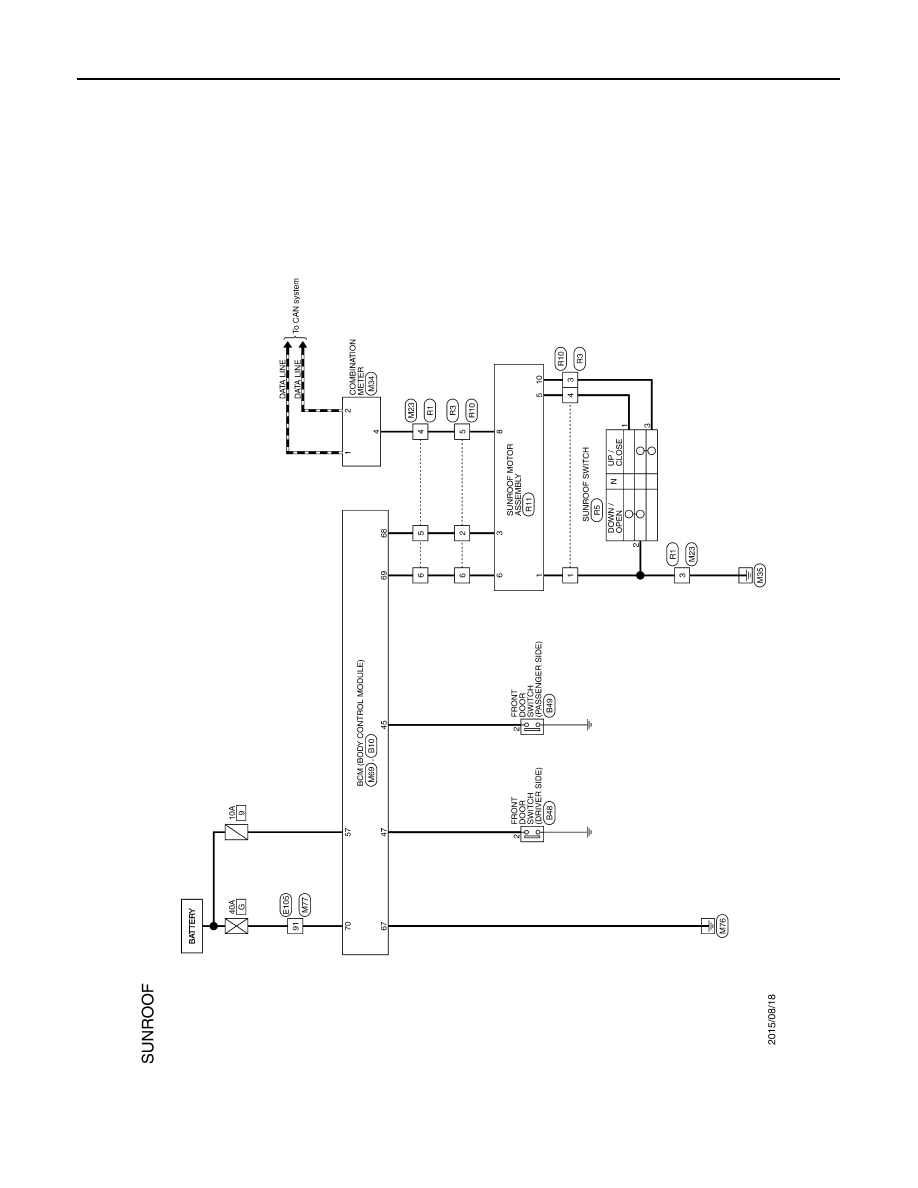

Wiring Diagram

INFOID:0000000012196961

JRKWF4437GB

SUNROOF MOTOR ASSEMBLY

RF-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

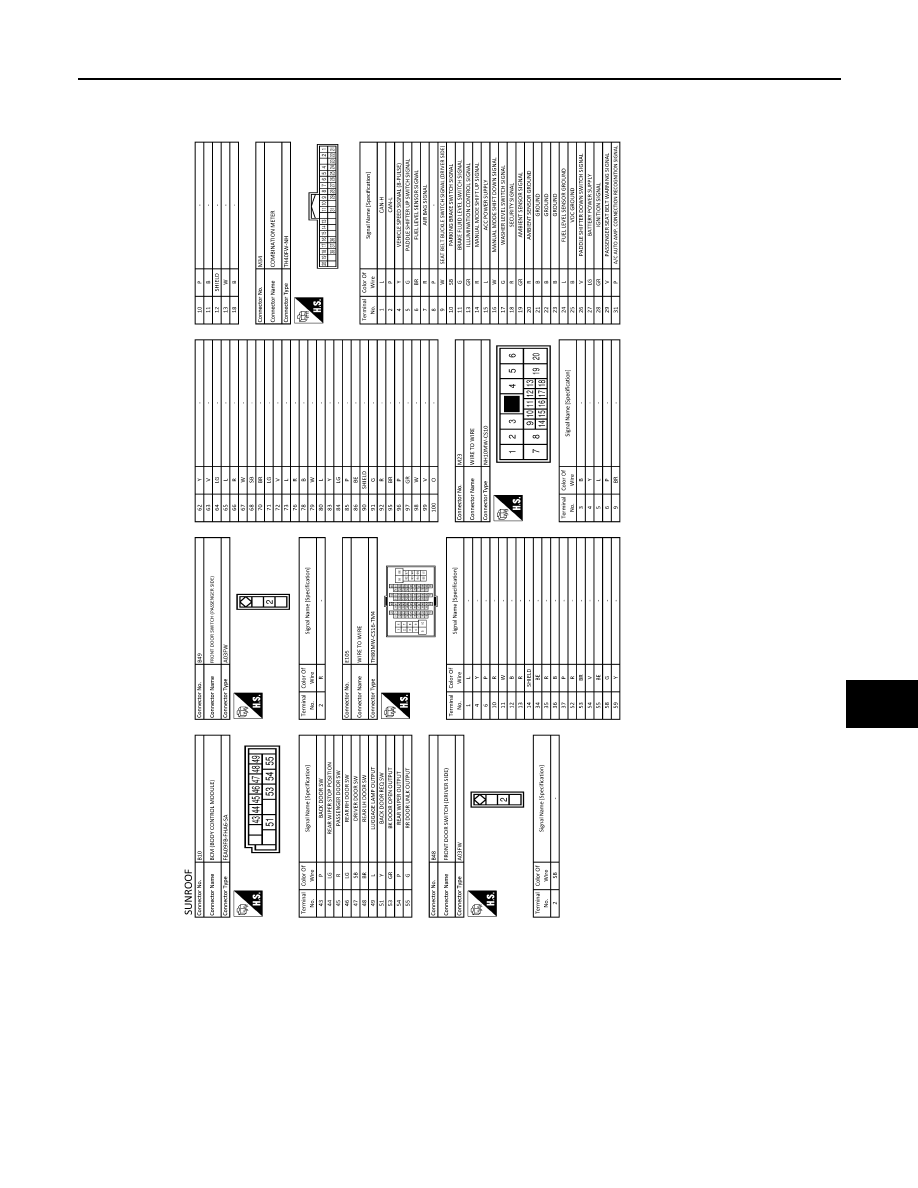

JRKWF4438GB
