RF-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

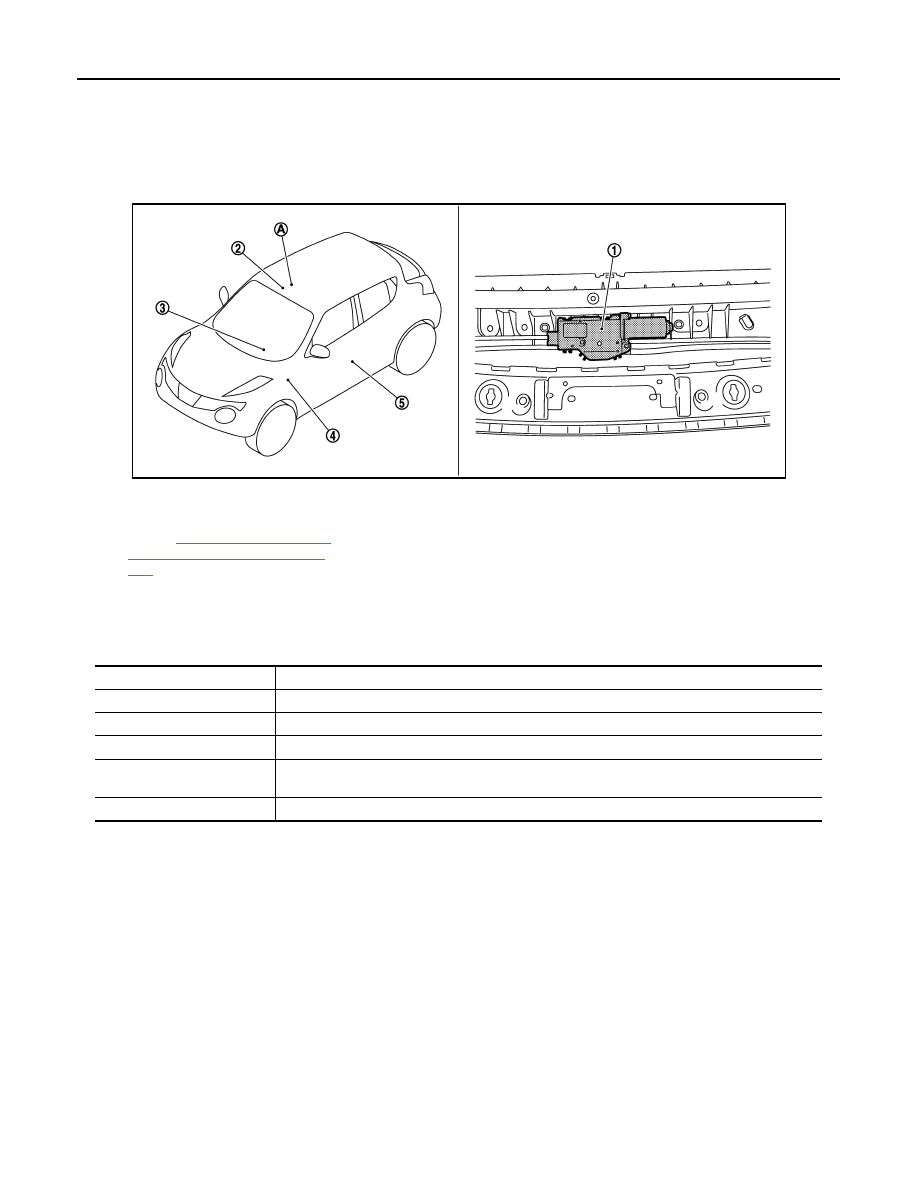

Component Parts Location

INFOID:0000000012196955

Component Description

INFOID:0000000012196956

JMKIA5998ZZ

1.

Sunroof motor assembly

2.

Sunroof switch

3.

Combination meter

4.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

5.

Front door switch

A.

View with headlining removed

Component

Function

BCM

Supplies the power supply to sunroof motor assembly.

Combination meter

Transmits vehicle speed signal to sunroof motor assembly.

Front door switch

Detects door open/close condition and transmits to BCM.

Sunroof motor assembly

It is sunroof motor and CPU integrated type that enables tilt up/down & slide open/close by sun-
roof switch operation.

Sunroof switch

Transmits tilt up/down & slides open/close operation signal to sunroof motor assembly.

SYSTEM

RF-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYSTEM

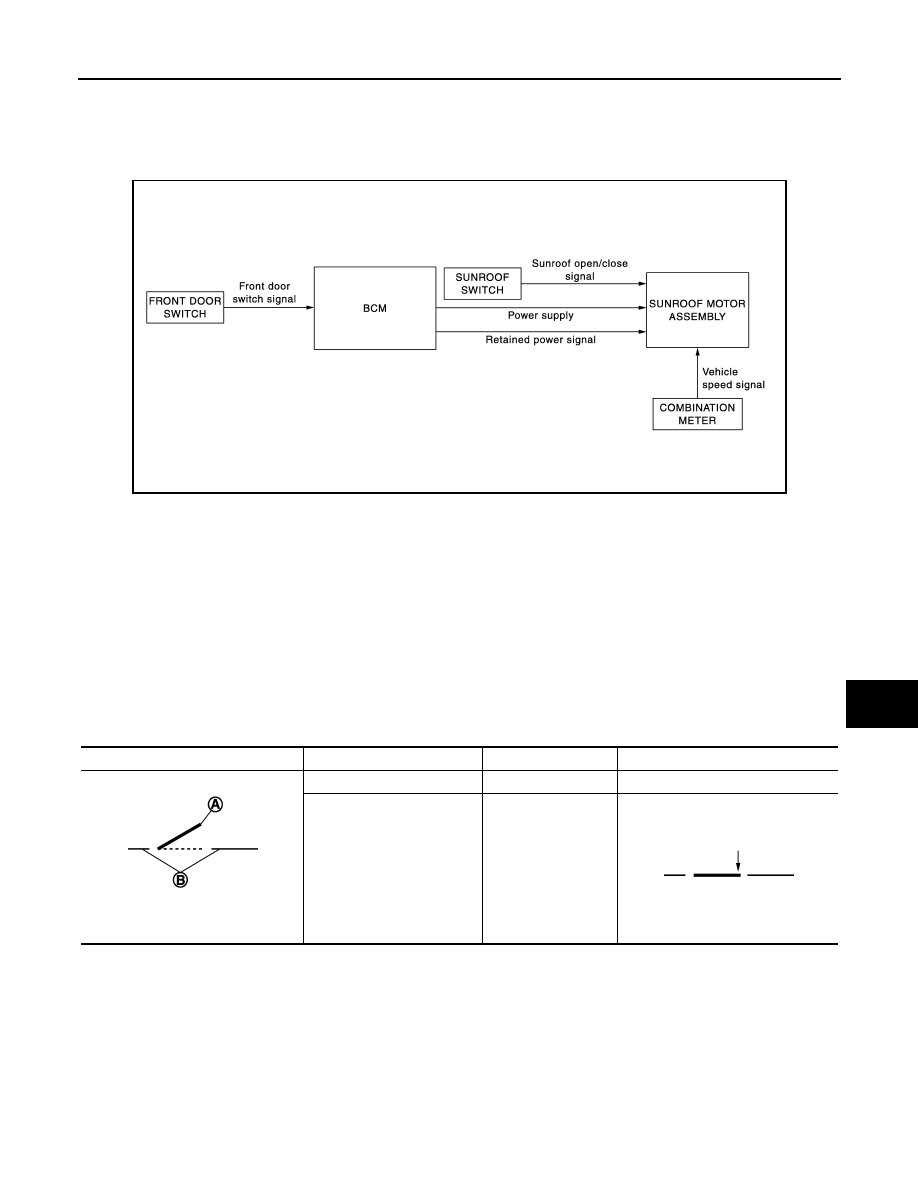

System Diagram

INFOID:0000000012196957

SUNROOF

System Description

INFOID:0000000012196958

SUNROOF SYSTEM

• Sunroof motor assembly operates with the power supply that is output from BCM while ignition switch is ON

or retained power is operating.

• Tilt up/down & slide open/close signals from sunroof switch enables operate sunroof motor to move arbi-

trarily.

• Sunroof motor assembly receives a vehicle speed signal from combination meter and controls the sunroof

motor operation.

OPERATION DESCRIPTION

The sunroof operate to the following condition by the sunroof switch operation.

JMKIA5324GB

Sunroof position before operation

Switch operation

Sunroof action

Sunroof position after operation

Tilt up

A: Glass lid
B: Roof panel

Close

Not action

—

Open

Close

Fully-closed

JMKIA5777ZZ

JMKIA5869ZZ

RF-8

< SYSTEM DESCRIPTION >

SYSTEM

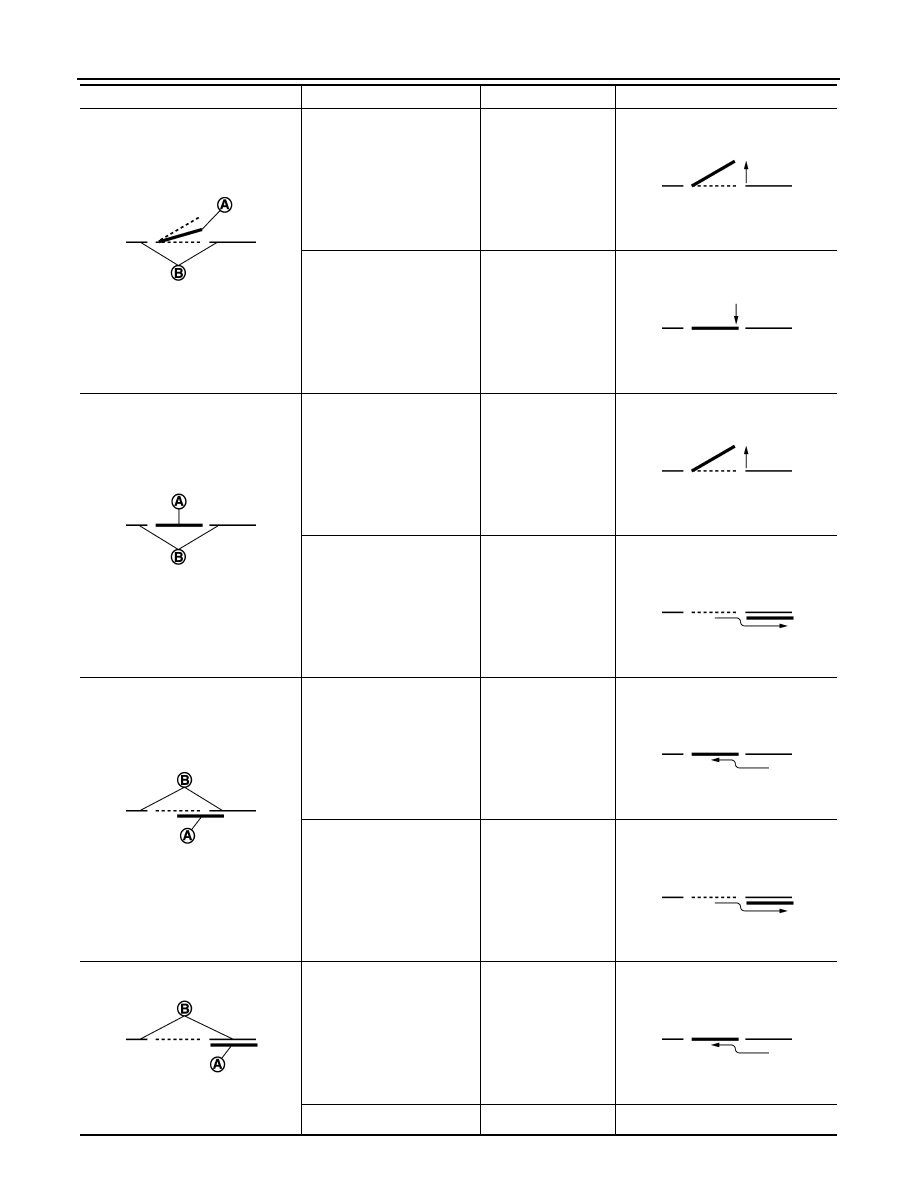

Tilt halfway-open

A: Glass lid
B: Roof panel

Close

Tilt up

Tilt up

Open

Close

Fully-closed

Fully-closed

A: Glass lid
B: Roof panel

Close

Tilt up

Tilt up

Open

Open

Fully-open

Halfway-open

A: Glass lid
B: Roof panel

Close

Close

Fully-closed

Open

Open

Fully-open

Fully-open

A: Glass lid
B: Roof panel

Close

Close

Fully-closed

Open

Not action

—

Sunroof position before operation

Switch operation

Sunroof action

Sunroof position after operation

JMKIA5778ZZ

JMKIA5870ZZ

JMKIA5869ZZ

JMKIA5779ZZ

JMKIA5870ZZ

JMKIA5871ZZ

JMKIA5780ZZ

JMKIA5872ZZ

JMKIA5871ZZ

JMKIA5781ZZ

JMKIA5872ZZ

SYSTEM

RF-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

AUTO OPERATION

Sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the sunroof with-

out holding the sunroof switch in the slide open/tilt down or slide close/tilt up position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables sunroof system to operate dur-

ing 45 seconds even when ignition switch is turned OFF.

RETAINED POWER FUNCTION CANCEL CONDITIONS

• Front door CLOSE (door switch OFF)

→OPEN (door switch ON).

• When ignition switch is ON again.

• When timer time passes. (45 seconds)

ANTI-PINCH FUNCTION

The CPU of sunroof motor assembly monitors the sunroof motor operation and the sunroof position (fully-

closed or other) by the signals from sunroof motor.

When sunroof motor detects an interruption during the following slide close and tilt down operation, sunroof

switch controls the motor for open and the sunroof will operate until full up position (when tilt down operate) or

150 mm (5.91 in) or more in an open direction (when slide close operate).
