< PRECAUTION >

[IPDM E/R]

PRECAUTIONS

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with

a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery or batteries, and wait at least 3 minutes before performing any service.

PCS

COMPONENT PARTS

PCS-5

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000012197148

1.

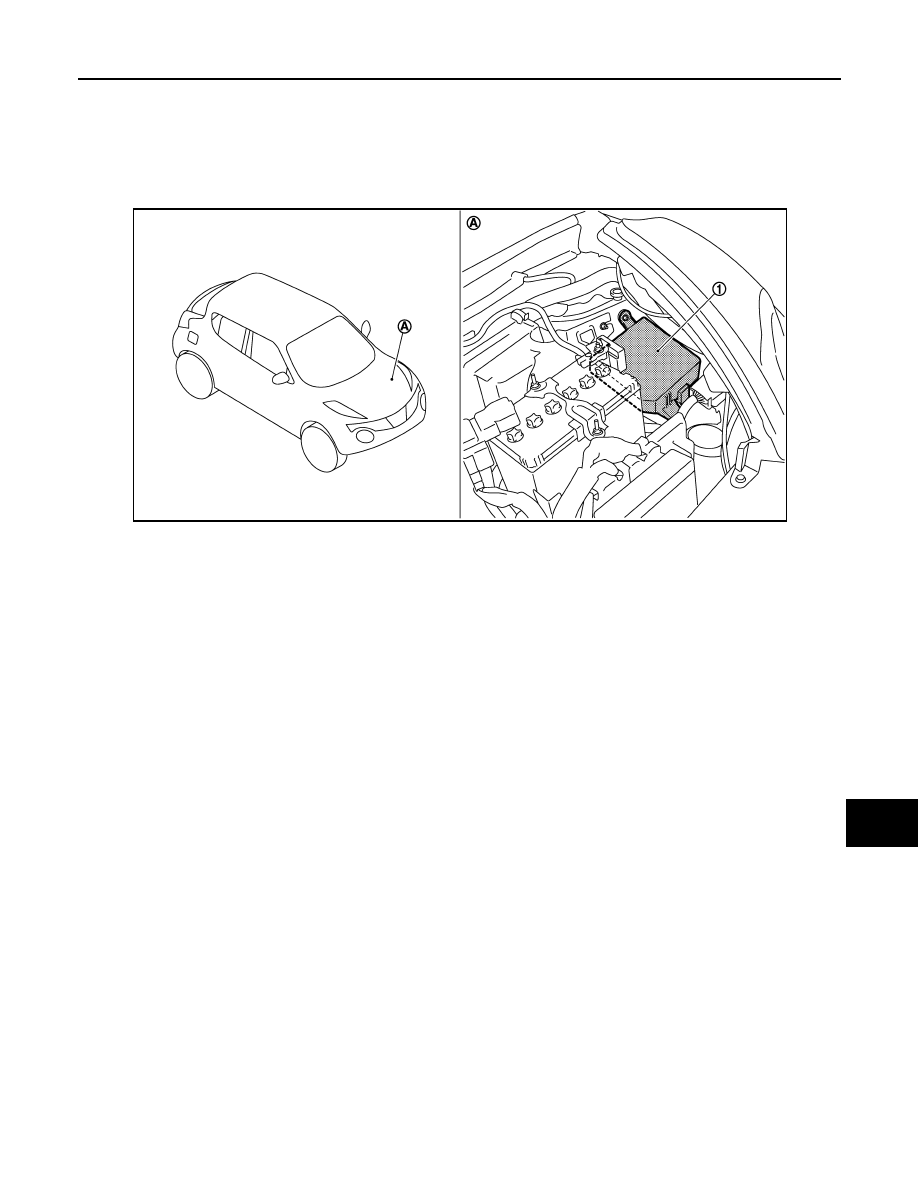

IPDM E/R

A. Engine room (LH)

JMMIA0462ZZ

PCS-6

< SYSTEM DESCRIPTION >

[IPDM E/R]

SYSTEM

SYSTEM

RELAY CONTROL SYSTEM

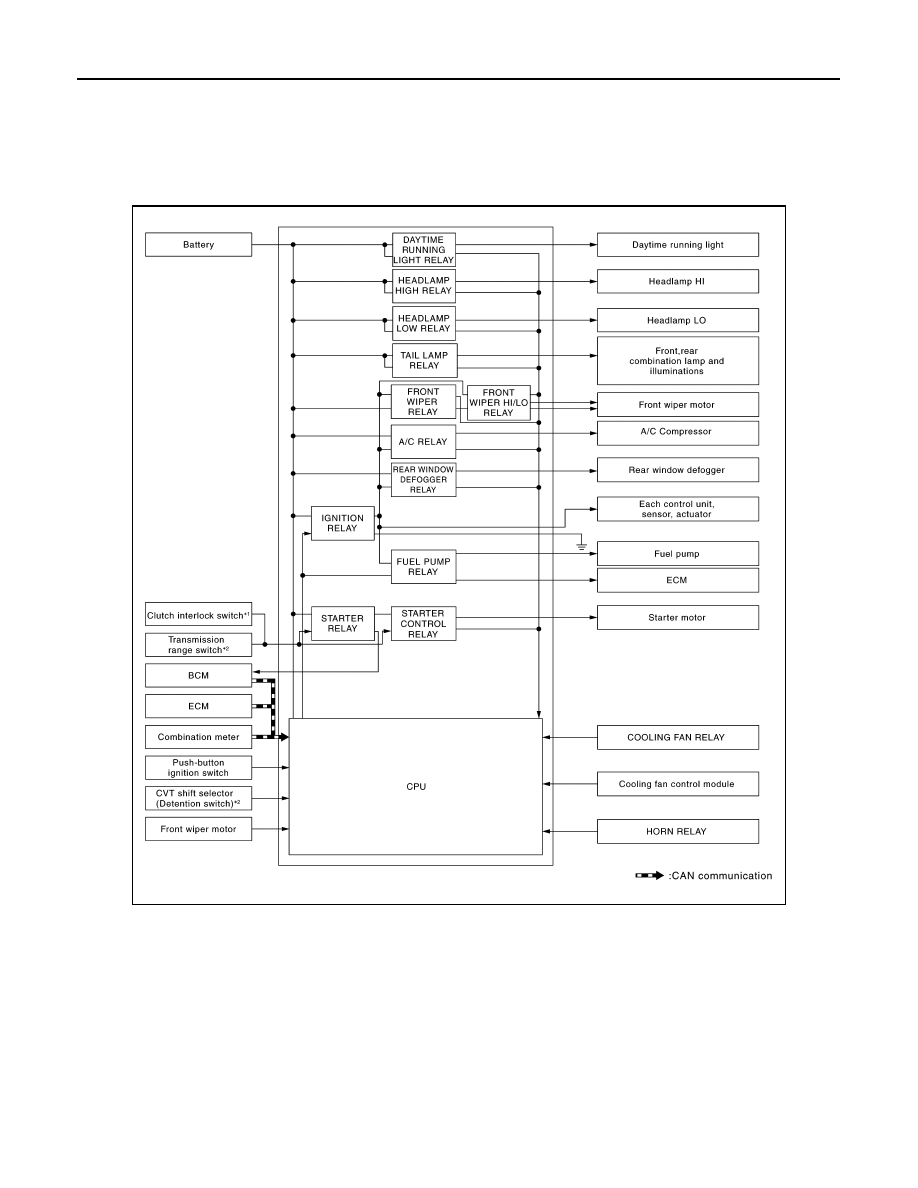

RELAY CONTROL SYSTEM : System Diagram

INFOID:0000000012197149

NISMO MODELS

*1: M/T models

*2: CVT models

JMMIA1412GB

PCS

SYSTEM

PCS-7

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

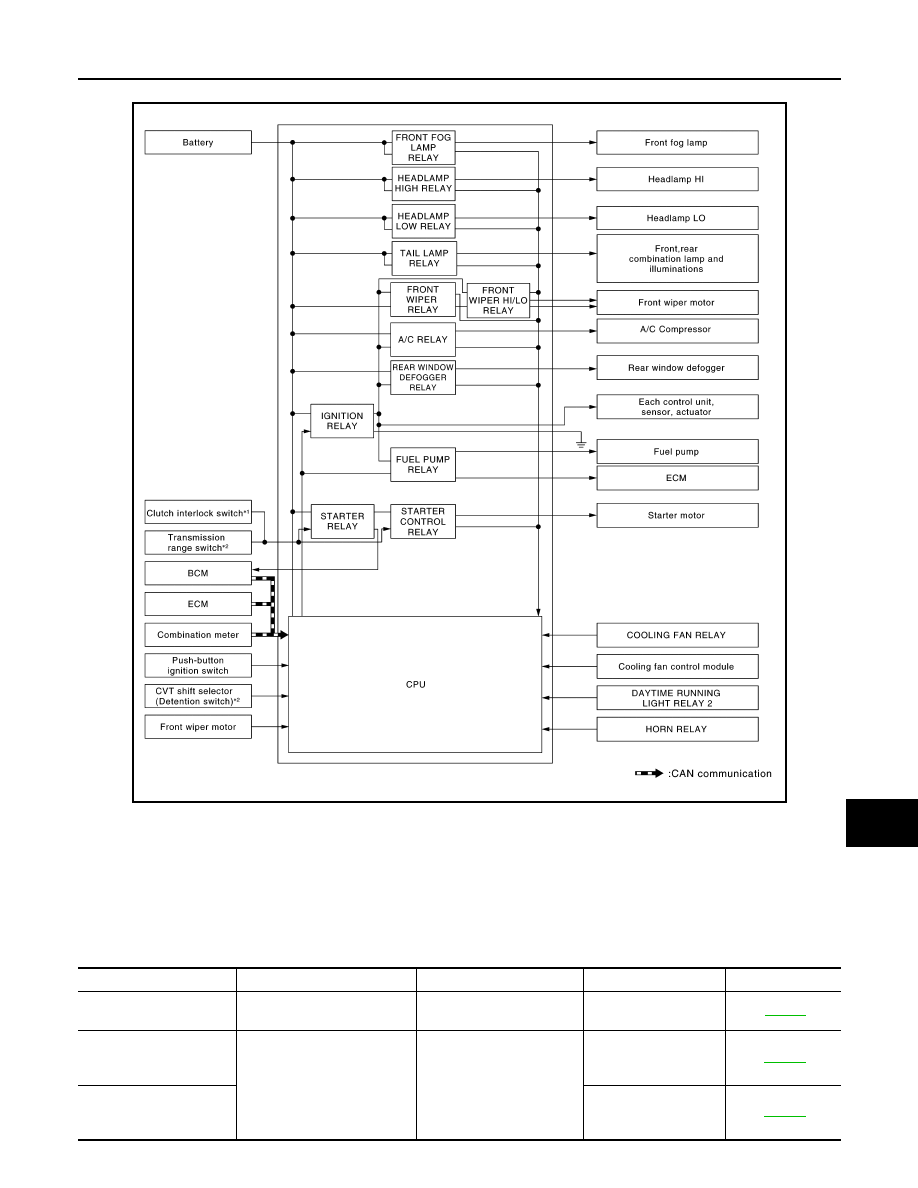

EXCEPT NISMO MODELS

*1: M/T models

*2: CVT models

RELAY CONTROL SYSTEM : System Description

INFOID:0000000012197150

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input sig-

nals from various sensors and the request signals received from control units via CAN communication.

CAUTION:

IPDM E/R integrated relays cannot be removed.

JMMIA1413GB

Control relay

Input/output

Transmit unit

Control part

Reference page

• Headlamp low relay
• Headlamp high relay

• Low beam request signal
• High beam request signal

BCM (CAN)

• Headlamp (LO)
• Headlamp (HI)

EXL-11

Front fog lamp relay
(Except for NISMO mod-
els)

Front fog light request signal

BCM (CAN)

Front fog lamp

EXL-17

Daytime running light re-
lay
(For NISMO models)

Daytime running light

EXL-14
