AV-214

< ECU DIAGNOSIS INFORMATION >

[INTEGRATED CONTROL SYSTEM]

MULTI DISPLAY UNIT

*: This is not used to determine ON/OFF of the indicator lamp.

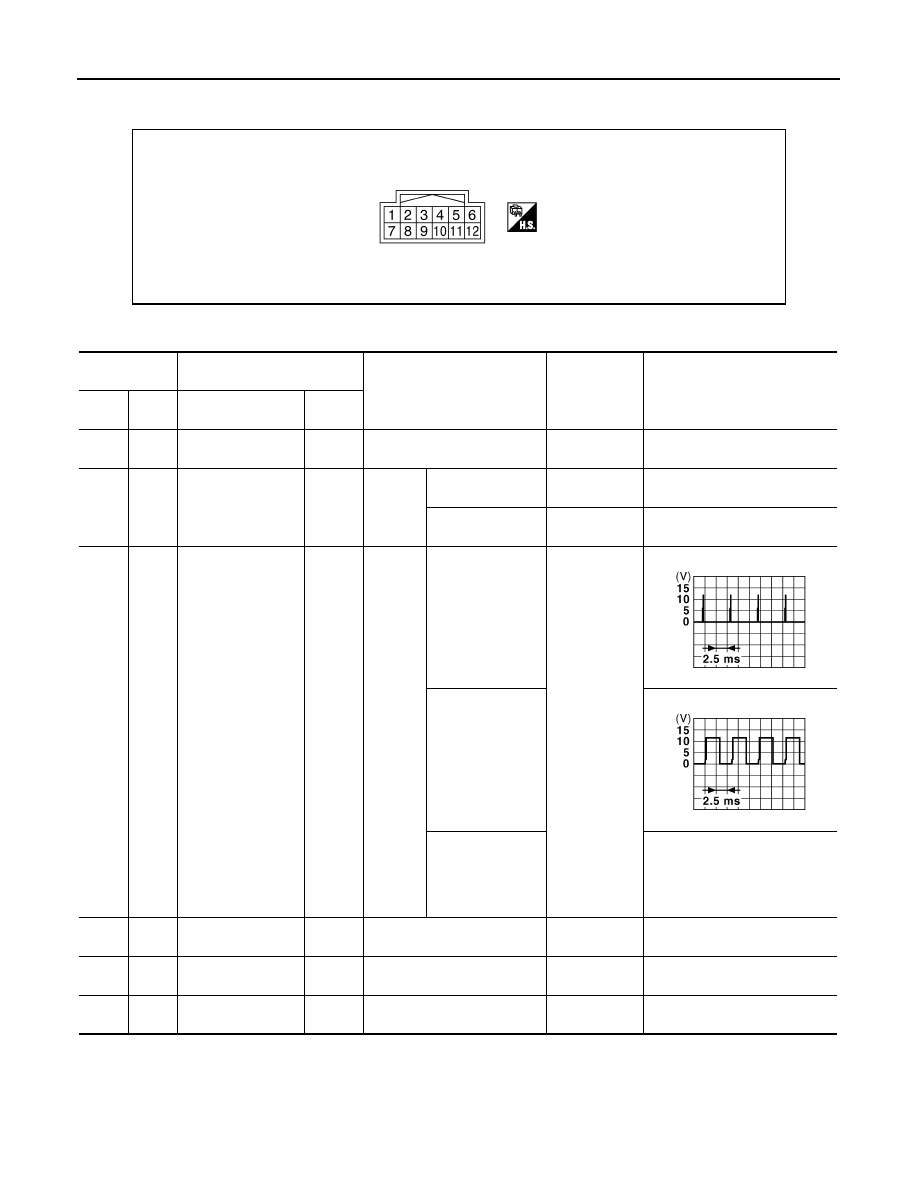

TERMINAL LAYOUT

PHYSICAL VALUES

DTC Inspection Priority Chart

INFOID:0000000012202619

When multiple DTCs are displayed simultaneously, check one by one according to the following priority list.

JSGIA0023ZZ

Terminal

(Wire color)

Description

Condition

Standard

Reference

value

(Approx.)

 +

−

Signal name

Input/

Output

1

(Y)

10 (B)

11 (B)

Battery power sup-
ply

Input

Ignition switch OFF

9 V – 16 V

Battery power supply

2

(V)

10 (B)

11 (B)

Illumination signal

Input

Ignition
switch
OFF

Lighting switch
1ST position.

9 V – 16 V

12 V

Lighting switch
OFF position.

0 V

0 V

5

(GR)

10 (B)

11 (B)

Illumination control
signal

Input

Ignition
switch
ON

• Lighting switch

1ST position.

• When illumina-

tion control level
is maximum.

0 V – 16 V

• Lighting switch

1ST position.

• When illumina-

tion control level
is midway.

• Lighting switch

1ST position.

• When meter illu-

mination is mini-
mum.

12 V

6

(L)

—

CAN  -H

—

—

—

—

7

(LG)

10 (B)

11 (B)

Ignition power sup-
ply

Input

Ignition switch ON

9 V – 16 V

Battery power supply

12

(P)

—

CAN  -L

—

—

—

—

JPNIA1687GB

JPNIA1686GB

AV

MULTI DISPLAY UNIT

AV-215

< ECU DIAGNOSIS INFORMATION >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000012202620

Priority

DTC inspection priority order item

1

• U1000 : CAN COMM CIRCUIT
• U1010 : CONTROL UNIT (CAN)

2

• U1402 : ENGINE SPEED SIGNAL
• U1405 : ENGINE TORQUE SIGNAL
• U1406 : BOOST PRESSURE INPUT
• U1412 : LONG ACC INPUT
• U1413 : TRANS ACC INPUT

DTC

CONSULT display

Refer to

U1000

CAN COMM CIRCUIT

AV-222, "Diagno-

sis Procedure"

U1010

CONTROL UNIT (CAN)

AV-223, "Diagno-

sis Procedure"

U1402

 ENGINE SPEED SIGNAL

AV-224, "Diagno-

sis Procedure"

U1405

ENGINE TORQUE SIGNAL

AV-225, "Diagno-

sis Procedure"

U1406

BOOST PRESSURE INPUT

AV-226, "Diagno-

sis Procedure"

U1412

LONG ACC INPUT

AV-227, "Diagno-

sis Procedure"

U1413

TRANS ACC INPUT

AV-228, "Diagno-

sis Procedure"

AV-216

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

INTEGRATED CONTROL SYSTEM

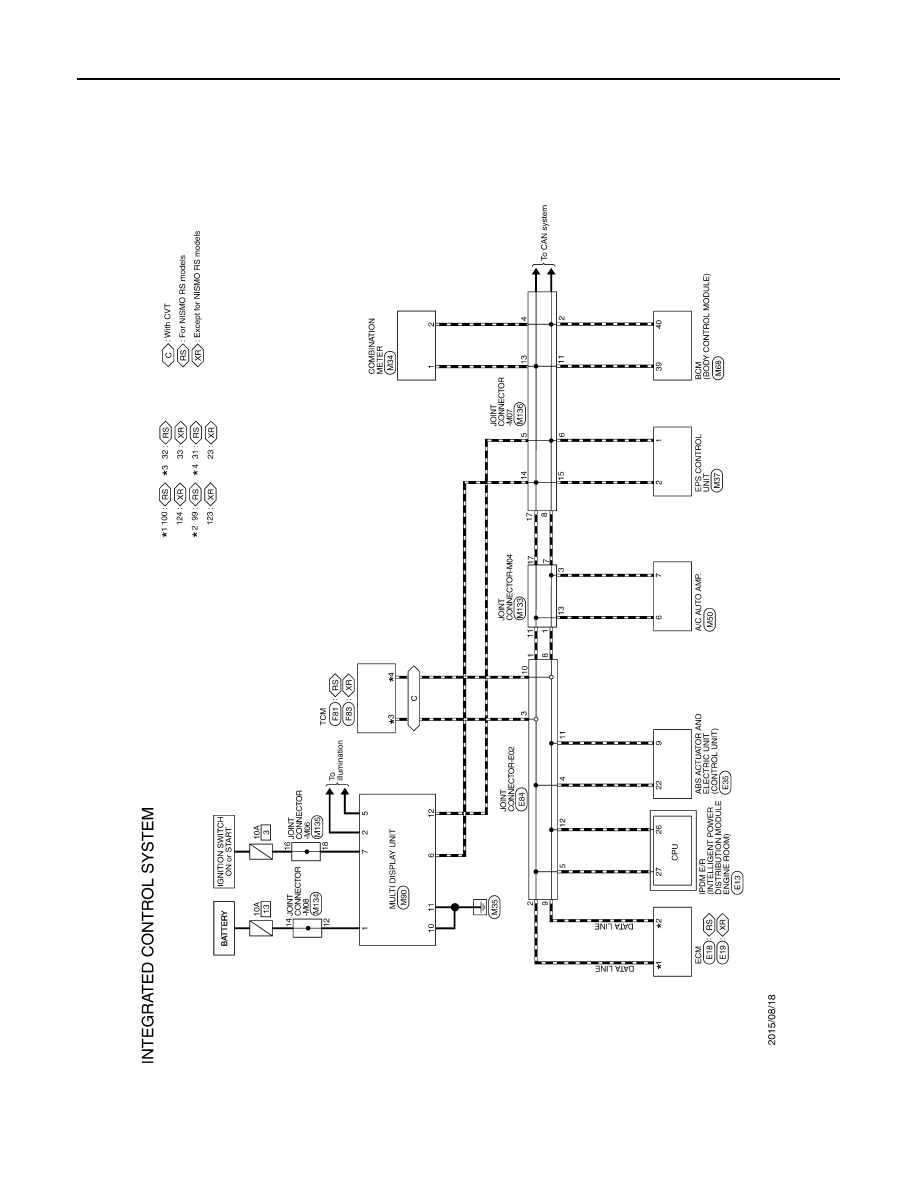

WIRING DIAGRAM

INTEGRATED CONTROL SYSTEM

Wiring Diagram

INFOID:0000000012202621

JRNWF0753GB

AV

INTEGRATED CONTROL SYSTEM

AV-217

< WIRING DIAGRAM >

[INTEGRATED CONTROL SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

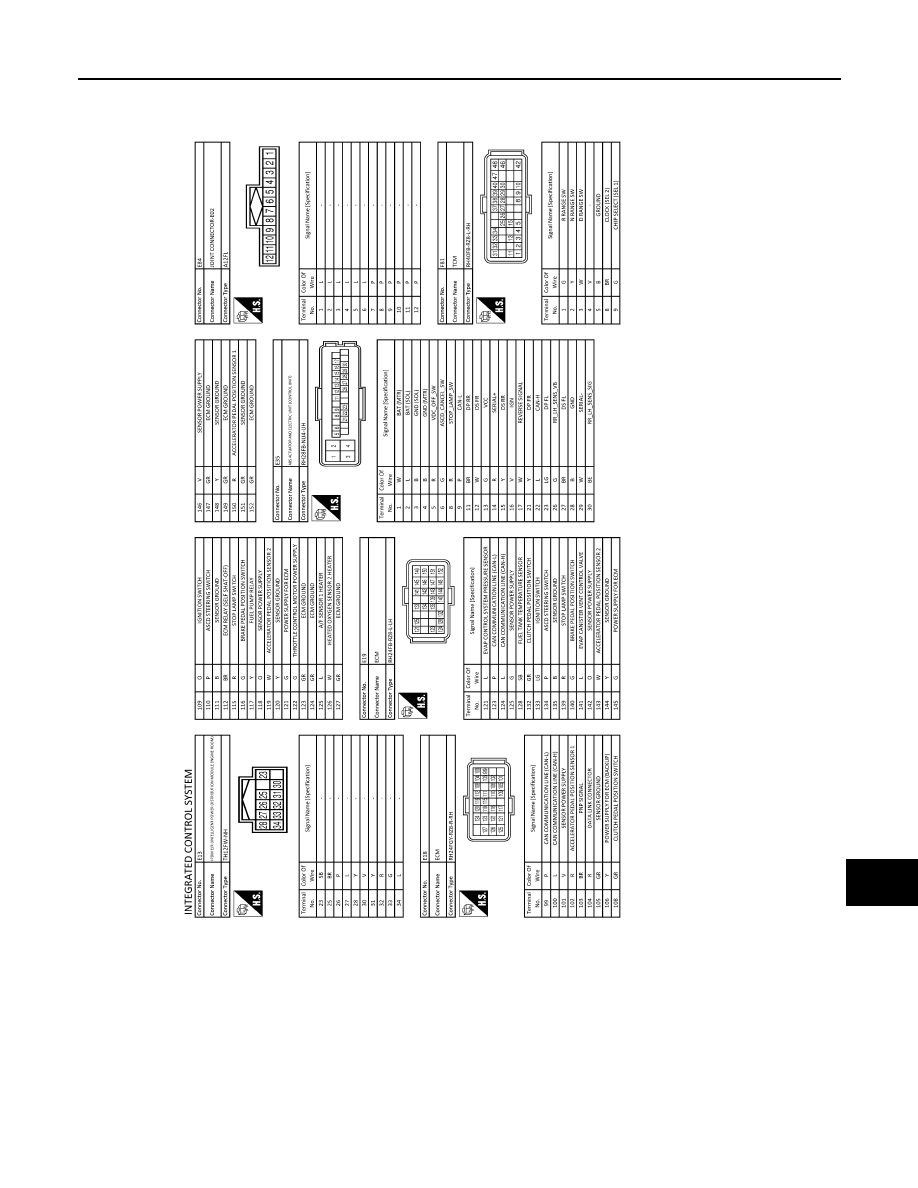

JRNWF0754GB
