Operation & Maintenance Manual──LG956L Wheel Loader


z  After dumping, use the bucket to level equipment (if assembled). Rear tilt bucket to level position,

and operate the working equipment control handle to allow the lift arm to lower to prepare for

next operation.

(5)  Pushing Operation

Level the bucket to the ground, and push the accelerator to

move forward. If there is blockage during moving, raise the

lift arm a little and move forward continuously. When

operating the lift arm to lift or lower, operate the control

lever between lifting and lowering operation. Never use the

lever at the raising or lowering position to ensure pushing the bucket smoothly.






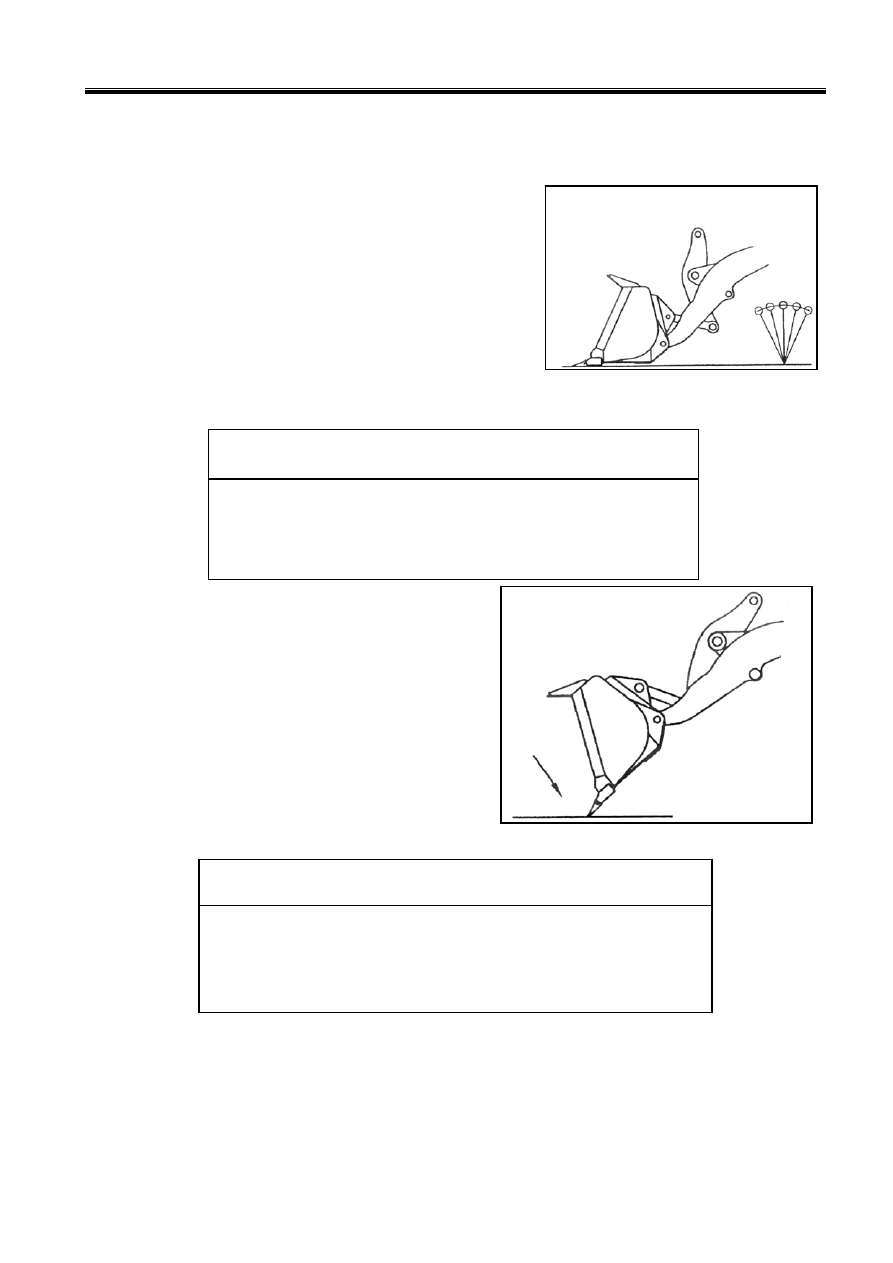

(6)  Striking Operation

Tilt the bucket to let the blade touch the ground.

For hard ground, put the lift arm control lever in the

float position; for soft ground, put the lift arm control

lever in the neutral position.

Use reverse gear to strike the ground with blade.


(7)  Towing Operation




Before towing, the tires must be blocked by the parking brake to

prevent the machine from rolling.

During towing, be careful to prevent severe and fatal injury.

z  If possible, the engine of the towed machine should keep the engine running to ensure braking

and turning is possible.

z  If the towed machine engine can not start, disassemble the front and rear transmission axle. If the

machine can not turn, disassemble the steering cylinder.

z  The connection hole of the rear frame at the inner side of the rear wheel can only be used for





Watch the torque converter oil temperature gauge all the time

during a pushing operation. If the temperature is too high, stop

the machine to let it cool down and then continue to work.

Operation & Maintenance Manual──LG956L Wheel Loader


lifting and binding, but not for towing.

z  If there is no braking system for the towed machine, never use soft towing but use fixed towing

or use towing bar. Connect the towing bar to the towing pin at the back of the loader.

z  If there is no braking system on the towed machine, no one is allowed to stay on it.
z  Check whether the towing rope and towing pin are strong enough to suffer the weight of the

towed machine. If machine will pass over clay ground or go up a slope, two towing ropes and

towing pins should suffer at least 1.5 times the weight of the towed machine.

z  Try to decrease the towing angle of the towing rope to ensure that the angle between the towing

rope and the towed machine is within 30°. The height of the towing points of the two machines

should be close.

z  The connection between the towing equipment and the machine should be strong.
z  The weight of the towing machine should be heavier than the towed one, and have enough

traction power and braking power to be able to pull or brake two vehicles going up and down a


z  When towing the machine down a slope, the machine should have sufficient traction power and

braking power. Another towing machine should be used to pull at the back side to prevent the

towed machine from losing control or turning over.

z  Start to tow and brake gently, at the low speed, and turn on the warning flash lamp.
z  The speed for towing the loader should be within 10 km/h. Try to tow the machine to the nearest

repairing garage. If the distance is longer than 10 km or the towing speed faster than 10 km/h, the

front and rear transmission axle must be disassembled or put the loader on towing truck for



3.5.3 Operation in Cold Weather

Attention for cold weather

If the temperature is very low, the engine will be difficult to start. And the radiator may be frozen, so

please do as follows:

z  Use fuel with low viscosity, and add antifreeze into the hydraulic oil and lubricant and coolant.

Refer to

CHAPTER IV 2.2.1 Selection Table of Fuel, Coolant and Lubricant

, for

the details of using oil.

z  Attentions for using antifreeze:

1.  Do not use antifreeze containing formaldehyde, ethanol or propanol.

2.  Never use any waterproofing agent independently or together with antifreeze.

3.  Never use antifreeze with different trademarks together.

Operation & Maintenance Manual──LG956L Wheel Loader


4.  Replace antifreeze with the proper ratio according to the requirements. Please refer to

CHAPTER IV 2.1.2 Coolant





Keep away from fire when adding antifreeze.


z  Attentions for using the storage battery:

1.  If the temperature goes down, the capacity of the storage battery will go down too. If the

charging ratio of the storage battery is low, the electrolytes may be frozen. Please ensure the

charging ratio is near 100% and try to preserve heat, so that it is easy to start the next day.

2.  If the storage battery is frozen, never charge the battery or start the engine. Refer to

CHAPTER I 8.16 Maintenance of Storage Battery

, to disassemble the battery

and put it into a hothouse or warm water (NEVER let water enter the battery). Warm it to

15  slowly, otherwise

an explosion may occur.

3.  Please use an anti-alpine storage battery in an anti-alpine area.

z  Follow-up after every working day:

In order to prevent the materials from freezing on the machine which may affect it working the next

day, please do as follows:

1.  Completely clean the silt and water on the machine to prevent silt, water or snow entering the

sealed parts which may freeze or break the sealed parts.

2.  Park the machine on the dry and hard ground. If that is impossible, park the machine on a

wooden board, which can prevent the tires from freezing on the ground.

3.  The capacity of storage battery will obviously go down in cold weather. So cover it or move

the storage battery to a warm place, and install it the next day.

4.  When the temperature is below 0  and there is no antifreeze in coolant

 water, please open

the water drain valves located at the bottom of the water tank and the engine. Then drain all

the coolant water in the evaporators of the cooling system and the air-condition system (if

assembled) to prevent cold cracks. If antifreeze is added, please follow the rules on the

nameplate of the antifreeze.



After cold weather:

After the weather is warm, the relative parts should use the proper engine oil, fuel and hydraulic oil

that are appropriate for the temperature.

Operation & Maintenance Manual──LG956L Wheel Loader


3.6 Oil and Fuel Supply

3.6.1 Engine Oil Supply of Engine

 Oil Level Checking




An oil level check must be executed 15 minutes before engaging the

engine, or after stopping the engine.


z  Park the machine on level ground, and put the transmission lever in the neutral (“N”) position.

Pull the brake valve manual control handle or press the parking brake switch to brake, and put

blocks in front and back of tires.

z  Open the side door on the right side of the engine cover.

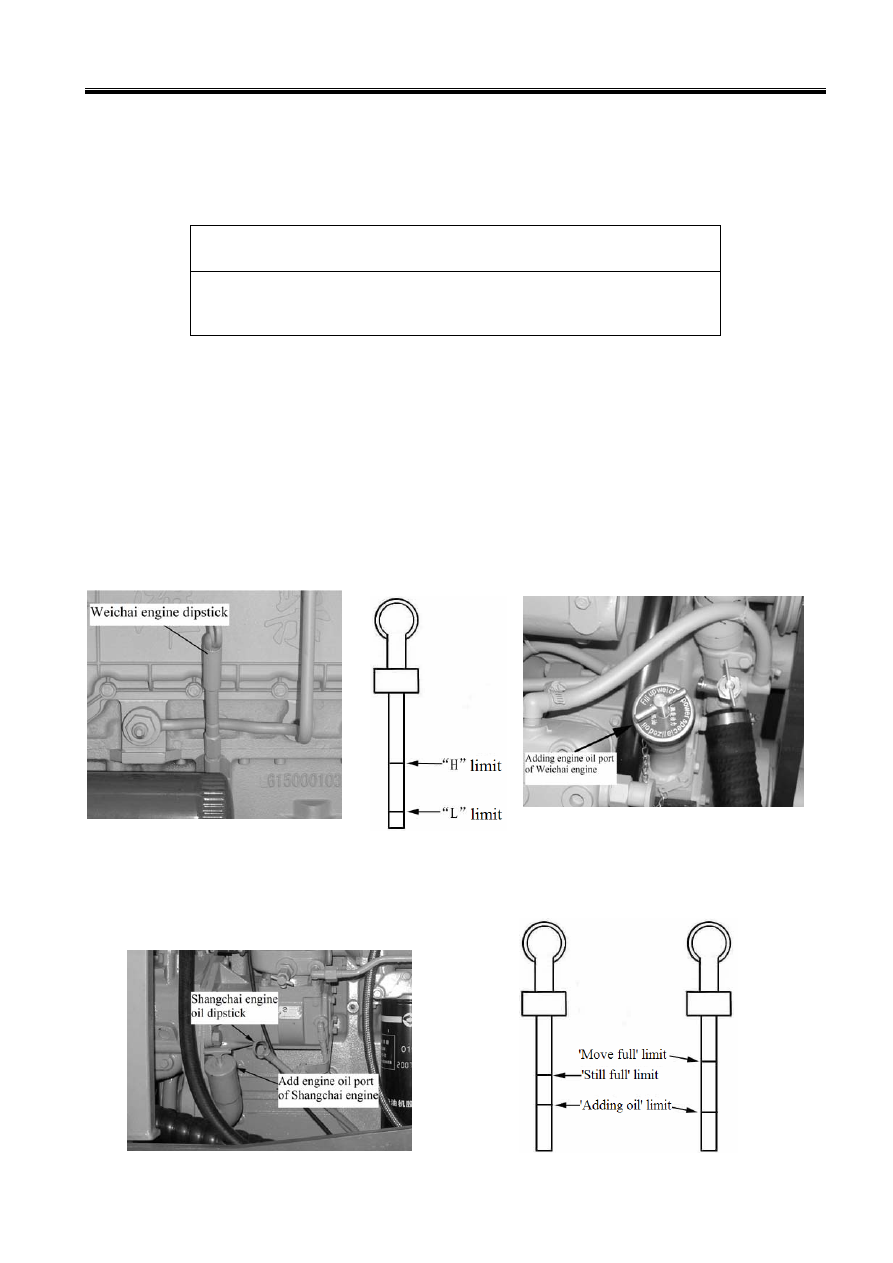

z  Pull the dipstick out, and wipe it clean with a cloth. Insert the dipstick back, and pull it out again

to check the oil level (at least twice).

„  Weichai WD10G220E13 engine: The oil level is normal if the oil level is between ‘H’ and

‘L’ limit; If the level is lower than the ‘L’ limit, oil should be added by the oil adding port.


„  Shangchai C6121ZG50B engine: The oil level is normal if the oil level is between ‘Still

full’ and ‘Adding oil’ limit at the still side of the dipstick; If the level is lower than the

‘Adding oil’ limit, oil should be added by the oil adding port.
