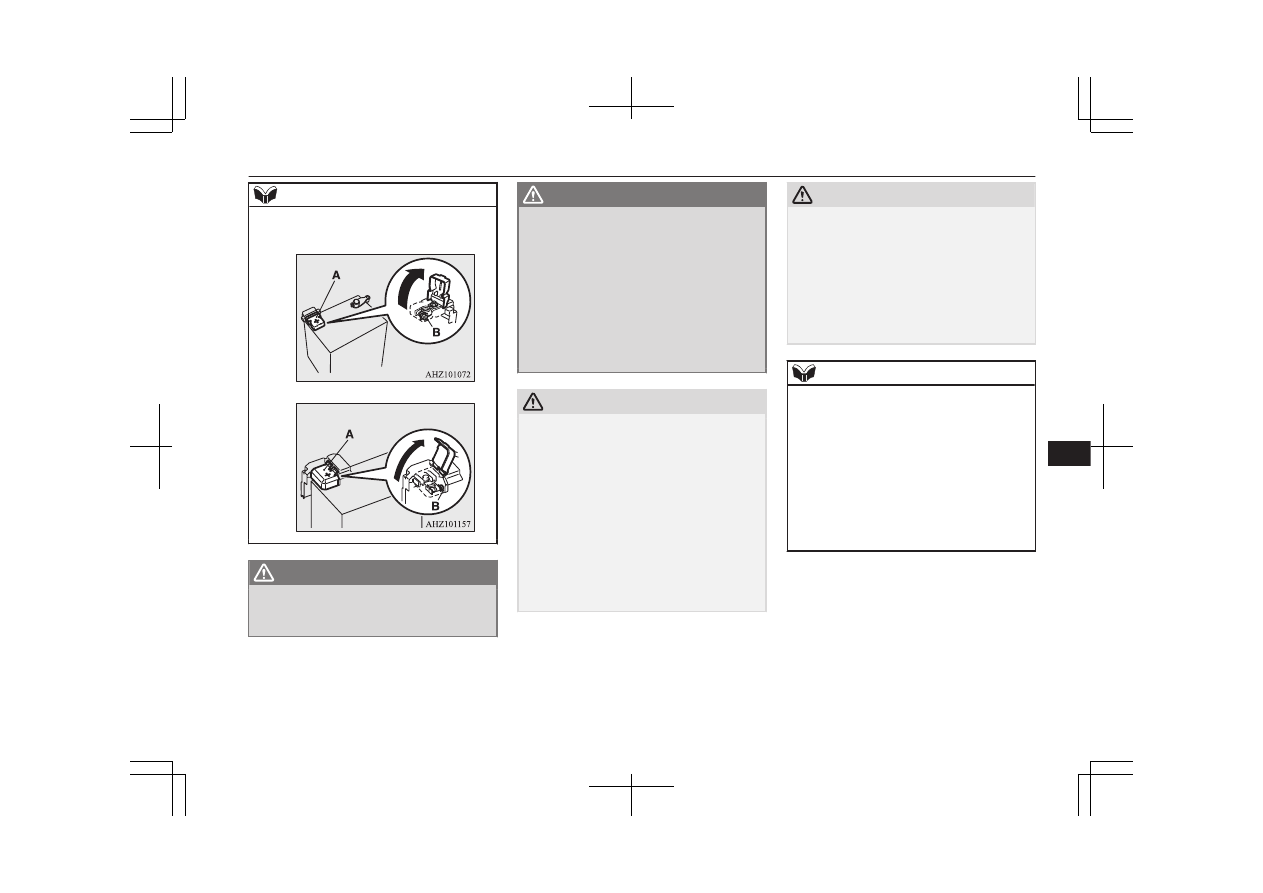

NOTE

Loosen the nut (B), and then disconnect the
battery cable from the positive (+) terminal.

Type 1

Type 2

WARNING

Keep sparks, cigarettes, and flames away
from the battery because the battery
could explode.

WARNING

The battery electrolyte is extremely caus-
tic. Do not allow it to come in contact with
your  eyes,  skin,  clothing,  or  the  painted
surfaces  of  the  vehicle.  Spilt  electrolyte
should be flushed immediately with ample
amounts of water.
Irritation  to  eyes  or  skin  from  contact
with electrolyte requires immediate medi-
cal attention.

Ventilate when charging or using the bat-
tery in an enclosed space.

CAUTION

Keep it out of reach of children.

Never disconnect the battery when the igni-
tion switch or the operation mode is in the
“ON” position; doing so could damage the
vehicle’s electrical components.

Never short-circuit the battery. This could
cause it to overheat and be damaged.

If the battery is to be quick-charged, first
disconnect the battery cables.

In order to prevent a short circuit, be sure to
disconnect the negative (-) terminal first.

Always wear protective eye goggles when
working near the battery.

CAUTION

Do  not  bring  the  nearby  parts,  the  plastic
parts  and  so  on  into  contact  with  sulphuric
acid  (battery  electrolyte)  which  may  crack,
stain or discolour them.
If  they  are  in  contact,  wipe  off  with  soft
cloth,  chamois  or  the  like  and  an  aqueous
solution  of  neutral  detergent  then  immedi-
ately  rinse  the  affected  parts  with  plenty  of
water.

NOTE

Keep the terminals clean. After the battery is
connected, apply terminal protection grease.
To clean the terminals, use lukewarm water.

Check to see if the battery is securely instal-
led and cannot be moved during travel. Also
check each terminal for tightness.

When the vehicle is to be left unused for a
long period of time, remove the battery and
store it in a place where the battery fluid will
not freeze. The battery should be stored only
in a fully charged condition.

Battery

10-11

OKTE18E1

Maintenance

Tyres

E01001300239

WARNING

Driving with tyres that are worn, dam-
aged or improperly inflated can lead to a
loss of control or blow out of the tyres
which can result in a collision with serious
or fatal injury.

Tyre inflation pressures

E01001404049

Tyre size

UP TO 3 PASSENGERS

MAX. LOAD OR TRAILER TOWING

Front

Rear

Front

Rear

205R16C 110/108R 8PR

2.4 bar

(240 kPa)

{35 psi}

2.4 bar

(240 kPa)

{35 psi}

2.4 bar

(240 kPa)

{35 psi}

4.5 bar

(450 kPa)

{65 psi}

245/70R16 111S RF

2.0 bar

(200 kPa)

{29 psi}

2.0 bar

(200 kPa)

{29 psi}

2.0 bar

(200 kPa)

{29 psi}

2.9 bar

(290 kPa)

{42 psi}

245/65R17 111S RF

2.2 bar

(220 kPa)

{32 psi}

2.2 bar

(220 kPa)

{32 psi}

2.2 bar

(220 kPa)

{32 psi}

2.9 bar

(290 kPa)

{42 psi}

Check the tyre inflation pressure of all the tyres while they are cold; if insufficient or excessive, adjust to the specified value.
After the tyre inflation pressure has been adjusted, check the tyres for damage and air leaks. Be sure to put caps on the valves.

Tyres

10-12

OKTE18E1

Maintenance

Wheel condition

E01001802010

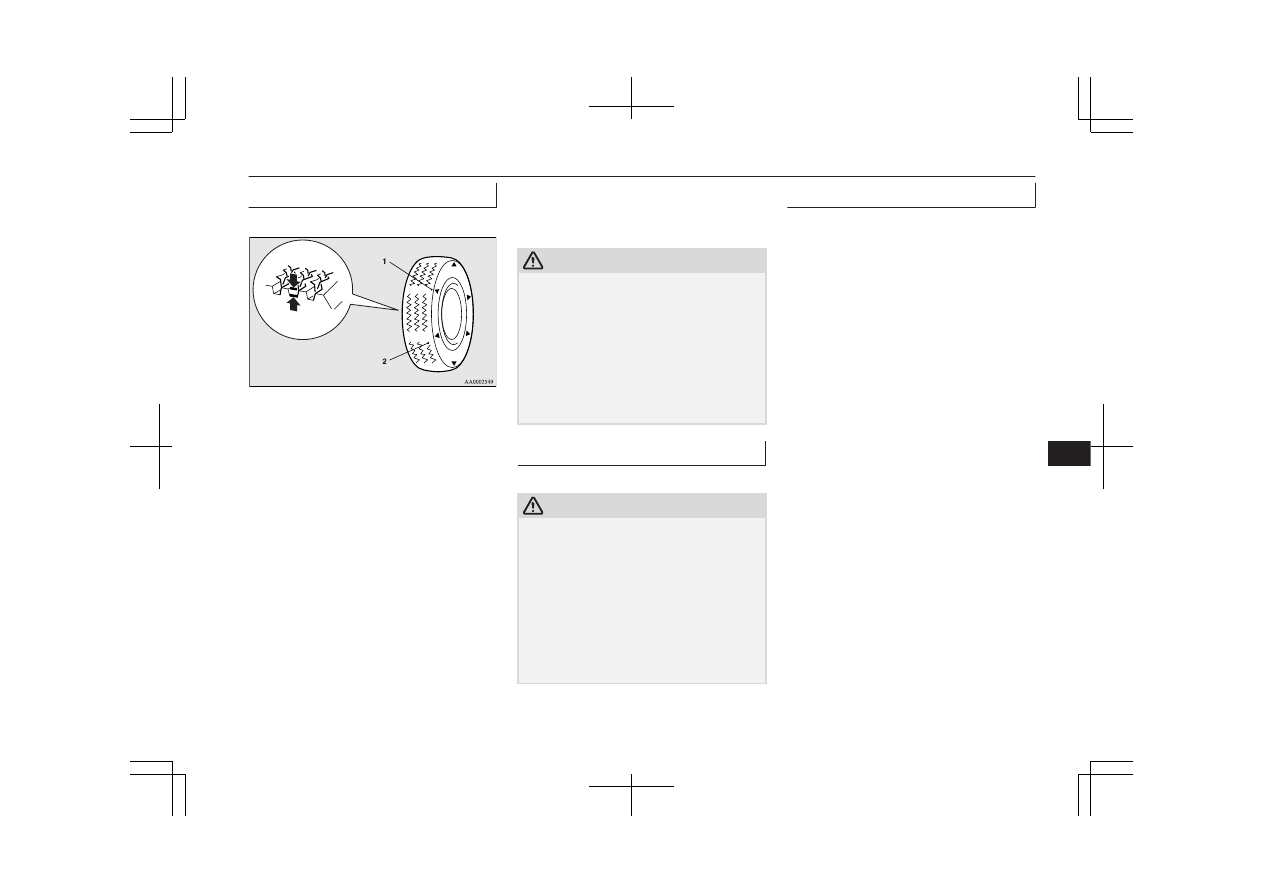

1- Location of the tread wear indicator
2- Tread wear indicator

Check  the  tyres  for  cuts,  cracks  and  other
damage.  Replace  the  tyres  if  there  are  deep
cuts  or  cracks.  Also  check  each  tyre  for
pieces of metal or pebbles.
The use of worn tyres can be very dangerous
because of the greater chance of skidding or
hydroplaning.  The  tread  depth  of  the  tyres
must exceed 1.6 mm in order for the tyres to
meet the minimum requirement for use.
Tread wear indicators will appear on the sur-
face of the tyre as the tyre wears, thereby in-
dicating  that  the  tyre  no  longer  meets  the
minimum  requirement  for  use.  When  these
wear indicators appear, the tyres must be re-
placed with new ones.

On 4-wheel drive vehicles, when replacement
of any of the tyres is necessary, replace all of
them.

CAUTION

Always  use  tyres  of  the  same  size,  same
type,  and  same  brand,  and  which  have  no
wear  differences.  Using  tyres  of  different
size, type, brands or degree of wear, will in-
crease the differential oil temperature, result-
ing  in  possible  damage  to  the  driving  sys-
tem.  Further,  the  drive  train  will  be  subjec-
ted to excessive loading, possibly leading to
oil leakage, component seizure, or other seri-
ous faults.

Replacing tyres and wheels

E01007200038

CAUTION

Avoid using different size tyres from the one
listed and the combined use of different
types of tyres, as this can affect driving safe-
ty.
Refer to “Tyres and wheels” on page
11-15.

Even  if  a  wheel  has  the  same  rim  size  and
offset  as  the  specified  type  of  wheel,  its
shape  may  prevent  it  from  being  fitted  cor-
rectly. We recommend you to consult a spe-
cialist before using wheels that you have.

Tyre rotation

E01001902688

Tyre  wear  varies  with  vehicle  conditions,
road  surface  conditions  and  individual  driv-
er’s driving habits. To equalize the wear and
help extend tyre life, it is recommended to ro-
tate  the  tyres  immediately  after  discovery  of
abnormal wear, or whenever the wear differ-
ence between the front and rear tyres is rec-
ognizable.

Tyres

10-13

OKTE18E1

Maintenance

When  rotating  tyres,  check  for  uneven  wear
and  damage.  Abnormal  wear  is  usually
caused  by  incorrect  tyre  pressure,  improper
wheel alignment, out of balance wheel, or se-
vere braking. We recommend you to have it
checked  to  determine  the  cause  of  irregular
tread wear.

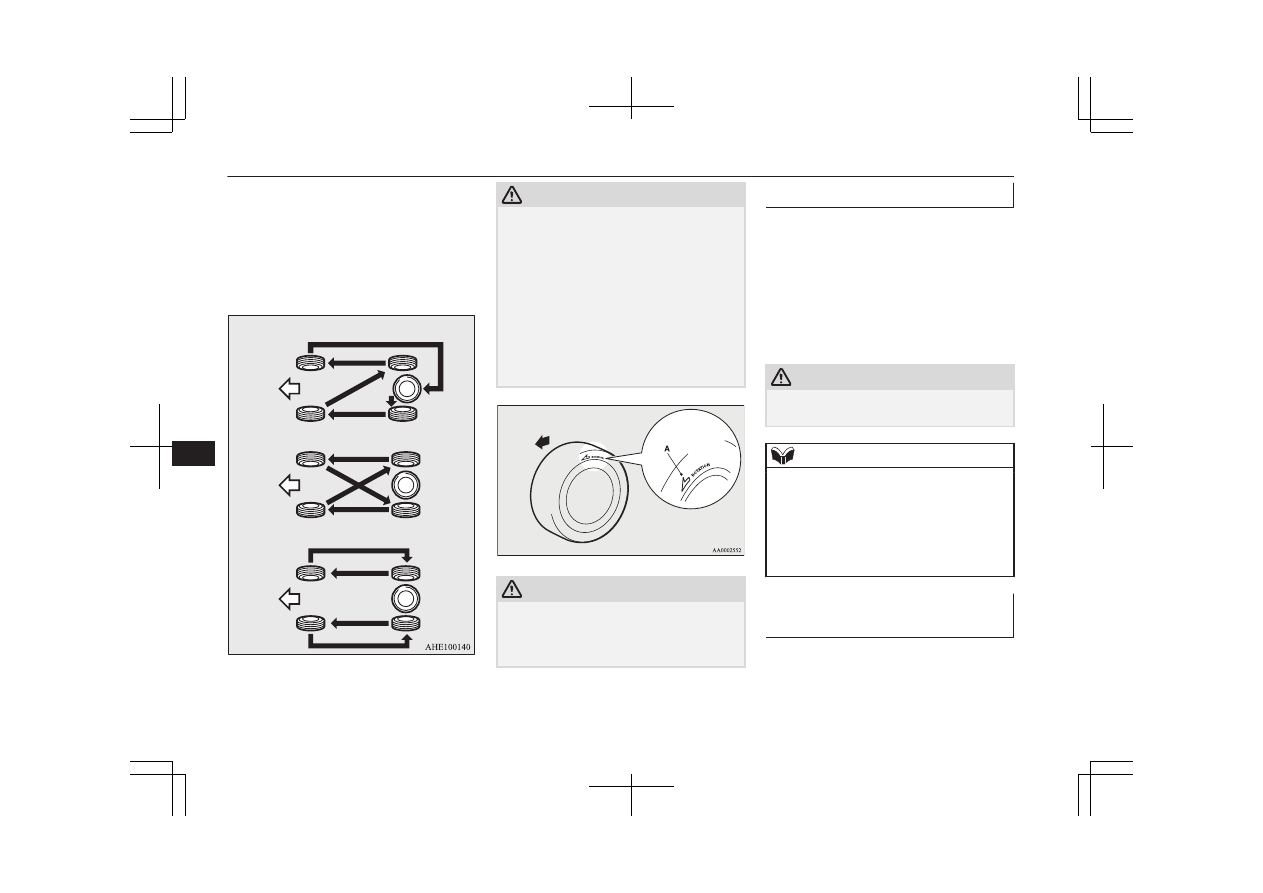

Spare tyre used

Front

Spare tyre not used

Front

Tyres that have arrows showing rotation
direction

Front

CAUTION

If  the  tyres  have  arrows  (A)  indicating  the
correct  direction  of  rotation,  swap  the  front
and rear tyres on the left-hand side of the ve-
hicle  and  the  front  and  rear  tyres  on  the
right-hand  side  of  the  vehicle  separately.
Keep each tyre on its original side of the ve-
hicle.  When  fitting  the  tyres,  make  sure  the
arrows  point  in  the  direction  in  which  the
wheels  will  turn  when  the  vehicle  moves
forward. Any tyre whose arrow points in the
wrong  direction  will  not  perform  to  its  full
potential.

Front

CAUTION

Avoid the combined use of different types of
tyres.
Using different types of tyres can affect ve-
hicle performance and safety.

Snow tyres

E01002002022

The  use  of  snow  tyres  is  recommended  for
driving on snow and ice. To preserve driving
stability,  mount  snow  tyres  of  the  same  size
and tread pattern on all 4 wheels.
A  snow  tyre  that  is  worn  down  more  than
50 % is no longer appropriate to use.
Snow tyres which do not meet specifications
must not be used.

CAUTION

Observe permissible maximum speed for
your snow tyres and the legal speed limit.

NOTE

The laws and regulations concerning snow
tyres (driving speed, required use, type, etc.)
vary. Find out and follow the laws and regu-
lations in the area you intend to drive.

If flange nuts are used on your vehicle,
change to tapered nuts when steel wheels are
used.

Snow traction device (Tyre

chains)

E01002103219

If snow traction device (tyre chains) have to
be used, ensure that they are fitted only on
the drive wheels (rear) in accordance with the
manufacturer’s instructions.

Tyres

10-14

OKTE18E1

Maintenance

On 4WD vehicles in which the driving power
is  distributed  preferentially  to  the  rear
wheels,  ensure  that  the  snow  traction  device
(Tyre chains) are fitted on the rear.
Use only snow traction device (Tyre chains)
which  are  designed  for  use  with  the  tyres
mounted  on  the  vehicle:  use  of  the  incorrect
size  or  type  of  snow  traction  device  (Tyre
chains) could result in damage to the vehicle
body.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  before  putting  on  a  snow
traction device (tyre chains). The max. snow
traction device (tyre chains) height is as fol-
lows.

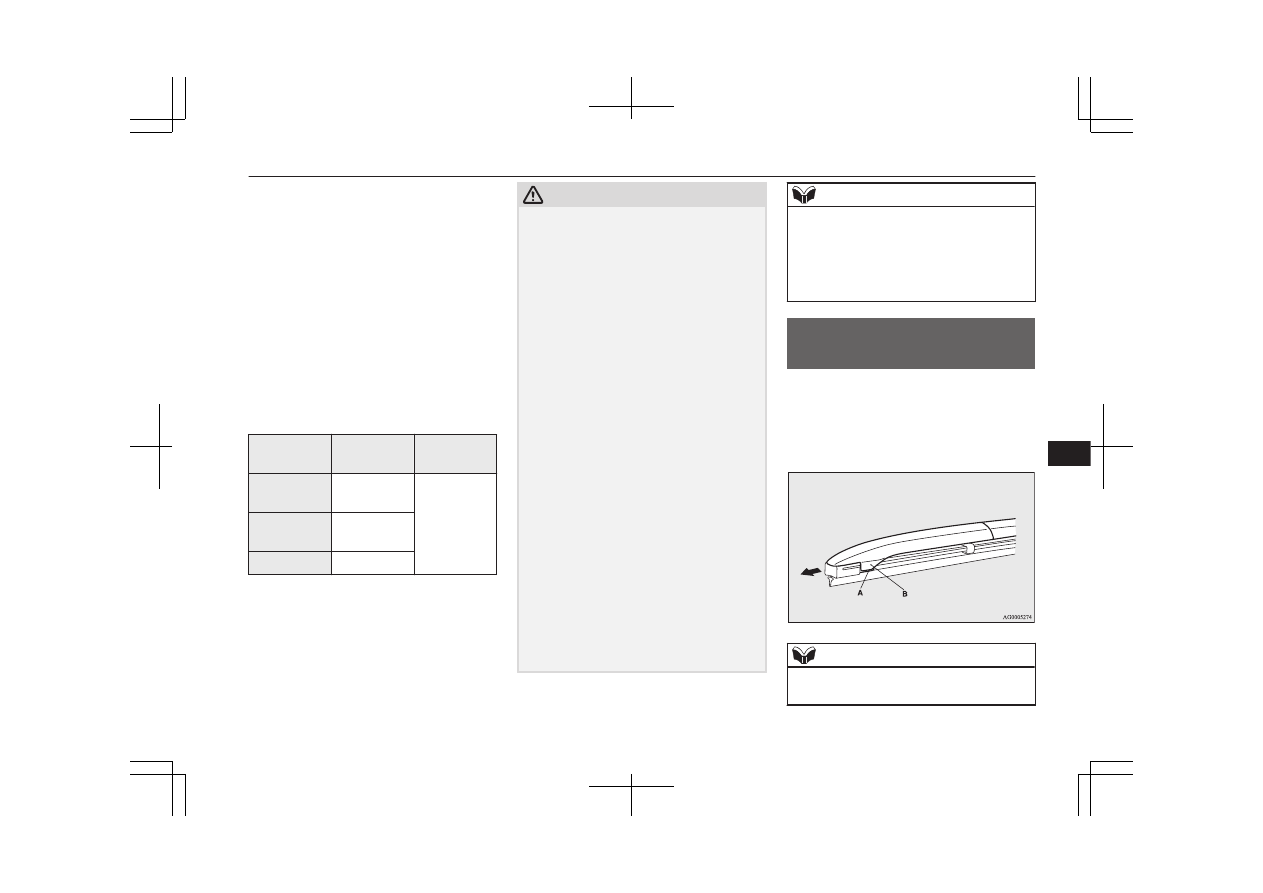

Tyre size

Wheel size

Max. chain

height [mm]

205R16C

16x6 J,

16x6 JJ

245/70R16

16x7 J,

16x7 JJ

245/65R17

17x7 1/2J

When driving with snow traction device (tyre
chains)  on  the  tyres,  do  not  drive  faster
than50  km/h  (30  mph).  When  you  reach
roads that are not covered in snow, immedi-
ately  remove  the  snow  traction  device  (tyre
chains).

CAUTION

Choose a clear straight stretch of road where
you can pull off and still be seen while you
are fitting the snow traction device (Tyre
chains).

Do not fit snow traction device (Tyre chains)
before you need them. This will wear out
your tyres and the road surface.

After driving around 100-300 metres, stop
and retighten the snow traction device (Tyre
chains).

Drive cautiously and do not exceed 50 km/h
(30 mph). Remember that preventing acci-
dents is not the purpose of snow traction de-
vice (tyre chains).

When snow traction device (Tyre chains) are
installed, take care that they do not damage
the disc wheel or body.

An  aluminium  wheel  can  be  damaged  by  a
snow  traction  device  (Tyre  chains)  while
driving. When fitting a snow traction device
(Tyre  chains)  on  an  aluminium  wheel,  take
care that any part of the snow traction device
(Tyre  chains)  and  fitting  cannot  be  brought
into contact with the wheel.

When installing or removing a snow traction
device (Tyre chains), take care that hands
and other parts of your body are not injured
by the sharp edges of the vehicle body.

Install the snow traction device (Tyre
chains) only on the rear tyres and tighten
them as tightly as possible with the ends se-
curely fastened.

NOTE

The laws and regulations concerning the use
of snow traction device (tyre chains) vary.
Always follow local laws and regulations.
In most countries, it is prohibited by the law
to use of snow traction device (tyre chains)
on roads without snow.

Wiper blade rubber
replacement

E01008201449

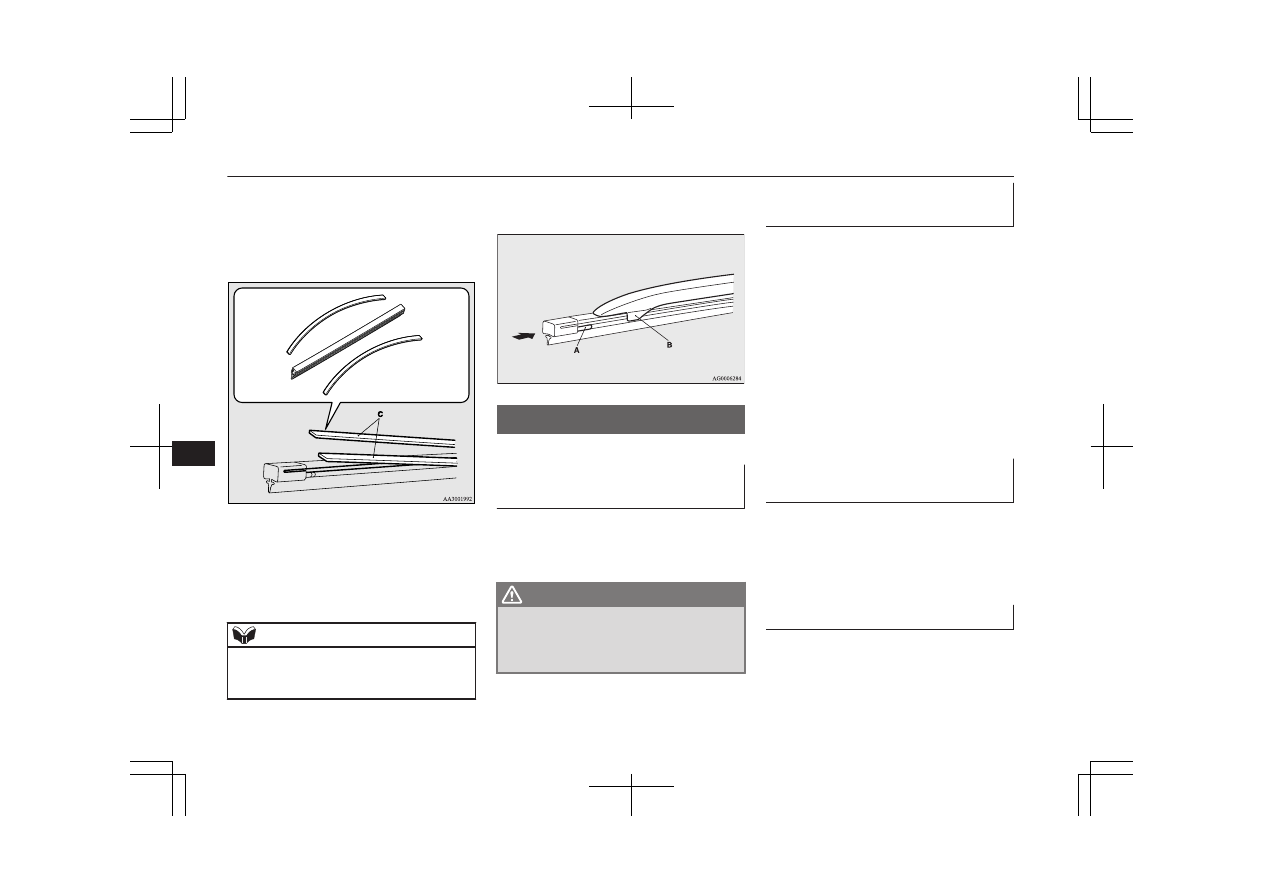

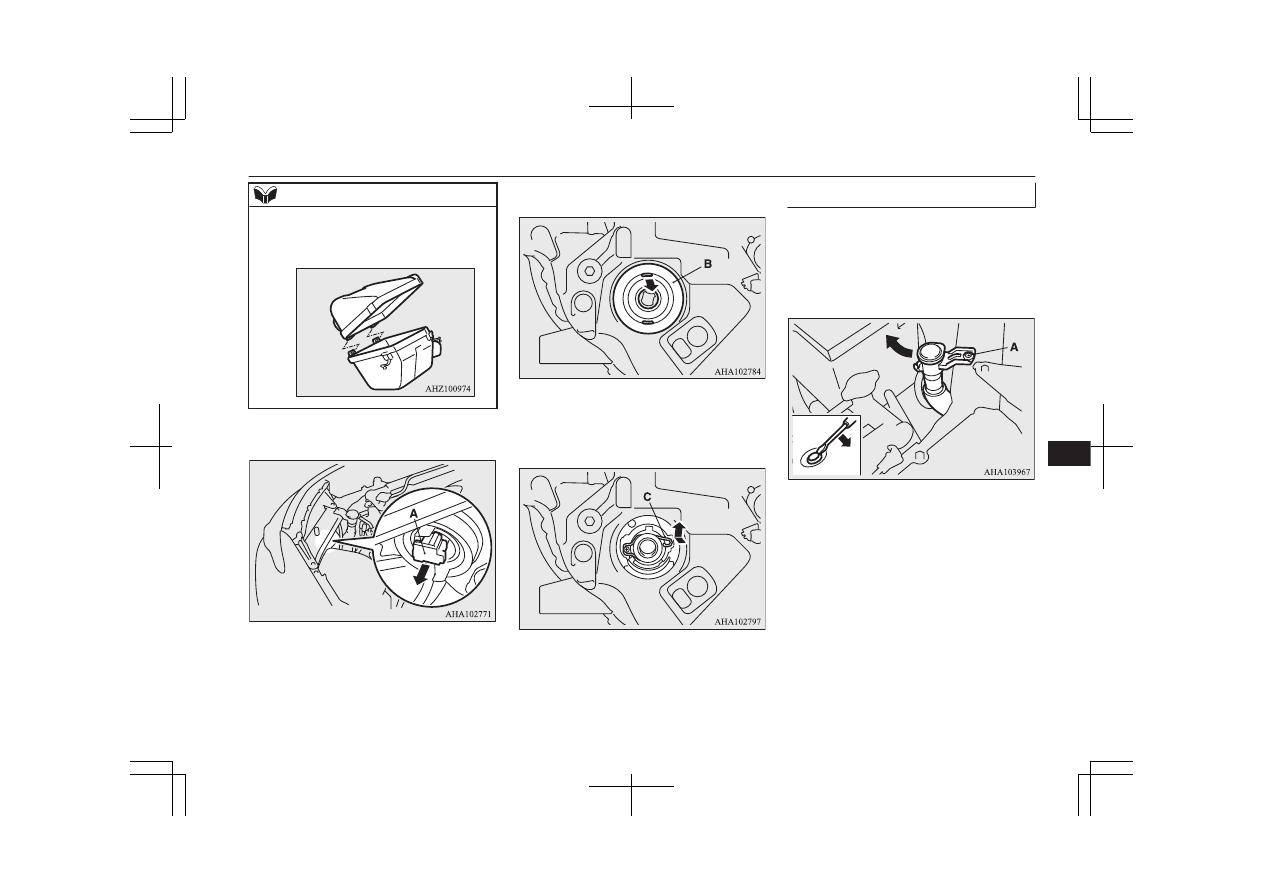

1. Lift the wiper arm off the windscreen.
2. Pull the wiper blade until its stopper (A)

disengages from the hook (B). Then,
pull the wiper blade further to remove it.

NOTE

Do not allow the wiper arm to fall onto the
windscreen; it could damage the glass.

Wiper blade rubber replacement

10-15

OKTE18E1

Maintenance

3. Attach the retainers (C) to a new wiper

blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you at-
tach them.

4. Insert the wiper blade into the arm, start-

ing  with  the  opposite  end  of  the  blade
from  the  stopper.  Make  sure  the  hook
(B)  is  fitted  correctly  in  the  grooves  in
the blade.

NOTE

If retainers are not supplied with the new
wiper blade, use the retainers from the old
blade.

5. Push the wiper blade until the hook (B)

engages securely with the stopper (A).

General maintenance

E01002701628

Fuel, engine coolant, oil and ex-

haust gas leakage

Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.

WARNING

If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; call
your MITSUBISHI MOTORS Author-
ized Service Point for assistance.

Exterior and interior lamp op-

eration

Operate  the  combination  lamp  switch  to
check that all lamps are functioning properly.
If  the  lamps  do  not  illuminate,  the  probable
cause is a blown fuse or defective lamp bulb.
Check  the  fuses  first.  If  there  is  no  blown
fuses, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the bulbs, refer
to “Fuses” on page 10-17 and “Replacement
of lamp bulbs” on page 10-22.
If the fuses and bulbs are all OK, we recom-
mend  you  to  have  your  vehicle  checked  and
repaired.

Meter, gauge and indicator/

warning lamps operation

Start the engine to check the operation of all
instruments, gauges, and indication and
warning lamps.
If there is anything wrong, we recommend
you to have your vehicle inspected.

Hinges and latches lubrication

Check all latches and hinges, and, if necessa-
ry, have them lubricated.

General maintenance

10-16

OKTE18E1

Maintenance

Fusible links

E01002901721

The fusible links will melt to prevent a fire if
a large current attempts to flow through cer-
tain electrical systems.
In case of a melted fusible link, we recom-
mend you to have your vehicle inspected.
For the fusible links, please refer to “Passen-
ger compartment fuse location table” on page
10-18 and “Engine compartment fuse location
table” on page 10-19.

WARNING

Fusible links must not be replaced by any
other device. Failing to fit the correct fusi-
ble link may result in fire in the vehicle,
property destruction and serious or fatal
injuries at any time.

Fuses

E01003000849

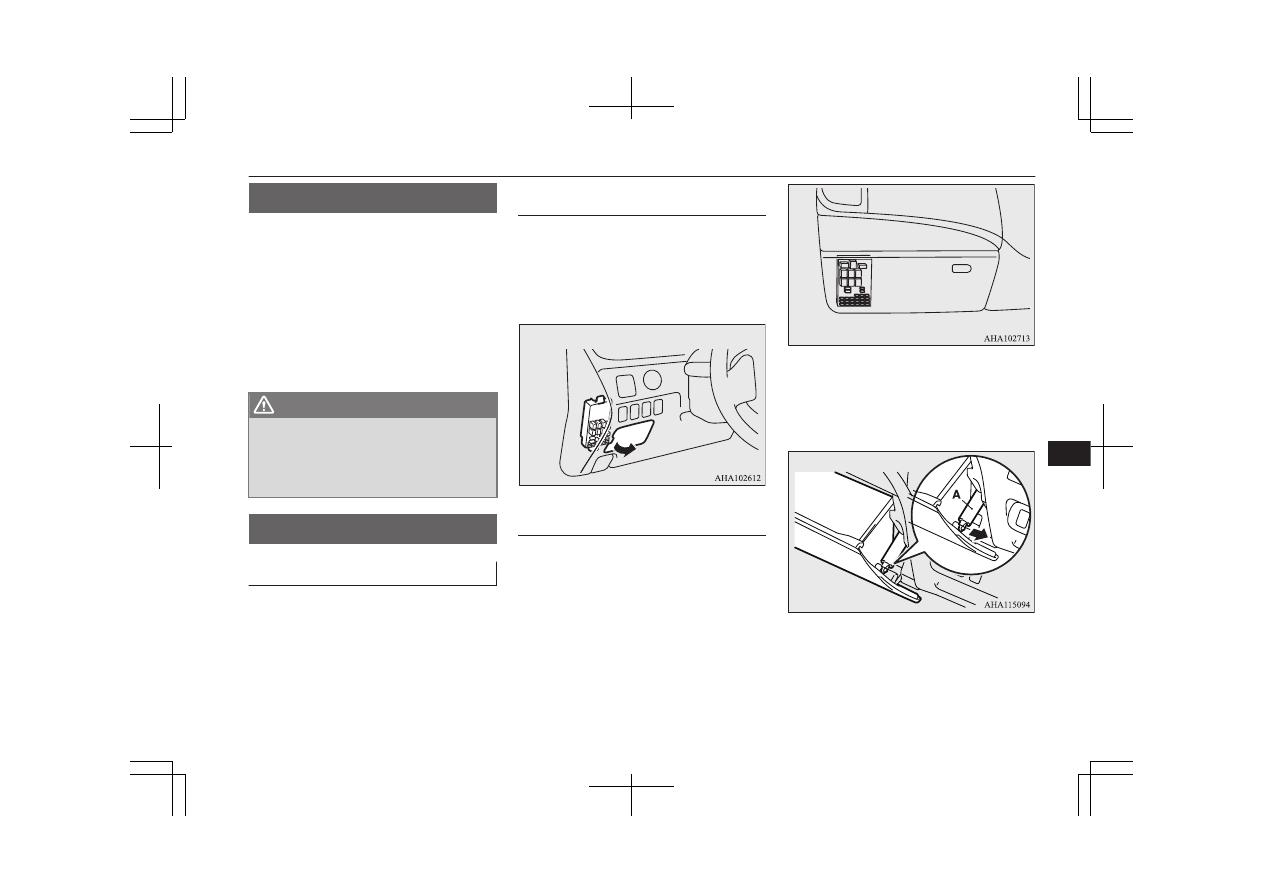

Fuse block location

E01007601677

To  prevent  damage  to  the  electrical  system
due  to  short-circuiting  or  overloading,  each
individual circuit is provided with a fuse.
There  are  fuse  blocks  in  the  passenger  com-
partment and in the engine compartment.

Passenger compartment (LHD

vehicles)

The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front
of the driver’s seat at the position shown in
the illustration.
Pull the fuse lid to remove it.

Passenger compartment (RHD

vehicles)

The fuse block in the passenger compartment
is located behind the glove box at the posi-
tion shown in the illustration.

1- Open the glove box.
2- Move the rod (A) on the right side of the

glove box to the right side of the box. (if
so equipped)

Fusible links

10-17

OKTE18E1

Maintenance

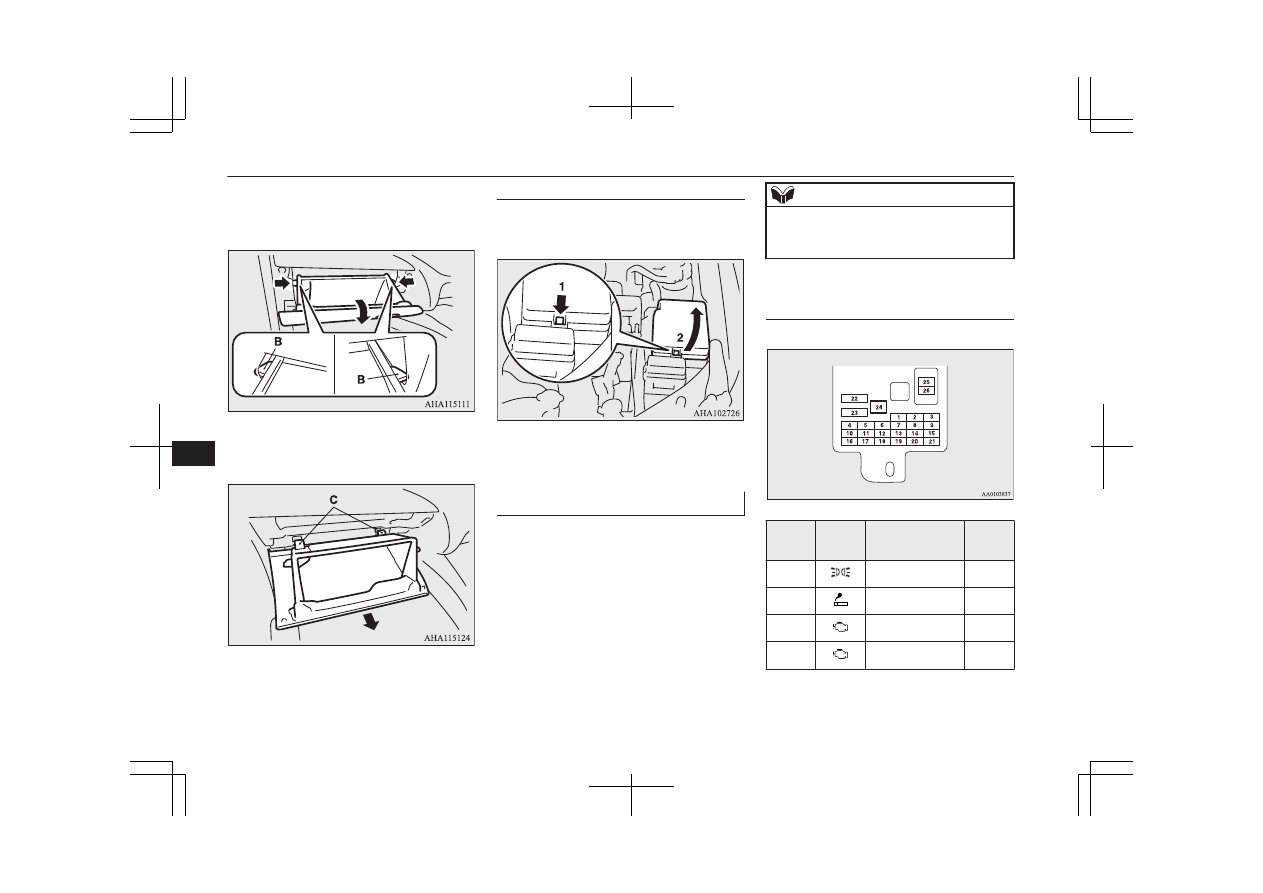

3- While pressing the side of the glove box,

unhook the left and right hooks (B) and
lower the glove box.

4- Remove the glove box fastener (C), and

then remove the glove box.

Engine compartment

In the engine compartment, the fuse block is
located as shown in the illustration.

1- Push the tab.
2- Remove the cover.

Fuse load capacity

E01007701838

The fuse capacity and the names of electrical
systems  protected  by  the  fuses  are  indicated
on the inside of the fuse lid (LHD vehicles),
the  back  side  of  the  glove  box  (RHD  vehi-
cles)  and  inside  of  the  fuse  block  cover  (in-
side of the engine compartment).

NOTE

Spare fuses are provided in the fuse block of
the engine compartment. Always use a fuse
of the same capacity for replacement.

Passenger compartment fuse lo-
cation table

E01007901944

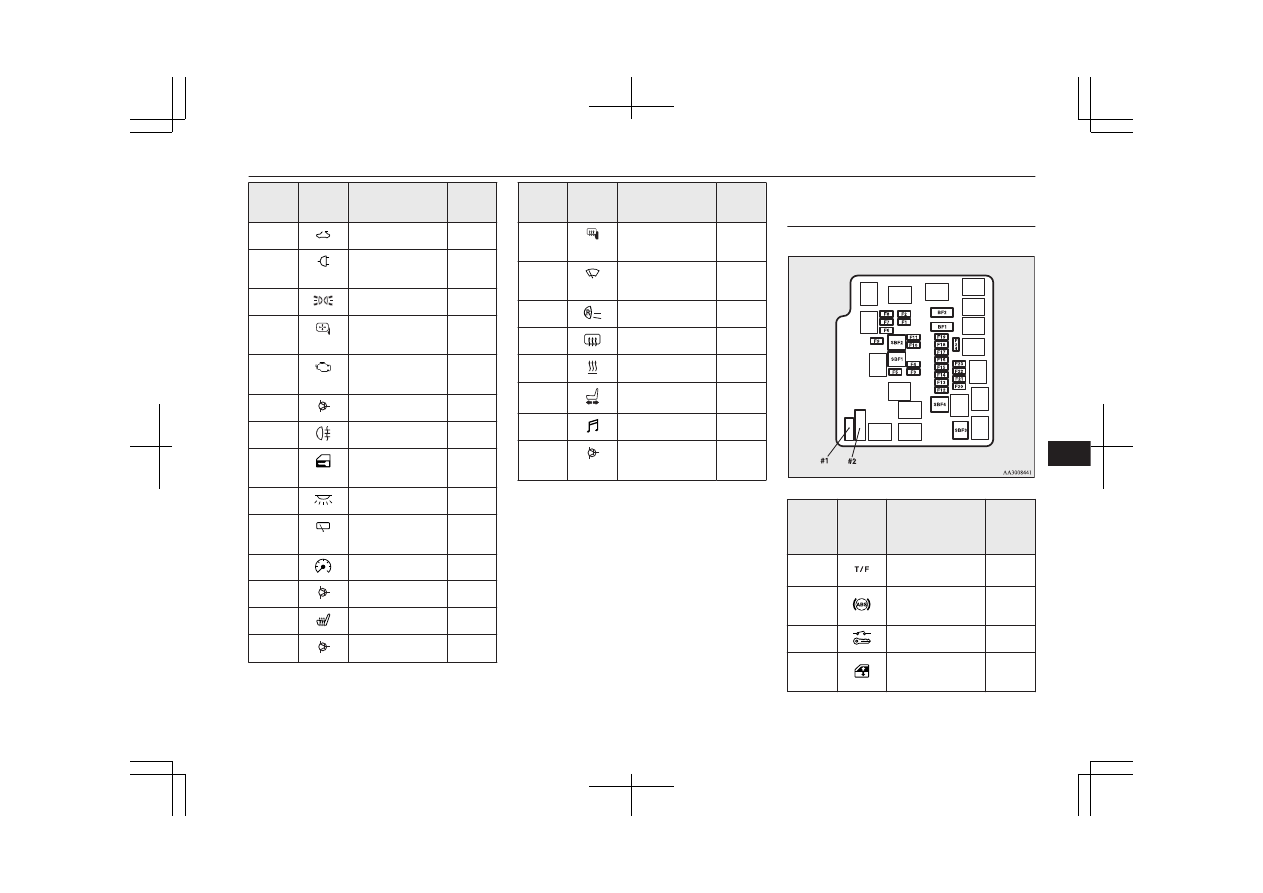

No.

Sym-

bol

Electrical sys-

tem

Ca-

pacity

Tail lamp (left)

7.5 A

Cigarette lighter

15 A

Ignition coil

10 A

Starter motor

7.5 A

: Fusible link

Fuses

10-18

OKTE18E1

Maintenance

No.

Sym-

bol

Electrical sys-

tem

Ca-

pacity

Sunroof

20 A

Accessory sock-

15 A

Tail lamp (right) 7.5 A

Outside rear-

view mirrors

7.5 A

Engine control

unit

7.5 A

Control unit

7.5 A

Rear fog lamp

10 A

Central door

lock

15 A

Room lamp

15 A

Rear window

wiper

15 A

Gauge

10 A

Relay

7.5 A

Heated seat

20 A

Option

10 A

: Fusible link

No.

Sym-

bol

Electrical sys-

tem

Ca-

pacity

Heated door

mirror

7.5 A

Windscreen

wiper

20 A

Reversing lamps 7.5 A

Demister

30 A

Heater

30 A

Power seat

40 A

Radio

10 A

Electronic con-

trolled unit

20 A

: Fusible link

Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.

The table above shows the main equip-
ment corresponding to each fuse.

Engine compartment fuse loca-
tion table

E01008001955

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

SBF1

Fuse (+B)

30 A

SBF2

Anti-lock brake

system

30 A

SBF3

Ignition switch

40 A

SBF4

Electric window

control

30 A

: Fusible link

Fuses

10-19

OKTE18E1

Maintenance

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

BF1

—

BF2

DC-DC (AU-

DIO)

30 A

Headlamp low

beam (left)

15 A

Headlamp low

beam (right)

15 A

Headlamp high-

beam (left)

10 A

Headlamp high-

beam (right)

10 A

Horn

10 A

Front fog lamps

15 A

Daytime running

lamps

10 A

Radiator fan mo-

tor

20 A

T/F

20 A

F10

—

F11

Headlamp wash-

20 A

: Fusible link

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

F12

Stop lamps

(Brake lamps)

15 A

F13

Ignition coil

10 A

F14

Engine control

7.5 A

F15

Alternator

7.5 A

F16

Hazard warning

flasher

15 A

F17

Automatic trans-

mission

20 A

F18

Air conditioning

20 A

F19

ETV

15 A

Fuel line heater

20 A

F20

Starter

7.5 A

F21

—

F22

Fuel pump

15 A

F23

Engine

20 A

F24

—

Spare fuse

20 A

: Fusible link

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

—

Spare fuse

30 A

: Fusible link

Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.

The table above shows the main equip-
ment corresponding to each fuse.

The fuse block does not contain spare 7.5 A,
10 A or 15 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: Outside rear-view mirrors
10 A: Option
15 A: Cigarette lighter
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.

Identification of fuse

E01008100366

Ca-

pacity

Colour

7.5 A

Brown

10 A

Red

15 A

Blue

20 A

Yellow

Fuses

10-20

OKTE18E1

Maintenance

Ca-

pacity

Colour

30 A

Green (fuse type) / Pink (fusible

link type)

40 A

Green (fusible link type)

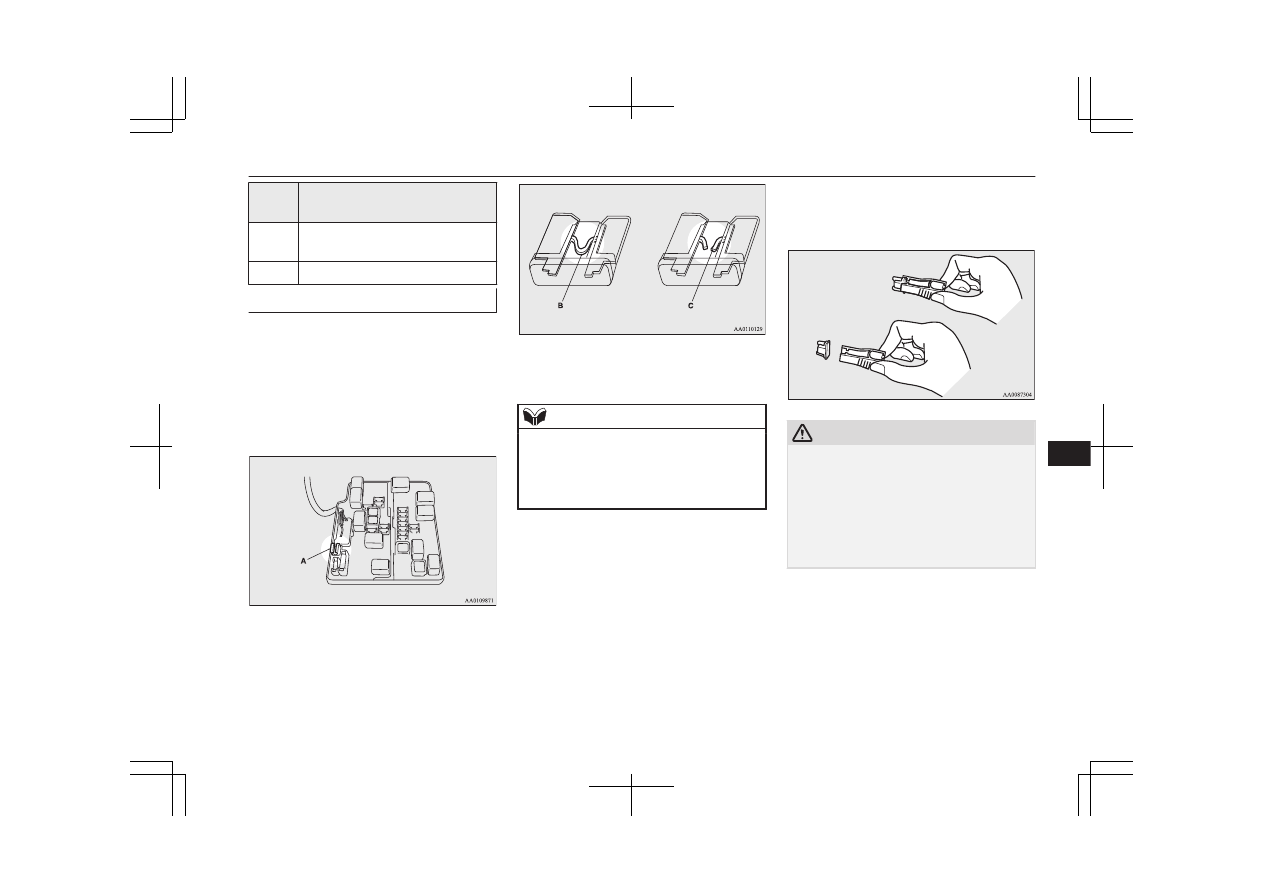

Fuse replacement

E01007801943

1. Before replacing a fuse, always turn off

the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion or put the operation mode in OFF.

2. Remove the fuse puller (A) from the in-

side of the fuse box in the engine com-
partment.

3. Referring to the fuse load capacity table,

check the fuse pertaining to the problem.

B- Fuse is OK
C- Blown fuse

NOTE

If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle
checked.

4. Insert a new fuse of the same capacity

by using the fuse puller into the same
place at the fuse block.

CAUTION

If the newly inserted fuse blows again after a
short time, we recommend you to have the
electrical system checked to find the cause
and rectify it.

Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or
foil). Doing so could cause the circuit wires
to overheat and create a fire.

Fuses

10-21

OKTE18E1

Maintenance

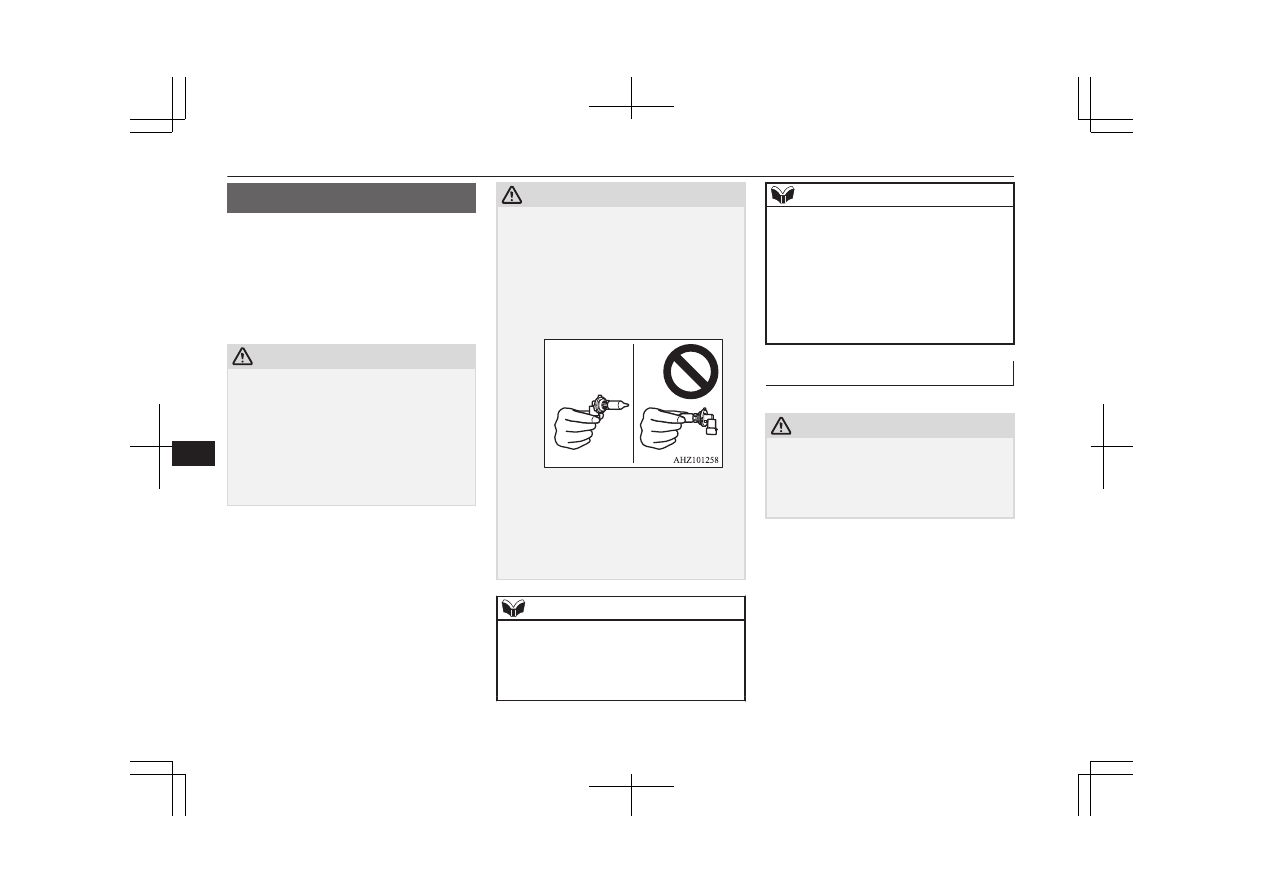

Replacement of lamp bulbs

E01003102121

Before  replacing  a  bulb,  ensure  the  lamp  is
off.  Do  not  touch  the  glass  part  of  the  new
bulb  with  your  bare  fingers;  the  skin  oil  left
on  the  glass  will  evaporate  when  the  bulb
gets hot and the vapour will condense on the
reflector and dim the surface.

CAUTION

Bulbs  are  extremely  hot  immediately  after
being turned off.
When  replacing  a  bulb,  wait  for  it  to  cool
sufficiently  before  touching  it.  You  could
otherwise be burnt.

Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres-
surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.

CAUTION

Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb
to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.

Do not install commercially available LED-
type bulbs.
Commercially  available  LED-type  bulbs
could  adversely  affect  the  operation  of  the
vehicle, such as by preventing the lamps and
other  vehicle  equipment  from  operating
properly.

NOTE

If you are unsure of how to carry out the
work as required, we recommend you to
consult a specialist.

Be careful not to scratch the vehicle body
when removing a lamp and lens.

NOTE

When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath-
ers inside the lamp, we recommend you to
have the lamp checked.

Bulb location and capacity

E01003201545

CAUTION

When replacing a bulb, be sure to use a new
bulb of the same type, wattage and colour. If
you install a different bulb, the bulb could
malfunction or fail to come on and could
lead to a vehicle fire.

Replacement of lamp bulbs

10-22

OKTE18E1

Maintenance

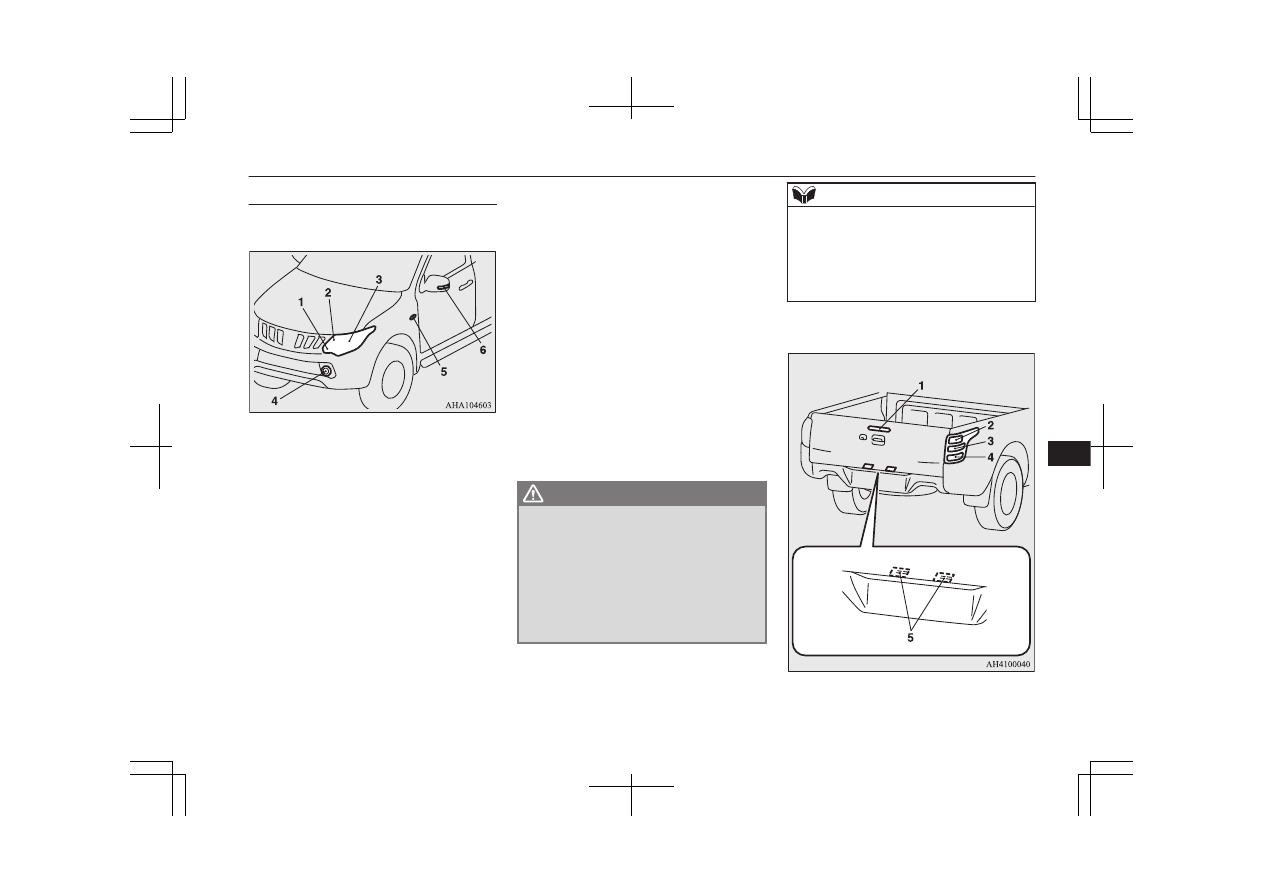

Outside

E01003305254

Front

Except for vehicles with high intensity dis-
charge headlamps

1. Position lamps: 5 W (W5W)
2. Front turn-signal lamps: 21 W (PY21W/

P21W)

3. Headlamps, high/low beam: 60/55 W

(H4)

4. Type 1

Front fog lamps: 35 W (H8)
Daytime running lamps: 13 W (P13W)
Type 2
Daytime running lamps: 13 W (P13W)

5. Side turn-signal lamps (on fender)*

, *

5 W

6. Side turn-signal lamps (on outside rear-

view mirror)*

Vehicles with high intensity discharge
headlamps

1. Front turn-signal lamps: 21 W (PY21W)
2. Position lamps/Daytime running lamps
3. Headlamps, high/low beam: 25 W (D5S)
4. Front fog lamps: 19 W (H16)
5. Side turn-signal lamps (on fender)*

, *

5 W

6. Side turn-signal lamps (on outside rear-

view mirror)*

: if so equipped

: Have the lamps bulbs replaced

at a MITSUBISHI MOTORS
Authorized Service point.

Codes in parentheses indicate bulb types.

WARNING

Check  with  a  MITSUBISHI  MOTORS
Authorized Service Point when it is neces-
sary  to  repair  a  high  intensity  discharge
headlamp or to replace the bulb.
High  voltage  is  generated  in  the  high  in-
tensity discharge headlamp bulb and elec-
trodes,  which  may  cause  a  severe  shock
when the bulb and connector are removed
or disconnected.

NOTE

It is not possible to repair or replace only the
bulb for the side turn-signal lamp (on fend-
er).
Check with a MITSUBISHI MOTORS Au-
thorized Service point when the lamp needs
to be repaired or replaced.

Rear

1- High-mounted stop lamp

Replacement of lamp bulbs

10-23

OKTE18E1

Maintenance

2- Tail and stop lamps: 21/5 W (P21/5W)
3- Rear turn-signal lamps: 21 W (PY21W)
4- Rear fog lamp (driver’s side): 21W

(P21W)
Reversing lamps: 21 W (P21W)

5- Licence plate lamps: 5 W (W5W)

Codes in parentheses indicate bulb types.

NOTE

The following lamps uses LEDs rather than
bulbs. For repair and replacement, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.

•

Side turn-signal lamps (on outside rear-
view mirror)

•

Position lamps (Vehicles with high inten-
sity discharge headlamps)

•

Daytime running lamps (Vehicles with
high intensity discharge headlamps)

•

High-mounted stop lamp

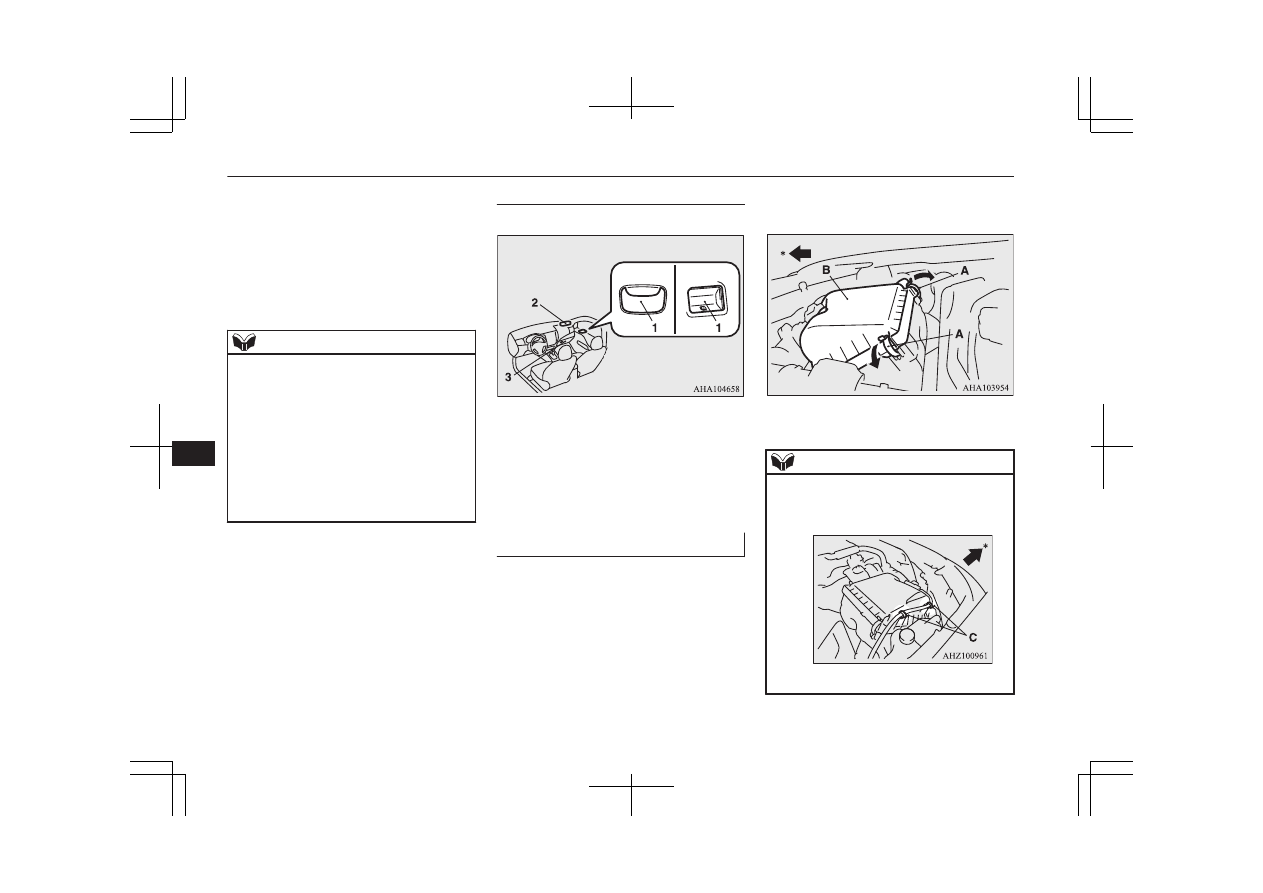

Inside

E01003403381

Type 1

Type 2

1- Type 1

Rear room lamp: 8 W
Type 2
Room lamp: 8 W

2- Front room & map lamps*: 7.5 W
3- Glove box lamp: 1.4 W

Headlamps (halogen bulb)

E01003502532

1. When replacing the bulb on the right

side of the vehicle, remove the clamps
(A) of the air cleaner filter and move the

upper cover (B) towards the rear of the
vehicle.

*: Front of the vehicle

NOTE

When moving the upper cover towards the
rear of the vehicle, remove the harness from
the air cleaner hooks (C).

*: Front of the vehicle

Replacement of lamp bulbs

10-24

OKTE18E1

Maintenance

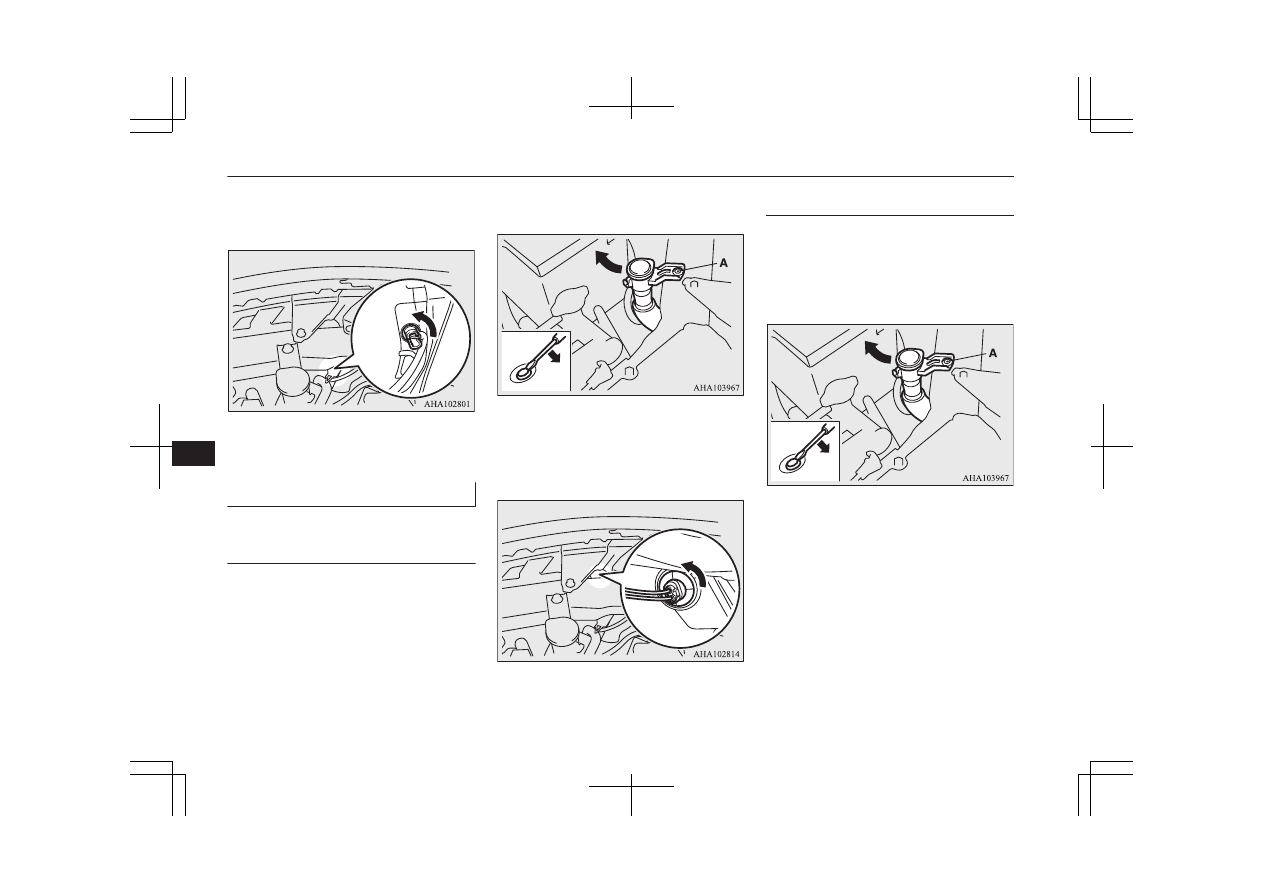

2. Turn the bulb socket anticlockwise to re-

move it. And remove the bulb from the
socket by pulling out.

3. To install the bulb, perform the removal

steps in reverse.

Front turn-signal lamps

E01003802304

Except for vehicles with high in-

tensity discharge headlamps

1. When replacing the bulb on the left side

of the vehicle, remove the clip (A) hold-
ing down the washer tank spout and

move the spout towards the rear of the
vehicle.

2. Turn the bulb socket anticlockwise to re-

move it. And remove the bulb from the
socket by turning it anticlockwise while
pressing in.

3. To install the bulb, perform the removal

steps in reverse.

Vehicles with high intensity dis-

charge headlamps

1. When replacing the bulb on the left side

of the vehicle, remove the clip (A) hold-
ing down the washer tank spout and
move the spout towards the rear of the
vehicle.

Replacement of lamp bulbs

10-26

OKTE18E1

Maintenance

Mitsubishi L200 (2018 year). Instruction - part 23
