Diesel-powered vehicles

60 litres

Refueling

1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear

left side of your vehicle.

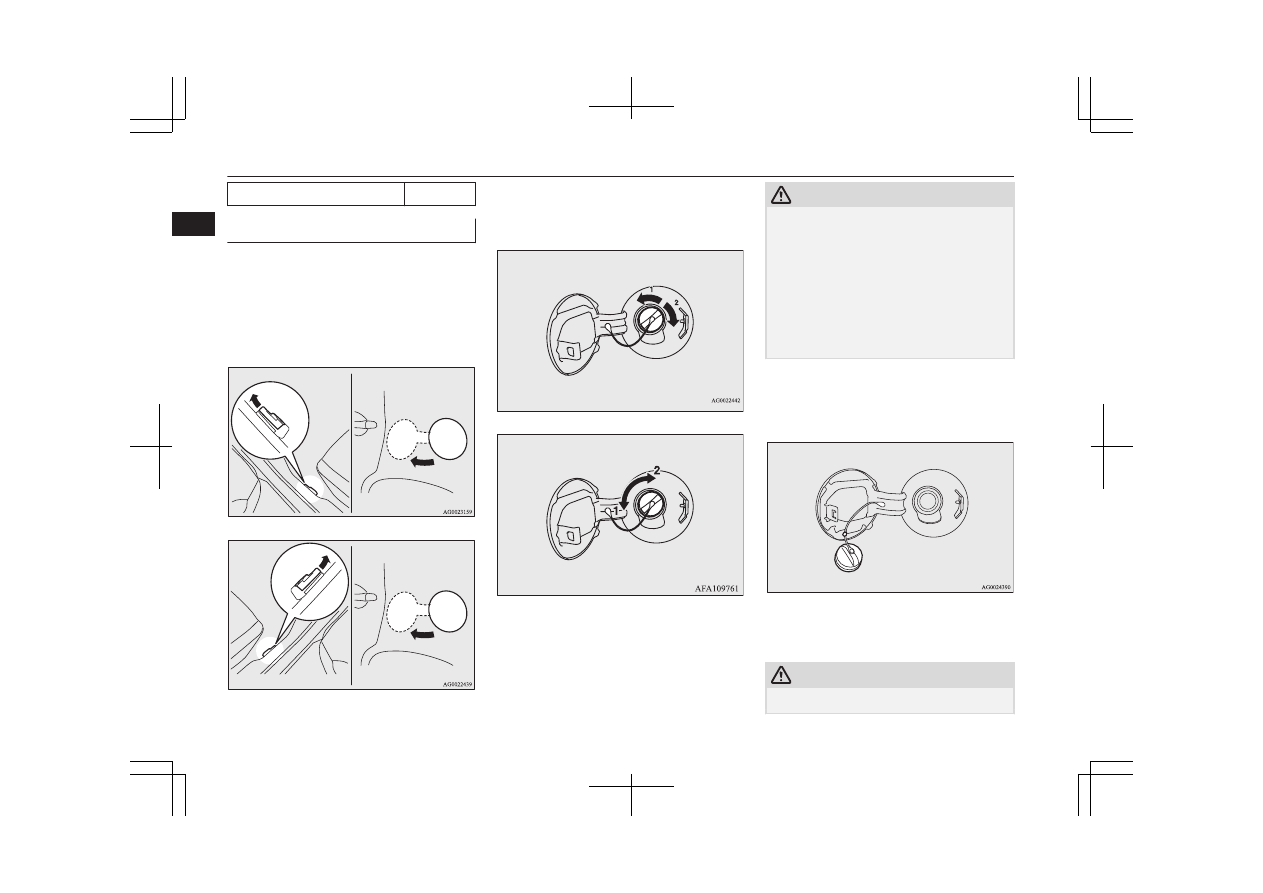

Open the fuel tank filler door by pulling
the release lever located on the side of
the driver’s seat.

LHD

RHD

3. Remove the fuel cap.

Open the fuel tank filler tube by slowly
turning the cap anticlockwise.

Except for diesel-powered vehicles 1600 models

Diesel-powered vehicles 1600 models

1- Remove
2- Close

CAUTION

For diesel-powered 1600 models, the fuel
cap does not turn more than 90 degrees.
Turning forcibly could damage the fuel cap.

Since the fuel system may be under pressure,
remove the fuel cap slowly. This relieves
any pressure or vacuum that might have
built up in the fuel tank. If you hear a hissing
sound from the cap, wait until it stops before
removing the cap. Otherwise, fuel may spray
out, injuring you or others.

4. While filling with fuel, hang the fuel cap

cord on the hook located on the inside of
the fuel tank filler door.

5. Insert the gun in the tank port as far as it

goes.

CAUTION

Do not tilt the gun.

Filling the fuel tank

2-04

OGAE18E1

General information

6. When the gun stops automatically, do

not fill with fuel any more.

7. Close the fuel cap.

[Except for diesel-powered vehicles
1600 models]
To close, turn the fuel cap slowly clock-
wise until you hear clicking sounds, then
gently push the fuel tank filler door
closed.
[For diesel-powered 1600 models]
Fit the fuel cap with the cap handle side-
ways and turn it clockwise.

Installation of accessories

E00200302358

We recommend you to consult your
MITSUBISHI MOTORS Authorized Service
Point.

CAUTION

Your  vehicle  is  equipped  with  a  diagnosis
connector  for  checking  and  servicing  the
electronic control system.
Do not connect a device other than a diagno-
sis  tool  for  inspections  and  service  to  this
connector.  Otherwise,  the  battery  could  be
discharged, the electronic devices of the ve-
hicle could malfunction, or other unexpected
problems could result.
In addition, malfunctions caused by connect-
ing a device other than a diagnosis tool may
not be covered under warranty.

The  installation  of  accessories,  optional
parts,  etc.,  should  only  be  carried  out
within  the  limits  prescribed  by  law  in
your country, and in accordance with the
guidelines and warnings contained with-
in the documents accompanying this ve-
hicle.

Installing electric components incorrect-
ly could lead to a fire. See the “Modifi-
cation/ alterations to the electrical or fuel
systems” section within this owner’s
manual.

When  installing  the  radio,  for  the  re-
quired information (frequency, transmis-
sion  output,  installing  procedure),  con-
sult  a  MITSUBISHI  MOTORS  Author-
ized Service Point.
If the frequency, transmission output and
installing  condition  are  not  appropriate,
it can adversely affect the electronic de-
vices  and  could  lead  to  unsafe  vehicle
operation.

Using a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference,
which could lead to unsafe vehicle oper-
ation.

Tyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for
information regarding wheel and tyre
sizes.

Important points!

Due  to  large  number  of  accessory  and  re-
placement  parts  of  different  manufactures
available in the market, it is not possible, not
only  for  MITSUBISHI  MOTORS,  but  also
for  a  MITSUBISHI  MOTORS  Authorized
Service  Point,  to  check  whether  the  attach-
ment  or  installation  of  such  parts  affects  the
overall safety of your MITSUBISHI-vehicle.

Installation of accessories

2-05

OGAE18E1

General information

Even  when  such  parts  are  officially  author-
ized,  for  example  by  a  “general  operators
permit” (an appraisal for the part) or through
the  execution  of  the  part  in  an  officially  ap-
proved  manner  of  construction,  or  when  a
single operation permit following the attach-
ment or installation of such parts, it cannot be
deduced  from  that  alone,  that  the  driving
safety of your vehicle has not been affected.

Consider also that there basically exists no li-
ability on the part of the appraiser or the offi-
cial.  Maximum  safety  can  only  be  ensured
with  parts  recommended,  sold  and  fitted  or
installed  by  a  MITSUBISHI  MOTORS  Au-
thorized  Service  Point  (MITSUBISHI
MOTORS  genuine  replacement  parts  and
MITSUBISHI  MOTORS  accessories).  The
same  also  pertains  to  modifications  of
MITSUBISHI  vehicles  with  respect  to  the
production specifications. For safety reasons,
do  not  attempt  any  modifications  other  than
those  that  follow  the  recommendations  of  a
MITSUBISHI MOTORS Authorized Service
Point.

Modification/alterations to
the electrical or fuel systems

E00200400368

MITSUBISHI  MOTORS  CORPORATION
has  always  manufactured  safe,  high  quality
vehicles. In order to maintain this safety and
quality, it is important that any accessory that
is  to  be  fitted,  or  any  modifications  carried
out  which  involve  the  electrical  or  fuel  sys-
tems,  should  be  carried  out  in  accordance
with MITSUBISHI guidelines.

CAUTION

If  the  wires  interfere  with  the  vehicle  body
or  improper  installation  methods  are  used
(protective  fuses  not  included,  etc.),  elec-
tronic devices may be adversely affected, re-
sulting in a fire or other accident.

Genuine parts

E00200500499

MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted auto-
mobile offering the highest quality and de-
pendability.

Use MITSUBISHI MOTORS Genuine Parts,
designed and manufactured to maintain your
MITSUBISHI MOTORS automobile at top
performance. MITSUBISHI MOTORS Gen-
uine Parts are identified by this mark and are
available at all MITSUBISHI MOTORS Au-
thorized Service Points.

Safety and disposal
information for used engine
oil

E00200600155

WARNING

Prolonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.

Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con-
tact.

Keep used engine oils out of reach of chil-
dren.

Modification/alterations to the electrical or fuel systems

2-06

OGAE18E1

General information

Protect the environment

It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-
cilities, including civic amenity sites and ga-
rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact
your local authority for advice on disposal.

Disposal information for
used batteries

E00201300032

Your vehicle contains batter-
ies and/or accumulators.
Do  not  mix  with  general
household waste.
For  proper  treatment,  recov-
ery and recycling of used bat-
teries, please take them to ap-
plicable  collection  points,  in
accordance with your nation-
al  legislation  and  the  Direc-
tives 2006/66/EC.
By disposing of these batter-
ies correctly, you will help to
save  valuable  resources  and
prevent  any  potential  nega-
tive  effects  on  human  health
and  the  environment  which
could  otherwise  arise  from
inappropriate waste handling.

Auto Stop & Go (AS&G)
system*

E00201501057

This paragraph summarizes the major items
of the Auto Stop & Go (AS&G) system
such as the characteristics, operating proce-
dures, etc. For details, refer to “Auto Stop &
Go (AS&G) system” on page 6-19.

The AS&G system reduces the emission of
exhaust gases and increases fuel efficiency.
The AS&G system automatically stops and
restarts the engine without the use of the igni-
tion switch or the engine switch when the ve-
hicle is stopped, such as at traffic lights or in
a traffic jam.

Activation

E00201601061

The AS&G system is automatically activated
when the ignition switch is turned to the
“ON” position or the operation mode is put in
ON.

Deactivation

E00201701091

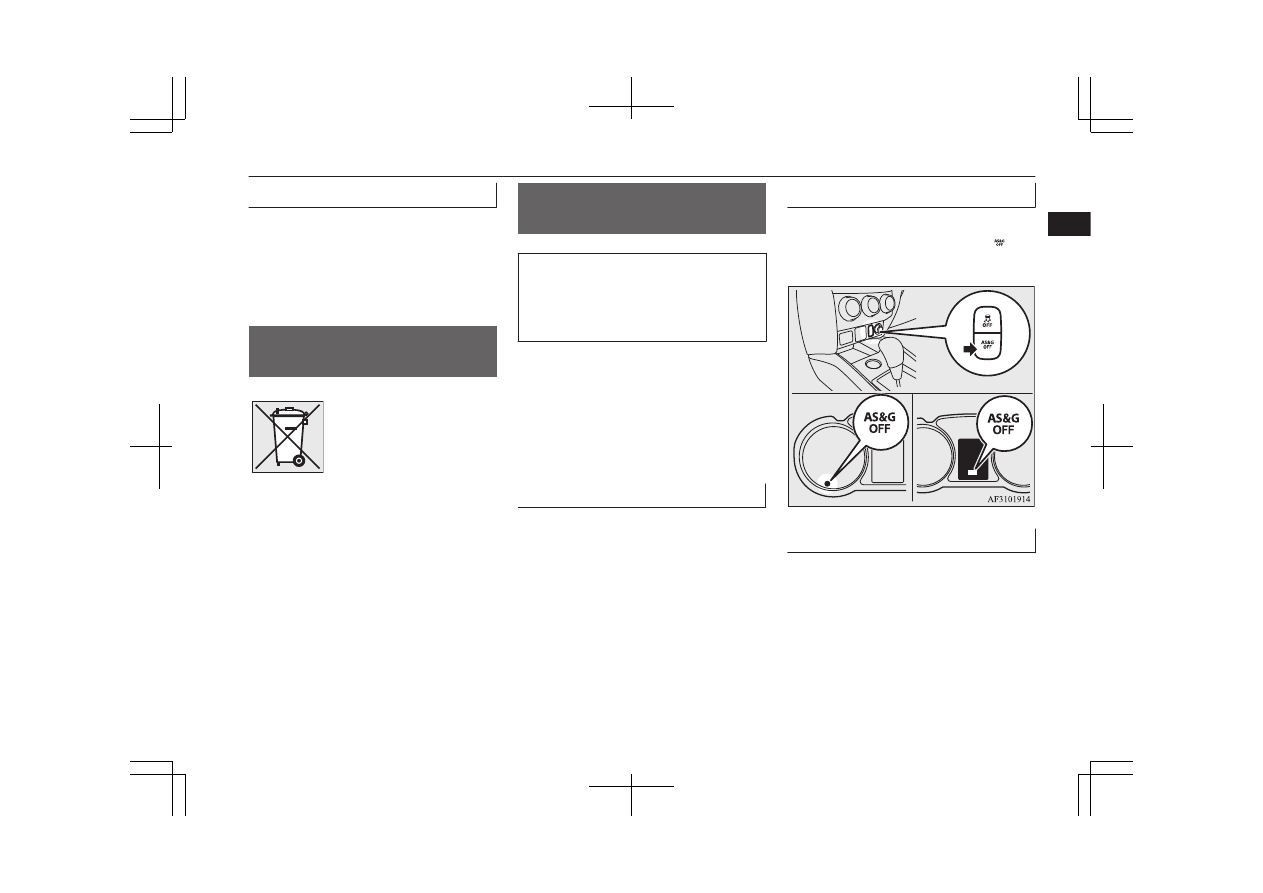

You can deactivate the system by pressing
the “AS&G OFF” switch. Then the “ ” dis-
play/indicator will turn on.

Type 1

Type 2

Auto stop

E00201801106

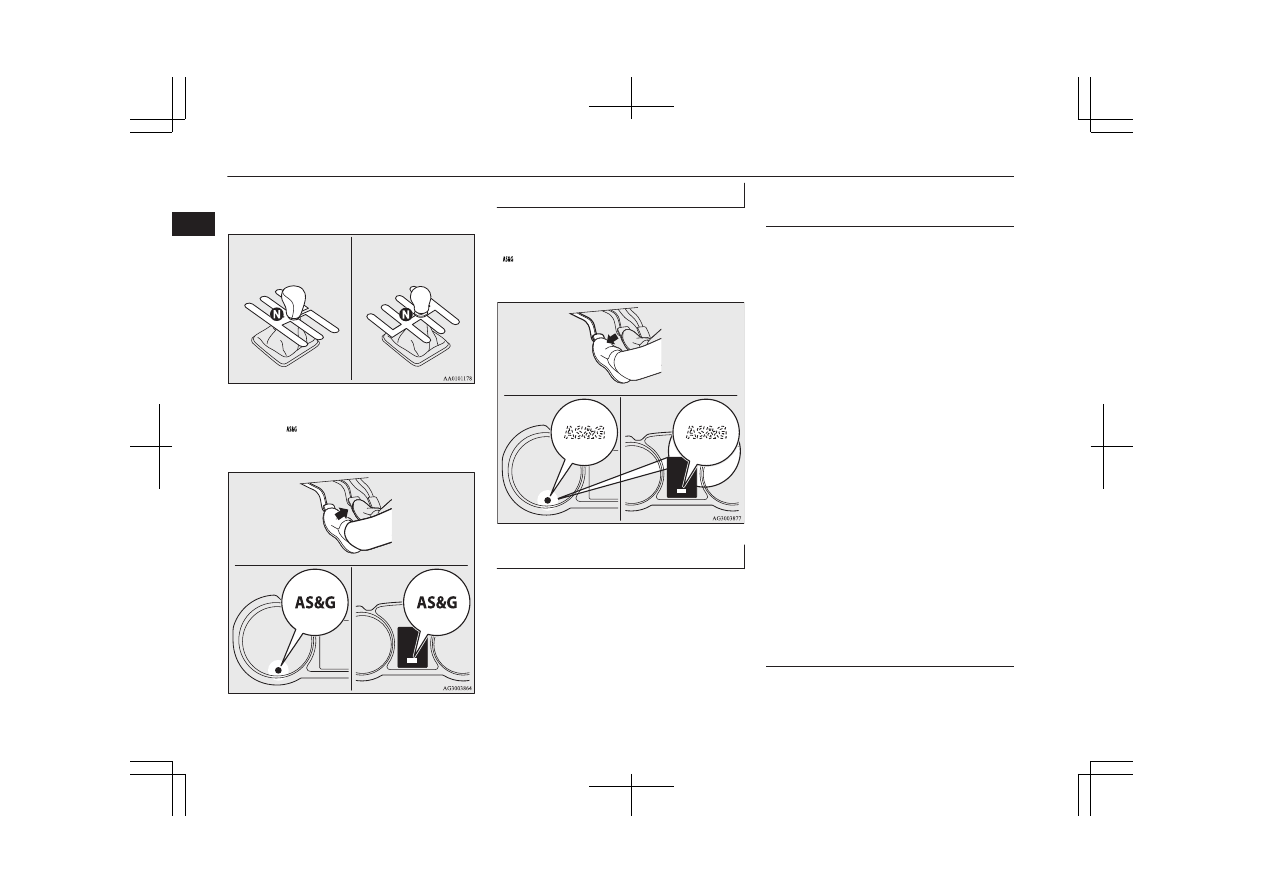

1. Stop the vehicle.

Disposal information for used batteries

2-07

OGAE18E1

General information

2. Place the gearshift lever in the “N”

(Neutral) position.

Vehicles with 5M/T

Vehicles with 6M/T

3. Release the clutch pedal.
4. The “ ” display/indicator will turn on

and the engine will stop automatically.

Type 1

Type 2

Auto go

E00201901077

Depress  the  clutch  pedal  while  the  gearshift
lever  is  in  the  “N”  (Neutral)  position.  The
“ ”  display/indicator  turns  off  and  the  en-
gine restarts automatically.

Type 2

Type 1

System characteristics

E00202301065

The principle of the AS&G system is that it
adapts to the vehicle’s needs (i.e. energy sup-
ply). This means that in certain circumstances
the engine will not stop and in other circum-
stances the engine will restart by itself.

Circumstances when the engine
will restart by itself

E00202400027

The interior temperature rises and the air
conditioning starts operating in order to
lower the temperature.

Electric power consumption is high.

The brake pedal is depressed repeatedly.

Vehicle speed is 3 km/h (2 mph) or
higher when coasting on a slope.

Mode selection dial is set to the demister
position.

When the air conditioning is operated by
pressing the air conditioning switch.

When the preset temperature of the air
conditioning is changed significantly.

When the air conditioning is operated in
AUTO mode where the temperature con-
trol dial is set to the max. hot or the max.
cool position (for vehicles with automat-
ic air conditioning).

Other than the conditions mentioned above,
the engine may restart automatically. For de-
tails, refer to “Auto Stop & Go (AS&G) sys-
tem” on page 6-19.

Circumstances when the engine
will not stop

E00202501054

Ambient temperature is low.

Auto Stop & Go (AS&G) system*

2-08

OGAE18E1

General information

After the engine restarts automatically
and the vehicle stops again within 10
seconds.

After the engine restarts automatically
and the vehicle remains stationary.

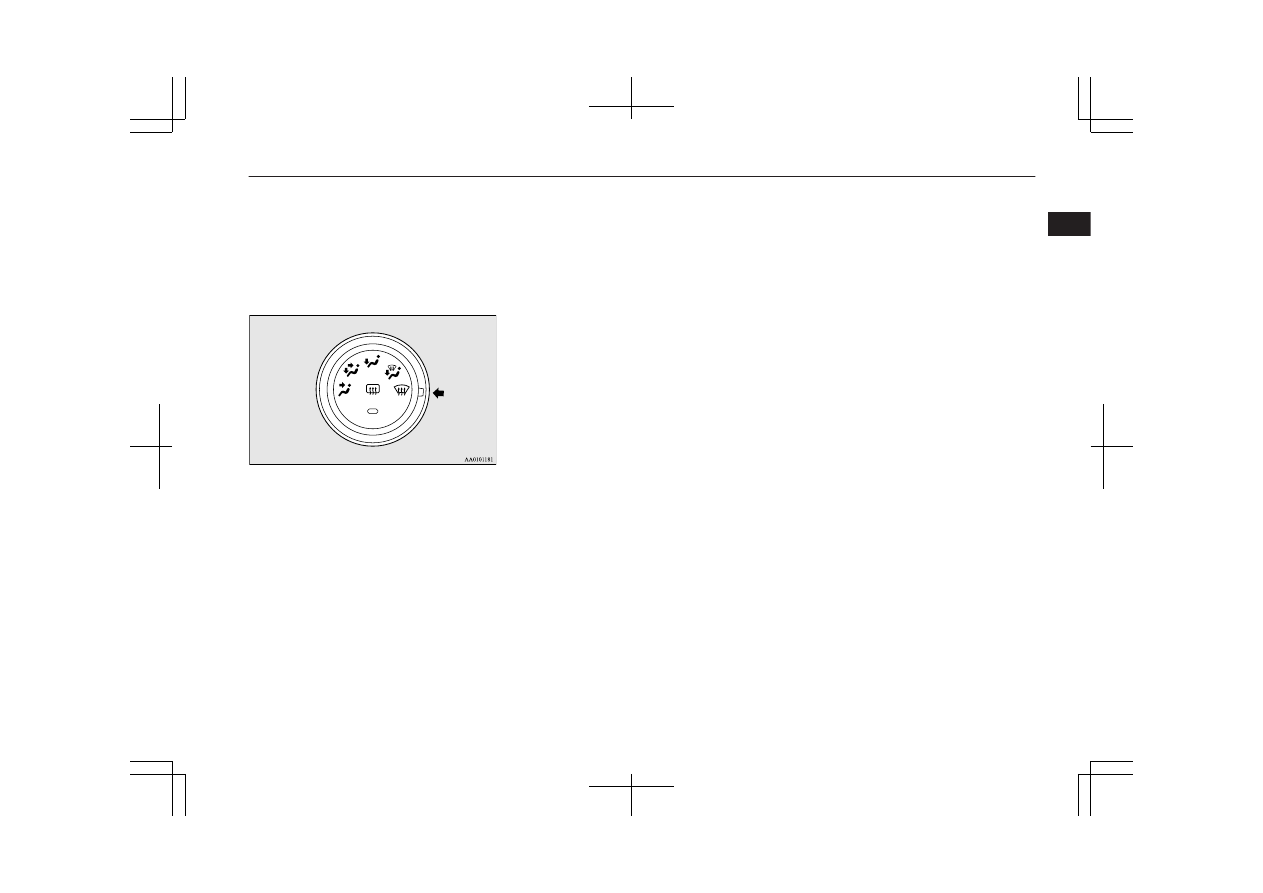

Mode selection dial is set to the demister
position (see illustration below).

When the air conditioning is operated in
AUTO mode where the temperature con-
trol dial is set to the max. hot or the max.
cool position (for vehicles with automat-
ic air conditioning).

Other  than  the  conditions  mentioned  above,
the  engine  may  not  stop  automatically.  For
details,  refer  to  “Auto  Stop  &  Go  (AS&G)
system” on page 6-19.

Auto Stop & Go (AS&G) system*

2-09

OGAE18E1

General information

OGAE18E1

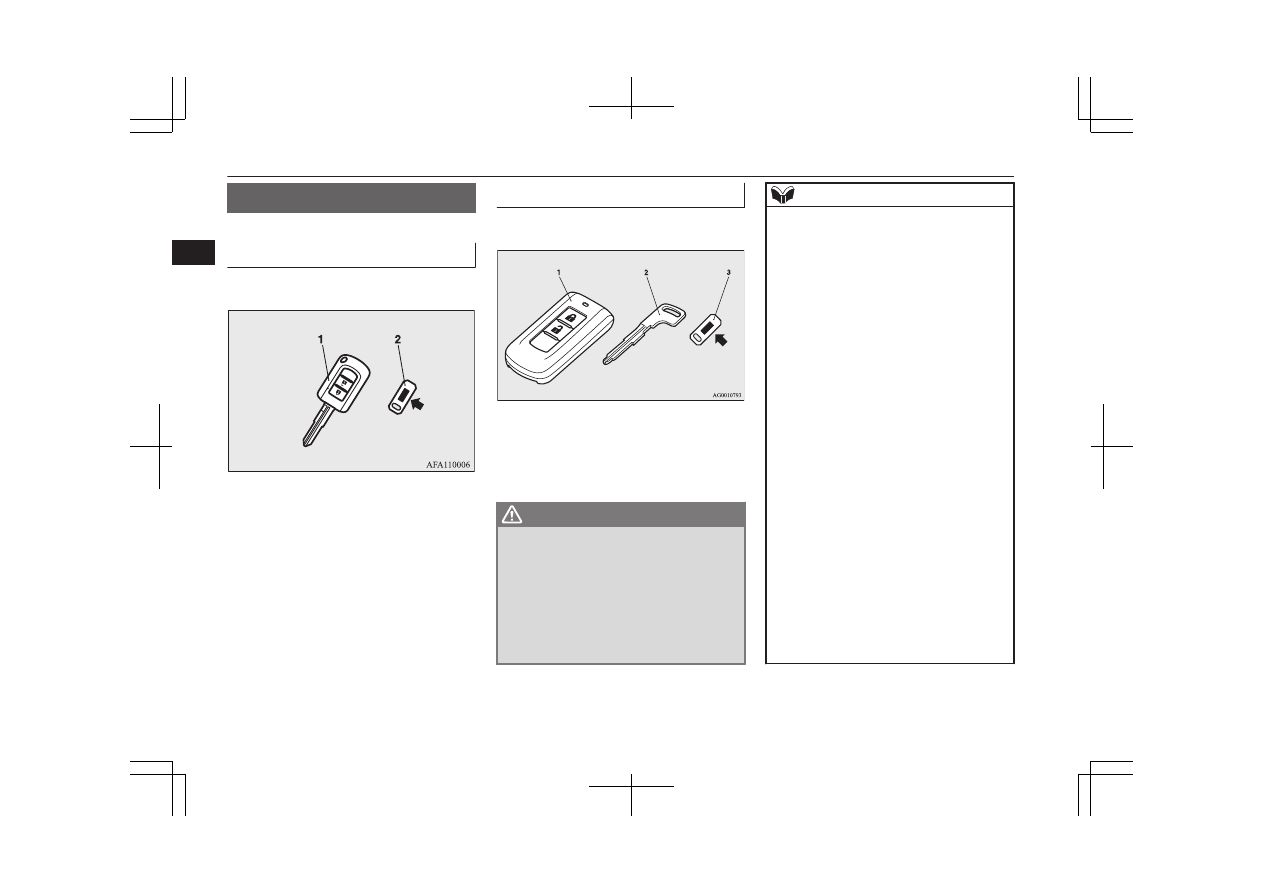

Keys

E00300104087

Type 1

The key fits all locks.

1- Keyless entry key

(with electronic immobilizer)

2- Key number tag

Type 2

The emergency key fits all locks.

1- Keyless operation key

(with electronic immobilizer and keyless
entry system function)

2- Emergency key
3- Key number tag

WARNING

When taking a key on flights, do not press
any  switches  on  the  key  while  on  the
plane. If a switch is pressed on the plane,
the  key  emits  electromagnetic  waves,
which  could  adversely  affect  the  plane’s
flight operation.
When carrying a key in a bag, be careful
that  no  switches  on  the  key  can  be  easily
pressed by mistake.

NOTE

The key number is stamped on the tag as in-
dicated in the illustration.
Make a record of the key number and store
the key and key number tag in separate pla-
ces, so that you can order a key in the event
the original keys are lost.

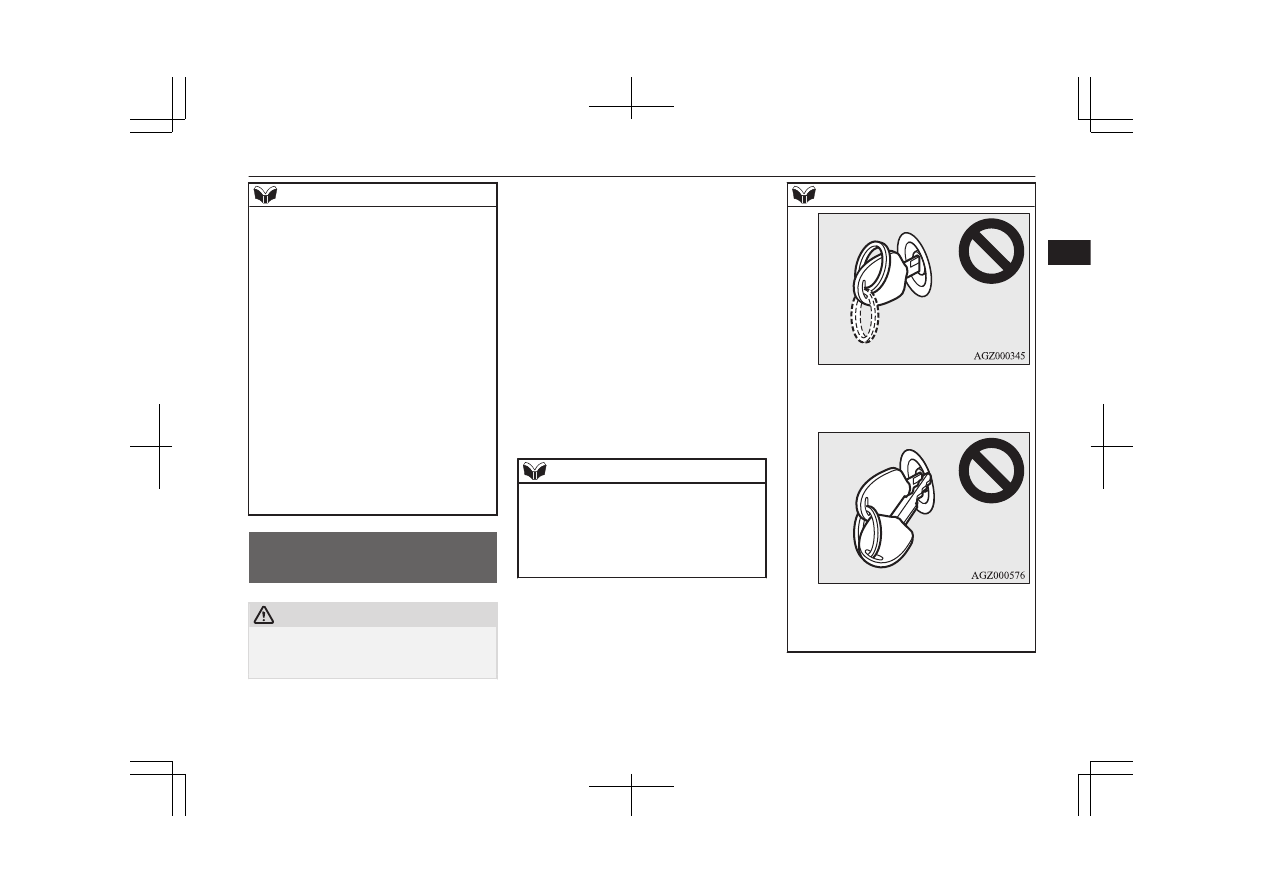

The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc-
tion.

•

Do not leave in a place that is exposed to
direct sunlight, for example on the dash-
board.

•

Do not disassemble or modify.

•

Do not excessively bend the key or sub-
ject it to a strong impacts.

•

Do not expose to water.

•

Keep away from magnetic key rings.

•

Keep away from audio systems, personal
computers, TVs, and other equipment that
generates a magnetic field.

•

Keep away from devices that emit strong
electromagnetic waves, such as cellular
phones, wireless devices and high fre-
quency equipment (including medical de-
vices).

•

Do not clean with ultrasonic cleaners or
similar equipment.

•

Do not leave the key where it may be ex-
posed to high temperature or high humidi-
ty.

Keys

3-02

OGAE18E1

Locking and unlocking

NOTE

The  engine  is  designed  so  that  it  will  not
start  if  the  ID  code  registered  in  the  immo-
bilizer  computer  and  the  key’s  ID  code  do
not match. Refer to the “Electronic immobil-
izer” section for details and key usage.

[For vehicles equipped with the security
alarm system]
Pay attention to the following if the security
alarm is set to “Active”.
Refer to “Security alarm system” on page
3-32.

•

If  the  security  alarm  is  in  the  system
armed  mode,  the  alarm  will  sound  if  the
doors  are  opened  after  being  unlocked
with  the  key,  the  inside  lock  knob  or  the
central door lock switch.

•

Even if the security alarm is set to “Ac-
tive”, the system preparation mode is not
entered if the keyless entry system or the
keyless operation function was not used to
lock the vehicle.

Electronic immobilizer
(Anti-theft starting system)

E00300203805

CAUTION

Do not modify or add parts to the immobiliz-
er system. Doing so could cause the immo-
bilizer to malfunction.

[For  vehicles  equipped  with  keyless  opera-
tion system]
For  information  on  operations  for  vehicles
equipped  with  the  keyless  operation  system,
refer to “Keyless operation system: Electron-
ic  immobilizer  (Anti-theft  starting  system)”
on page 3-12.
[Except vehicles equipped with keyless oper-
ation system]
The  electronic  immobilizer  has  been  de-
signed  to  significantly  reduce  the  possibility
of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is
attempted.  A  valid  start  attempt  can  only  be
achieved  by  using  a  key  “registered”  to  the
immobilizer system.

NOTE

In the following cases, the vehicle may not
be able to receive the registered ID code
from the registered key and the engine may
not start.

•

When the key contacts a key ring or other
metallic or magnetic object.

NOTE

•

When the key grip contacts metal of an-
other key.

•

When the key contacts or is close to other
immobilizing keys (including keys of oth-
er vehicles).

Electronic immobilizer (Anti-theft starting system)

3-03

OGAE18E1

Locking and unlocking

NOTE

In cases like these, remove the object or
additional key from the vehicle key. Then
try again to start the engine. If the engine
does not start, we recommend you to con-
tact your MITSUBISHI MOTORS Au-
thorized Service Point.

If  you  lose  one  of  them,  contact  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point as soon as possible. To obtain a re-
placement or extra spare key, take your vehi-
cle  and  all  remaining  keys  to  your
MITSUBISHI  MOTORS  Authorized  Serv-
ice  Point.  All  the  keys  have  to  be  re-regis-
tered in the immobilizer computer unit. The
immobilizer  can  register  up  to  8  different
keys.

Keyless entry system*

E00300304425

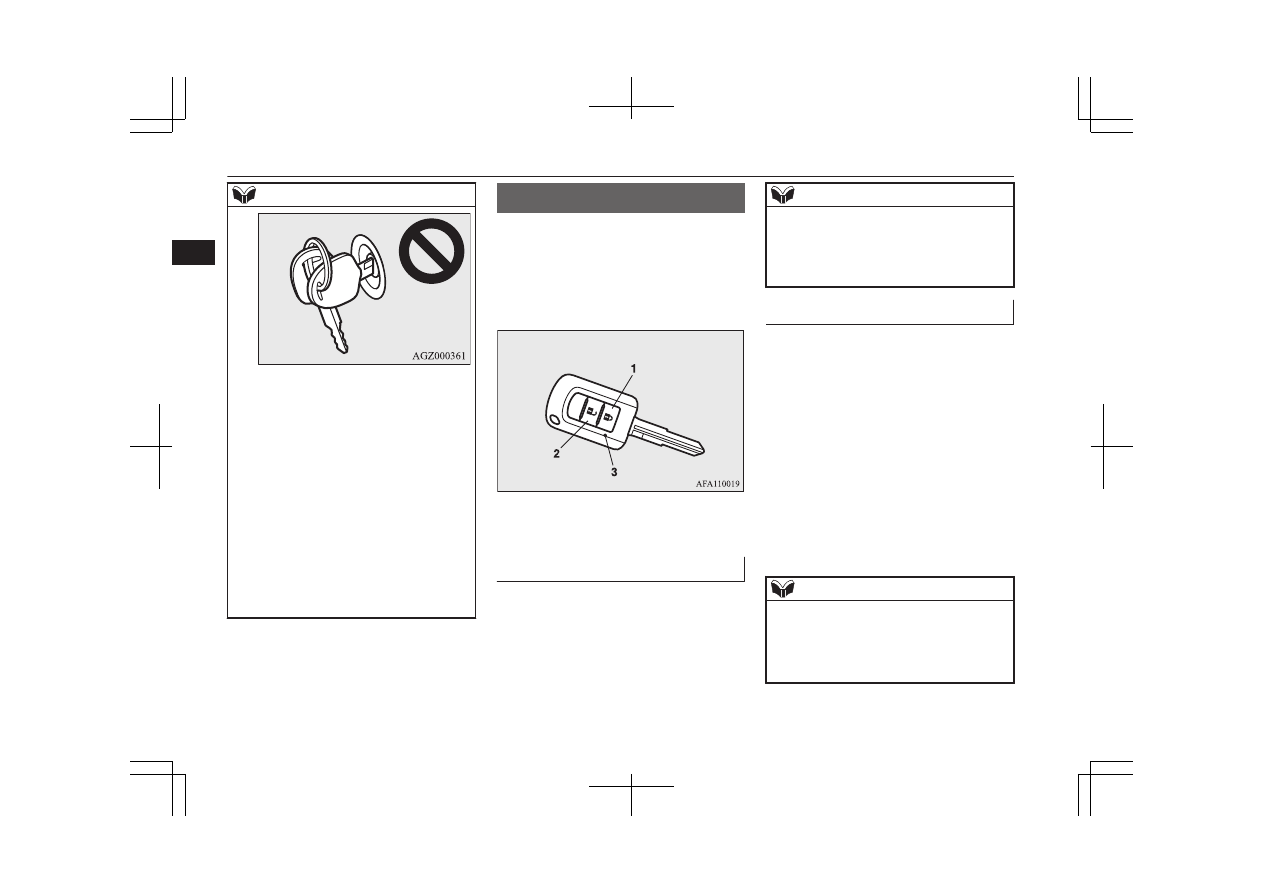

Press the remote control switch, and all doors
and the tailgate will be locked or unlocked as
desired. It is also possible to operate the out-
side rear-view mirrors (Vehicles equipped
with the mirror retractor switch).

1- LOCK switch
2- UNLOCK switch
3- Indication lamp

To lock

Press the LOCK switch (1). All the doors and
the tailgate will be locked. The turn-signal
lamps will blink once when the doors and the
tailgate are locked.

NOTE

With a vehicle that has a Dead Lock System,
pressing the LOCK switch (1) two times in
succession causes the Dead Lock System to
be set. (Refer to “Setting the system” on
page 3-27.)

To unlock

Press the UNLOCK switch (2). All the doors
and the tailgate will be unlocked. If the doors
and  tailgate  are  unlocked  when  the  front
room lamp switch is in the “DOOR” position
or the rear room lamp switch (except for ve-
hicles  equipped  with  the  sunshade)  is  in  the
middle  (•)  position,  the  room  lamp  will  illu-
minate for approximately 15 seconds and the
turn-signal lamps will blink twice.
Depending on the vehicle model, the position
and  tail  lamps  can  also  be  set  to  turn  on  for
approximately  30  seconds.  Refer  to  “Instru-
ments and controls: Welcome light” on page
5-54.

NOTE

The remote control switch does not operate
in the following conditions:

•

The key is left in the ignition switch.

•

A door or the tailgate is open or ajar. (On-
ly the unlock function operates.)

Keyless entry system*

3-04

OGAE18E1

Locking and unlocking

NOTE

Except  for  vehicles  equipped  with  a  Dead
Lock  System,  the  door  and  tailgate  unlock
function can be set so that only the driver’s
door unlocks when the UNLOCK switch (2)
is pressed once.
If the door and tailgate unlock function is set
to work as described above, all the doors and
the  tailgate  unlock  when  the  UNLOCK
switch is pressed two times in succession.
Refer to “Setting of door and tailgate unlock
function” on page 3-06.

The indication lamp (3) comes on each time
a switch is pressed.

For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract or extend when all the
doors and tailgate are locked or unlocked us-
ing the remote control switches of the key-
less entry system.
Refer to “Starting and driving: Outside rear-
view mirrors” on page 6-10.

If the UNLOCK switch (2) is pressed and no
door or tailgate is opened within approxi-
mately 30 seconds, relocking will automati-
cally occur.

It is possible to modify functions as follows:
For further information, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.

•

The time for automatic relocking can be
changed.

NOTE

•

The confirmation function (flashing of the
turn-signal lamps) can be set to operate
only when the doors and backdoor are
locked or only when the doors and back-
door are unlocked.

•

The confirmation function (this indicates
locking or unlocking of the doors and tail-
gate with the blink of the turn-signal
lamps) can be deactivated.

•

The number of times the turn-signal
lamps are flashed by the confirmation
function can be changed.

Operation of the Dead Lock

System

In a vehicle that has a Dead Lock System, it
is possible to set the Dead Lock System using
the remote controller.
(Refer to “Dead Lock System” on page
3-27.)

Operation of the outside rear-

view mirrors (Vehicles equip-

ped with mirror retractor

switch)

E00310800236

To fold

Within 30 seconds of locking the doors and
tailgate using the LOCK switch (1), press the
LOCK switch twice rapidly to fold the out-
side rear-view mirrors.

To extend

Within  30  seconds  of  unlocking  the  doors
and  tailgate  using  the  UNLOCK  switch  (2),
press  the  UNLOCK  switch  twice  rapidly  to
return  the  outside  rear-view  mirrors  to  their
extended positions.

The  outside  rear-view  mirrors  are  not  ini-
tially set to work as described above. If you
want them to work as described above, you
need to set them so that they do not retract/
extend  when  the  doors  and  tailgate  are
locked/unlocked using the keyless entry sys-
tem or keyless operation system.
Refer to “Starting and driving: Outside rear-
view mirrors” on page 6-10.
For  details,  please  consult  a  MITSUBISHI
MOTORS Authorized Service Point.

Keyless entry system*

3-05

OGAE18E1

Locking and unlocking

NOTE

The outside rear-view mirrors cannot be fol-
ded or extended using the remote control
switch in the following conditions:

•

The key is left in the ignition switch.

•

A door or the tailgate is open or ajar.

The remote control switch will operate with-
in  approximately  4  m  from  the  vehicle.
However, the operating range of the remote
control  switch  may  change  if  the  vehicle  is
located  near  a  power  station,  or  radio/TV
broadcasting station.

If either of the following problems occurs,
the battery may be exhausted.

•

The remote control switch is operated at
the correct distance from the vehicle, but
the doors and tailgate are not locked/
unlocked in response.

•

The indication lamp (3) is dim or does not
come on.

For further information, please contact
your MITSUBISHI MOTORS Authorized
Service Point.

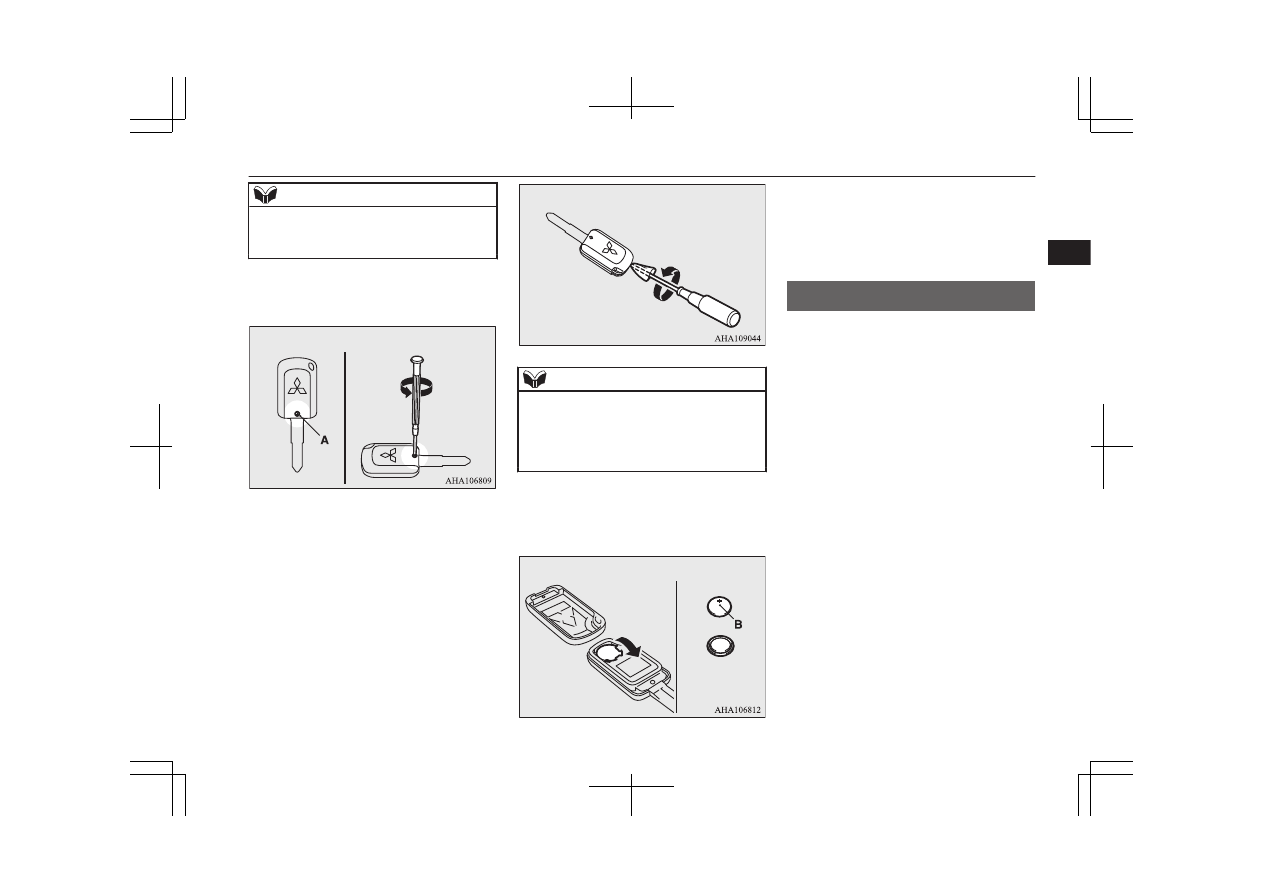

If you replace the battery yourself, refer to
“Procedure for replacing the remote con-
trol switch battery” on page 3-06.

If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.

NOTE

If you wish to add a remote control switch,
we  recommend  you  to  contact  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
A  maximum  of  8  remote  control  switches
are available for your vehicle.

Setting of door and tailgate un-

lock function (Except for vehi-

cles equipped with a Dead

Lock System)

E00310300257

The door and tailgate unlock function can be
set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the
condition of the door and tailgate unlock
function.

Number of

chimes

Condition

One chime

All doors and the tailgate un-
lock

Two chimes

Driver’s door unlock only

1. Remove the key from the ignition

switch.

2. Place the combination headlamps and

dipper switch in the “OFF” position, and
leave the driver’s door open.

3. Press and hold the LOCK switch (1) for

4 to 10 seconds and then also press the
UNLOCK switch (2) during this time.

4. Release in sequence the LOCK and UN-

LOCK switches within 10 seconds of
pressing the LOCK switch in step 3.

Procedure for replacing the re-

mote control switch battery

E00309501692

Before replacing the battery, remove static
electricity from your body by touching a met-
al part such as doorknob of the room.

WARNING

Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an
equivalent type.

CAUTION

When  the  remote  control  switch  case  is
opened,  be  careful  to  keep  water,  dust,  etc.
out.  Also,  do  not  touch  the  internal  compo-
nents.

NOTE

You may purchase a replacement battery at
an electric appliance store.

Keyless entry system*

3-06

OGAE18E1

Locking and unlocking

NOTE

A MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you
if you prefer.

1. Remove the screw (A) from the remote

control switch.

2. With the MITSUBISHI mark facing

you, insert the cloth-covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the remote control switch
case and use it to open the case.

NOTE

Be  sure  to  perform  the  procedure  with  the
MITSUBISHI  mark  facing  you.  If  the
MITSUBISHI  mark  is  not  facing  you  when
you open the remote control switch case, the
switches may come out.

3. Remove the old battery.
4. Install a new battery with the + side (B)

up.

+ side

- side

Coin type
battery
CR1620

5. Close the remote control switch case

firmly.

6. Attach the screw (A) removed in step 1.
7. Check the keyless entry system to see

that it works.

Keyless operation system*

E00305601943

The  keyless  operation  system  allows  you  to
lock  and  unlock  the  doors  and  tailgate,  start
the  engine  and  change  the  operation  mode
simply by carrying the keyless operation key
with you.
The keyless operation key can also be used as
the  keyless  entry  system  remote  control
switch.
Refer to “Keyless operation system: Keyless
entry system” on page 3-22.

The  driver  should  always  carry  the  keyless
operation key. This key is necessary for lock-
ing  and  unlocking  the  doors  and  tailgate,
starting  the  engine  and  otherwise  operating
the vehicle, so before locking and leaving the
vehicle,  be  sure  to  check  that  you  have  the
keyless operation key.

Keyless operation system*

3-07

OGAE18E1

Locking and unlocking

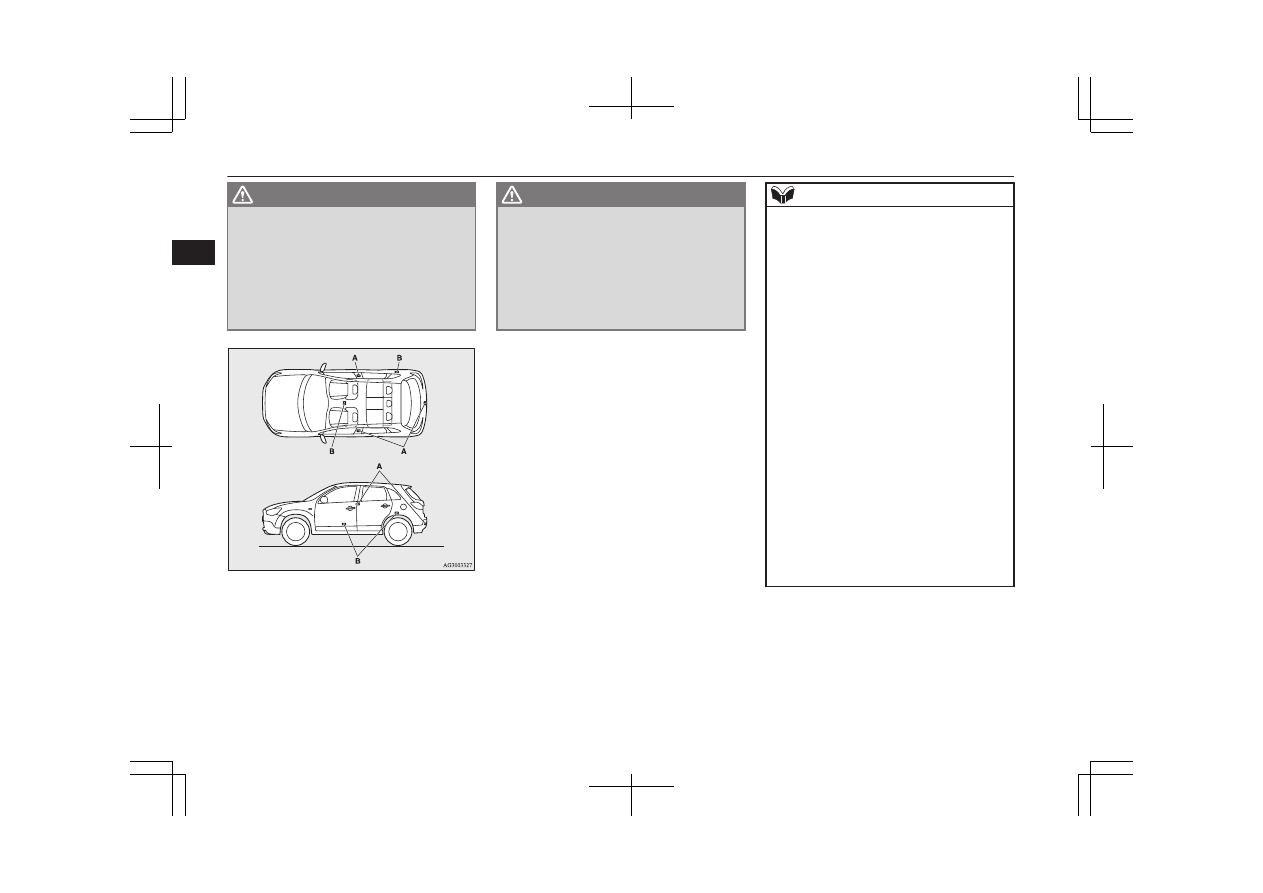

WARNING

People  with  implantable  cardiac  pace-
makers or implantable cardiovascular-de-
fibrillators should not go near the exterior
transmitters  (A)  or  the  interior  transmit-
ters (B). The radio waves used by the key-
less  operation  system  could  adversely  af-
fect  implantable  cardiac  pacemakers  or
implantable cardiovascular-defibrillators.

WARNING

When using electro-medical devices other
than  implantable  cardiac  pacemakers  or
implantable  cardiovascular-defibrillators,
contact  the  electromedical  device  manu-
facturer  ahead  of  time  to  determine  the
affects of radio waves on the devices. Elec-
tromedical device operations could be af-
fected by radio waves.

You can limit the possible operations of
the  keyless  operation  system  in  the  fol-
lowing  ways.  (The  keyless  operation
system  can  be  used  as  a  keyless  entry
system.)  Consult  a  MITSUBISHI
MOTORS Authorized Service Point.

• You can limit operations to locking

and unlocking the doors and tailgate.

• You can limit operations to starting

the engine.

• The keyless operation system can be

disabled.

When keyless operation system opera-
tions are modified, the transmitters oper-
ate as follows.

• Only locking and unlocking doors or

tailgate: exterior and interior transmit-
ters.

• Only starting the engine: interior

transmitter.

NOTE

The keyless operation key uses an ultra-
weak electromagnetic wave. In the following
cases, the keyless operation system may not
operate properly or may be unstable.

•

When there is equipment nearby that
emits strong radio waves, such as: a pow-
er station, a radio/TV broadcasting station
or an airport.

•

The  keyless  operation  system  is  carried
together  with  a  communications  device
such  as  a  cellular  phone  or  radio  set,  or
with  an  electronic  device  such  as  a  per-
sonal computer.

•

The keyless operation key is touching or
covered by a metal object.

•

A keyless entry system is being used
nearby.

•

When the keyless operation key battery is
worn out.

•

When the keyless operation key is placed
in  an  area  with  strong  radio  waves  or
noise.
In such cases, use the emergency key.
Refer  to  “To  operate  without  using  the
keyless  operation  function”  on  page
3-21.

Keyless operation system*

3-08

OGAE18E1

Locking and unlocking

NOTE

Because  the  keyless  operation  key  receives
signals  in  order  to  communicate  with  the
transmitters  in  the  vehicle,  the  battery  con-
tinually  wears  down  regardless  of  keyless
operation key use. The battery life is 1 to 3
years, depending on usage conditions. When
the  battery  wears  out,  please  consult  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
If  you  replace  the  battery  yourself,  refer  to
“Procedure  for  replacing  the  remote  control
switch battery” on page 3-24.

Because the keyless operation key continual-
ly receives signals, strong radio wave recep-
tion could affect battery wear. Do not leave
the key near a TV, personal computer, or
other electronic device.

Operating range of the keyless

operation system

E00305701797

If you are carrying the keyless operation key,
enter the operating range of the keyless oper-
ation system, and press the driver’s or front
passenger’s door lock/unlock switch, the tail-
gate LOCK switch or the tailgate OPEN
switch, the ID code for your key is verified.

You can only lock and unlock the doors and
tailgate, start the engine and change the oper-
ation mode if the ID codes of your keyless
operation key and the vehicle match.

NOTE

If the keyless operation key battery is wear-
ing out or there are strong electromagnetic
waves or noise present, the operating range
may become smaller and operation may be-
come unstable.

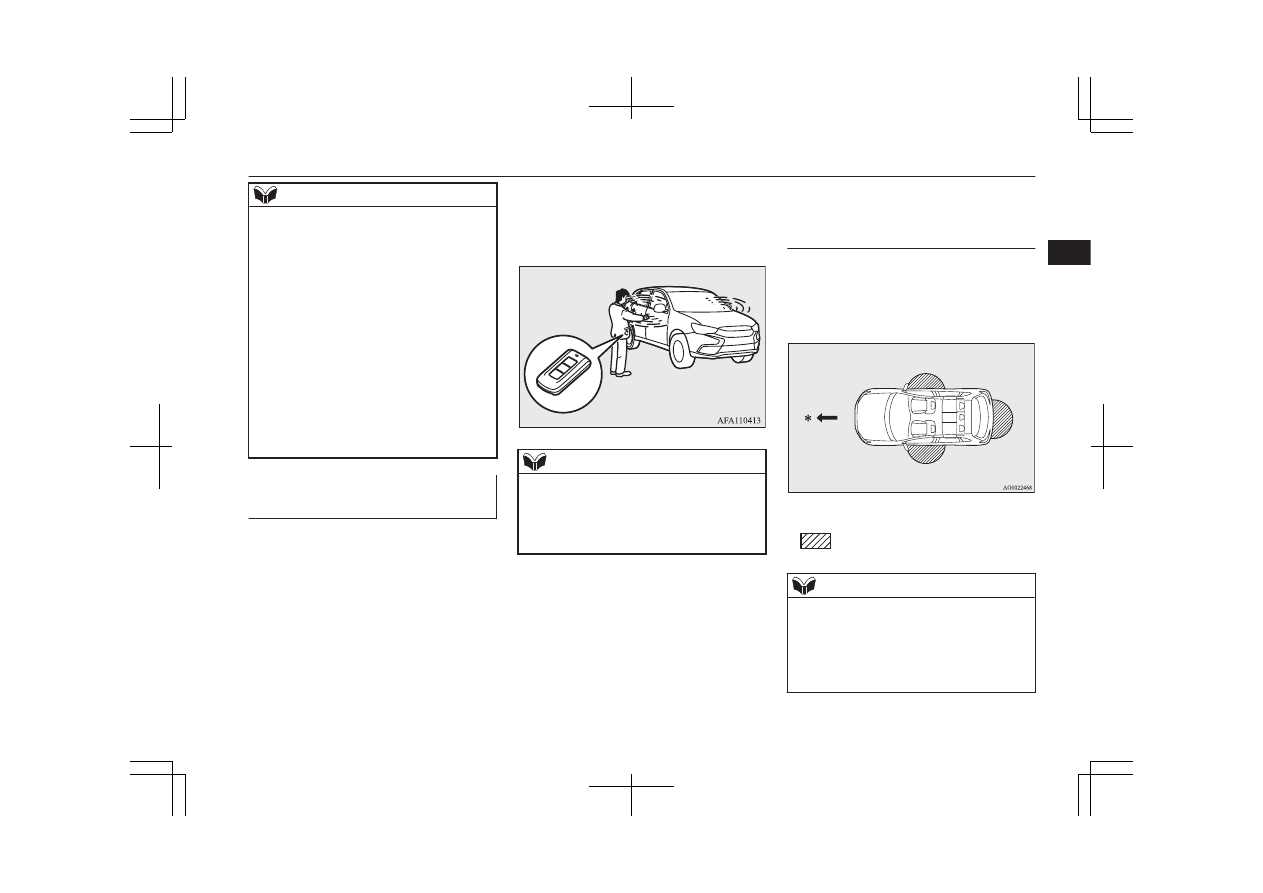

Operating range for locking
and unlocking the doors and
tailgate

E00306200330

The operating range is approximately 70 cm
from the driver’s and front passenger’s door
lock/unlock switches, the tailgate LOCK
switch and the tailgate OPEN switch.

*: Forward direction

: Operating range

NOTE

Locking and unlocking are only possible
when the door or tailgate is operated while
the keyless operation key is being detected.

Operation may not be possible if you are too
close to the front door, door window, or tail-
gate.

Keyless operation system*

3-09

OGAE18E1

Locking and unlocking

Mitsubishi ASX (2018 year). Instruction - part 2
