MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-799

STEP 7. Check for continuity at ETACS-ECU side
connector C-304 and C-315.
(1) Disconnect the connector C-304, C-315 and measure at the

ETACS-ECU side.

(2) Measure the resistance between connector C-304 (terminal

No. 15) and connector C-315 (terminal No. 7).

• Should be less than 2 ohms

Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO :  Replace the ETACS-ECU. Then confirm that the

malfunction symptom is eliminated.

STEP 8. Check harness connector B-11 ECM connector for
damage.
Q: Is the connector in good condition?

YES : Repair harness wire between ETACS-ECU connector

C-304 (terminal No. 15) and ECM connector B-11
(terminal No. 105) because of open circuit or short
circuit to ground or harness damage. Then confirm
that the malfunction symptom is eliminated.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 9. Check harness connector A-27X at starter relay
connector for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

1

6

4

5

9

8

10 11

13

15

14

12

16

7

2 3

7

3

8

1

4

9

13 14

16

15

10 11 12

17 18 19

2

5 6

AK704319

C-304 ETACS-ECU
side connector

C-315 ETACS-ECU
side connector

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-800

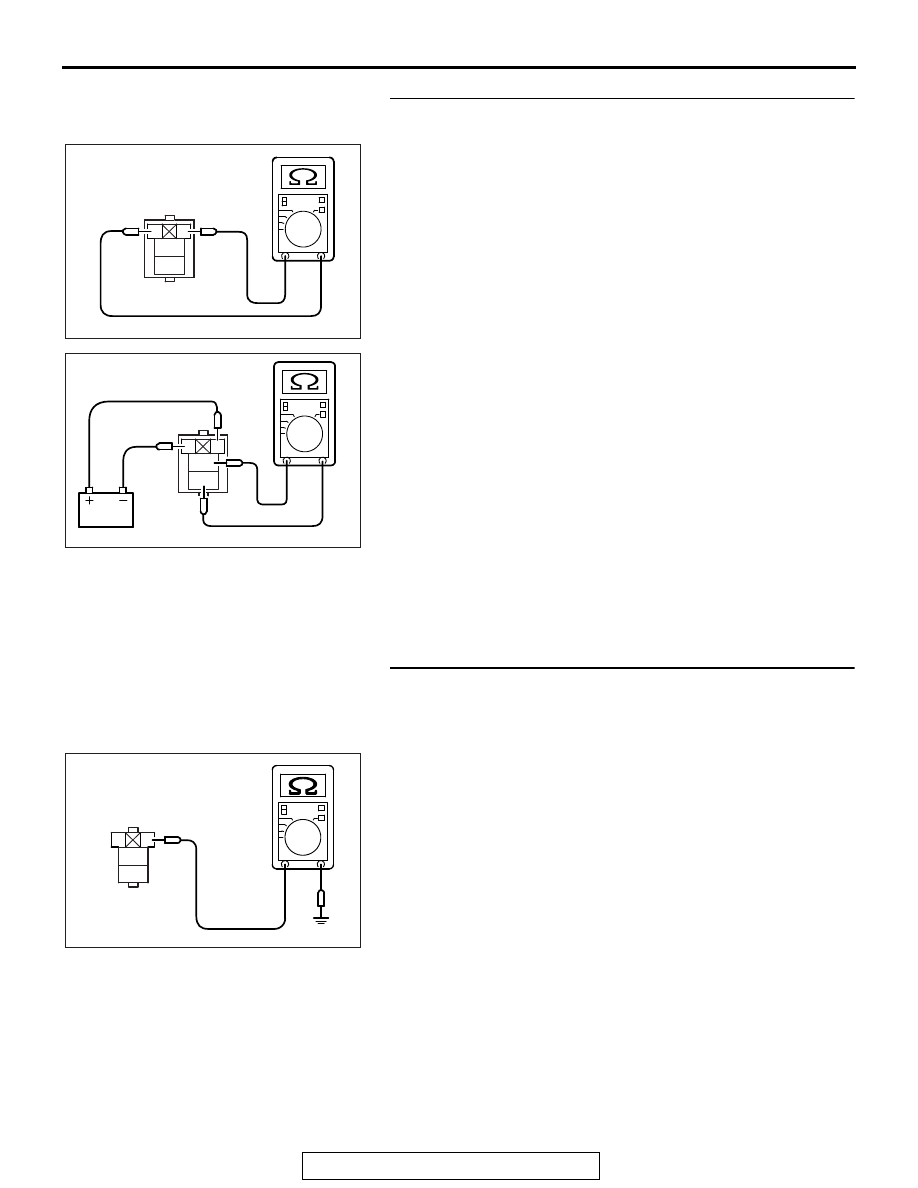

STEP 10. Check the starter relay.
(1) Remove the starter relay.
(2) Check for continuity between the starter relay terminals No.

1 and No. 2.

• There should be continuity.

(3) Use jumper wires to connect starter relay terminal No. 2 to

the positive battery terminal and terminal No. 1 to the
negative battery terminal.

(4) Check for continuity between the starter relay terminals No.

3 and No. 4 while connecting and disconnecting the jumper
wire at the negative battery terminal.

• Should be less than 2 ohms. (Negative battery terminal

connected)

• Should be open loop. (Negative battery terminal discon-

nected)

(5) Install the starter relay.
Q: Is the measured resistance within the specified range?

YES : Go to Step 11.
NO :  Replace the starter relay. Then confirm that the

malfunction symptom is eliminated.

STEP 11. Check for continuity at starter relay harness side
connector A-27X.
(1) Disconnect the connector A-27X and measure at the

harness side.

(2) Check for the continuity between terminal No. 1 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 12.
NO :  Repair harness wire between starter relay connector

A-27X (terminal No. 1) and ground because of open
circuit or harness damage. Then confirm that the
malfunction symptom is eliminated.

AK604033

1

2

3
4

Starter relay side connector

AC

AK604235

1

2

3
4

AC

Starter relay side connector

AK700518

2

1

3
4

AB

A-27X harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-801

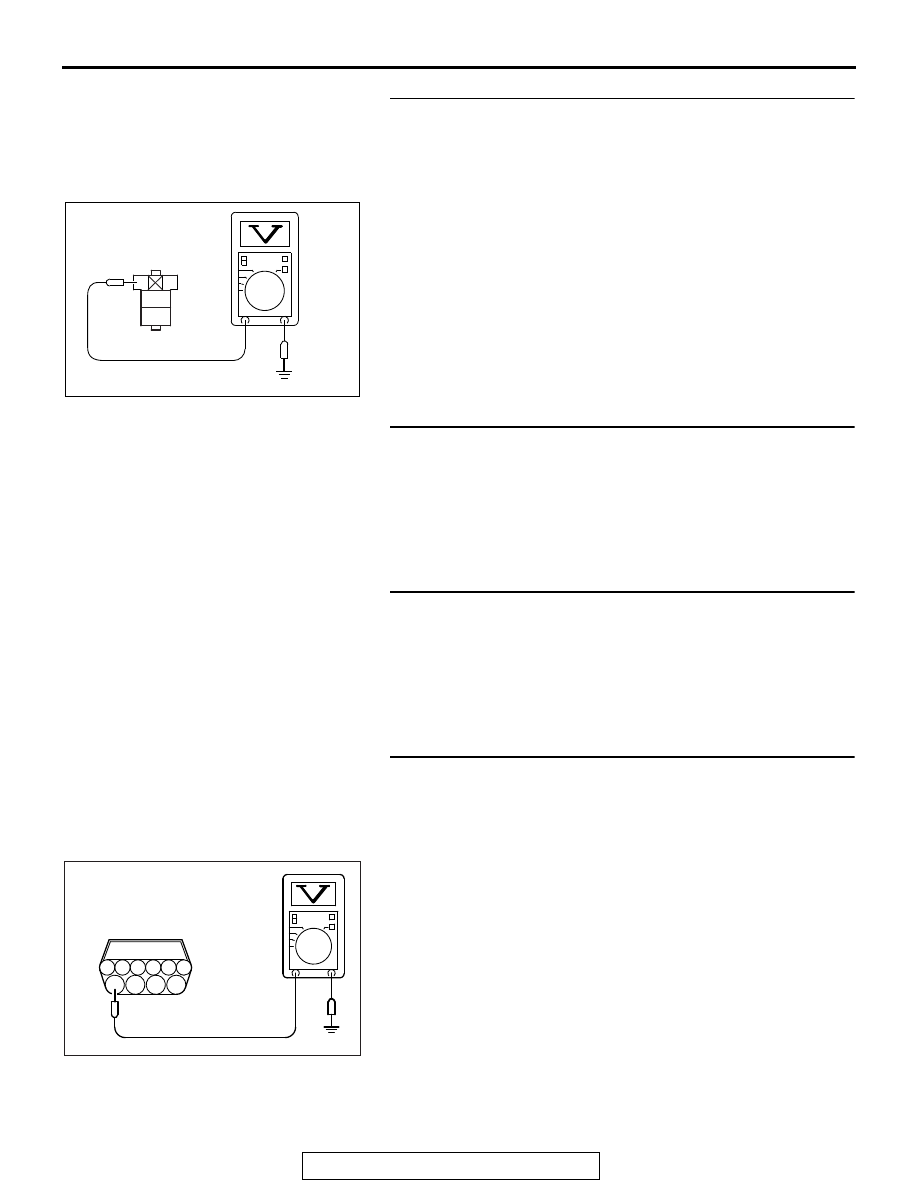

STEP 12. Measure the power supply voltage at starter relay
harness side connector A-27X.
(1) Disconnect the connector A-27X and measure at the

harness side.

(2) Turn the ignition switch to the "START" position.
(3) Measure the voltage between terminal No. 2 and ground.

• Voltage should be battery positive voltage

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 20.
NO :  Go to Step 13.

STEP 13. Check harness connector B-110 at transmission
range switch connector for damage.
Q: Is the connector in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 14. Check the transmission range switch.
Refer to GROUP 23A, On-vehicle Service

− Essential Service −

Transmission Range Switch Continuity Check

P.23A-143

.

Q: Are there any abnormalities?

YES : Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

NO :  Go to Step 15.

STEP 15. Measure the power supply voltage at
transmission range switch harness side connector B-110.
(1) Disconnect the connector B-110 and measure at the

harness side.

(2) Turn the ignition switch to the "START" position.
(3) Measure the voltage between terminal No. 10 and ground.

• Voltage should be battery positive voltage

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 18.
NO :  Go to Step 16.

AK604216

2

1

3
4

AE

A-27X harness
connector:
component side

8

9

3

4

5

1

2

6

7

10

AK704320

B-110 harness
connector:
component side

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-802

STEP 16. Check harness connector B-11 at ECM connector
for damage.
Q: Is the connector in good condition?

YES : Go to Step 17.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 17. Check for open circuit and short circuit to
ground between ECM connector B-11 (terminal No. 106)
and transmission range switch connector B-110 (terminal
No. 10).
NOTE: Check harness after checking intermediate connector
A-13. If intermediate connector is damaged, repair or replace it.
After to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then check that the malfunction is eliminated.
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then confirm that the malfunction

symptom is eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 18. Check for open circuit and short circuit to
ground between transmission range switch connector
B-110 (terminal No. 7) and starter relay A-27X (terminal No.
2).
NOTE: Check harness after checking intermediate connector
A-13. If intermediate connector is damaged, repair or replace it.
After to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then check that the malfunction is eliminated.
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.
