CAMSHAFT

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-35

>>E<< CAMSHAFT BEARING/CAMSHAFT AND
CAMSHAFT SPROCKET ASSEMBLY (EXHAUST
SIDE) INSTALLATION

CAUTION

• Be careful not to drop the camshaft bearing.
• When installing the camshaft and camshaft sprocket

assembly (exhaust side), be careful not to let the cam-
shaft bearing which is installed to the front cam bearing
deviate from its position.

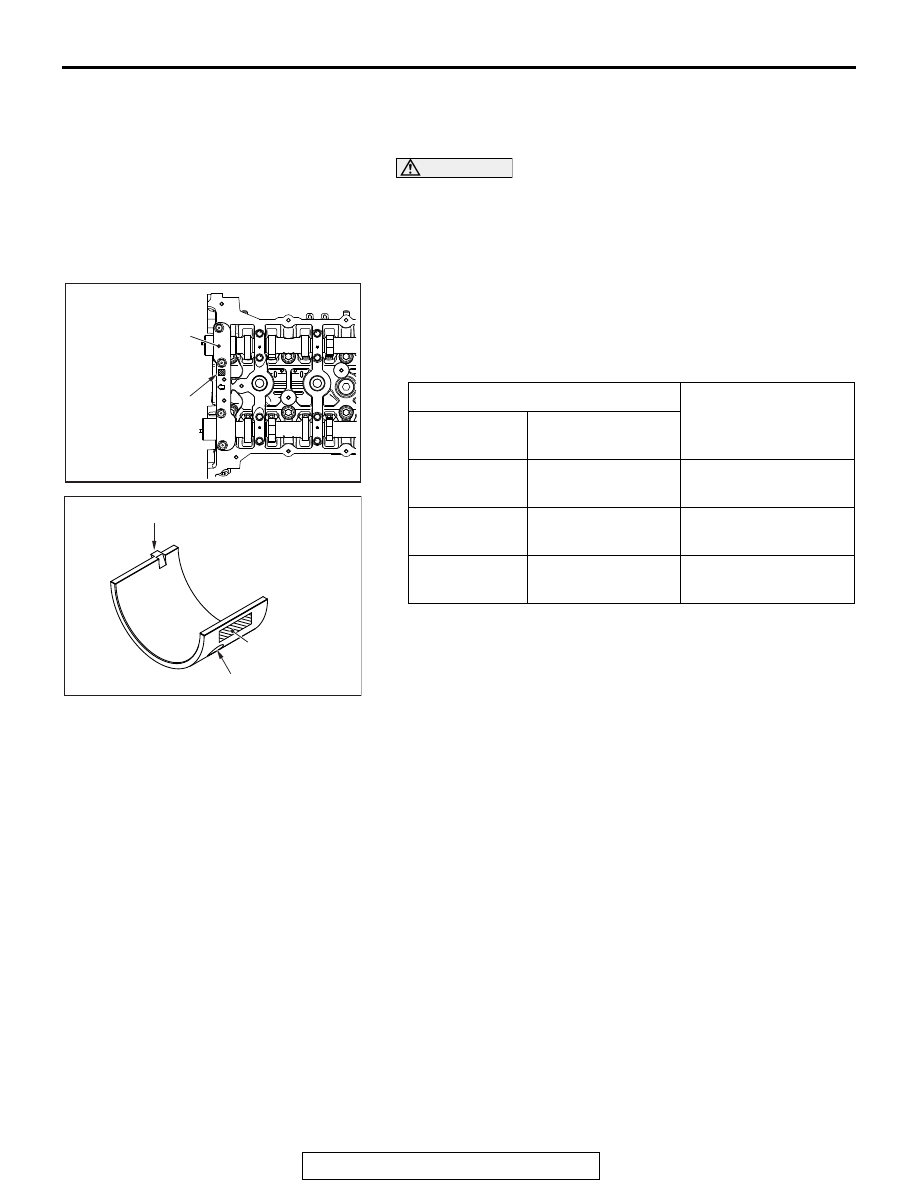

1. When replacing the camshaft bearing, according to the

identification mark of front camshaft bearing cap in the table
below, select a camshaft bearing with the corresponding
size. Note that the identification mark of camshaft bearing is
stamped on the place shown in the figure.

Front camshaft bearing cap

Camshaft bearing
identification mark

Identification
mark

Journal diameter
mm (in)

1

40.000 - 40.008
(1.5748 - 1.5751)

1

2

40.008 - 40.016
(1.5751 - 1.5754)

2

3

40.016 - 40.024
(1.5754 - 1.5757)

3

AC611697

AD

Front camshaft
bearing cap

Identification
mark

AC708893

Notch

Identification mark

Oil hole

AD

CAMSHAFT

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-36

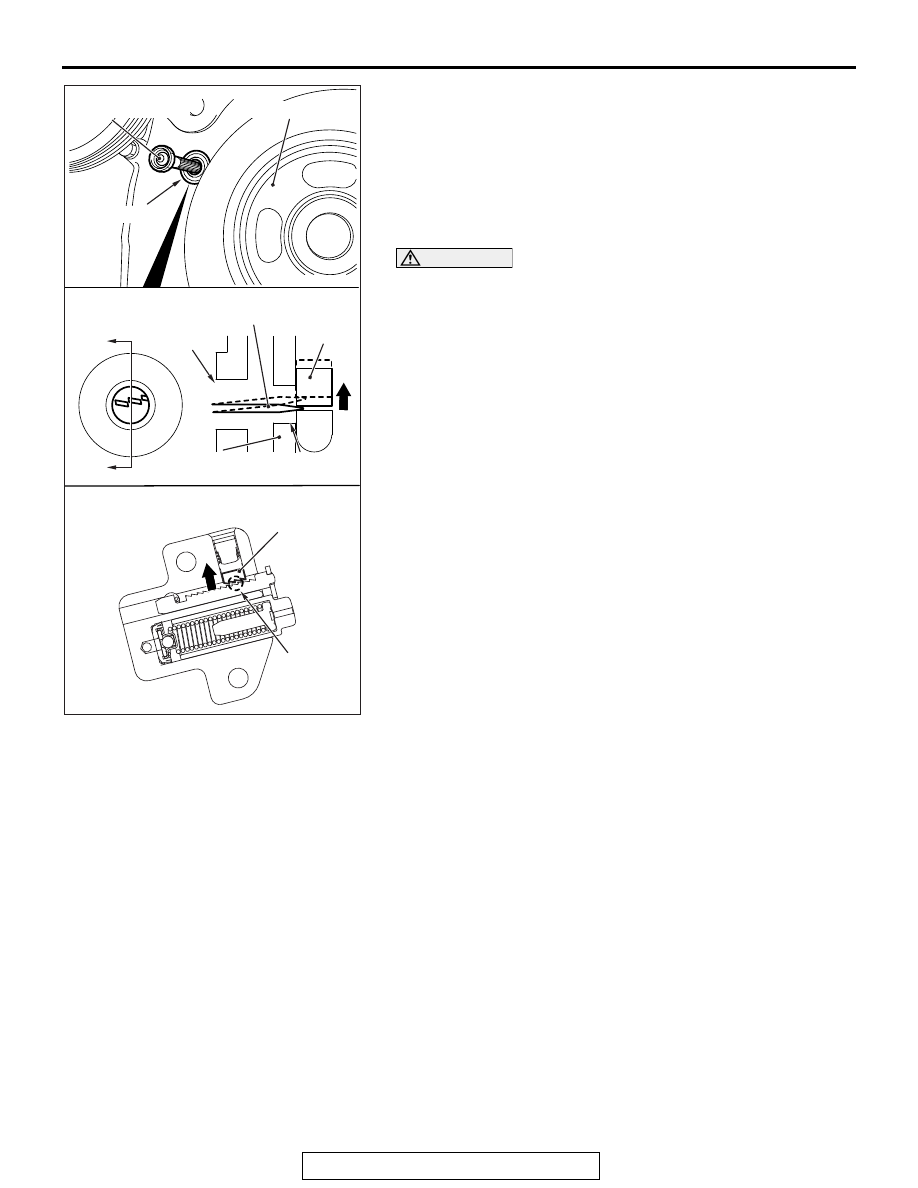

2. In the same manner as removal, insert the precision

flat-tipped screwdriver through the service hole of the timing
chain case, press up the ratchet of timing chain tensioner to
unlock, and hold the unlocked timing chain tensioner.
NOTE: Lightly press down the tail end of the precision
flat-tipped screwdriver to press up the tip of the precision
flat-tipped screwdriver inserted to the timing chain tensioner
to unlock.

CAUTION

• When inserting special tool MB992103 into the timing

chain case assembly, pay attention to the position of
the timing chain to avoid damage to the timing chain
and timing chain tension side guide. Do not insert the
special tool beyond its insertion guideline.

• If unlocking the timing chain tensioner is insufficient,

the special tool cannot be inserted to the insertion
guideline. Do not insert the special tool forcibly, follow
Step 2 again to unlock the timing chain tensioner and
insert the special tool.

AC509155

AC

Section A-A

A

A

Precision flat-tipped
screwdriver

Service hole

Crankshaft pulley

Service hole

Ratchet

Precision flat-tipped screwdriver

Ratchet
release hole

Timing chain
tensioner

Ratchet

Ratchet
release hole

Timing chain tensioner
construction diagram

CAMSHAFT

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-37

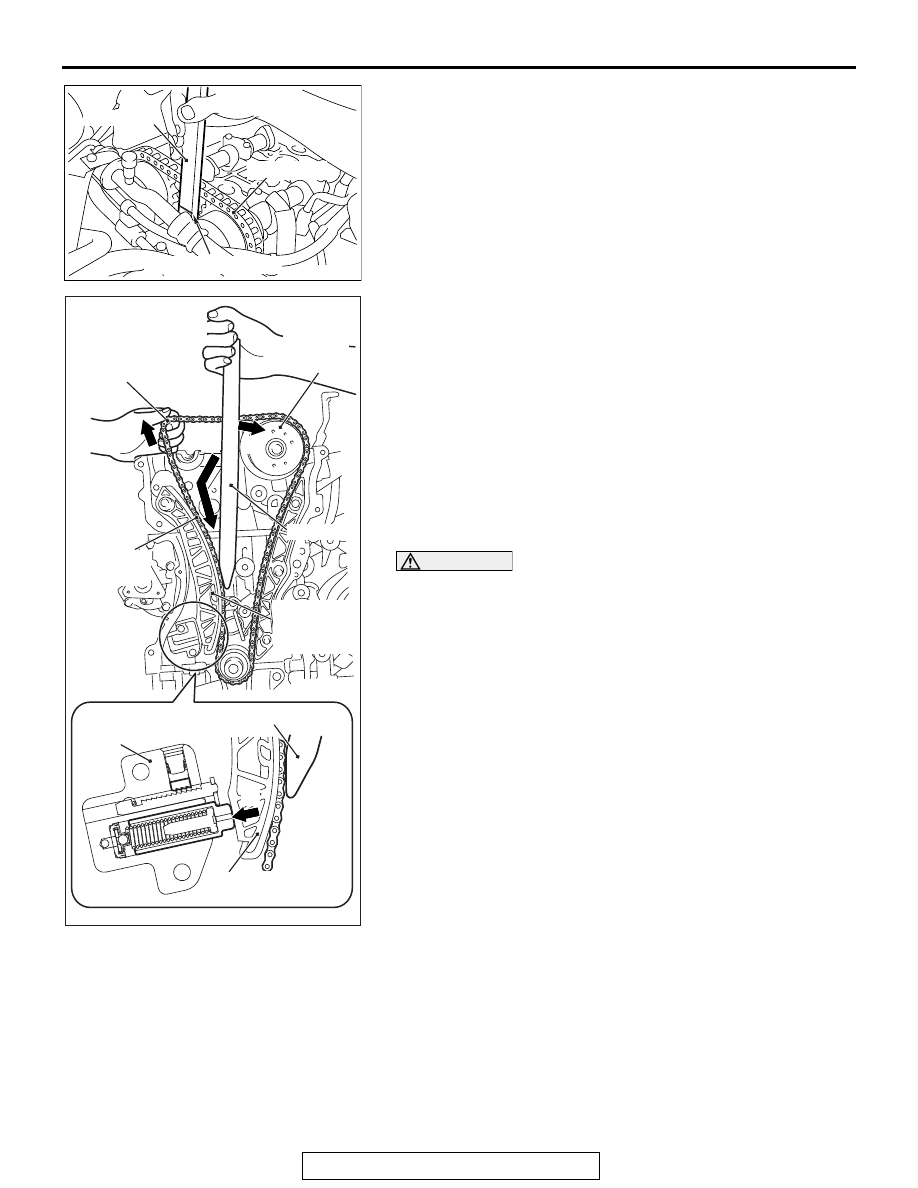

3. With the timing chain tensioner unlocked, insert special tool

MB992103 inside the timing chain case assembly along the
tension side of the timing chain until the insertion guide line
aligns with the upper surface of the timing chain case
assembly (Figure A).
NOTE: With the timing chain tensioner unlocked, insert the
special tool along the tension side of the timing chain,
according to the special tool top shape. The special tool can
be inserted smoothly to the position where the special tool
insertion guideline aligns with the timing chain case assem-
bly top surface, and the spread timing chain tension side
guide can be hold.

4. With the special tool inserted up to the insertion guide line,

press the special tool against the intake side camshaft
sprocket (Figure B) and spread and hold the timing chain
tension side guide (Figure C).

5. Remove the flat-tipped precision screwdriver unlocking the

timing chain tensioner.

6. Pull up the camshaft and camshaft sprocket assembly

(exhaust side) mounting area of the timing chain (Figure D)
to provide allowance for easy installation of the camshaft
and camshaft sprocket assembly (exhaust side) to the
timing chain.

CAUTION

When installing the camshaft and camshaft sprocket
assembly (exhaust side), be careful not to let the camshaft
bearing which is installed to the front cam bearing deviate
from its position.

AC507118

AC

Timing chain

MB992103

Insertion standard line

AC509177

AC508125

AD

MB992103

MB992103

Timing chain
tensioner

Timing chain
tension side guide

Timing chain
tension
side guide

Timing chain
(tension side)

Camshaft
sprocket
(intake side)

Timing chain
(exhaust camshaft and
camshaft sprocket
assembly side)

A

B

C

D

CAMSHAFT

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-38

7. Align the exhaust side paint mark of the timing chain which

was put at removal with the paint mark of the exhaust side
camshaft sprocket, and install the timing chain to the
camshaft sprocket.

8. Install the camshaft and camshaft sprocket assembly

(exhaust side) to the cylinder head.

9. Remove the special tool inserted into the timing chain case

assembly inside.

.

>>F<< FRONT CAMSHAFT BEARING CAP
ASSEMBLY INSTALLATION

CAUTION

When the mounting bolts are tightened with the front cam-
shaft bearing cap tilted, the front camshaft bearing cap is
damaged. Install the front camshaft bearing cap properly
to the cylinder head and camshaft.

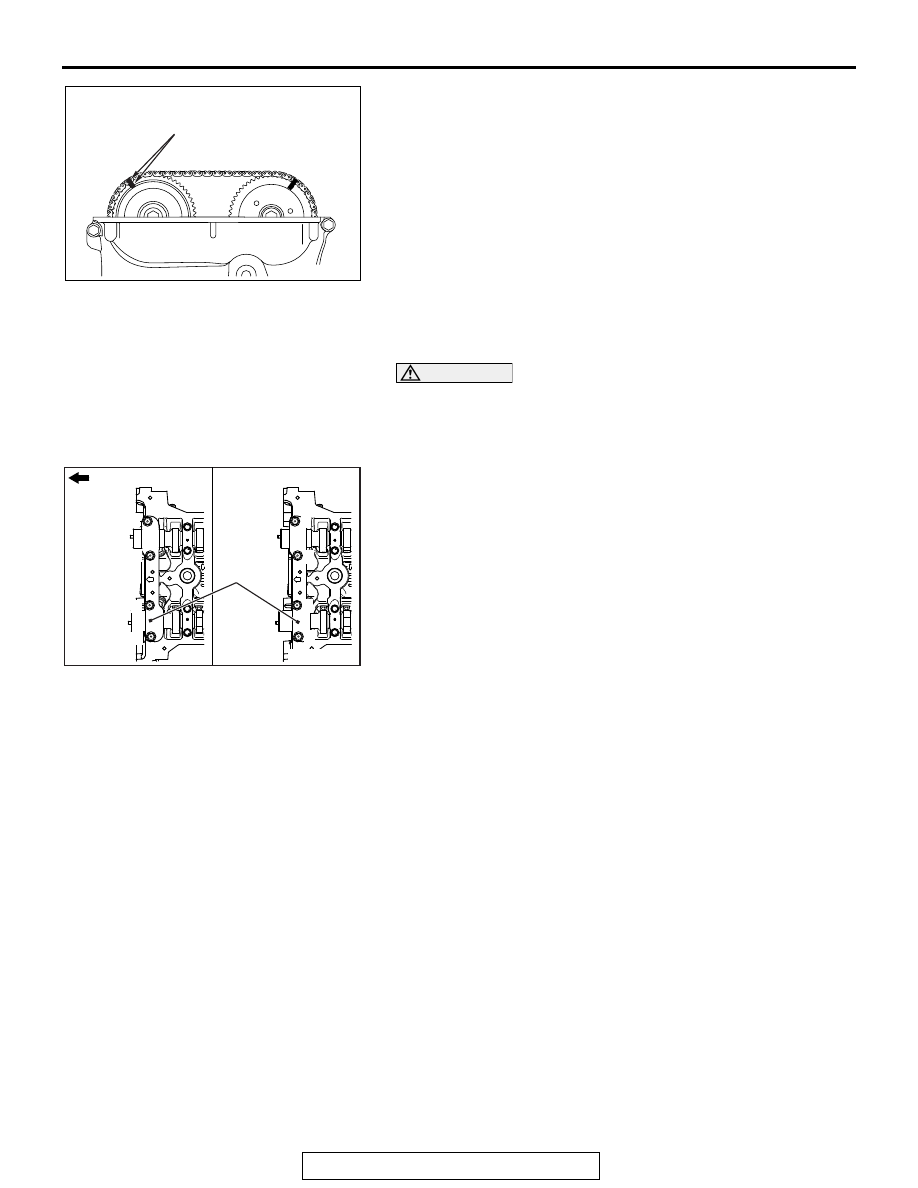

1. Install the front camshaft bearing cap to the cylinder head,

and temporarily tighten the camshaft bearing front cap to the
specified torque in the order of the figure (1).

Tightening torque: 17

± 3 N⋅m (13 ± 2 ft-lb)

2. Tighten the front camshaft bearing cap again to the specified

torque in the order of the figure (2).

Tightening torque: 30

± 2 N⋅m (22 ± 1 ft-lb)

3. After the front camshaft bearing cap installation, check that

the paint markings of the camshaft sprocket and the timing
chain and the timing mark of the crankshaft pulley and the
"T" mark position of ignition timing indicator are aligned
respectively.

.

AC506752

AB

Paint markings
(exhaust side)

AC511062

AC

4

3

2

1

4

3

2

1

(1)

(2)

Engine front

Front
camshaft
bearing
cap
assembly
