INSPECTION TERMINAL

TSB Revision

COMPONENT LOCATIONS

70-7

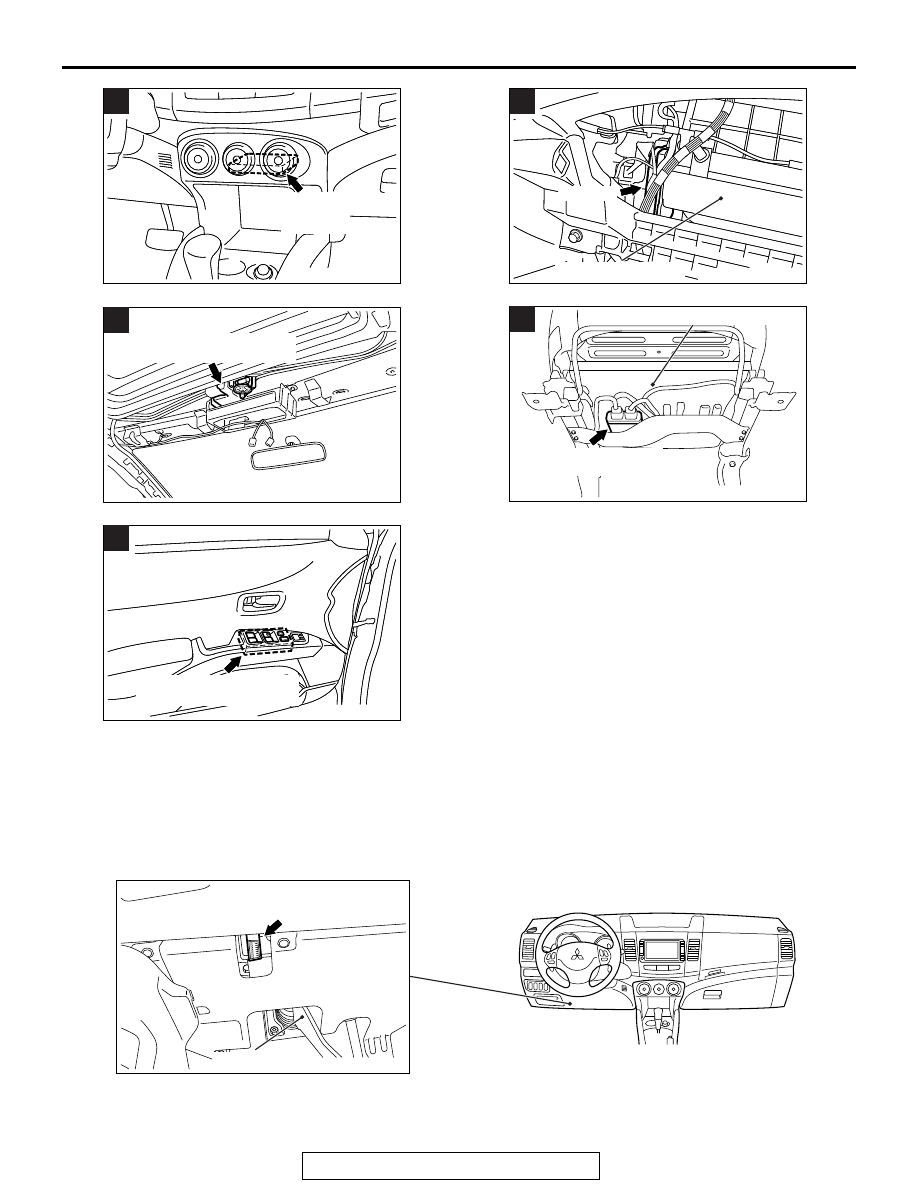

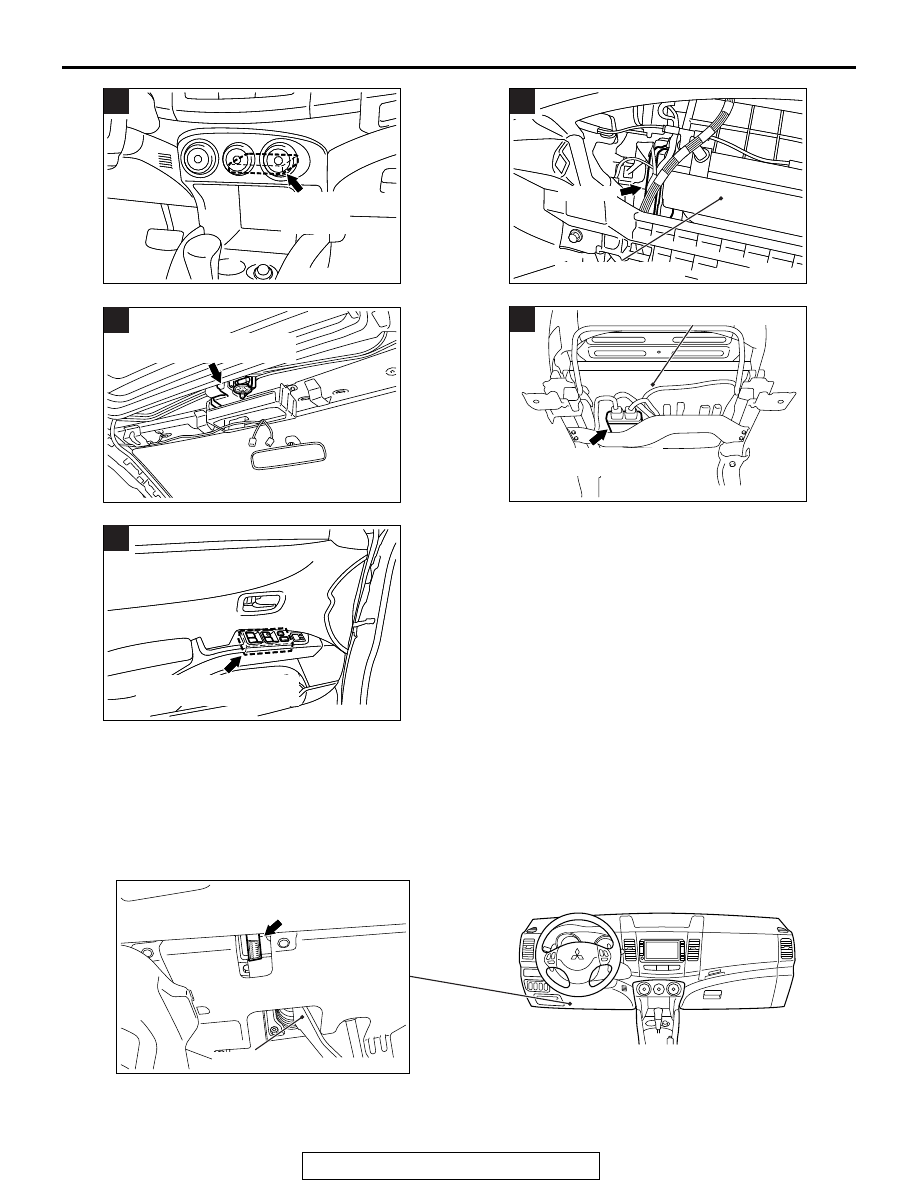

INSPECTION TERMINAL

M1701000200923

AC702558

AC702558 AC

Hands free
module or
USB box

M

AC702535

AC702535 AC

A/C-ECU

Heater unit assembly

N

AC702584AC

Sunroof motor assembly
(incorporating CPU)

O

AC702561AD

P

Front seat assembly (RH)

Occupant
classification-ECU

AC702513

AC702513AB

Power window main switch
(incorporating CPU)

Q

AC702583

Data link connector

Brakepedal

AB

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-8

SENSOR

M1701000602819

Name

Symbol

Name

Symbol

A/C pressure sensor

H

Knock sensor 2 <3.0L Engine>

O

Accelerator pedal position sensor

T

Left bank heated oxygen sensor (front)
<3.0L Engine>

Q

Air thermo sensor

W

Left bank heated oxygen sensor (rear)
<3.0L Engine>

a

Ambient air temperature sensor

M

Lighting control sensor <Vehicles with
automatic light>

b

Battery current sensor <2.4L engine>

G

Linear air-fuel ratio sensor <2.4L
Engine>

f

Camshaft position sensor <3.0L
Engine>

R

Manifold absolute pressure sensor

I

Crankshaft position sensor

B

Mass airflow sensor

E

Engine coolant temperature sensor

C

Output shaft speed sensor <3.0L
Engine>

d

Exhaust camshaft position sensor
<2.4L Engine>

D

Primary pulley speed sensor <2.4L
Engine>

L

Front impact sensor

N

Rear wheel speed sensor

k

Front wheel speed sensor

e

Right bank heated oxygen sensor
(front) <3.0L Engine>

Z

Fuel level sensor (sub) <AWD>

X

Right bank heated oxygen sensor (rear)
<3.0L Engine>

Z

Fuel pump module (incorporating fuel
level sensor (main) and fuel tank
temperature sensor)

j

Seat slide sensor

g

Fuel tank differential pressure sensor

j

Secondary pulley speed sensor <2.4L
Engine>

F

G and yaw rate sensor <Vehicles with
ASC>

V

Side impact sensor (front)

i

Heated oxygen sensor <2.4L Engine>

h

Side impact sensor (rear)

m

Input shaft speed sensor <3.0L
Engine>

P

Steering wheel sensor <Vehicles with
ASC>

S

Intake camshaft position sensor <2.4L
Engine>

J

Theft-alarm sensor

c

Interior temperature sensor <Vehicles
with automatic air conditioning system>

U

Throttle body assembly (incorporating
throttle position sensor)

K

Knock sensor <2.4L Engine>

A

Weight sensor

Y

Knock sensor 1 <3.0L Engine>

O

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-9

NOTE: The * symbols indicate equipment at both sides.

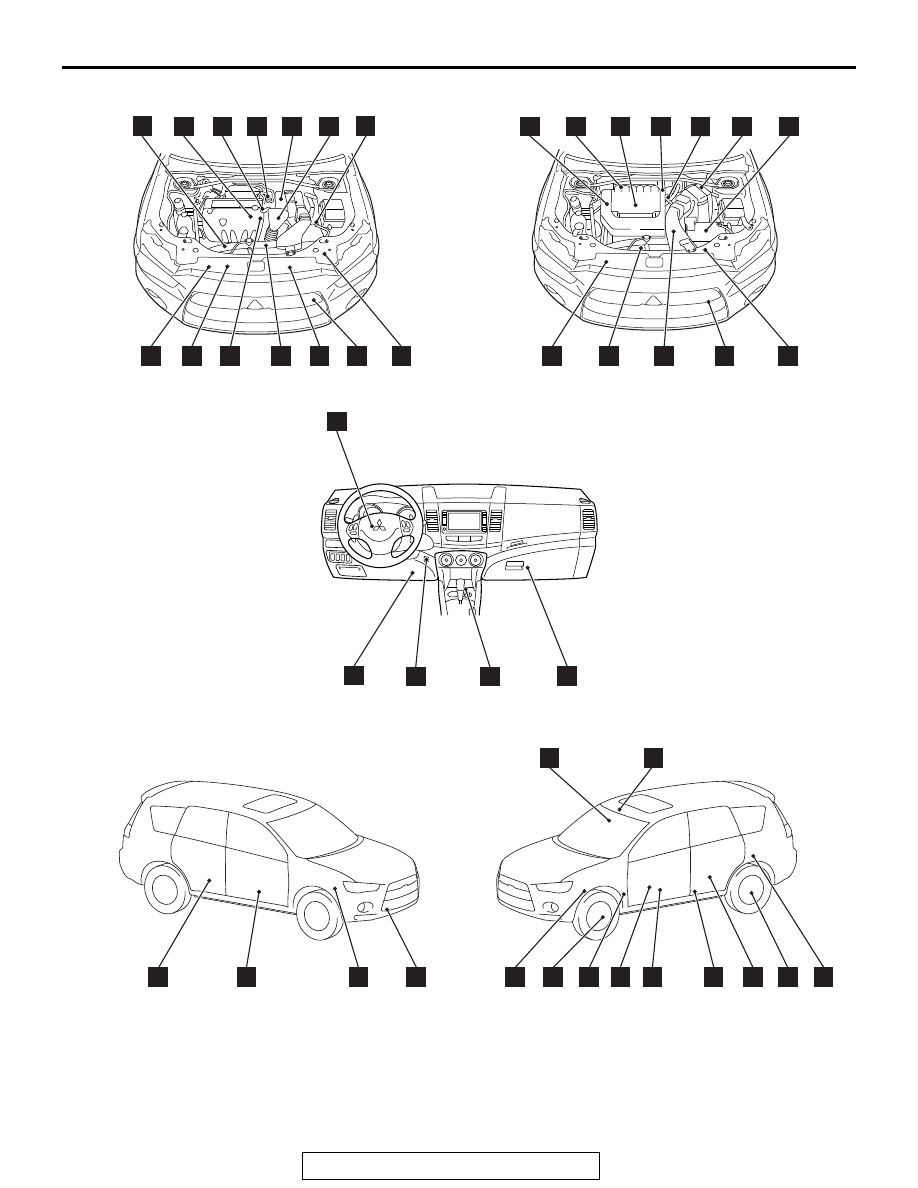

AC900359AL

<2.4L Engine>

<3.0L Engine>

A

D

F

J

M

B

E

H

N

C

I

K

L

B

C

E

I

O

K

P

H

M

N

Q

R

*

*

G

AC709356

AD

S

T

U

V

W

AC900778

AD

*

*

**

**

Z

a

X

e

f

i

j

k

m

h

Y

b

d

g

c

SENSOR

TSB Revision

COMPONENT LOCATIONS

70-10

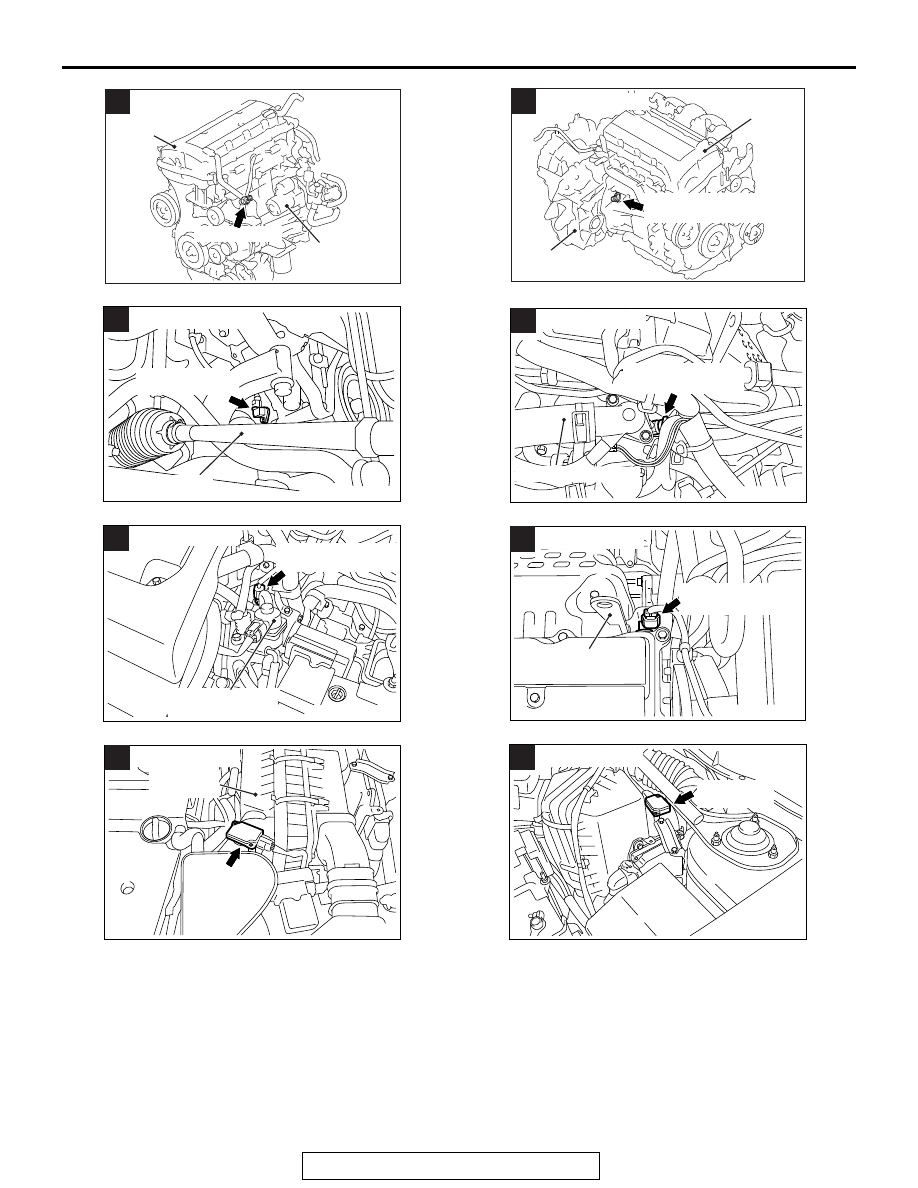

AC506953AL

Knock sensor

Starter motor

Cylinder
head

A

<2.4L Engine>

AC506948AK

Cylinder head

Transaxle
assembly

Crankshaft position
sensor

B

<2.4L Engine>

AC702569

AC

Tie rod

Crankshaft
position sensor

<3.0L Engine>

B

AC505397

Radiator upper hose

AV

Engine coolant
temperature sensor

<2.4L Engine>

C

AC702545

Engine coolant
temperature sensor

AF

<3.0L Engine>

Exhaust gas
recirculation valve

C

AC506924

AW

Exhaust camshaft
position sensor

Engine hanger

<2.4L Engine>

D

AC505378

AQ

Mass airflow
sensor

Air cleaner
assembly

E

<2.4L Engine>

AC702515

Mass airflow
sensor

AF

<3.0L Engine>

E
