HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-581

DIAGNOSIS

INTRODUCTION TO DIAGNOSIS

M1544404500235

Prior to the troubleshooting, check if the causes below can be the case. If any, take actions according to the
solution method.
Pairing of the bluetooth

®device (mobile phone or music player) and hands free module cannot be

made.



The hands free module does not recognize the bluetooth

®device (mobile phone or music player).

Calling cannot be made using the hands free cellular phone function.



Bluetooth

®The music player cannot be replayed.

The music data received from the USB adapter cannot be replayed.

Cause

SOLUTION

The power of the
bluetooth

®device is off.

With the power of the bluetooth

®device turned on, check the trouble

symptom again.

In addition to the
bluetooth

®device to be

recognized, two or more
bluetooth

®device exist in the

vehicle.

• With the voice operation, select the device to be connected.

• Select the device to be connected on the multivision display. <Vehicles

with MMCS>

Power supply abnormality in
the hands free module, or
communication error
between the radio and CD
player or multivition display,
and hands free module.

Turn the ignition switch to the "ON" position and check if iPod connected to
the USB adapter or USB device can be played. If the music cannot be
played, the power supply of hands free module or the communication
between the radio and CD player or multivition display, and hands free
module may have a problem. Perform the Inspection procedure 2: The USB
adapter data cannot be replayed. (Refer to

P.54A-598

 <Vehicles with radio

and CD player> or

P.54A-601

 <Vehicles with MMCS>.) If the diagnosis mode

of hands free module can be made an entry, the module status can be
checked by the hands free module self-check, however, if the power supply
of hands free module, or the communication with the radio and CD player or
multivition display may have a problem, the module status can not be
checked.(Refer to

P.54A-584

 <Vehicles with radio and CD player> or

P.54A-586

 <Vehicles with MMCS>.)

Cause

SOLUTION

The Bluetooth

® connection

is not made between the
hands free module and
bluetooth

®device.

Connect the bluetooth

®device to the hands free module via Bluetooth®.

The vehicle is not located in
the communication area of
the cellular phone.

Check the radio wave condition of the cellular phone shown on the display, or
check the radio wave condition shown on the cellular phone itself.

AUDIO communication error
between the hands free
module and the radio and
CD player or multivition
display.

Check if the data of music file sent to the hands free module can be replayed.
If there are no problems, the communication between the hands free module
and the radio and CD player or multivition display may have a problem.

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-582

The voice recognition operation cannot be performed.



The communication voice cannot be heard by the other party.

A call cannot be received when the pick-up switch (Steering wheel voice control switch) is pressed.



The voice information cannot be output from the speaker.

Voice guide "Unable to obtain vehicle speed. Please try again or contact your dealer for service" is
sent from the speaker.

Cause

SOLUTION

During the conversation, the
microphone unit is set to
mute.

During the conversation, press the speech switch and set to mute off by
voice recognition. Perform Inspection Procedure 3: When the speech switch
is pressed, the voice information is output, but the voice recognition is not
performed. (Refer to

P.54A-604

.)

The hands free module
cannot recognize the speech
voice because of noise or
others.

Minimize the noise by turning off the A/C, closing the window, and stopping
the engine, and then clearly speak up near the microphone unit . Or,
customize the voice recognition using the speaker enrollment function.

The microphone unit , or the
connection has a problem.

The microphone unit may have a problem. Perform Inspection Procedure 3:
When the speech switch is pressed, the voice information is output, but the
voice recognition is not performed. (Refer to

P.54A-604

.) The connection

with the microphone unit can be checked by the microphone check result on
the diagnosis mode. (Refer to

P.54A-584

 <Vehicles with radio and CD

player> or

P.54A-586

 <Vehicles with MMCS>.)

The speech switch, or the
connection has a problem.

If the voice information is not output when the speech switch is operated, the
steering wheel voice control switch has a problem. Perform the Inspection
Procedure 4: When the speech switch is pressed, the voice information is
not output. (Refer to

P.54A-607

 <Vehicles with radio and CD player> or

P.54A-611

 <Vehicles with MMCS>.)

Cause

SOLUTION

The Bluetooth

® connection

is not made between the
hands free module and
cellular phone.

Connect the cellular phone to the hands free module via Bluetooth

®.

The pick-up switch (Steering
wheel voice control switch),
or the connection has a
problem.

If the voice information is not output when the speech switch is operated, the
steering wheel voice control switch has a problem. Perform the Inspection
Procedure 4: When the speech switch is pressed, the voice information is not
output. (Refer to

P.54A-607

 <Vehicles with radio and CD player> or

P.54A-611

 <Vehicles with MMCS>.)

Cause

SOLUTION

The hands free module
cannot receive the vehicle
speed signal from the radio
and CD player or multivision
display.

If the vehicle speed signal the hands free module receives has a problem,
the vehicle speed signal of radio and CD player or multivision display, or the
hands free module may have a problem. Perform the Inspection Procedure
8: Voice guide "Unable to obtain vehicle speed. Please try again or contact
your dealer for service" is sent from the speaker. (Refer to

P.54A-621



<Vehicles with radio and CD player> or

P.54A-623

 <Vehicles with MMCS>.)

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-583

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1540203800390

Refer to GROUP 00, Troubleshooting contents

P.00-7

.

DIAGNOSIS FUNCTION

M1544403100182

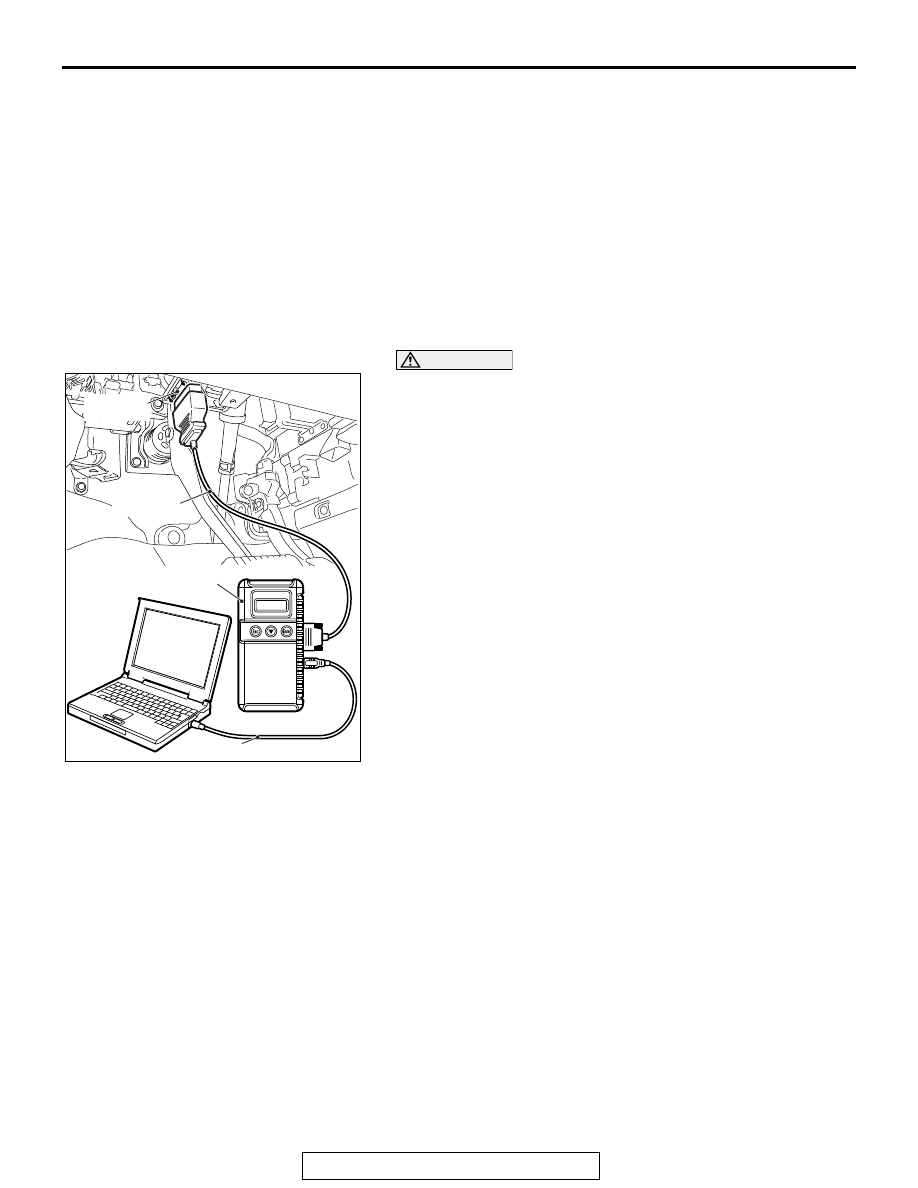

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

HANDS FREE MODULE

TSB Revision

CHASSIS ELECTRICAL

54A-584

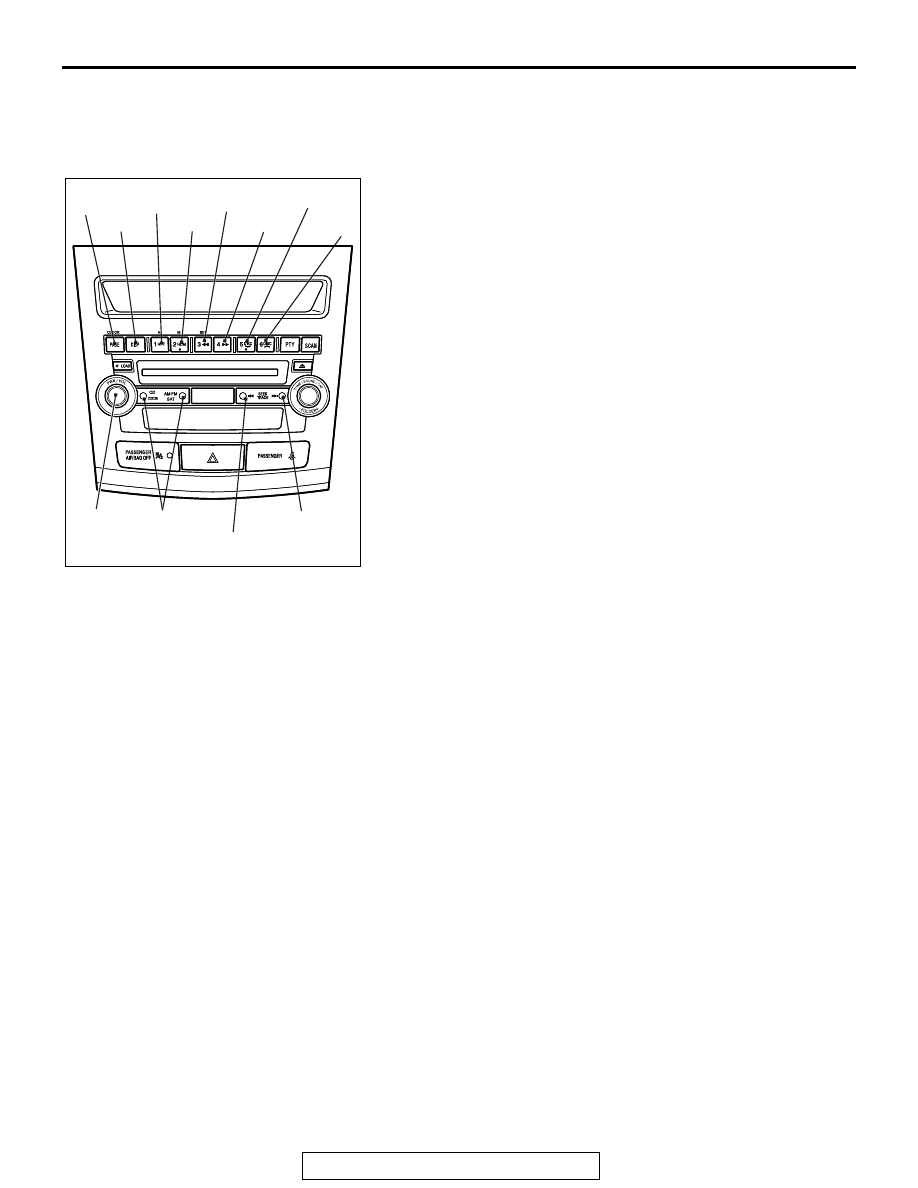

DIAGNOSIS MODE <VEHICLES WITH RADIO AND CD PLAYER>

M1544404800032

Enter the diagnosis mode according to the following steps:
1. Turn the Ignition switch to the "ACC" or "ON" position and

switch off the radio and CD player.

2. Press the following buttons in that order within sixty seconds

from step (1).

(1)  [CH1] button.
(2) Rewind button.
(3) Fast-forward button.
(4) [CH4] button.

NOTE:

.

•

When the "Power" button of the radio and CD player is
pressed during the diagnosis mode, the diagnosis mode will
be cancelled, thus switching off the radio and CD player.
However, if the "Power" button is pressed while the hands
free module is being updated, the update will not be can-
celled.

•

When the "Mode change" button (FM/AM, CD) is pressed
during diagnosis mode except the hands free module
update, the diagnosis mode will be cancelled and relevant
operation will be carried out.

•

When an invalid button is pressed during diagnosis mode
except the hands free module update, the diagnosis mode
will be cancelled, thus switching off the radio and CD player.

•

During the diagnosis mode, voice which is input through the
microphone unit is played through a relevant loudspeaker.

3. "HFM DIAG" is displayed.

AC703737

AE

[CH1]

[CH4]

Fast-forward

Rewind

Power

[CH3]

DISP

[CH2]

[CH6]

[CH5]

PAGE

Mode change

AC703737
