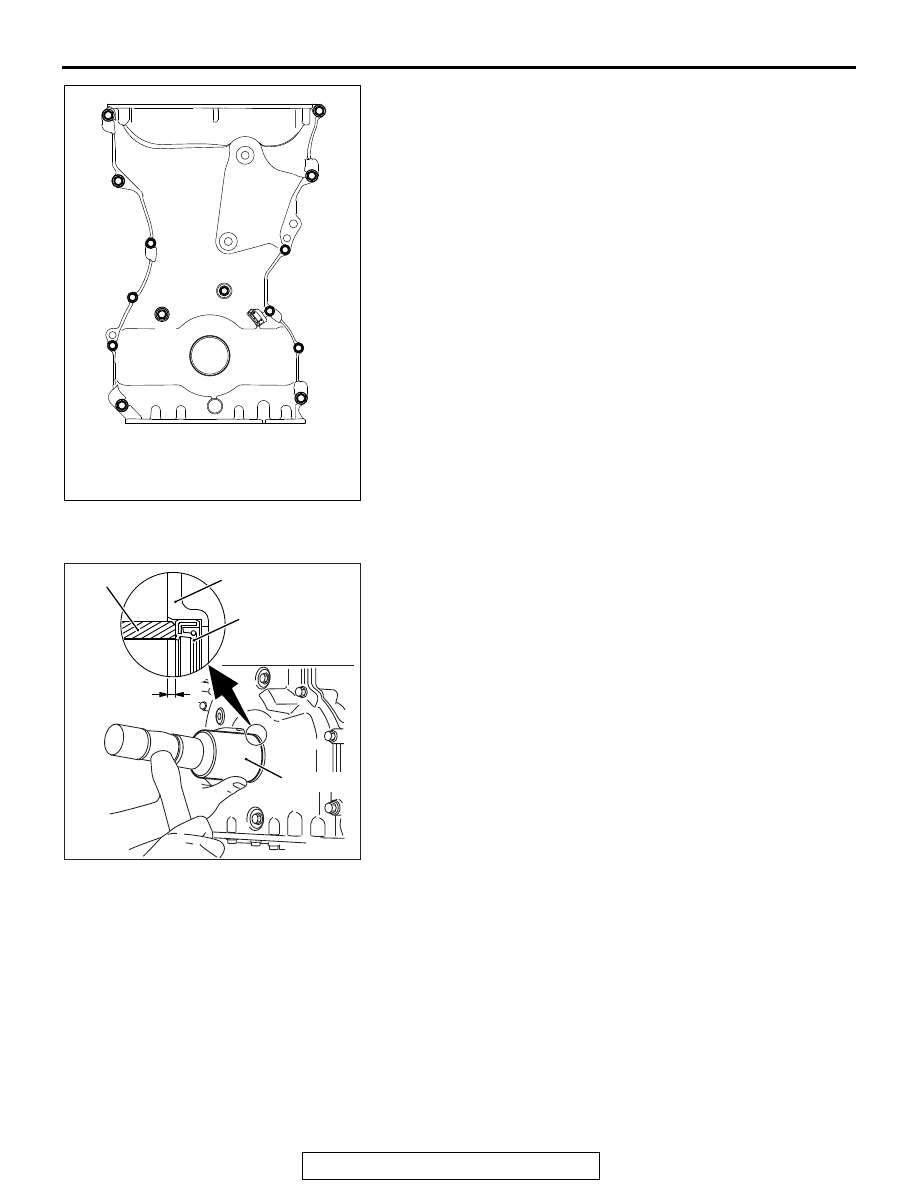

OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-31

5. Tighten timing chain case mounting bolts to the specified

tightening torque.

Tightening torque

A: 24

± 4 N⋅m (18 ± 2 ft-lb)

B: 10

± 2 N⋅m (89 ± 17 in-lb)

C: 10

± 2 N⋅m (89 ± 17 in-lb)

D: 13

± 1 N⋅m (115 ± 8 in-lb)

.

>>B<< FRONT OIL SEAL INSTALLATION

1. Apply engine oil to the internal circumference of the oil seal.
2. Use special tool MB991448 to install the front oil seal on the

timing chain case.

.

>>C<< OIL PAN INSTALLATION

1. Completely remove liquid gasket adhering to the cylinder

block and oil pan.

2. Degrease the cylinder block and oil pan.

AK502378

A

A

A

A

A

A

B

B

B

B

B

B

C

D

AH

A: M8 × 30 mm (1.2 in)
B: M6 × 25 mm (1.0 in)
C: M6 × 25 mm (1.0 in)
D: M8 × 10 mm (0.4 in)

AK800005

1.5 – 2.5 mm
(0.06 – 0.09 in)

AC

MB991448

Chain case

Oil seal

MB991448

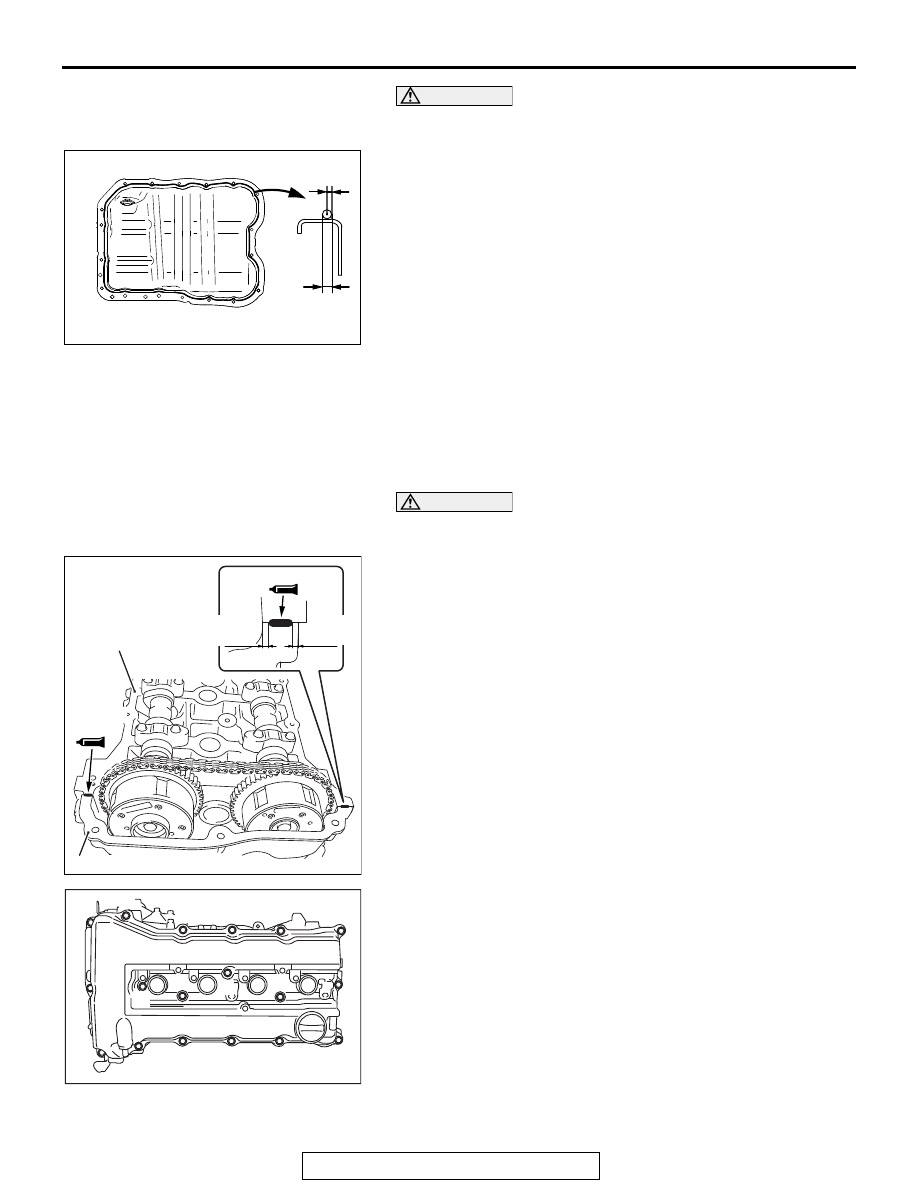

OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-32

CAUTION

Install the oil pan within three minutes after liquid gasket is
applied.
3. Apply liquid gasket of

φ2.5 ± 0.5 mm (0.10 ± 0.02 inch) of

thickness in diameter to the illustrated area of the oil pan.

Specified sealant:

Three bond 1217G or exact equivalent

4. Tighten the oil pan to the specified tightening torque.

Tightening torque:
M6:10

± 1 N⋅m (89 ± 17 in-lb)

M8: 29

± 2 N⋅m (21 ± 1 ft-lb)

.

>>D<< CYLINDER HEAD COVER INSTALLATION

1. Completely remove liquid gasket adhering to the cylinder

head cover, timing chain case and cylinder head.

2. Degrease the cylinder head cover, timing chain case and

cylinder head.

CAUTION

Install the cylinder head cover immediately after liquid gas-
ket is applied.
3. Appropriately use a minimum amount of sealant. Besides,

be careful not to allow sealant to squeeze out from the
application area.
Apply liquid gasket of 4 mm (0.15 inch) of thickness in
diameter.

Specified sealant:

Three bond 1217G or exact equivalent

4. Tighten the cylinder head cover to the tightening torque in

the order shown in the illustration.

Tightening torque: 3.0

± 1.0 N⋅m (27 ± 8 in-lb)

5. Then, tighten it to the specified tightening torque in the same

order.

Tightening torque: 5.5

± 0.5 N⋅m (49 ± 4 in-lb)

.

AK502377AD

1 mm
(0.04 in)

Ø2.5 ± 0.5 mm
(0.10 ± 0.02 in)

AK901127

Cylinder head

Timing chain case assembly

AD

φ 4.0 mm

(0.16 in)

φ 4.0 mm (0.16 in)

2.0 mm
(0.08 in)

2.0 mm
(0.08 in)

AK502760AF

10

16

15

14

17

18

1

3

4

11

12

9

5

2

6

7

8

13

OIL PAN AND TIMING CHAIN CASE

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-33

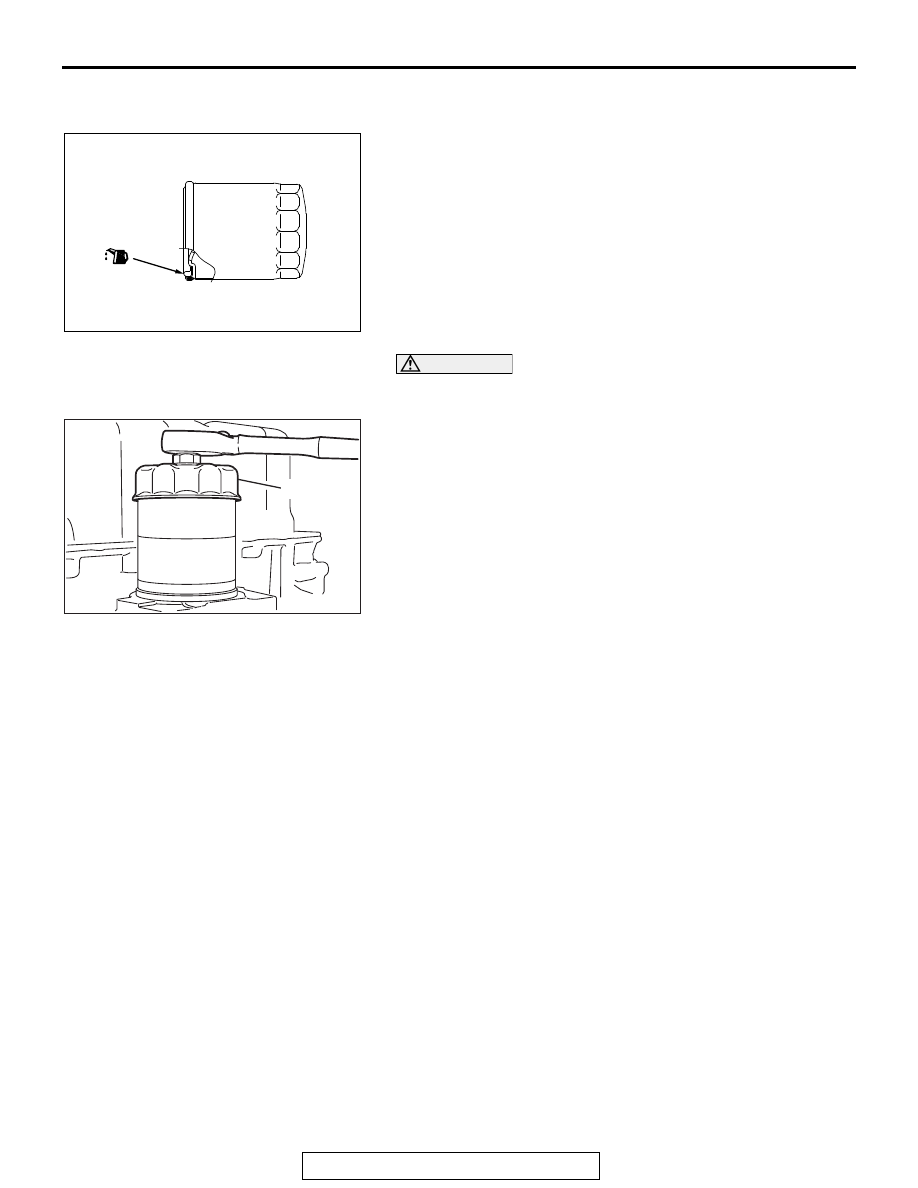

>>E<< OIL FILTER INSTALLATION

1. Clean the oil filter mounting surface of the ladder frame.
2. Apply engine oil to the O-ring of the oil filter.

CAUTION

Use special tool MB991396 to install the oil filter. Tighten-
ing it by hand causes oil leakage due to lack of torque.
3. Screw in the oil filter. When the O-ring contacts the mounting

surface, use a filter wrench to tighten it.

Tightening torque
3/4 turns (14

± 2 N⋅m [124 ± 17 in-lb])

AK305422 AD

AK502733AD

MB991396

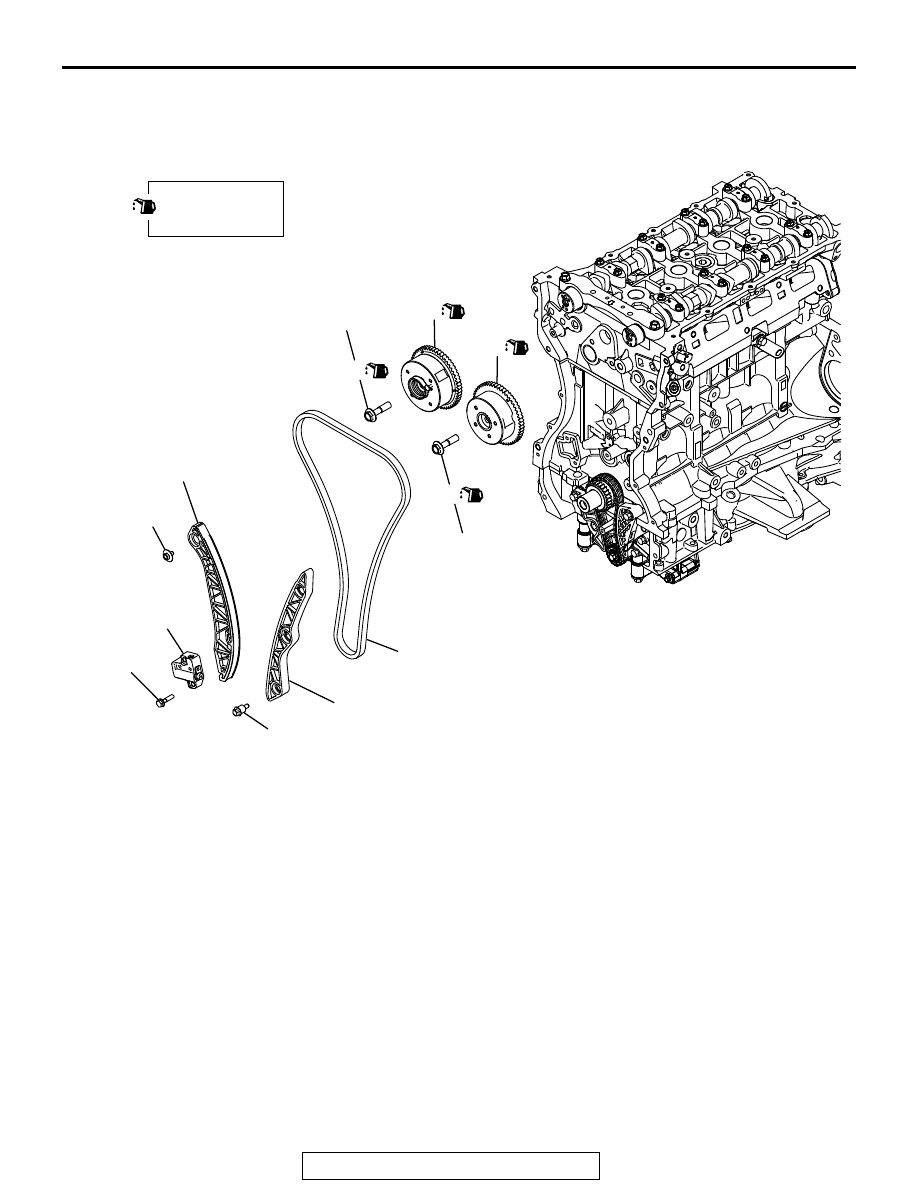

TIMING CHAIN

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-34

TIMING CHAIN

REMOVAL AND INSTALLATION

M1113026600788

AKA00439

4

59 ± 5 N·m
44 ± 3 ft-lb

7

6

8

AB

Apply engine oil to
all moving parts
before installation.

10 ± 2 N·m
89 ± 17 in-lb

1

2

3

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

59 ± 5 N·m
44 ± 3 ft-lb

5

Removal steps

<<A>> >>D<<

1. Timing chain tensioner
2. Tensioner lever
3. Timing chain guide

>>C<<

4. Timing chain

<<B>> >>B<<

5. Exhaust V.V.T. sprocket bolt
6. Exhaust V.V.T. sprocket assembly

<<C>> >>A<<

7. Intake V.V.T. sprocket bolt
8. Intake V.V.T. sprocket assembly

Removal steps (Continued)
