PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-65

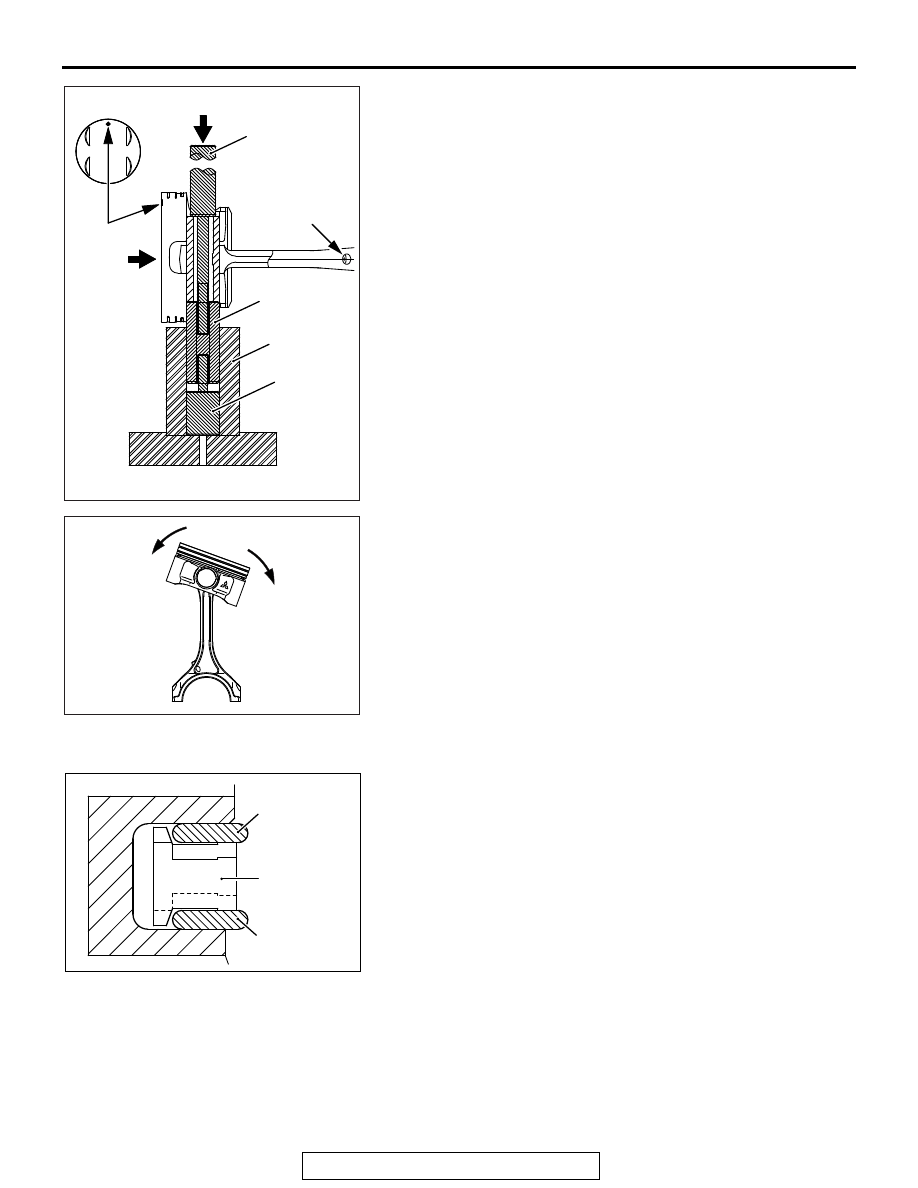

7. Place the piston and connecting rod assembly onto Base,

with the front marks facing up.

8. Install the piston pin using a press. If the required press

force is less than the standard value, replace the piston and
piston pin assembly or the connecting rod, or both.

Standard value: 5,000

− 15,000 N (1,124 − 3,372 lb)

9. Check that the piston moves smoothly.

.

>>B<< OIL RING INSTALLATION

1. Fit the oil ring spacer into the piston ring groove.

NOTE: The side rails and spacer may be installed in either
direction.

AK600937

Push rod

P

Base

Guide A

Guide B

Front mark

View P

Front mark
(Oil jet hole)

AC

AK600920

AK600797

Spacer

AC

Upper side rail

Lower side rail

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-66

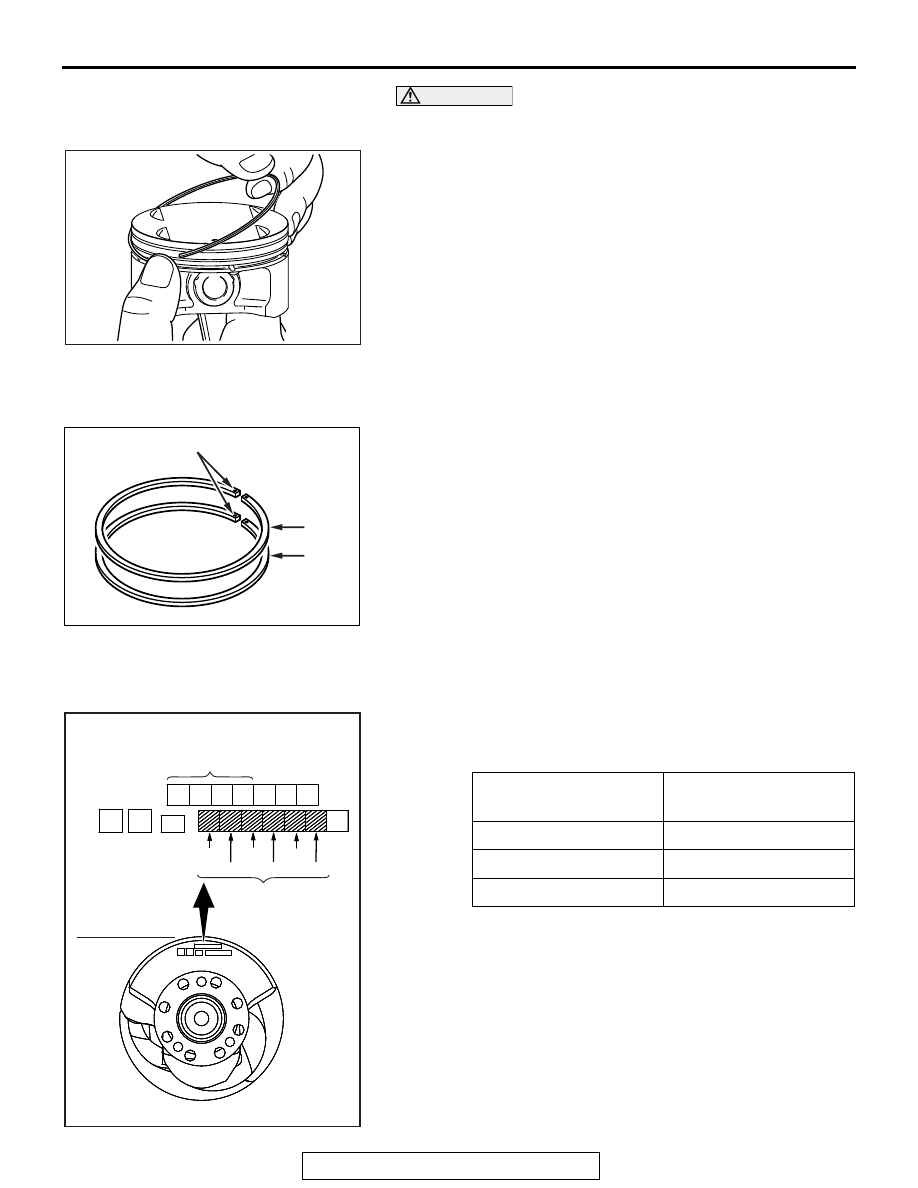

CAUTION

Do not use any piston ring expander when installing the
side rail. If will break the side rail.
2. Install the upper side rail.

To install the side rail, first fit one end of the rail into the
piston groove, then press the remaining portion into the
position by finger. See illustration.

3. Install the lower side rail in the same procedure as described

in step 2.

4. Make sure that the side rails move smoothly in both

directions.

.

>>C<< PISTON RING NUMBER2 / PISTON RING
NUMBER1 INSTALLATION

To prevent wrong installation, check the identification mark of
each piston ring. The identification mark is stamped near the
ring gap:

Identification mark

Number 1 ring: 1T
Number 2 ring: 2T

.

>>D<< CONNECTING ROD BEARING
INSTALLATION

1. If the connecting rod bearing is replaced, select based on

the identification mark of crankshaft (illustrated) and the
table shown below.

AK600921

AK600791

No. 2

No. 1

Identification mark

AC

Crankshaft pin
identification mark

Bearing identification
color

1

Black

2

Purple

3

Green

AK703237

No.1

No.2

No.3

No.4

No.5

No.6

AK703237AD

Crankshaft pin
identification mark

Crankshaft
No.5 jornal

Crankshaft journal (Lower)
identification mark

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-67

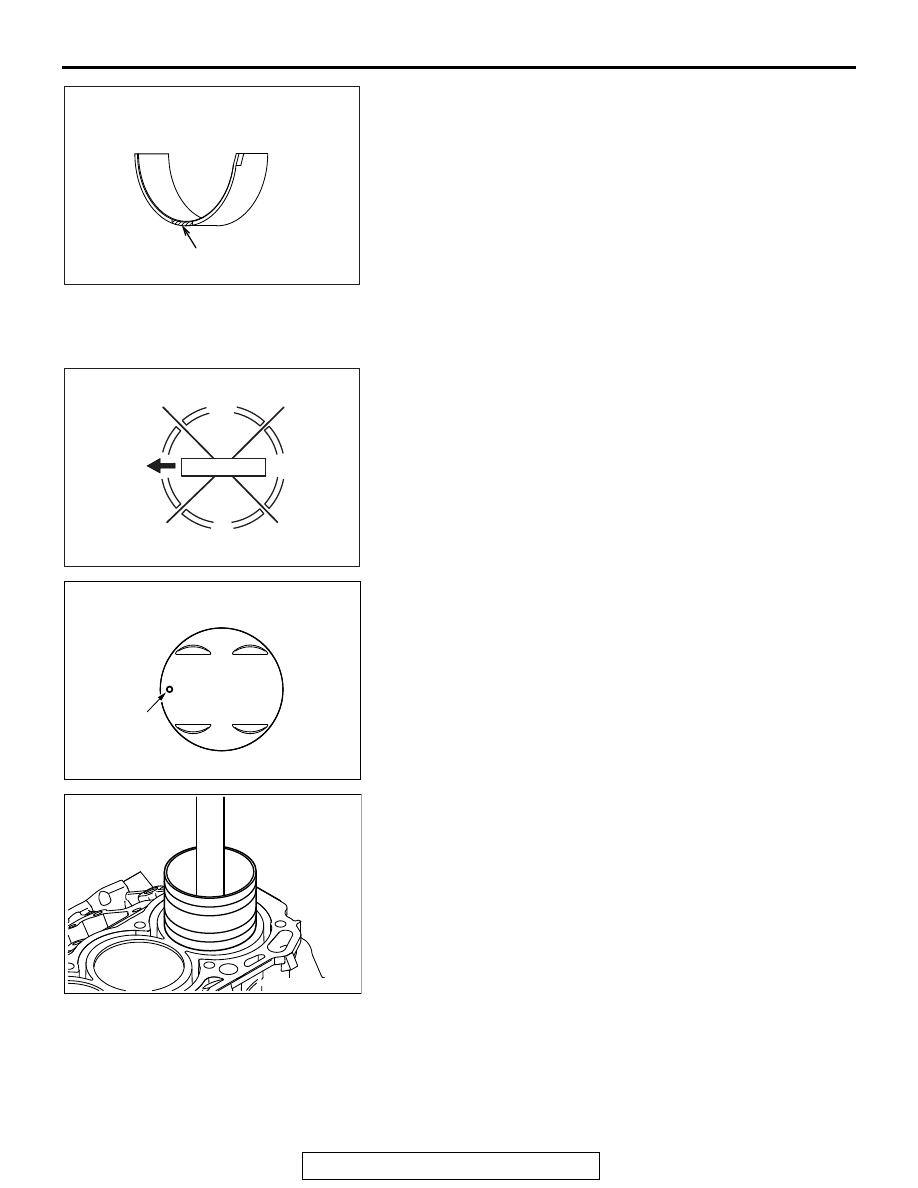

2. Every connecting rod bearing is identified by the

identification color at the illustrated location.

3. Install the selected bearing in the big end and in the cap of

the connecting rod.

.

>>E<< PISTON AND CONNECTING ROD
INSTALLATION

1. Liberally coat the circumference of the piston, piston ring,

and oil ring with engine oil.

2. Arrange the piston ring and oil ring gaps (side rail and

spacer) as shown in the illustration.

3. Rotate the crankshaft so that the crank pin is on the center

of the cylinder bore.

4. Insert the piston and connecting rod assembly into the

cylinder with the front mark on the piston crown pointing to
the timing belt side.

5. Using a suitable piston ring compressor tool, install the

piston and connecting rod assembly into the cylinder block.

.

AK600843

Identification color

AC

AK600922

Piston pin

AC

No. 1

Timing belt
side

Lower
side rail

No. 2 ring gap
and spacer gap

Upper side rail

AK600923AC

Front mark

AK600924

PISTON AND CONNECTING ROD

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-68

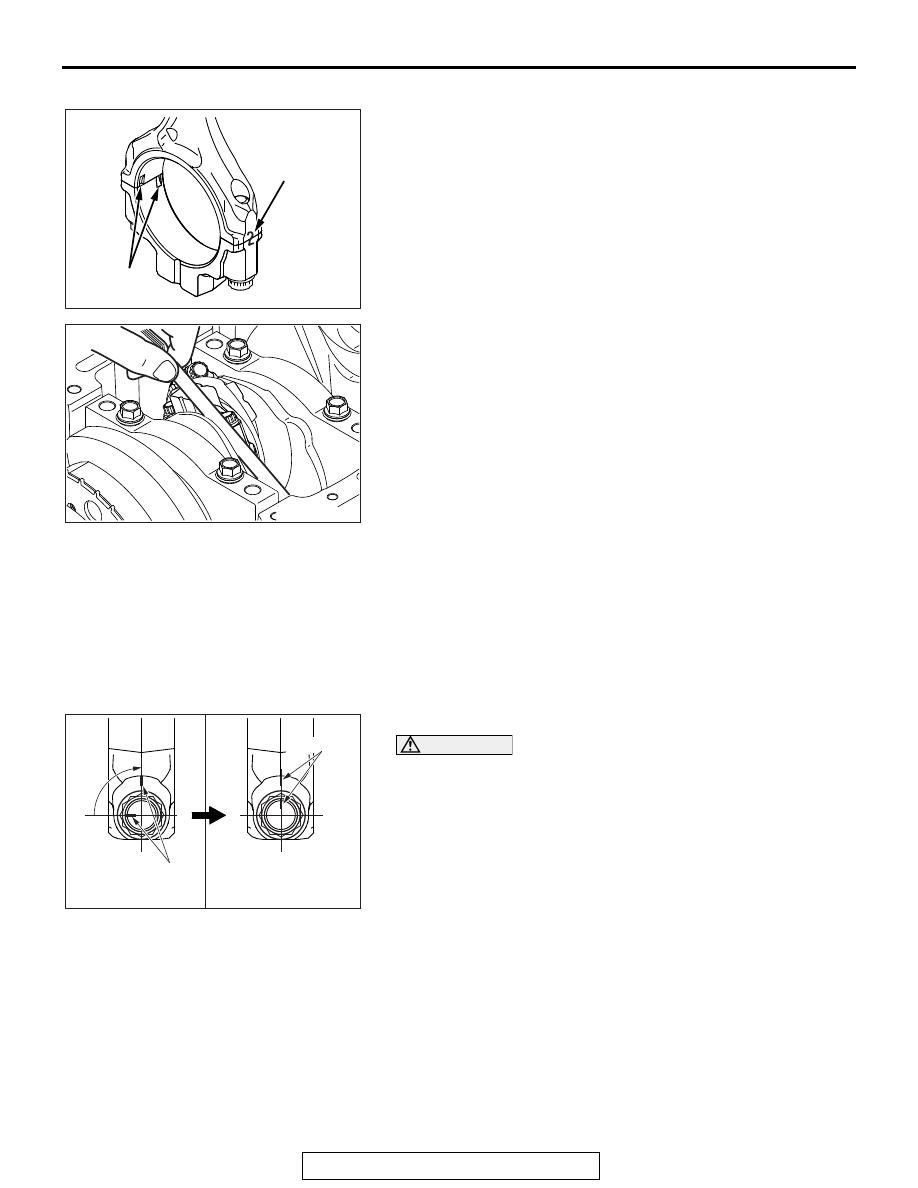

>>F<< CONNECTING ROD CAP INSTALLATION

1. Verifying the mark made during disassembly, install the

bearing cap to the connecting rod. If the connecting rod is
new with no index mark, make sure that the bearing locking
notches are on the same side as shown.

2. Make sure that the connecting rod big end side clearance

meets the specification.

Standard value: 0.10

− 0.25 mm (0.004 − 0.009 inch)

Limit: 0.4 mm (0.02 inch)

.

>>G<< CONNECTING ROD BOLT INSTALLATION

1. Apply engine oil to the threaded portion and seating face of

the bolt.

2. To correctly install the cap, loosely install the bolts with

fingers.

3. Alternately, tighten the bolts in several steps to the specified

torque of 20

± 2 N⋅m (15 ± 1 ft-lb).

4. Make a paint mark on the head of each bolt.

CAUTION

• When the tightening angle is smaller than the specified

tightening angle, the appropriate tightening capacity
cannot be secured.

• When the tightening angle is larger than the specified

tightening angle, remove the bolt to start from the
beginning again according to the procedure.

5. Put another paint mark on the bolt head at 90 degrees in the

tightening direction from the first paint mark.

6. Tighten the bolt 90 degrees. The paint mark on the

connecting rod should be aligned with the paint mark on the
bolt.

AK600909

Notches

Cylinder number

AC

AK600925

AK600926

90˚

Paint mark

AC

Paint mark
