Mitsubishi Outlander GS45X. Manual - part 1226

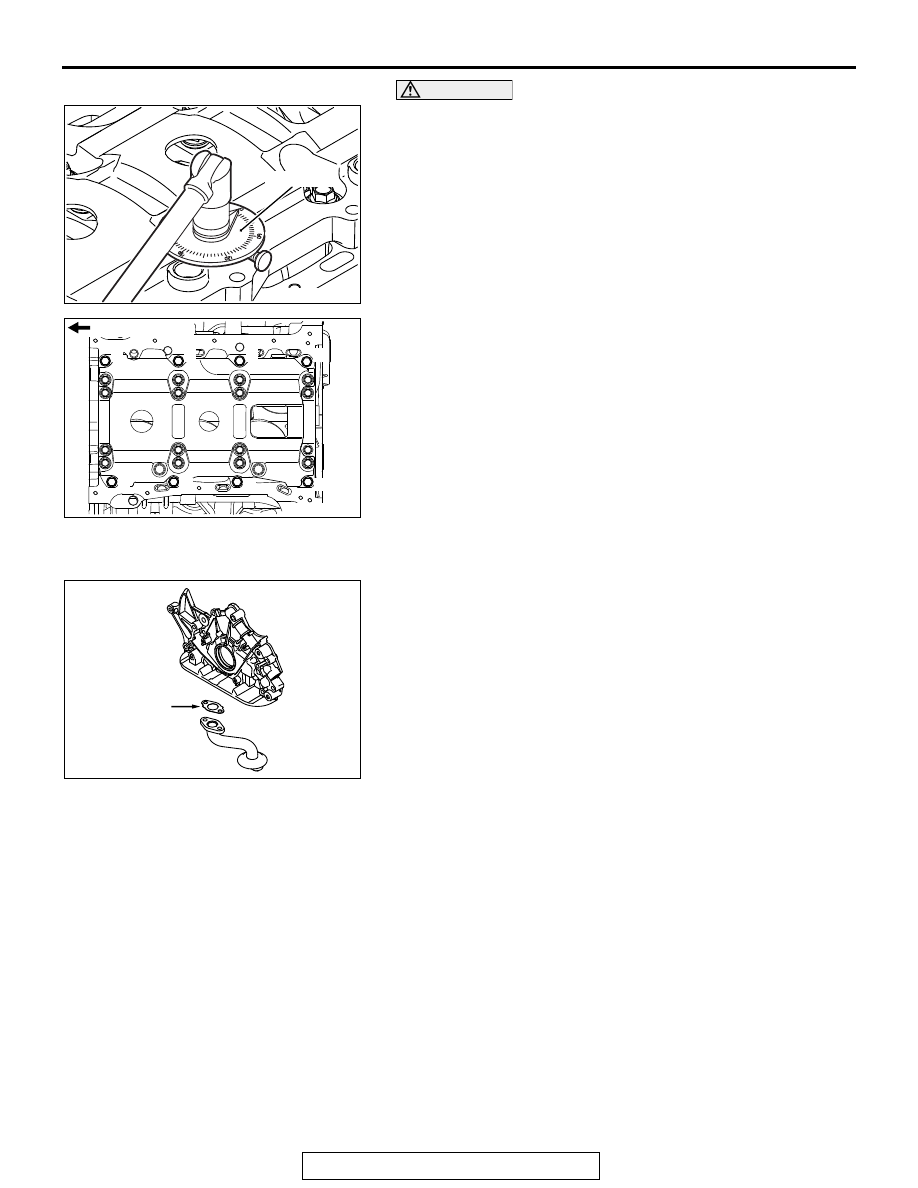

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-57

CAUTION

• When the tightening angle is smaller than the specified

tightening angle, the appropriate tightening capacity
cannot be secured.

• When the tightening angle is larger than the specified

tightening angle, remove the bolt to start from the
beginning again according to the procedure.

5. Using the special tool MB991614, tighten the beam bolt

(M9) 60 degrees in accordance with the tightening order.

6. Tighten the plate bolts to the specified torque in the

tightening sequence shown.

Tightening torque: 23

± 6 N⋅m (17 ± 4 ft-lb)

.

>>D<< OIL SCREEN GASKET INSTALLATION

Install the oil screen gasket so that the tab is positioned as
shown in the illustration.

.

AK600933

MB991614

AC

AK600934AC

Timing belt side

5

1

4

2

6

8

7

3

AK600837AC

Tab

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-58

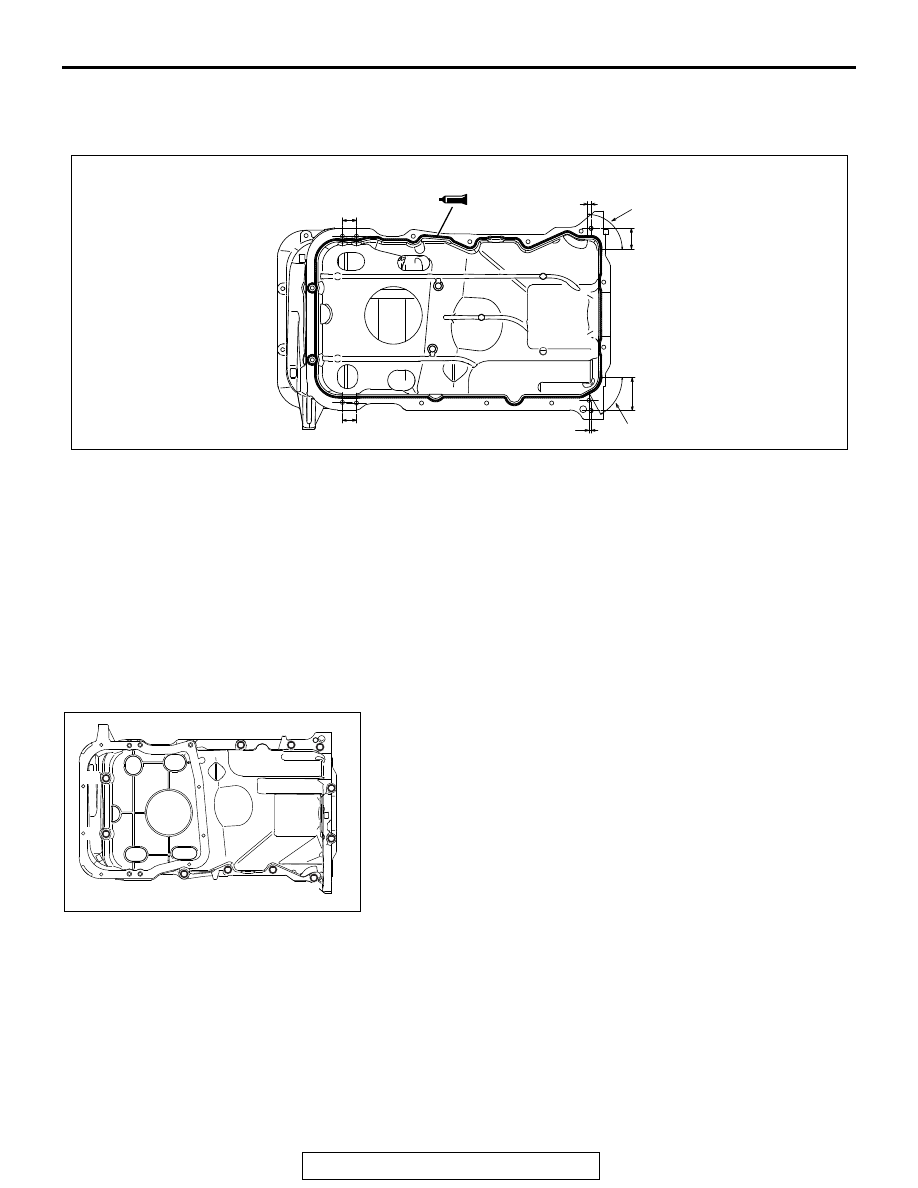

>>E<< OIL PAN UPPER INSTALLATION

1. Clean the gasket surfaces of the oil pan upper and oil pan

lower.

2. Apply a 2.5

± 0.5 mm (0.10 ± 0.01 inch) bead of liquid

gasket to location A, and a 4.0

± 0.5 mm (0.20 ± 0.01 inch)

bead of liquid gasket to location B, and a 3.2

± 0.5 mm (0.13

± 0.01 inch) bead of liquid gasket to location C on the oil pan

respectively as illustrated.

Specified sealant:

Three bond 1217G or equivalent

NOTE: Install the oil pan within 15 minutes after applying liq-
uid gasket.
NOTE: Then wait at least one hour. Never start the engine
or let engine oil or coolant touch the adhesion surface during
that time.

3. Tighten the upper oil pan bolts in the sequence shown.

Tightening torque: 10

± 2 N⋅m (89 ± 17 in-lb)

4. After installation, keep the sealed area away from the oil and

coolant for approximately one hour.

.

AKA00759 AB

5 mm (0.2 in)

3 mm (0.1 in)

48 mm (1.9 in)

B

B

A

C

C

30 mm (1.2 in)

AK600844

1

3

5

9

6

2

4

8

10

11

7

AC

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-59

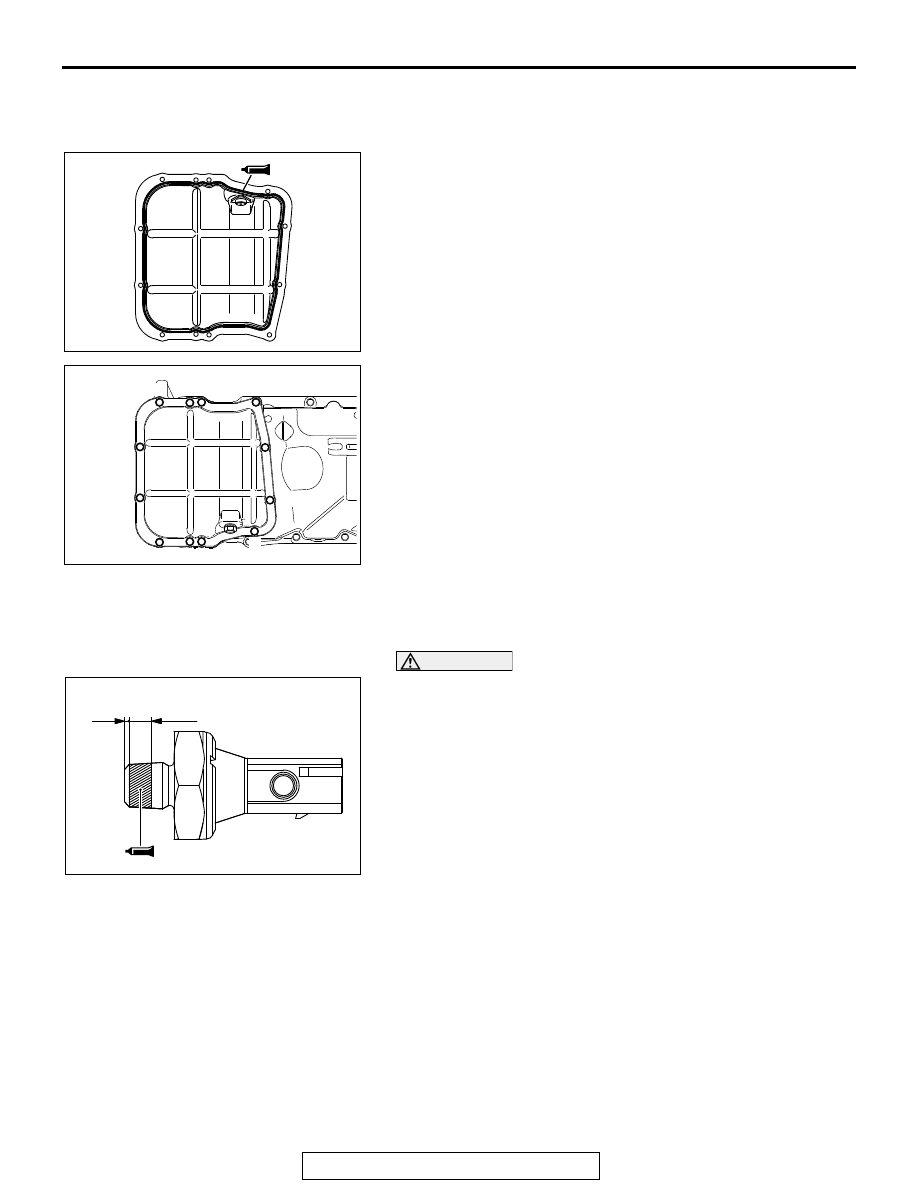

>>F<< OIL PAN LOWER INSTALLATION

1. Clean the gasket surfaces of the cylinder block and oil pan

lower.

2. Apply a 2.5

± 0.5 mm (0.10 ± 0.01 inch) diameter bead of

sealant (Three bond 1217G or exact equivalent) to the oil
pan. Be sure to install the oil pan quickly while the sealant is
wet.
NOTE: Install the oil pan within 15 minutes after applying liq-
uid gasket.
NOTE: Then wait at least one hour. Never start the engine
or let engine oil or coolant touch the adhesion surface during
that time.

3. Tighten the upper oil pan bolts in the sequence shown.

Tightening torque: 10

± 2 N⋅m (89 ± 17 in-lb)

4. After installation, keep the sealed area away from the oil and

coolant for approximately one hour.

.

>>G<< ENGINE OIL PRESSURE SWITCH
INSTALLATION

CAUTION

• The threaded part tip of the switch must be clear of the

sealant.

• Use care not to allow the sealant to plug the oil pas-

sage.

1. Completely remove existing sealant from the oil pressure

switch and the switch mounting hole on the oil pump case.

2. Apply sealant (Three bond 1215, Three bond 1212D or

equivalent) to the threaded part of the oil pressure switch as
shown.

3. Install the oil pressure switch to the oil pump case by

tightening to a specified torque.

Tightening torque: 10

± 2 N⋅m (89 ± 17 in-lb)

.

AK600839AC

AK600840

3

2

5

11 9

8 12

10

1

4

7

6

AC

AK600888

1 mm

5 mm

AC

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-60

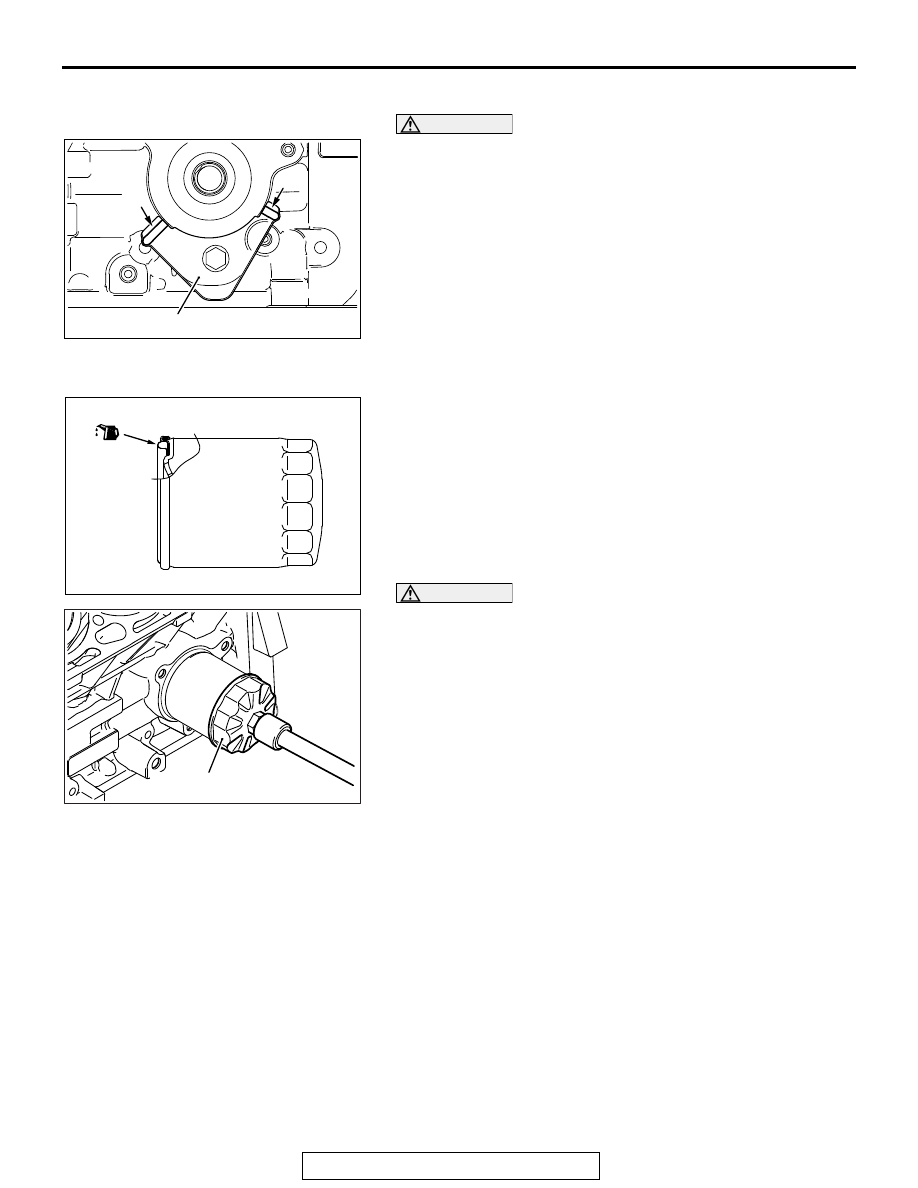

>>H<< OIL FILTER COVER INSTALLATION

CAUTION

Do not damage the sealed area.
Check the right and left ribs of the oil filter cover touch the outer
circumference of the oil filter boss.

.

>>I<< OIL FILTER INSTALLATION

1. Clean the filter mounting surface on the front case.
2. Apply engine oil to the O-ring of the oil filter.

CAUTION

If the filter is tightened by hand only, it will be insufficiently
torqued, resulting in oil leaks.
3. Screw the oil filter in and tighten the oil filter to the specified

torque using a commercially available special tool
MB991396 or general tool from where the O-ring has come
into contact with the oil filter mounting surface.

Tightening torque:

MD332687, MD365876 16

± 4 N⋅m (13 ± 3 ft-lb)

<approx. 1 turn>

MD360935 14

± 2 N⋅m (124 ± 17 in-lb) <approx. 3/4 of

a turn>

.

AK601722 AC

Rib

Rib

Oil filter cover

AK600889AC

AK600890AC

MB991396 or
General service tool
