SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-25

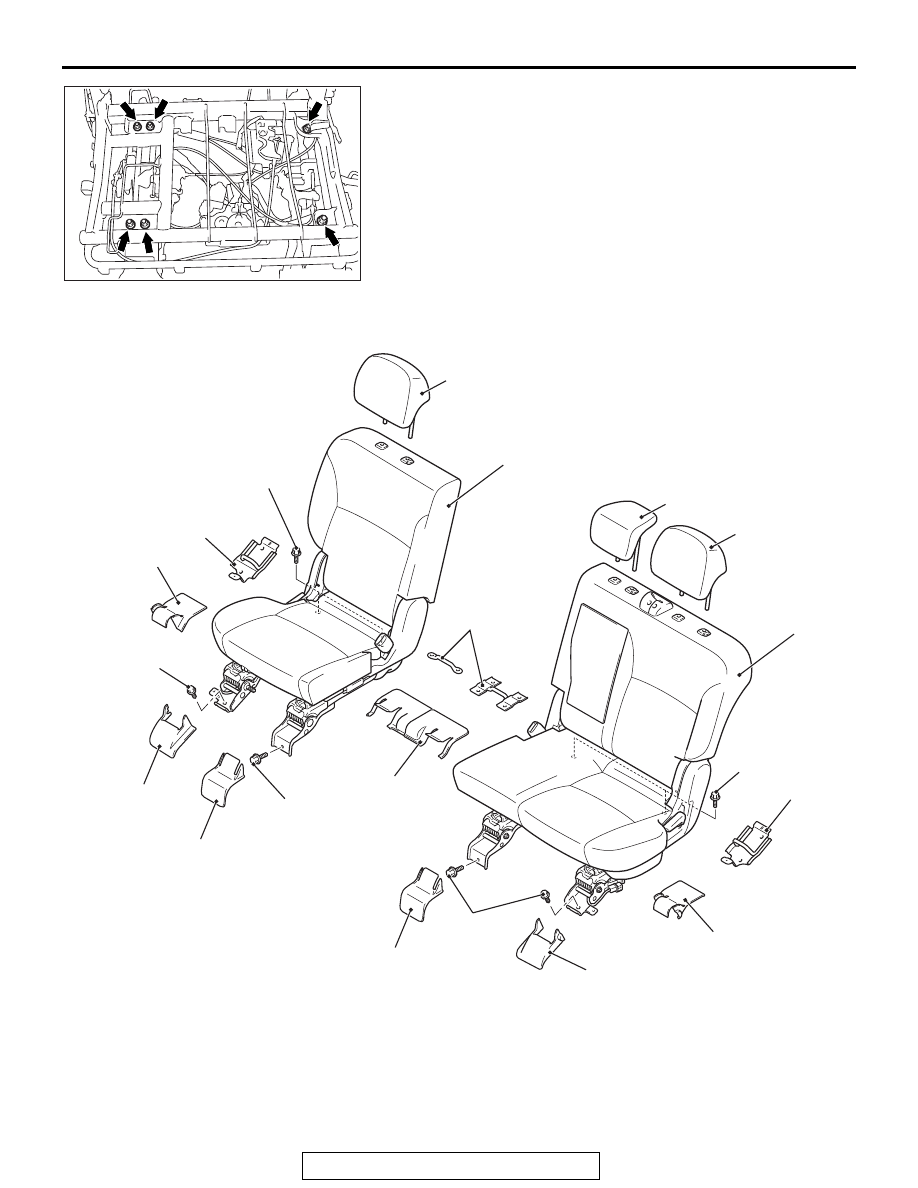

6. If the clearance between the second seat folding adjuster

and the slide lock claw is 5 mm(0.2in) or more, loosen the
bolts shown in the figure and fix them at the position where
the clearance is approximately 3 mm(0.1in).

REMOVAL AND INSTALLATION

M1522002300325

AC611007AB

AC700160AC

1

43 ± 8 N·m
32 ± 5 ft-lb

1

1

2

2

4

4

5

5

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

6

6

3

7

7

7

Removal steps

1.

Headrestraint

•

Scuff plate rear (Refer to

P.52A-10

).

2.

Rear anchor cover outer

3.

Rear anchor cover inner

4.

Front anchor cover outer

5.

Front anchor cover inner

6.

Second seat assembly

7.

Rear seat striker

Removal steps (Continued)

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-26

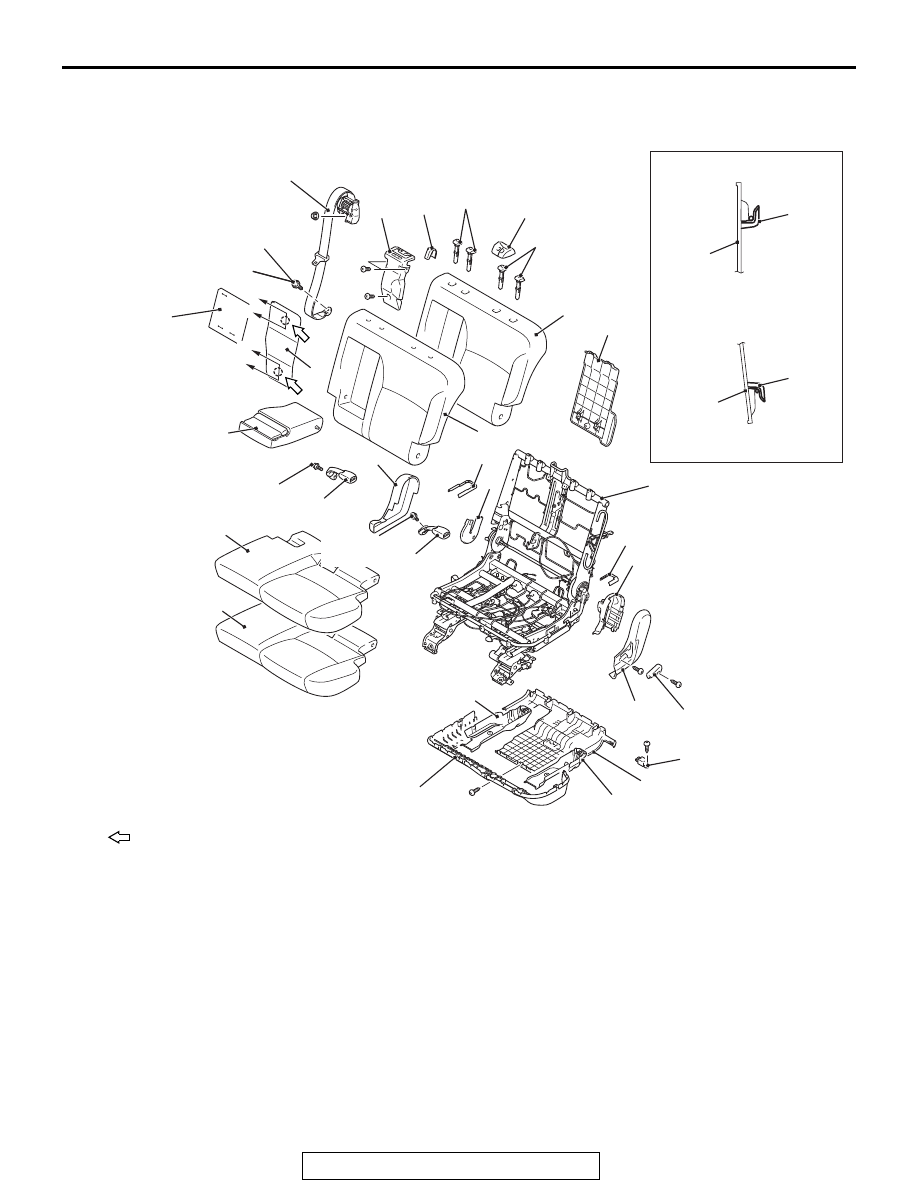

DISASSEMBLY AND ASSEMBLY

M1522002500385

<SECOND SEAT (LH)>

AC700161

1

1

2

3

3

5

7

6

8

9

10

11

12

13

14

15

16

17

18

19

20

21

23

AB

40 ± 10 N·m
30 ± 7 ft-lb

40 ± 10 N·m
30 ± 7 ft-lb

7

4

4

22

40 ± 10 N·m
30 ± 7 ft-lb

24

24

25

A

A

B

B

NOTE

           :Claw positions

Section A – A

Section B – B

Claw

AC700155

9

AC700156

9

Claw

Disassembly steps

1.

Second seat latch cover

2.

Reclining adjuster lever

3.

Reclining adjuster outer cover

4.

Reclining adjuster inner cover

5.

Seat belt cover

6.

Seatback board

<<

A

>>

7.

Headrestraint guide

<<

B

>>

8.

Armrest

9.

Seatback armrest board

10. Seat cushion under cover front
11. Seat cushion under cover rear

<<

C

>>

12. Seat belt bolt
13. Seat cushion pad cover

14. Seat cushion pad
15. Seatback cover
16. Seatback pad
17. Second seat back side end cap
18. Seat belt retractor cover
19. Seat belt retractor
20. Seat protector
21. Center seat belt inner
22. Side seat belt inner
23. Seat frame assembly
24. Second seat slide rail cover
25. Relay

Disassembly steps

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-27

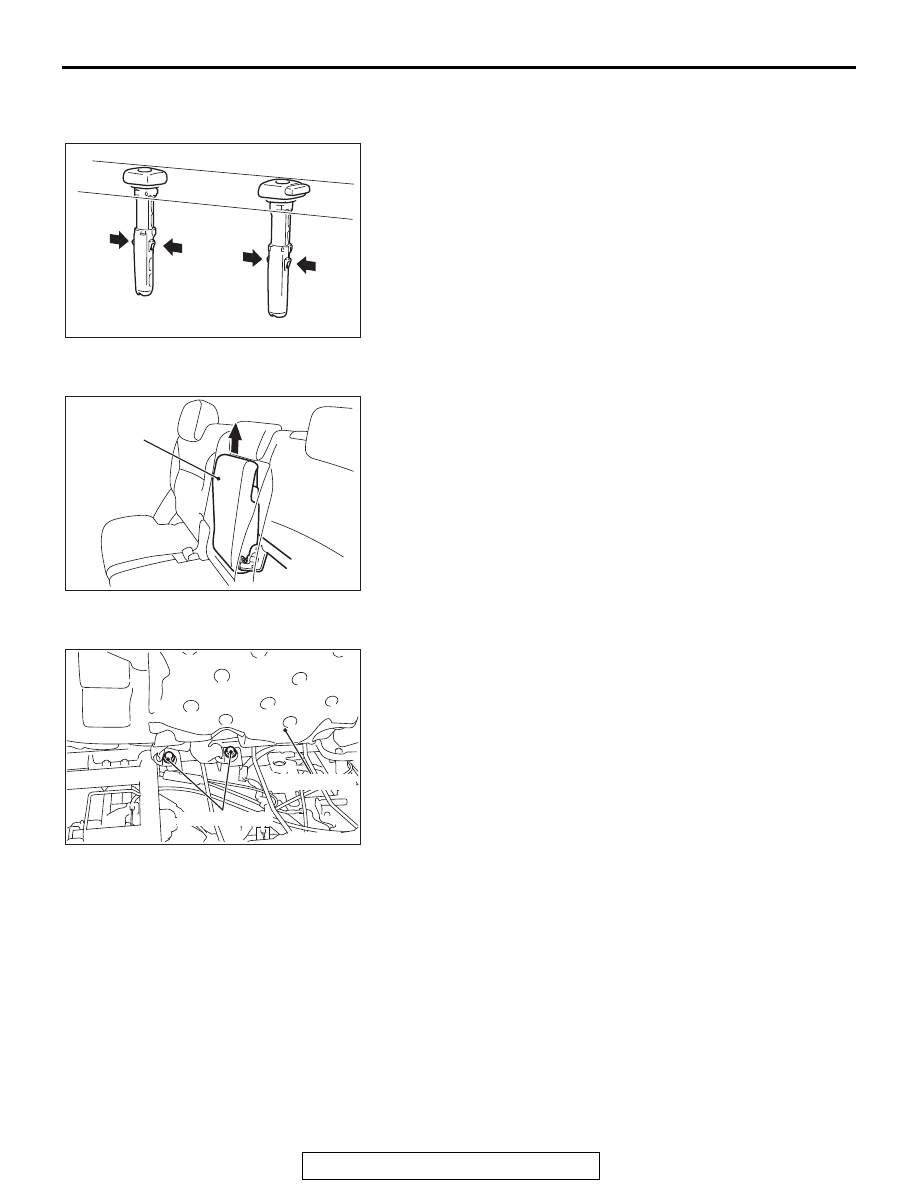

DISASSEMBLY SERVICE POINTS

.

<<A>> HEADRESTRAINT GUIDE REMOVAL

Remove while pressing the claws on the both sides.

.

<<B>> ARMREST REMOVAL

Tilt the armrest slightly, and remove it by lifting the left side.

.

<<C>> SEAT BELT BOLT REMOVAL

Turn up the cushion pad and remove the seat belt bolts.

AC205342

AC609651

Armrest

AB

AC610325AB

Seat belt bolts

Seat cushion

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-28

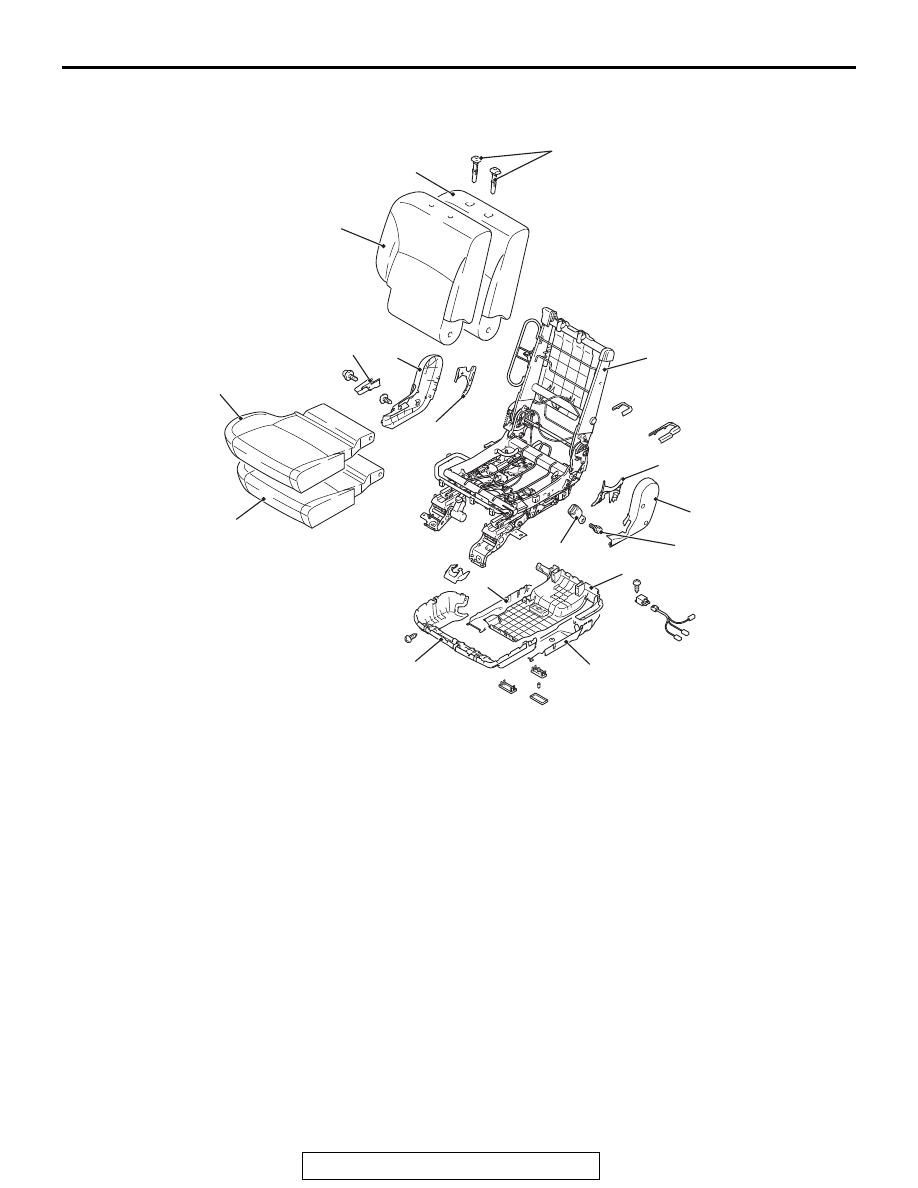

<SECOND SEAT (RH)>

AC612967

1

1

6

12

11

2

3

5

3

4

7

5

40 ± 10 N·m
30 ± 7 ft-lb

13

8

10

9

AB

Disassembly steps

1.

Second seat latch cover

2.

Reclining adjuster lever

3.

Reclining adjuster cover

4.

Seat belt inner

5.

Reclining adjuster inner cover

6.

Seat cushion under cover front

7.

Seat cushion under cover rear

<<

A

>>

8.

Headrestraint guide

9.

Seatback cover

10. Seatback pad
11. Cushion pad cover
12. Cushion pad
13. Seat frame assembly

Disassembly steps (Continued)
