TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-99

line, and the short spring, and release the short
spring.

(5) Take the measurements below at the SRS-ECU

harness side connector.

• Continuity between PTA+, PTA- line and body

earth

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness PTA+, PTA- line
between the SRS-ECU connector and the
seat belt pre-tensioner (passenger's side)
connector.

STEP 5. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1C47 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No.B1612 Seat belt pre-tensioner (passenger’s side) (squib) system (shorted to squib circuit
power supply)

CAUTION

If the diagnosis code B1612 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
in SRS-ECU, the electric current is supplied from
SRS-ECU to the seat belt pre-tensioner (squib).

TROUBLE JUDGEMENT

The code is set when the input terminal of SRS-ECU
seat belt pre-tensioner (passenger’s side) (squib) is
shorted to power supply.

PROBABLE CAUSES

• Damaged wiring harness and connector

• Seat belt pre-tensioner (passenger’s side) (squib)

harness shorted to power supply

• Malfunction of SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1612 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

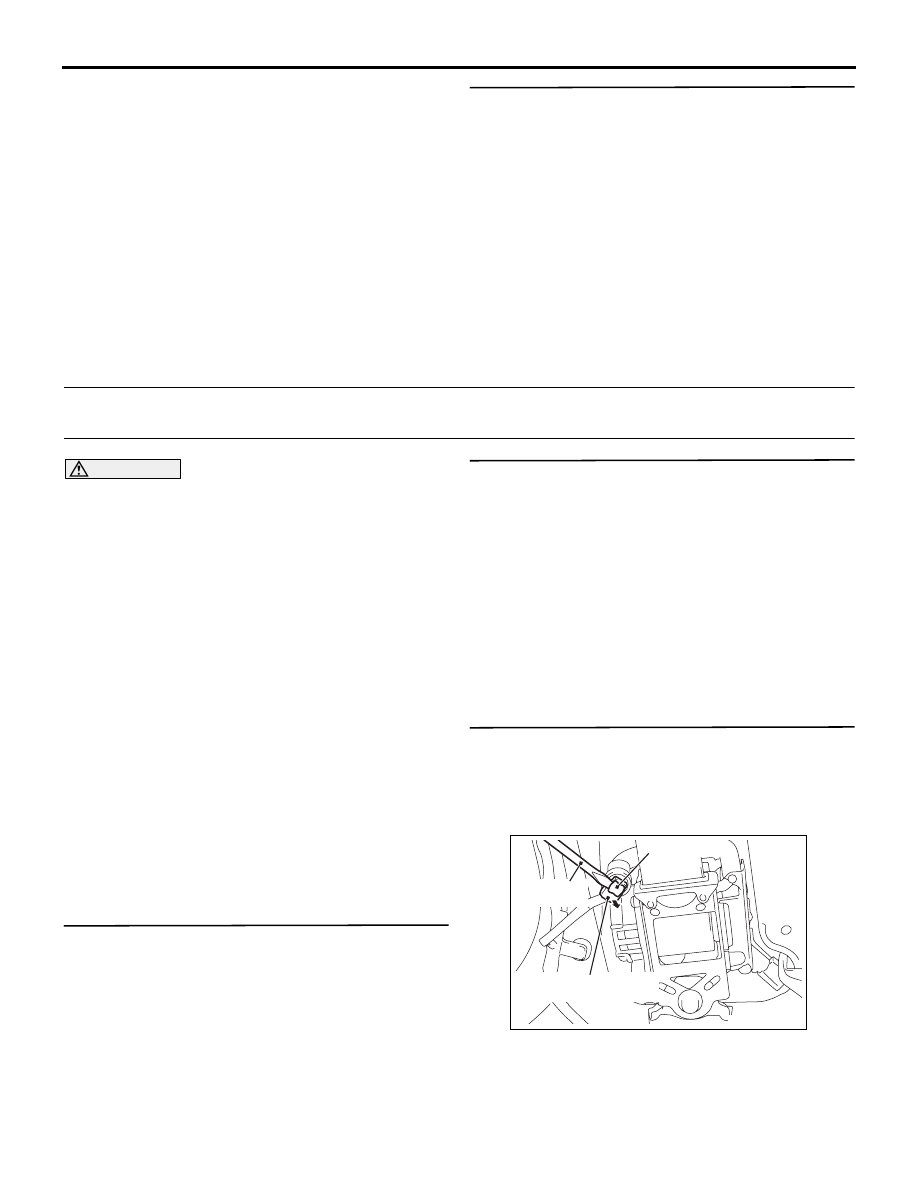

STEP 3. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(2) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (passenger's side) harness side

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-100

connector.

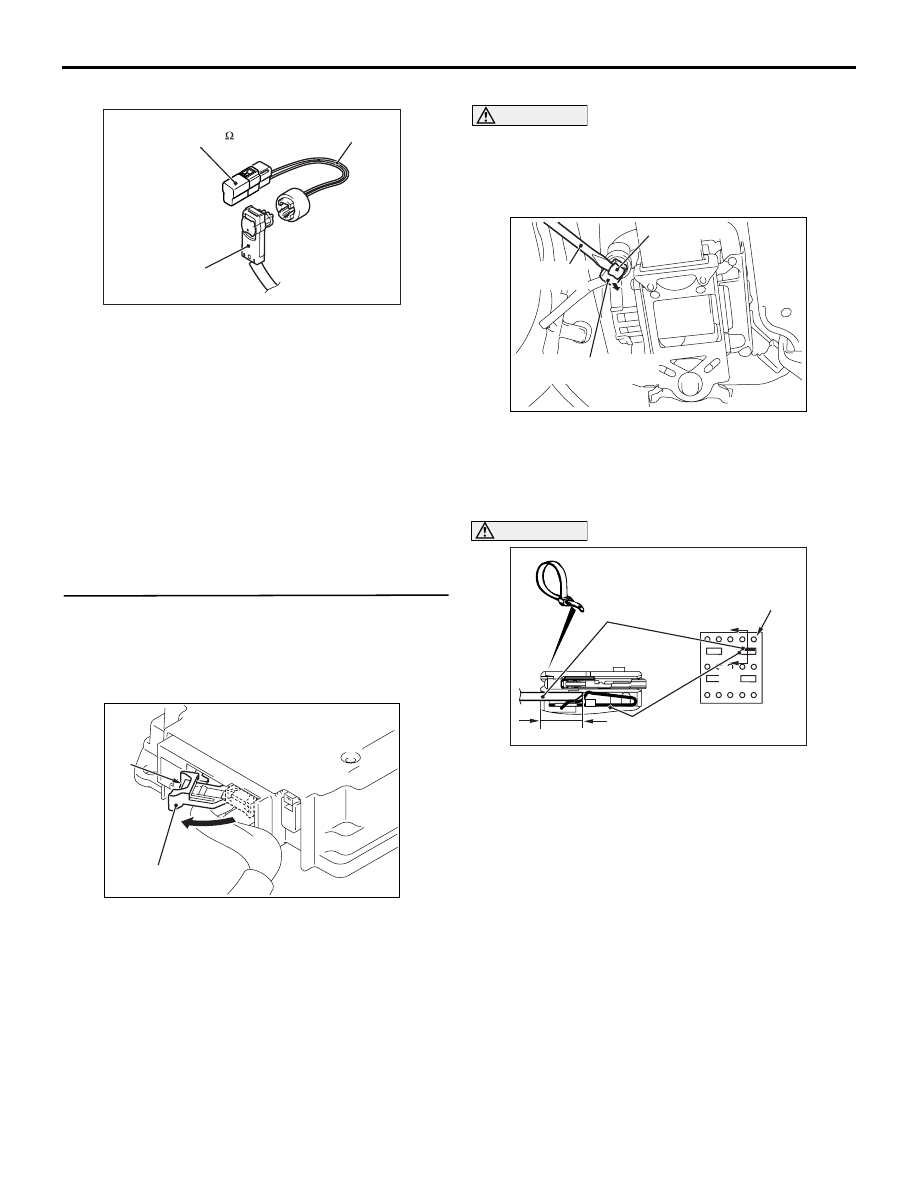

AC301553DR

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect the special tool resistor harness to the

seat belt pre-tensioner (passenger's side)
harness side connector.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1612 set?

YES :

Go to Step 4.

NO :

Replace the seat belt with pre-tensioner
(passenger’s side) (Refer to

P.52B-147

).

STEP 4. Voltage measurement at the SRS-ECU
connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock

lever, and disconnect the SRS-ECU connector.

DANGER

To release the SRS-ECU connector short
spring in the following operations, discon-
nect this seat belt pre-tensioner connector,
and keep the squib circuit shorted.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(3) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (passenger's side) harness side
connector.

AC905468AV

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert an insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the PTA+, PTA-
line, and the short spring, and release the short
spring.

(5) Connect the negative battery terminal.
(6) Ignition switch: ON
(7) Take the measurements below at the SRS-ECU

harness side connector.

• Voltage between PTA+, PTA- line and body

earth

OK: 1 V or less

(8) Disconnect the negative battery terminal.

Q: Is the check result normal?

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-101

YES :

Go to Step 5.

NO :

Repair the wiring harness PTA+, PTA- line
between the SRS-ECU connector and the
seat belt pre-tensioner (passenger's side)
connector.

STEP 5. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1612 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

Code No.B1631 Driver's knee air bag module (squib) system (short circuit between squib circuit
terminals)

CAUTION

If the diagnosis code B1631 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
in SRS-ECU, the electric current is supplied from
SRS-ECU to the knee air bag module (squib).

TROUBLE JUDGEMENT

The code is set when the short circuit occurs to
between the terminals of SRS-ECU knee air bag
module (squib) circuit.

PROBABLE CAUSES

• Damaged short spring

*

• Short circuit between terminals of knee air bag

module (squib) circuit

• Damaged connector(s)

• Malfunction of SRS-ECU

• Insufficient press of locking button or locking but-

ton not pressed

NOTE: *: The squib circuit connectors integrate a
short spring (which prevents the air bags from being
unintentionally deployed because of static electricity
by shorting the positive wire to the earth wire in the
squib circuit when the connectors are disconnected).
Therefore, when the above codes are set, the short
spring may not be released due to the damaged con-
nector even when the connectors are connected.

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1631 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Connector check: SRS-ECU, knee air
bag module.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

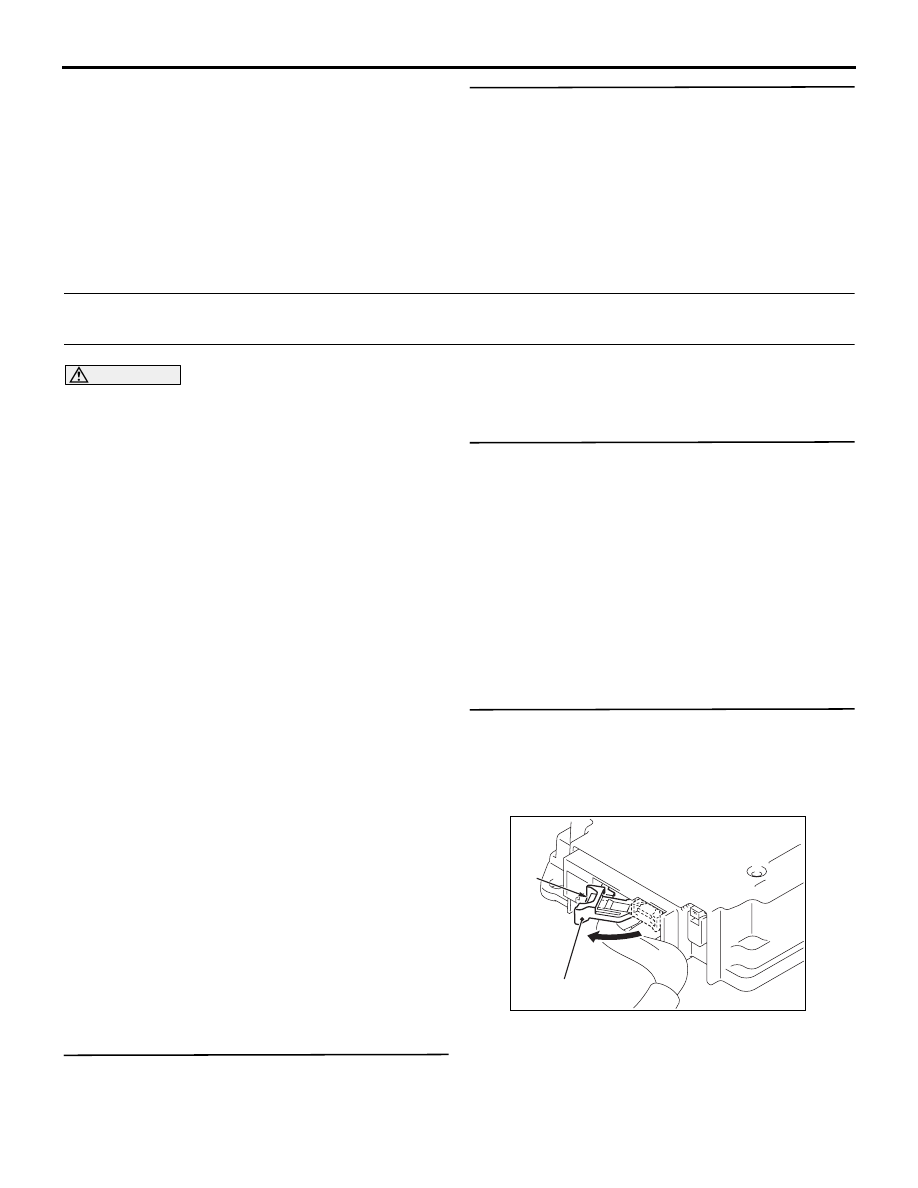

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever. After disconnecting the SRS-ECU

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-102

connector, connect it again.

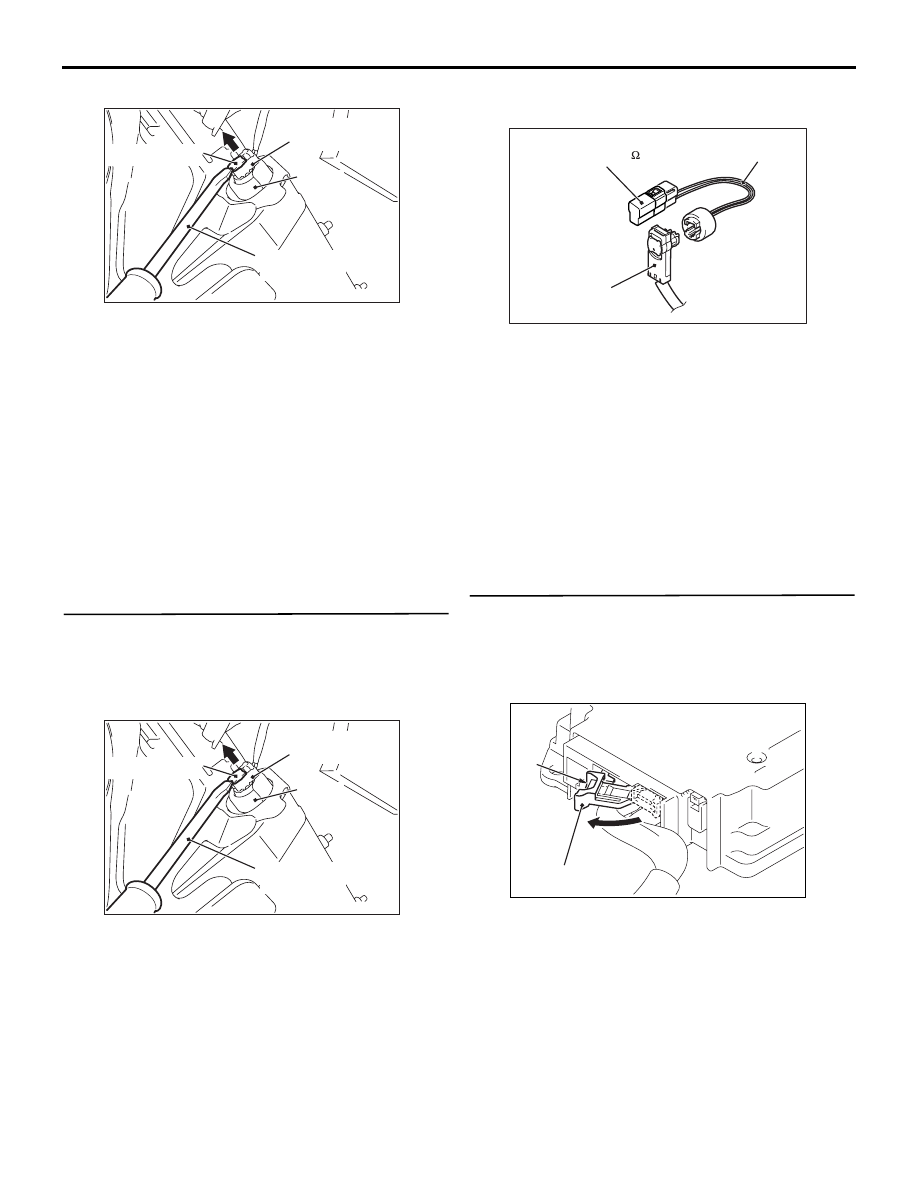

AC609126AF

Locking button

Flat-tipped
screwdriver

Inflator

Harness side
connector

(3)  After disconnecting the knee air bag module

harness side connector, connect the connector
again. For the knee air bag module harness side
connector disconnection, use the flat-tipped
screwdriver to pull out the harness side
connector locking button. After releasing the lock,
disconnect the harness side connector.

(4) Connect the negative battery terminal.
(5) After erasing the diagnosis code memory, check

the diagnosis code again.

(6) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1631 set?

YES :

Go to Step 4.

NO :

Replace the connector concerned.

STEP 4. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC609126AF

Locking button

Flat-tipped
screwdriver

Inflator

Harness side
connector

(2) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After

releasing the lock, disconnect the knee air bag
module harness side connector.

AC301553DR

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect the resistor harness to the knee air bag

module harness side connector.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1631 set?

YES :

Go to Step 5.

NO :

Replace the driver’s knee air bag module
(Refer to

P.52B-139

).

STEP 5. Resistance check at the SRS-ECU
connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
