TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-91

Code No.B1606 Seat belt pre-tensioner (driver’s side) (squib) system (shorted to squib circuit power
supply)

CAUTION

If the diagnosis code B1606 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
in SRS-ECU, the electric current is supplied from
SRS-ECU to the seat belt pre-tensioner (squib).

TROUBLE JUDGEMENT

The code is set when the SRS-ECU seat belt
pre-tensioner (driver’s side) (squib) circuit is shorted
to power supply.

PROBABLE CAUSES

• Damaged wiring harness and connector

• Seat belt pre-tensioner (driver’s side) (squib) har-

ness shorted to power supply

• Malfunction of SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1606 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(2) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (driver's side) harness side
connector.

AC301553DR

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool resistor harness to the seat

belt pre-tensioner (driver's side) harness side
connector.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1606 set?

YES :

Go to Step 4.

NO :

Replace the seat belt with pre-tensioner
(driver’s side) (Refer to

P.52B-147

).

STEP 4. Voltage measurement at the SRS-ECU
connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-92

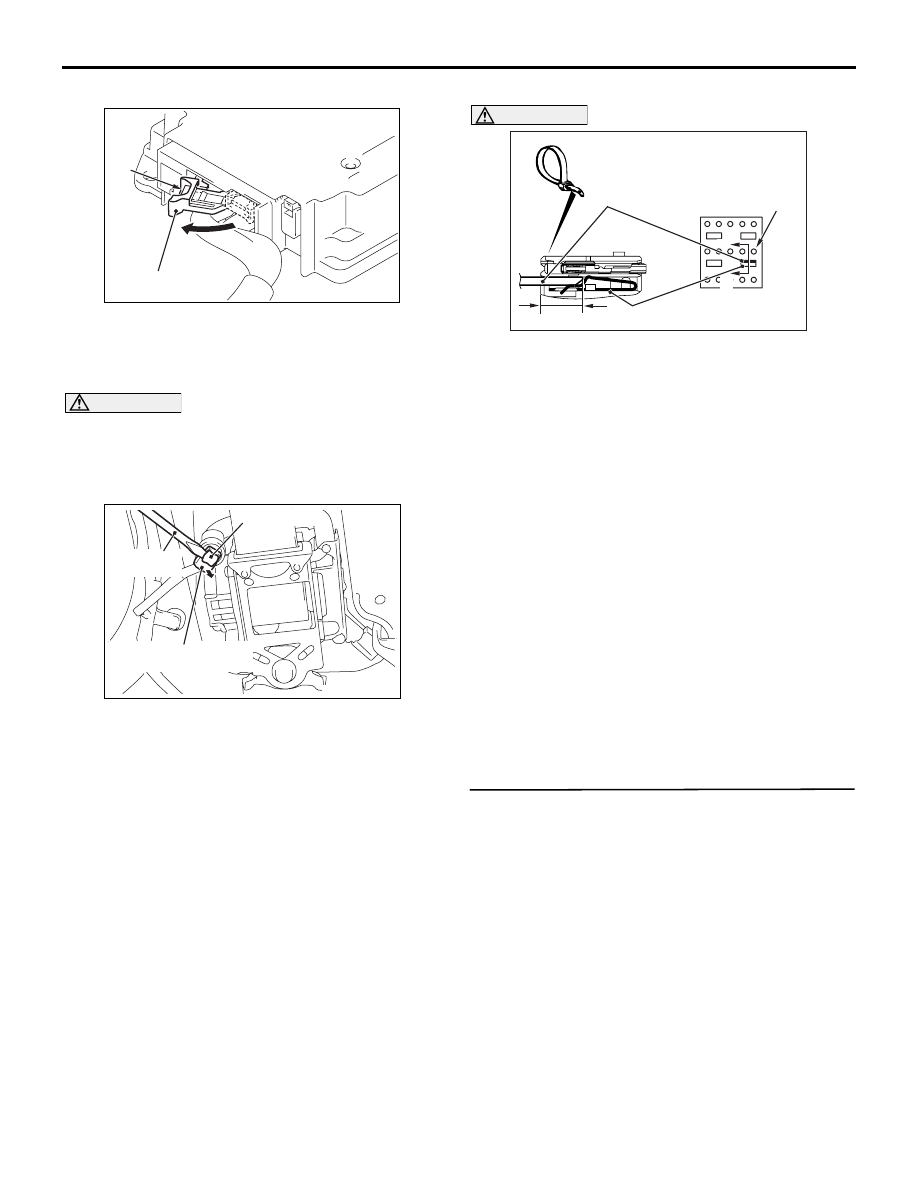

connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

DANGER

To release the SRS-ECU connector short
spring in the following operations, discon-
nect this seat belt pre-tensioner connector,
and keep the squib circuit shorted.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(3) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (driver's side) harness side

connector.

AC905468AU

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert an insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the PTD-, PTD+
line the short spring, and release the short spring.

(5) Connect the negative battery terminal.
(6) Ignition switch: ON

(7) Take the measurements below at the SRS-ECU

harness side connector.

• Voltage between PTD-, PTD+ line and body

earth

OK: 1 V or less

(8) Disconnect the negative battery terminal.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness PTD-, PTD+ line
between the SRS-ECU connector and the
seat belt pre-tensioner (driver's side)
connector.

STEP 5. Check whether the diagnosis code is
reset.

Q: Is the diagnosis code No. B1606 set?

YES :

Replace SRS-ECU (Refer to

P.52B-129

).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-93

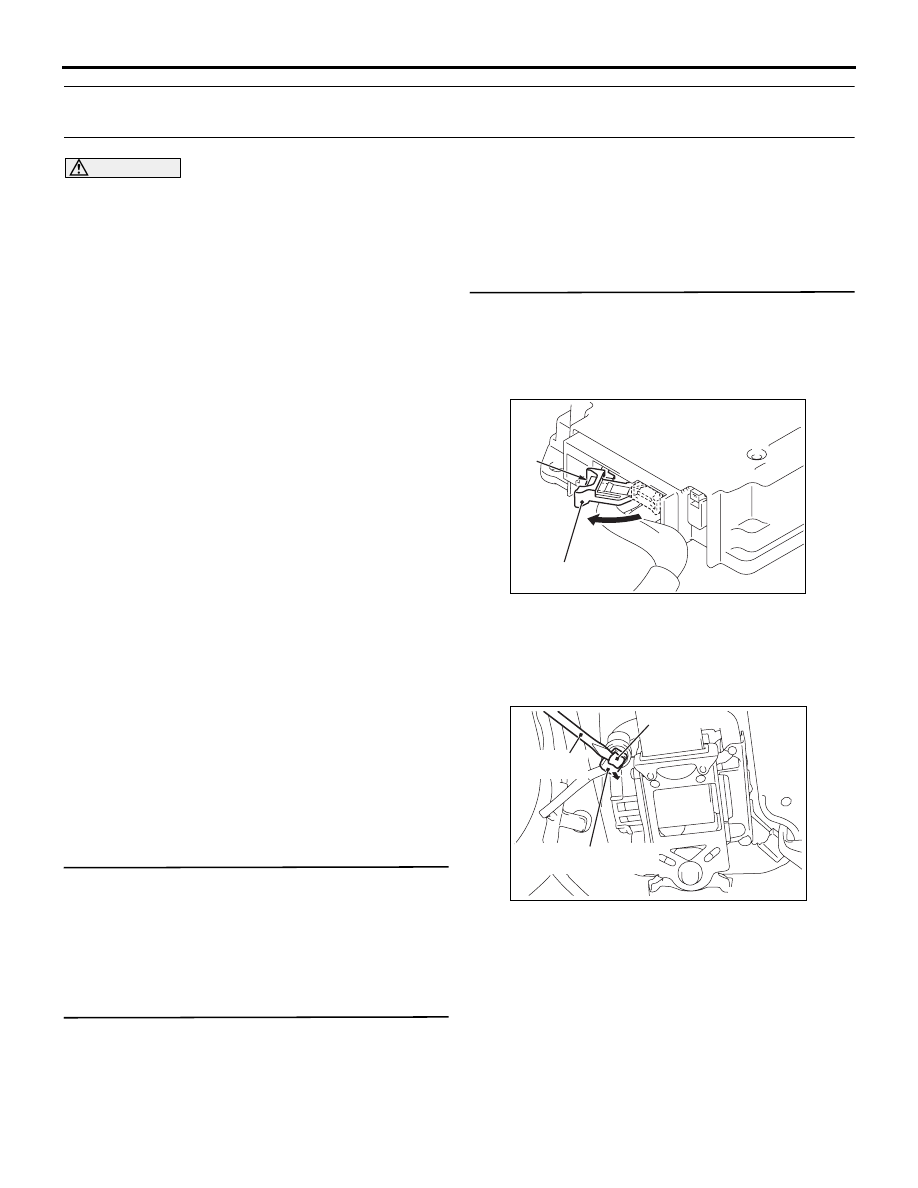

Code No.B1609 Seat belt pre-tensioner (passenger’s side) (squib) system (short circuit between
squib circuit terminals)

CAUTION

If the diagnosis code B1609 is set to SRS-ECU,
be sure to diagnose the CAN bus line.

OPERATION

Only when the frontal impact exceeding the threshold
is simultaneously detected (turned ON) by the front
impact sensor as well as by the analogue G-sensor
in SRS-ECU, the ignition signal is sent from
SRS-ECU to the seat belt pre-tensioner (squib).

TROUBLE JUDGEMENT

The code is set when the short circuit occurs to
between the terminals of SRS-ECU seat belt pre-ten-
sioner (passenger’s side) (squib) circuit.

PROBABLE CAUSES

• Damaged short spring

*

• Short circuit between terminals of seat belt

pre-tensioner (passenger’s side) (squib) circuit

• Damaged connector(s)

• Malfunction of SRS-ECU

• Insufficient press of locking button or locking but-

ton not pressed

NOTE:  *: The squib circuit connectors integrate a
short spring (which prevents the seat belt pre-ten-
sioner from being unintentionally deployed because
of static electricity by shorting the positive wire to the
earth wire in the squib circuit when the connectors
are disconnected). Therefore, when the above codes
are set, the short spring may not be released due to
the damaged connector even when the connectors
are connected.

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 2. Check whether the diagnosis code is
reset.
(1) Connect the negative battery terminal.
(2) After erasing the diagnosis code memory, check

the diagnosis code again.

(3) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1609 set?

YES :

Go to Step 3.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

STEP 3. Connector check: SRS-ECU, seat belt
pre-tensioner (passenger's side).
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever. After disconnecting the SRS-ECU
connector, connect it again.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(3)  After disconnecting the seat belt pre-tensioner

(passenger's side) harness side connector,
connect the connector again. For the seat belt
pre-tensioner (passenger's side) harness side
connector disconnection, use the flat-tipped
screwdriver to pull out the harness side
connector locking button. After releasing the lock,
disconnect the harness side connector.

(4) Connect the negative battery terminal.
(5) After erasing the diagnosis code memory, check

the diagnosis code again.

(6) Disconnect the negative battery terminal.

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-94

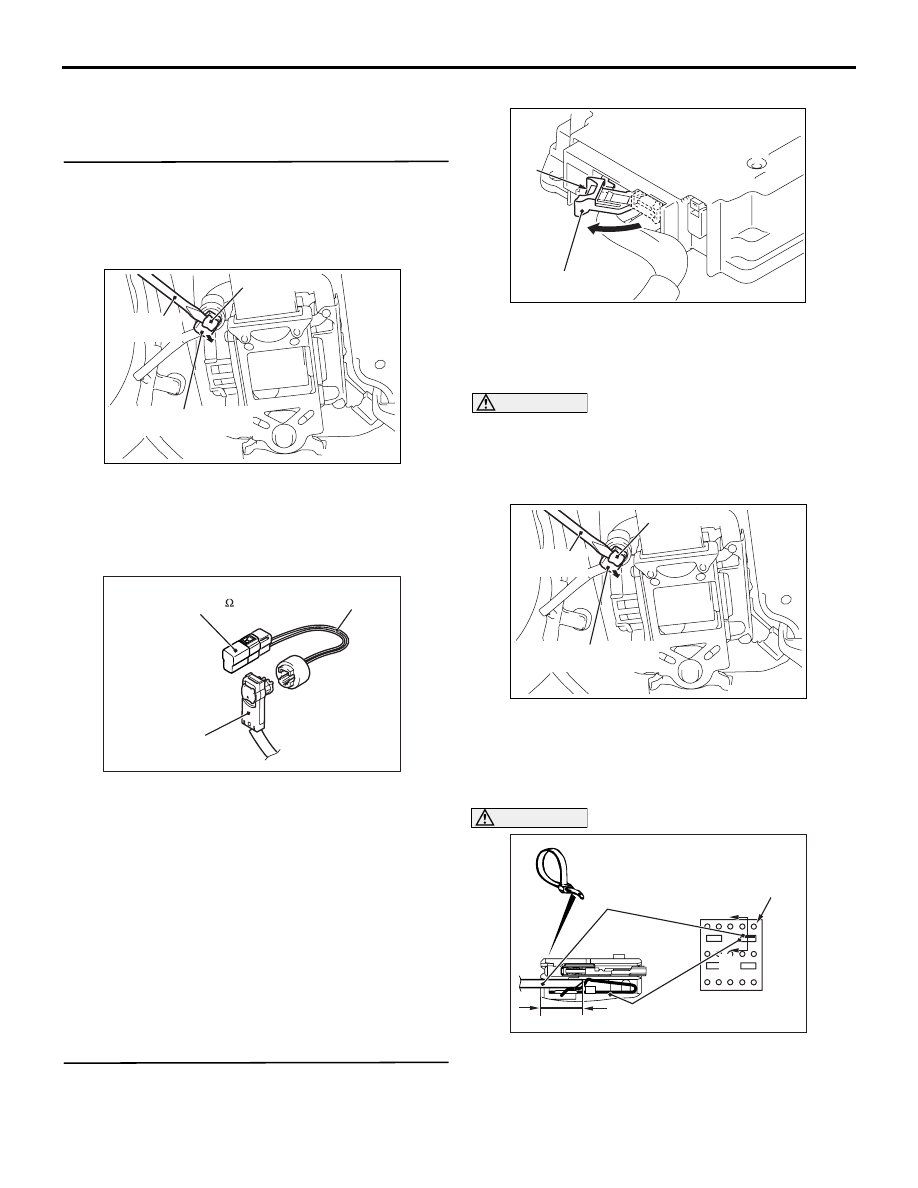

Q: Is the diagnosis code No. B1609 set?

YES :

Go to Step 4.

NO :

Replace the connector concerned.

STEP 4. Diagnosis check by dummy resistor
connection.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is
connected, disconnect it.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(2) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (passenger's side) harness side
connector.

AC301553DR

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991884).

(4) Connect special tool resistor harness to the seat

belt pre-tensioner (passenger's side) harness
side connector.

(5) Connect the negative battery terminal.
(6) After erasing the diagnosis code memory, check

the diagnosis code again.

(7) Disconnect the negative battery terminal.

Q: Is the diagnosis code No. B1609 set?

YES :

Go to Step 5.

NO :

Replace the seat belt with pre-tensioner
(passenger’s side) (Refer to

P.52B-147

).

STEP 5. Resistance check at the SRS-ECU
connector.
(1) Check that the negative battery terminal is

disconnected. If the negative battery terminal is

connected, disconnect it.

AC905015

A

AC

Lock lever

(2) While pushing the part "A" indicated in the figure

of the harness side connector, turn the lock lever
to the direction of the arrow to release the lock
lever, and disconnect the SRS-ECU connector.

DANGER

To release the SRS-ECU connector short
spring in the following operations, discon-
nect this seat belt pre-tensioner connector,
and keep the squib circuit shorted.

ACC00046AB

Locking button

Flat-tipped
screwdriver

Seat belt pre-tensioner
harness side connector

(3) Use the flat-tipped screwdriver to pull out the

locking button of harness side connector. After
releasing the lock, disconnect the seat belt
pre-tensioner (passenger's side) harness side
connector.

AC905468AV

A

A

Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

CAUTION

The short spring may not be released due to the
insufficient insertion. Therefore, insert the insu-
lator for 4 mm or more.
(4) Insert an insulator (width: 3 mm, thickness: 0.5

mm) such as cable tie between the PTA+, PTA-
