1. Turn on the windshield washer switch for less

than 0.35 second.

2. The windshield washer operates for 0.5 seconds.
3. The windshield washer operates intermittently 4

to 6 times, and the windshield wipers operate,
linked with the windshield washer operation.

4.  The windshield wipers operate for 3 seconds.

NOTE:

.

•

If the windshield washer switch is turned ON for
less than 0.35 second when the windshield
washer is injecting washer fluid for 0.5 seconds
and when the windshield washer is injecting
washer fluid intermittently 4 to 6 times, the inter-
mittent washer and wiping will stop.

•

If the windshield washer switch is turned ON for
less than 0.35 second when the windshield wip-
ers are operating for 3 seconds, the windshield
washer operates intermittently 4 to 6 times again.

1-second washer and wiping

When the windshield washer switch is turned ON for
less than 0.35 second, the windshield washer oper-
ates for 1 second. The windshield washer operates
for 1 second, and then the windshield wipers operate
for 3 seconds.

NOTE:

.

•

If the windshield washer switch is turned ON for
less than 0.35 second when the windshield wip-
ers are operating for 3 seconds, the windshield
washer operates for 1 second again.

0.5-second washer

When the windshield washer switch is turned ON for
less than 0.35 second, the windshield washer oper-
ates for 0.5 second.

1-second washer

When the windshield washer switch is turned ON for
less than 0.35 second, the windshield washer oper-
ates for 1 second.

AC802442 AC

t

T

T1

ON

OFF

ON

OFF

ON

OFF

Windshield washer relay

Windshield washer switch

Windshield wiper relay

t: Less than 0.35 seconds
T: 1.0 second
T1: 3.0 second

AC802444 AC

t

T

ON

OFF

ON

OFF

Windshield washer
relay

Windshield washer
switch

t: Less than 0.35 seconds
T: 0.5 second

AC802443AC

t

T

ON

OFF

ON

OFF

Windshield
washer relay

Windshield
washer switch

t: Less than 0.35 seconds
T: 1.0 second

Downloaded from

www.Manualslib.com



manuals search engine



WIPER AND WASHER

EXTERIOR

51-13

Rain sensitive AUTO wiper function <Optional>

• Lighting control sensor (rain sensor) has been

installed in the upper part of the windshield to
sense the raindrops and windshield wiper can be
operated when the ignition switch is at ON and
wiper switch is at AUTO position.

• The lighting control sensor detects the raindrops

on the windshield surface using the optical ele-
ment, and it automatically switches the wind-
shield wiper operation, depending on the amount
of rainfall, to the intermittent or LO/HI operation.

• The lighting control sensor detects the raindrops

using the reflections of infrared rays, and
depending on the amount of rainfall, it automati-
cally adjusts the wiping speed.

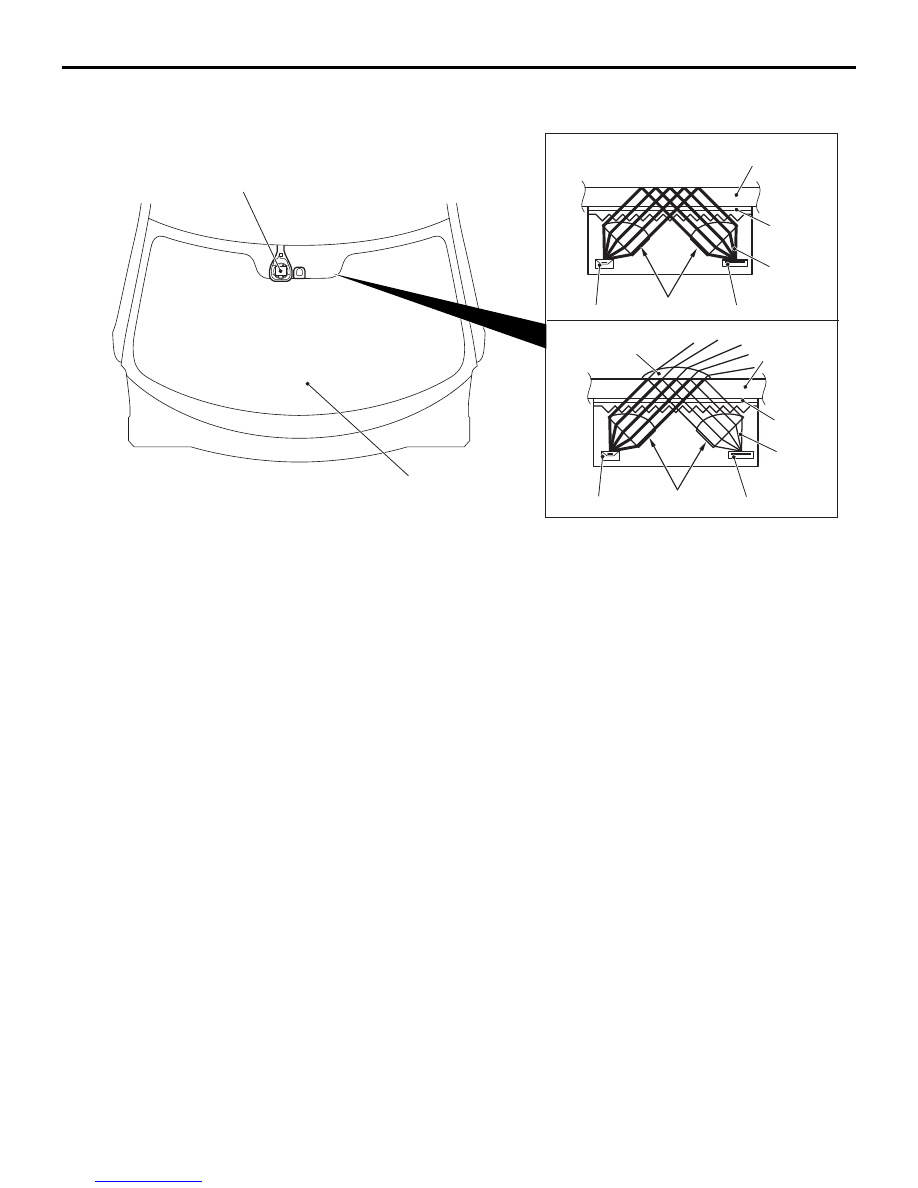

• Dry windshield: All infrared rays emitted from the

emitter diode are reflected by the windshield and
directed to the receiver diode as they are.

• Wet windshield: Part of the infrared rays emitted

from the emitter diode are transmitted to outside
of the windshield through the raindrops, and the
infrared rays with reduced intensity are directed
to the receiver diode.

NOTE: Using the customise function, the rain sensi-
tive AUTO wiper function can be invalidated (Refer to

P.51-20

).

Delayed finishing wipe function <Initial condition: with function>

1. When the washer lever of the column switch is

operated for 0.5 seconds or longer with the igni-
tion switch in the ACC or ON position, or when
the comfort washer function is enable, the
washer fluid is sprayed and the wiper is operated.
6 seconds after stopping the wiper operation, the
wiper operates once to wipe out the washer fluid
ran down.

NOTE: Using the customise function, the delayed fin-
ishing wipe function can be invalidated (Refer to

P.51-20

).

ACB05683AB

Windshield

Lighting control sensor

Windshield

Receiver diode

Emitter diode

Raindrop

High
intensity

Receiver diode

Emitter diode

Reduced
intensity

Windshield

Optical
element

Optical
element

Dry windshield

Wet windshield

Infrared rays

Infrared rays

Downloaded from

www.Manualslib.com



manuals search engine



WIPER AND WASHER

EXTERIOR

51-14

REAR WIPER AND WASHER

M2510008000759

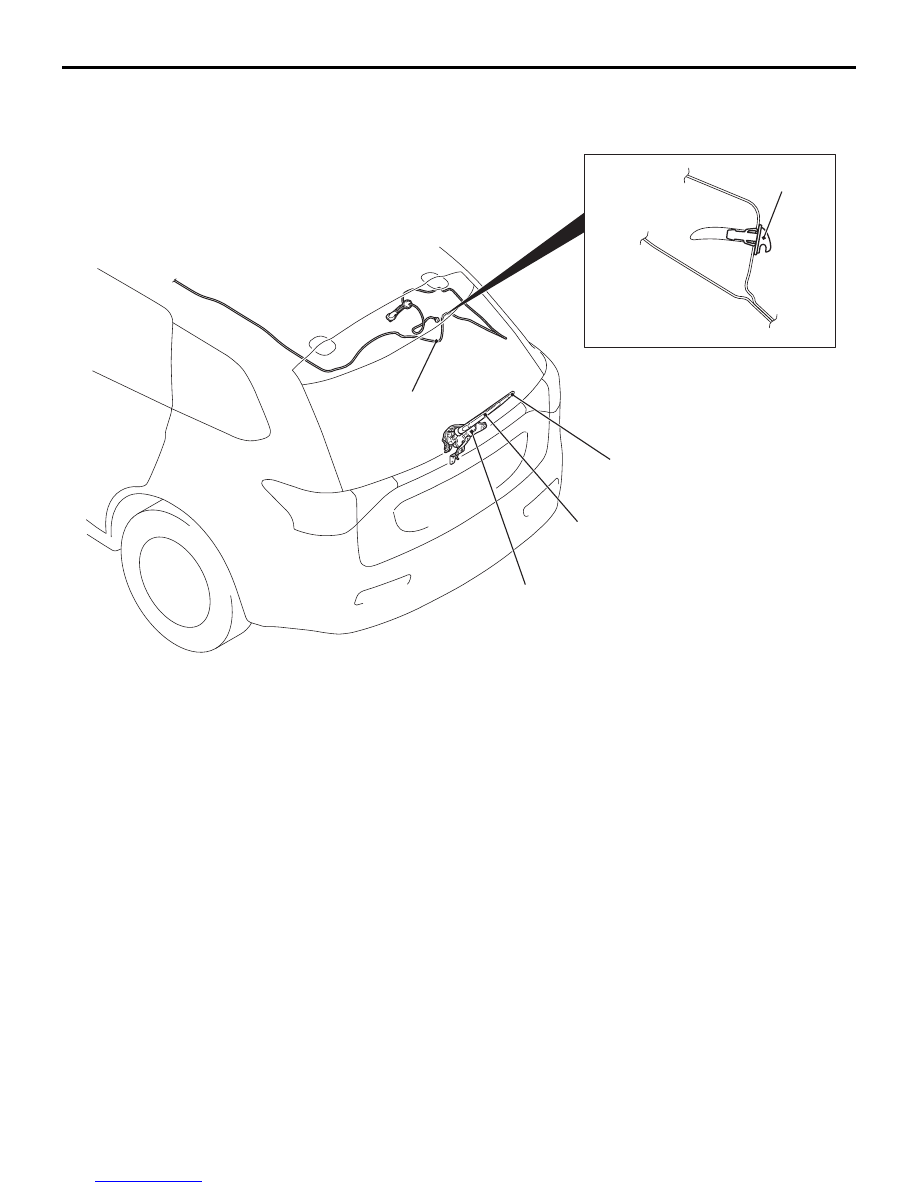

CONSTRUCTION DIAGRAM

• Resin wiper arm has been adopted to achieve

weight reduction and integration of the arm and
blade.

• Fixed interval type intermittent wiper* has been

adopted to provide a clear rear view in rainy
weather.

• The washer tank is shared with the windshield

washer.

• Washer-linked wiper function* has been adopted.

Washer fluid can be optionally injected without
operating the wiper optionally. When the ignition
switch is turned ON while the washer switch is
ON, the washer motor operates but the wiper
does not.

• Reverse gear-linked rear wiper function (auto-

matic rear window wiper operation with reverse
gear engaged)* has been adopted. In this func-
tion, the rear wiper performs continuous
low-speed operation for 3 cycles approximately 1
second after the selector lever is shifted to "R"
position while the front or rear wiper switch is in
the intermittent position, and then proceed with
the intermittent operation.

NOTE: *: Using the customise function, the fixed
interval type intermittent wiper, reverse gear-linked
rear wiper function and the washer-linked wiper func-
tion can be adjusted (Refer to

P.51-20

).

ACC00126 AC

Rear wiper arm

Rear wiper blade

Rear washer hose

Rear washer
nozzle

Rear wiper
motor

Downloaded from

www.Manualslib.com



manuals search engine



WIPER AND WASHER

EXTERIOR

51-15

DESCRIPTION OF CONSTRUCTION AND OPERATION

Rear wiper control <Initial condition: Front or rear wiper switch ON>

When the rear wiper switch on the column switch is
turned ON while the ignition switch is in ACC or ON
position, ETACS turns the rear wiper relay ON for 3
seconds (for approximately 2 cycles) and operates
the intermittent action in 8 seconds interval.

When the selector lever is moved to R (reverse)
position during the front or rear wiper operation, the
inhibitor switch R (reverse) turns ON, and 1 second
after that, ETACS turns the rear wiper relay ON for 3
seconds (for approximately 3 cycles), and operates
the intermittent action in 8 seconds interval again.

NOTE: Using the customise function, the operation
with front/rear wiper ON can be switched to the oper-
ation with the rear wiper only ON. (Refer to

P.51-20

.)

Washer-linked rear wiper function <Initial condition: with function>

When the rear washer switch on the column switch is
turned ON while the ignition switch is in ACC or ON
position, ETACS turns the rear washer relay ON.
The rear washer relay turns ON after the rear washer
switch has been ON for 0.3 seconds, then turns the
rear wiper relay ON to operate the rear wiper simul-
taneously. When the rear washer switch is turned
OFF, after 3 seconds the rear wiper is turned OFF.

If the rear washer switch is turned ON during the rear
wiper operation, 7.4 seconds after turning OFF the
rear wiper relay turns OFF, the intermittent action is
resumed in 8 seconds interval.

NOTE: Using the customise function, the washer
linked rear wiper function can be invalidated (Refer
to

P.51-20

).

AC207474

OFF

AO

T2: 7.4 seconds

ON

T3

T4

Rear wiper relay

OFF

ON

Rear wiper switch

OFF

ON

T1

T2

T2

T2

T2

Inhibitor switch
"R" position

t

T1: 3.0 seconds

t: 1.0 second

T4

T1

T4

T3

T2

T3

T4

T4

T3: 8.0 seconds

T4: 0.6 second

AC507498AE

   t : 0.3 second
T1 : 3 seconds
T2 : 7.4 seconds
T3 : 8 seconds
T4 : 0.6 second

t

t

t

ON

OFF

ON

OFF

ON

OFF

T1

T1

T1

T2

T3

T4

T4

Rear wiper switch
in off position

Rear wiper switch in on position

Rear washer switch

Rear washer relay

Rear wiper relay
