BUMPER

EXTERIOR

51-4

REAR BUMPER

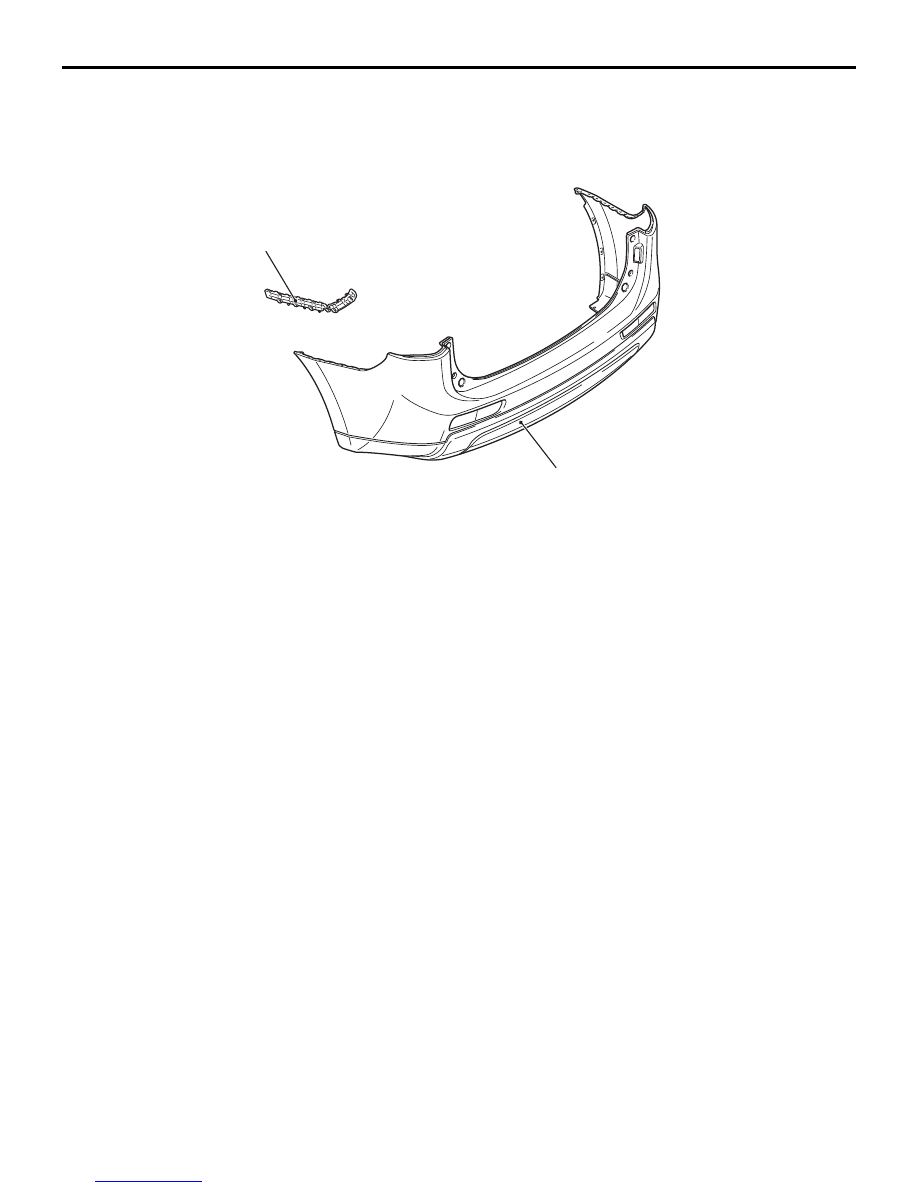

CONSTRUCTION DIAGRAM

• Resin-made rear bumper face support brackets

have been adopted to improve the alignment with
the body.

ACB05705AB

Rear bumper face

Rear bumper face
support bracket

Downloaded from

www.Manualslib.com



manuals search engine



AERO PARTS

EXTERIOR

51-5

AERO PARTS

M2510003001348

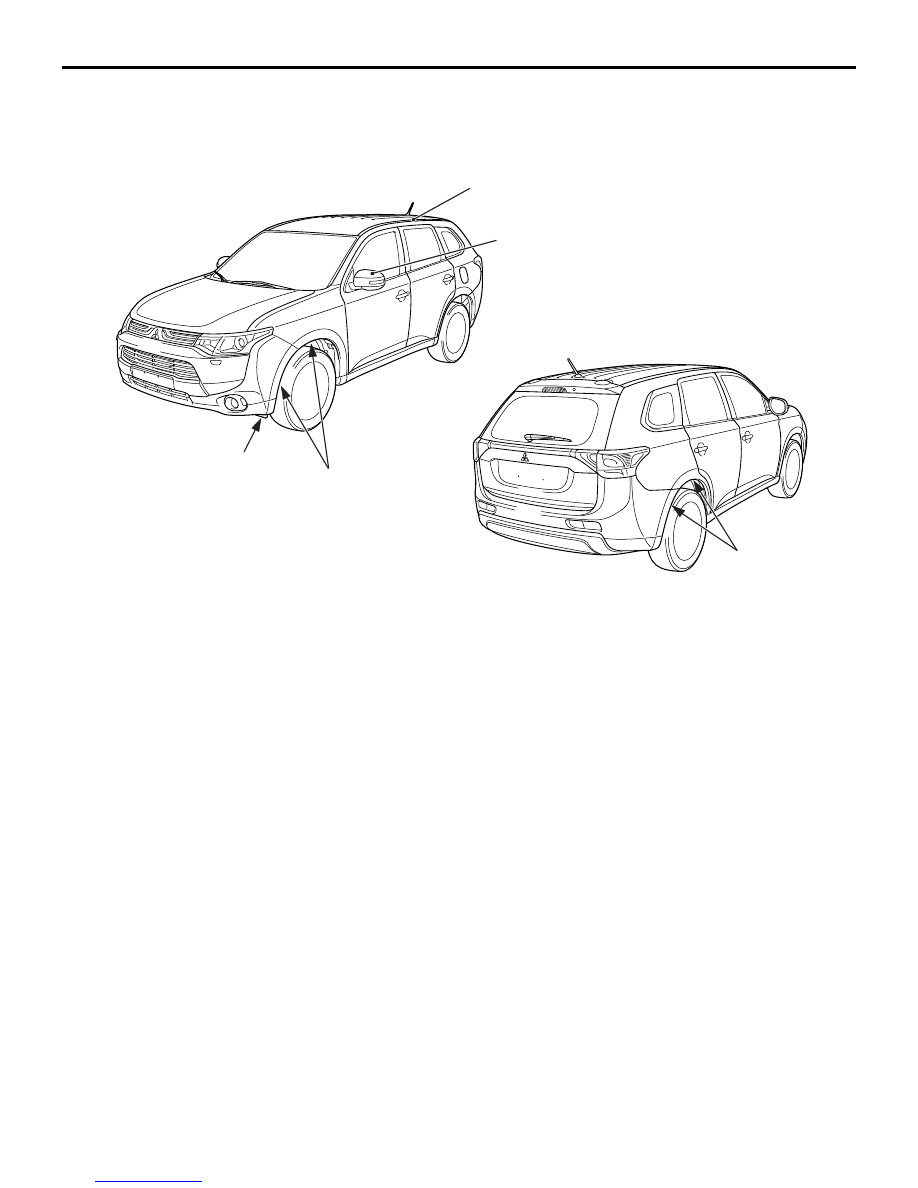

CONSTRUCTION DIAGRAM

Aerodynamic performance has been improved by the
optimised shape of the following parts.

• Front side air dam: Refer to

P.51-3

.

• Overfender shape: Overfender shape from the

front bumper to the fender and from the quarter
panel to the rear bumper keeps the off-road vehi-
cle image as an SUV, at the same time the opti-
mised shape of the related parts improves
aerodynamic performance.

• Roof drip moulding: Groove in the roof moulding

is eliminated in order to reduce wind noise and
aerodynamic drag.

• Door mirror

ACC00450

AB

Door mirror

Overfender
shape

Overfender
shape

Roof drip moulding

Front side air dam

Downloaded from

www.Manualslib.com



manuals search engine



GARNISHES

EXTERIOR

51-6

GARNISHES

M2510008300675

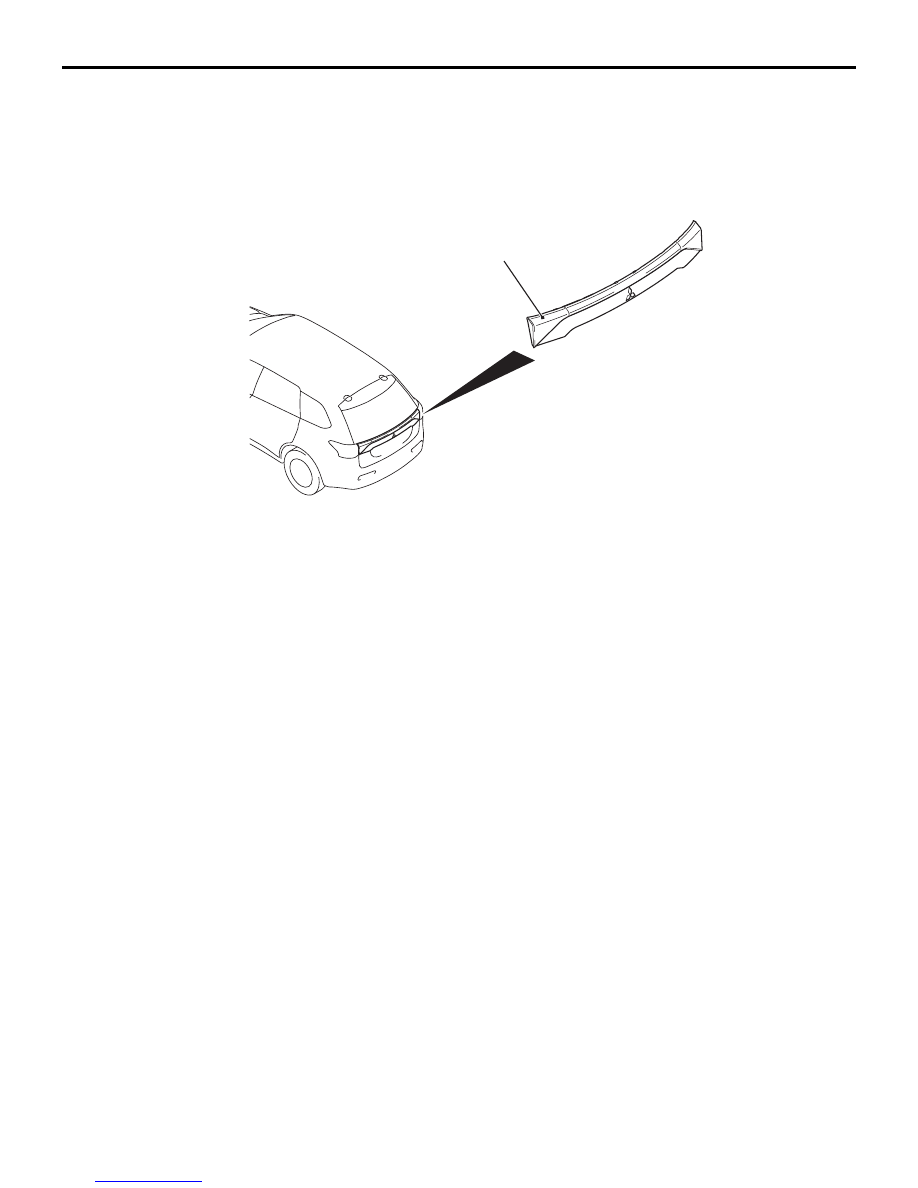

CONSTRUCTION DIAGRAM

The following tailgate garnish have been installed on
the body to improve the appearance and marketabil-
ity.

ACB05464AB

Tailgate garnish

Downloaded from

www.Manualslib.com



manuals search engine



WIPER AND WASHER

EXTERIOR

51-7

WIPER AND WASHER

WINDSHIELD WIPER AND WASHER

M2510007001469

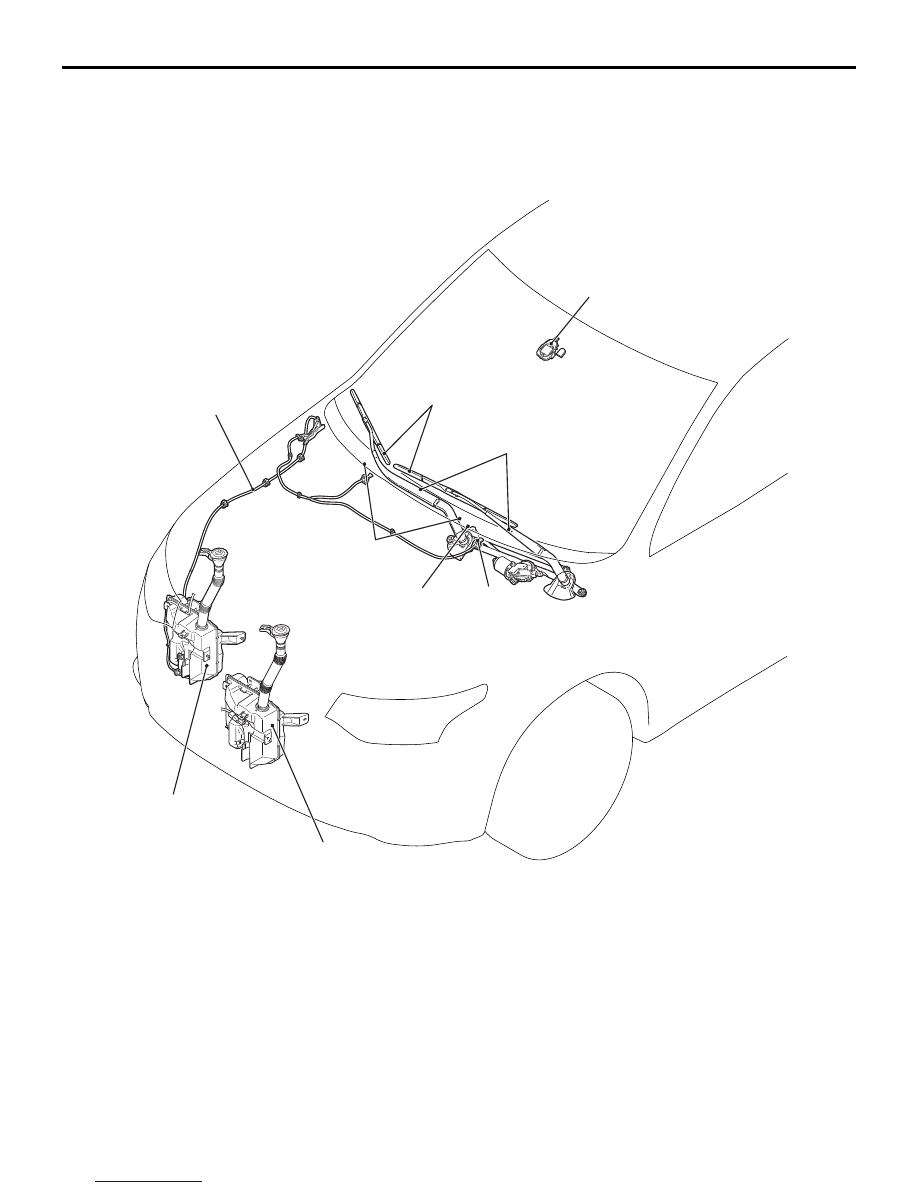

CONSTRUCTION DIAGRAM

• 2-speed (low/high speed) windshield wiper has

been adopted.

• The intermittent wiper features a vehicle

speed-dependent variable intermittent time func-
tion*.

• For the windshield auto wiper, the rain sensitive

AUTO wiper function* has been
adopted.<Optional>

• Wiper motor torque has been increased to

improve kinetic performance of the wiper in the
snowfall. Wiper blade pressure has been
increased to improve the wiping performance
while driving at high speed.

• The mist wiper is turned ON by operating the mist

switch in the opposite direction of the wiper
switch for easy operation. The mist wiper is
equipped with the function that quickly wipes
raindrops away at high speed when the mist
switch is ON, and when the mist switch is OFF, at
low speed until the stop position is reached.
When the mist switch is briefly turned ON, the
wiper operates once at low speed.

• The windshield washer nozzles are located at the

rear end under the hood in order to improve
appearance.

ACC01033 AB

Windshield washer hose

Windshield washer tank

Lighting control sensor (rain sensor)
<Optional>

Windshield wiper
arm

Windshield wiper
blade

Wiper link
assembly

Windshield
washer nozzle

Windshield
wiper motor

 <Vehicles with Headlamp washer>


 <Vehicles without Headlamp washer>

Windshield washer tank
