AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-36

REAR VIEW CAMERA

M2544700100187

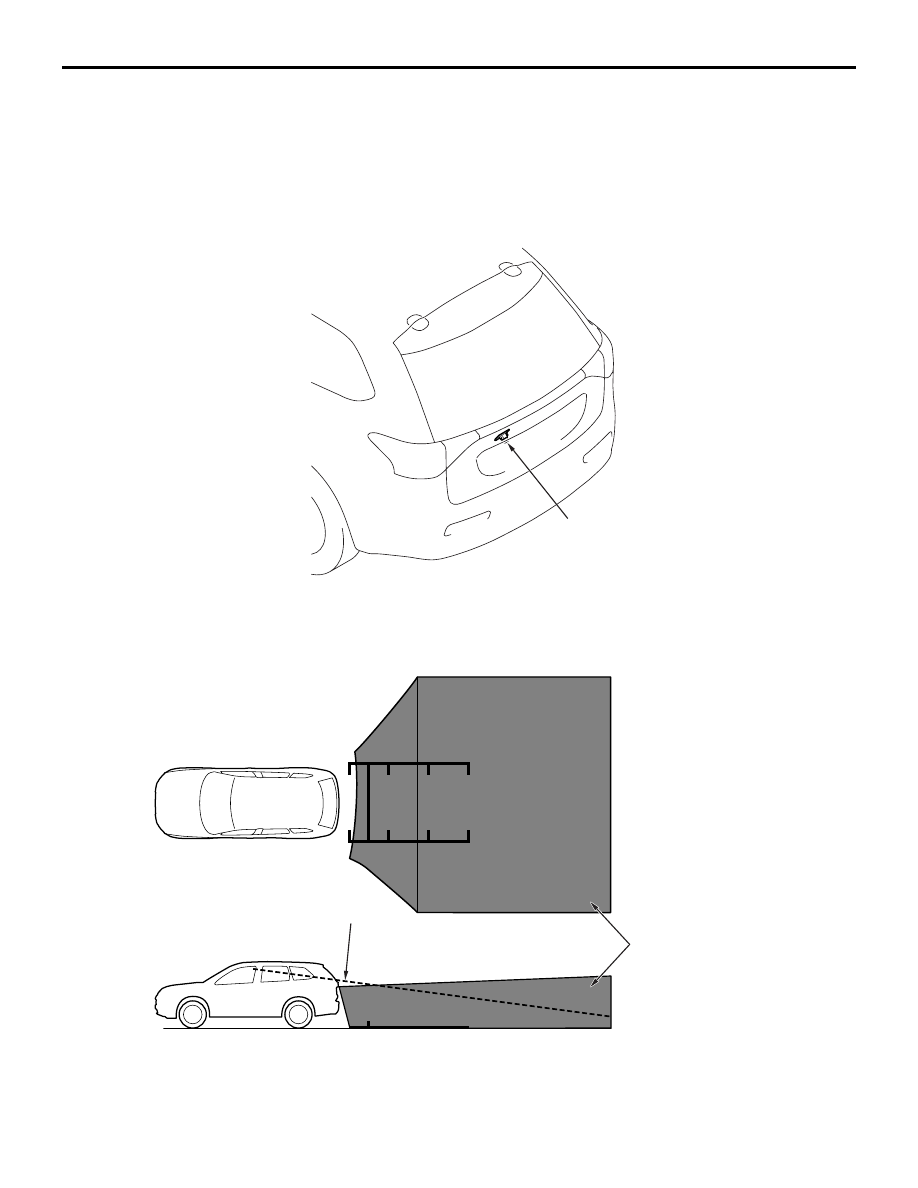

A rear view camera has been established to the tail-
gate. The rear view camera displays the rear view
image of the vehicle on the display audio or multivi-
sion display for easy confirmation of safety when
driving backward.

ACB05474

Rear view camera

AB

ACB05487

Bottom edge line of direct vision

Display area of rear view camera

AB

AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-37

OPERATION

When the selector lever is moved to the R (reverse)
position with the ignition switch "ON", the image of
the rear view camera is displayed on the display
audio screen or multivision display screen.

Screen display

Displays rear view camera.

<Vehicles with display audio>

<Vehicles with multivision display>

STEERING WHEEL REMOTE CONTROL
SWITCH

M2546500000320

On the spoke of steering wheel, the steering wheel
audio remote control switch and steering wheel voice
control switch have been installed.

STEERING WHEEL AUDIO REMOTE
CONTROL SWITCH

Using the steering wheel audio remote control
switch, the volume adjustment of the radio and CD
player and the multivision display, mode changeover,
CD track up/down, and others can be performed.

STEERING WHEEL VOICE CONTROL
SWITCH <VEHICLES WITH HANDS-FREE
INTERFACE SYSTEM>

Using the steering wheel voice control switch,
hands-free interface system.

AC612475

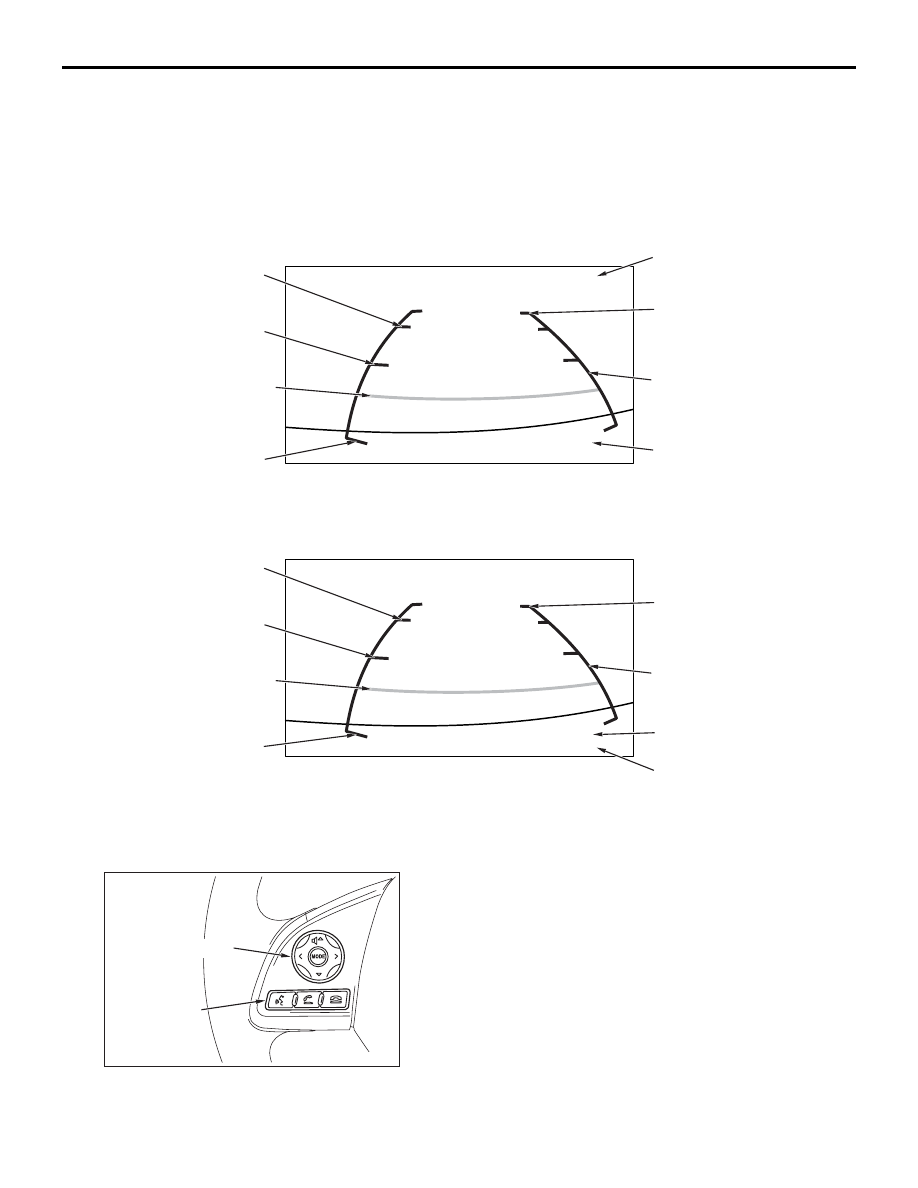

Caution message

Approx. 0 m behind the vehicle

Approx. 1 m behind the vehicle



Approx. 2 m behind the vehicle

Approx. 3 m behind the vehicle

Extended line of
"vehicle width + 0.2 m"
(Displayed in green)

Tailgate

Directly check the area around the vehicle.

AG

Approx. 0.5 m behind the vehicle
(Displayed in red)

AC612475

Caution message

Approx. 0 m behind the vehicle

Approx. 1 m behind the vehicle



Approx. 2 m behind the vehicle

Approx. 3 m behind the vehicle

Extended line of
"vehicle width + 0.2 m"
(Displayed in green)

Tailgate

Directly check the area around the vehicle.

AH

Approx. 0.5 m behind the vehicle
(Displayed in red)

ACB05490AB

Steering wheel
voice control
switch

Steering wheel
audio remote control
switch

AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-38

USB ADAPTER

M2547100100021

An USB adapter is equipped in the rear console. A
iPod

®/portable music player can be connected

through the USB connection to play its stored audio
file on the radio and CD player or the multivision dis-
play, or charge its battery.

HANDS-FREE INTERFACE SYSTEM

M2546400300023

The hands-free interface system enables handsfree
talking and playing music by Bluetooth

® connection

with Bluetooth

® device (mobile phone or music

player). In addition, music can be played by connect-
ing the USB-compatible device to the USB adapter.

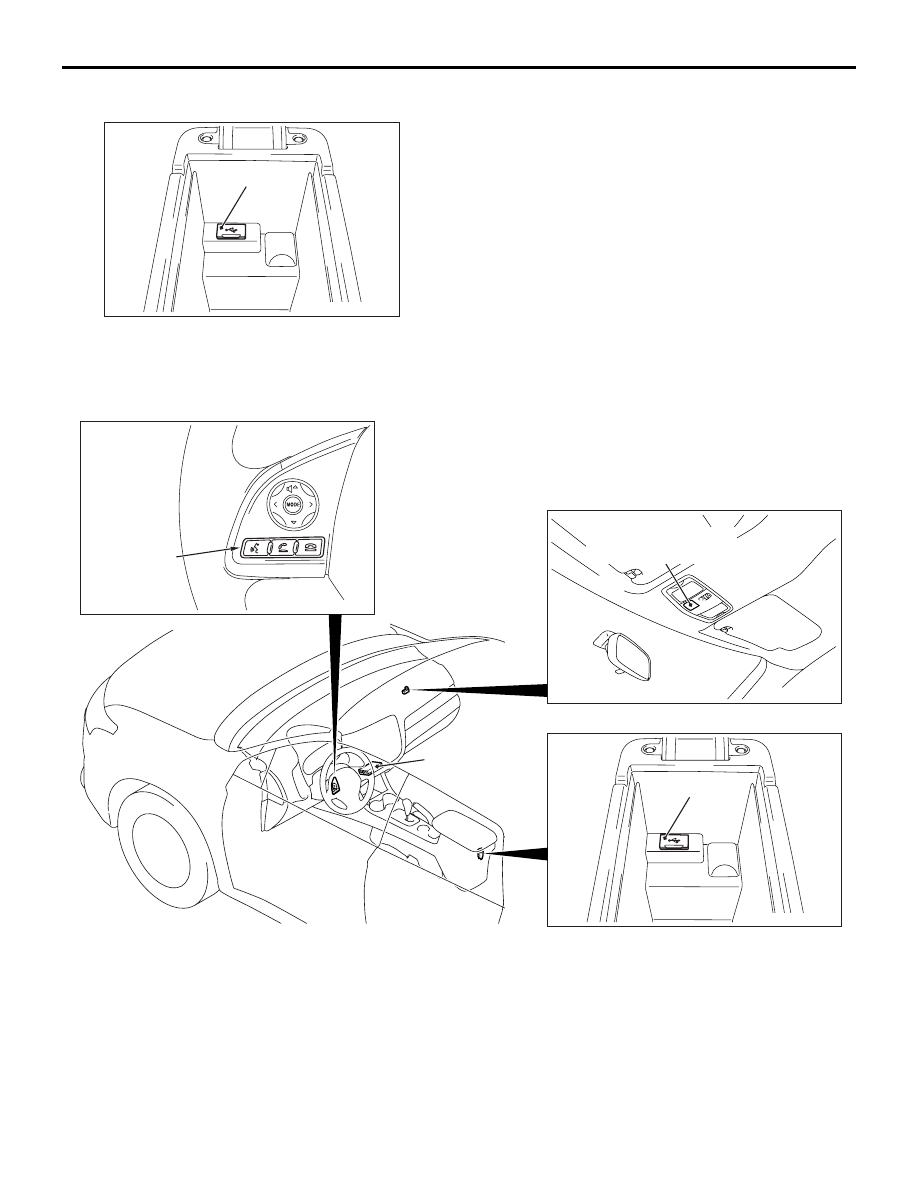

CONSTRUCTION DIAGRAM

SPEAKER

M2545000100426

6 speakers (tweeter, front door, rear door) are pro-
vided.

NOTE: For Rockford Fosgate

®

 premium sound sys-

tem, refer to

P.54A-41

.

ACB05492

USB adapter

AB

ACB05493

ACB05492

ACB05490

AC704935

Steering wheel
voice control
switch

USB adapter

Hands free ECU

Microphone unit
(built in front room lamp)

AB

AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-39

SPECIFICATIONS

TWEETER

The 3.5 cm balance dome tweeters are incorporated
in the front door sash trim.

DOOR SPEAKER

The 16 cm paper cone speakers are incorporated in
the front door and rear door.

ANTENNA

M2545100100371

At the centre of the roof rear, the roof antenna has
been mounted for receiving radio broadcast.

ROCKFORD FOSGATE PREMIUM
SOUND SYSTEM

GENERAL INFORMATION

M2547000100574

The premium sound system applies "Rockford Fos-
gate

®", American top car audio brand, as same as

current model. All the electronics devices, circuits,
like audio unit and premium amplifier, and sound
structures, such as door speakers and subwoofer
are newly developed. And the sound system is tuned
thoroughly by professional Mitsubishi and Rockford
engineers, the Rockford Fosgate

® premium sound

system accomplished higher sound quality than the
current model having high reputation at world wide
markets.

Item

Allowable input power W

Rated input power W

Tweeter

25

3

Front door speaker

35

15

Rear door speaker

35

15
