REVERSING SENSOR (CORNER SENSOR AND BACK SENSOR)

CHASSIS ELECTRICAL

54A-28

CORNER SENSOR

FAIL-SAFE FUNCTION

1. When the ultrasonic noise is received, the bass

toned buzzer sound continuously. When the ultra-
sonic noise stops, the normal operation will be
resumed immediately.

2. When the abnormality such as the open circuit of

a sensor occurs, the sensor turns OFF and the
high toned buzzer sounds for 5 seconds. When
the normal signal is received, the normal state
will be resumed.

Approximat
ely 60 to 80
cm

Approximat
ely 80 to
100 cm

Approximat
ely 100 to
120 cm

Approximat
ely 120 to
150 cm

Distance
between
corner
sensor and
obstacles

Buzzer duration

Less than
approximat
ely 25 cm

Approximat
ely 25 to 40
cm

Approximat
ely 40 to 50
cm

Distance
between
back
sensor and
obstacles

Buzzer duration

The standard mode

The towing bar mode

AC808132

Buzzer: ON

Buzzer: OFF

0.2s

AC808128

Buzzer: ON

Buzzer: OFF

0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s

AC808133

Buzzer: ON

Buzzer: OFF

0.4s

AC808132

Buzzer: ON

Buzzer: OFF

0.2s

AC808134

Buzzer: ON

Buzzer: OFF

0.6s

AC808133

Buzzer: ON

Buzzer: OFF

0.4s

AC808135

Buzzer: ON

Buzzer: OFF

0.8s

AC808134

Buzzer: ON

Buzzer: OFF

0.6s

AC808131

Buzzer: ON

Buzzer: OFF

Continuity

AC808128

Buzzer: ON

Buzzer: OFF

0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s

AC808132

Buzzer: ON

Buzzer: OFF

0.2s

ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-29

3. When an abnormality occurs in the system, the

reversing sensor indicator keeps flashing with
0.8-second interval until the system returns to the
normal condition. However, if the system is
turned OFF by using the switch, the indicator
stops its flashing.

ACCESSORY SOCKET

GENERAL INFORMATION

M2544400200785

• The instrument centre panel is equipped with a

cigarette lighter as standard.

• The rear console contains a plug-in type acces-

sory socket, which is useful when using a acces-
sory device

• The maximum load is 120 W when a single

accessory socket is used.

COLUMN SWITCH

GENERAL INFORMATION

M2546100200166

Column switch has a function to ensure the driver's
safety upon an impact of frontal collision.

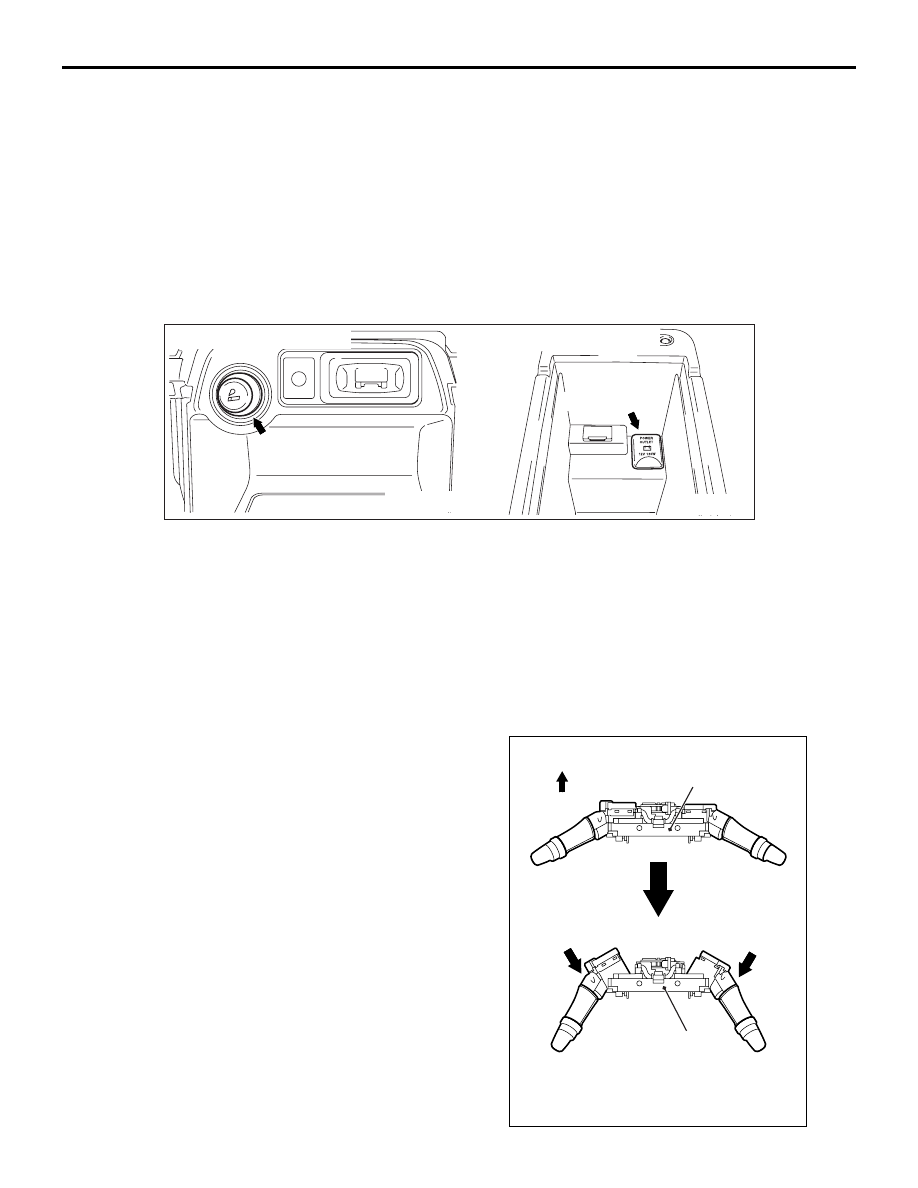

FUNCTION

ACB05420

ACB05500

ACB06036

Cigarette lighter

Accessory socket

ACB02479

Front of vehicle

Collision load

Column switch

AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-30

If the column switch moves to the front of the vehicle
and hits the instrument panel or meter bezel due to
the impact of frontal collision, the steering wheel
moves to the front of the vehicle because the right
and left levers fall down, ensuring the driver's safety.
In addition, the column switch is ensured of the rigid-
ity that the levers do not fall down by the normal
operation, but it cannot be reused after deformation
occurrence.

AUDIO AND NAVIGATION SYSTEM

GENERAL INFORMATION

M2547000100563

• For the audio unit (radio and CD player), the fol-

lowing two types have been established: the 1CD
audio as well as the display audio.

• For Mitsubishi Multi Communication System

(MMCS), the multivision display with CD drive
and SD memory card drive is established.

• A rear view camera has been established to the

tailgate.

• On the spoke of steering wheel, the steering

wheel remote control switch has been installed.

• An USB adapter is equipped in the rear console.

• The hands-free interface system has been estab-

lished.

• For the speaker system, the following two types

have been established: the 6 speakers as well as

the 9 speakers at 7 positions

NOTE:

Vehicles with Rockford Fosgate

premium

sound system.

• A roof antenna has been mounted for receiving

radio broadcast.

• The Rockford Fosgate® premium sound system

(audio amplifier and 9 speakers at 7 positions)
has been established.

AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-31

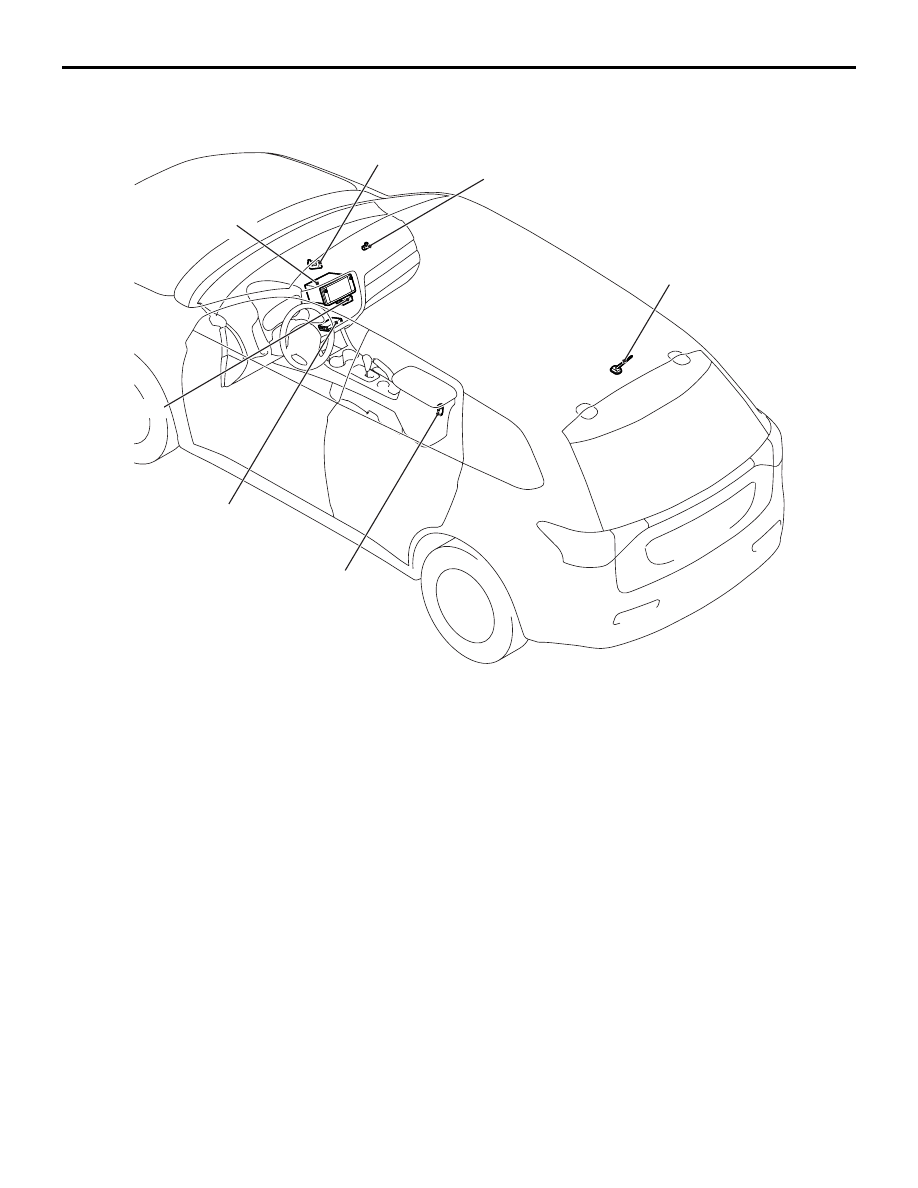

CONSTRUCTION DIAGRAM

ACB05387

ACB05387AB

Roof antenna

USB adapter

GPS antenna

Microphone unit

Radio and CD player or
multivision display (MMCS)

Hands free ECU

CAN box
