AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-75

THROTTLE POSITION SENSOR

Refer to GROUP 13A, On-vehicle Service

− Throttle Actuator

Control Motor Check

P.13A-1115

 (2.4L engine).

Refer to GROUP 13B, On-vehicle Service

− Throttle Actuator

Control Motor Check

P.13B-1141

 (3.8L engine).

TRANSMISSION RANGE SWITCH ("N" POSITIN)

Refer to GROUP 23A, On-vehicle Service

− Essential Service

P.23A-375

.

AUTO-CRUISE CONTROL

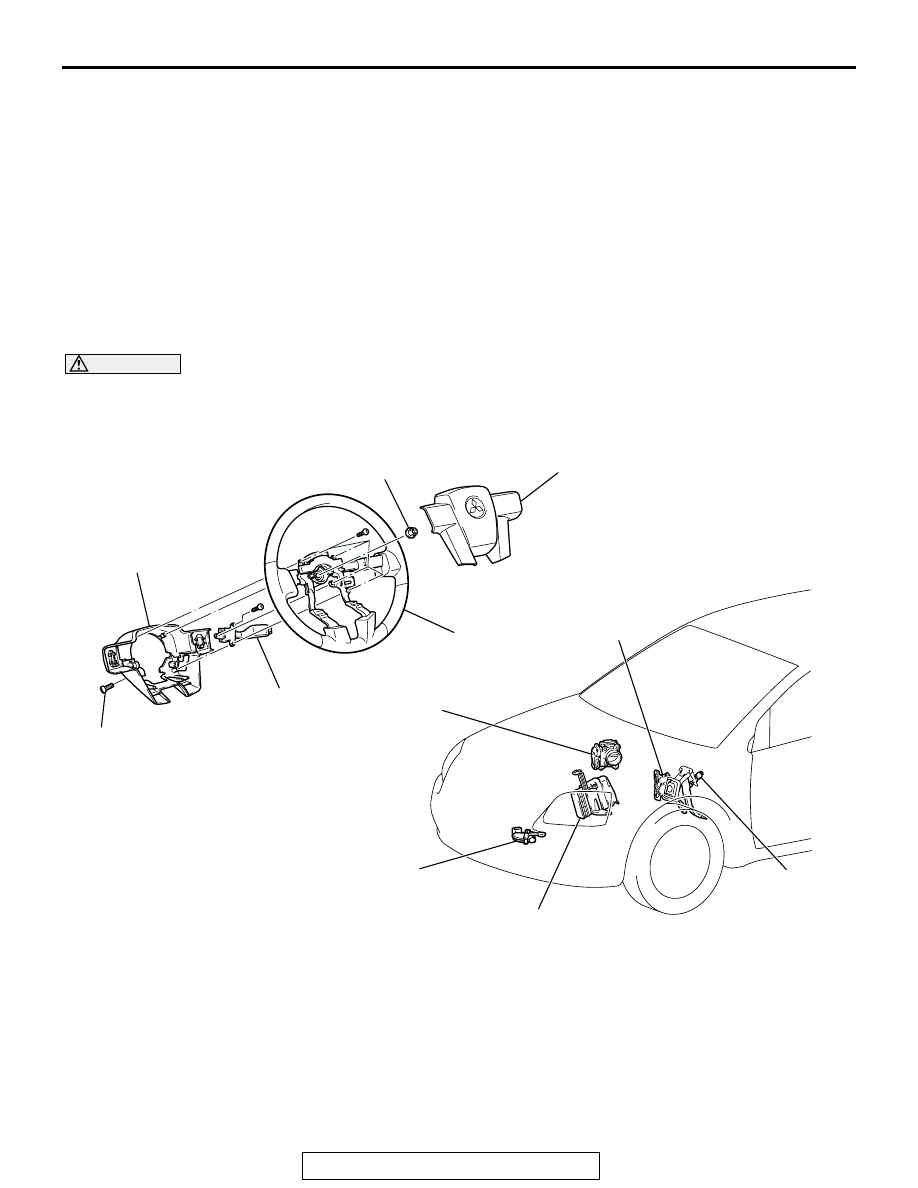

REMOVAL AND INSTALLATION

M1172001400274

WARNING

Before removal of the air bag module, refer to GROUP 52B, SRS Service Precautions

P.52B-26

 and GROUP 52B, Air Bag Module and Clock Spring

P.52B-368

.

AC305717

AC209672

AC305701

AB

1

7

6

5

4

3

2

8

41 ± 8 N·m
30 ± 6 ft-lb

9.0 ± 2.0 N·m
80 ± 17 ft-lb

9

CONTROL SWITCH REMOVAL
STEPS

1. AIR BAG MODULE <DRIVER’S

SIDE> (REFER TO GROUP 52B, AIR
BAG MODULES AND CLOCK
SPRING

P.52B-368

).

2. STEERING WHEEL ASSEMBLY

(REFER TO GROUP 37, STEERING
WHEEL

P.37A-27

).

3. LOWER COVER CAP
4. AUTO-CRUISE CONTROL SWITCH

CONTROL UNIT REMOVAL

5. POWERTRAIN CONTROL MODULE

(PCM) [REFER TO GROUP 13A,
POWERTRAIN CONTROL MODULE
(PCM)

P.13A-1121

].

CONTROL SWITCH REMOVAL
STEPS (Continued)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-76

SENSOR REMOVAL STEPS

6. TRANSMISSION RANGE SWITCH

(REFER TO GROUP 23B,
TRANSAXLE

P.23B-10

).

7. THROTTLE BODY (BUILT-IN

THROTTLE POSITION SENSOR
AND THROTTLE ACTUATOR
CONTROL MOTOR) (2.4L ENGINE:
REFER TO GROUP 13A,
THROTTLE BODY

P.13A-1119

).

(3.8L ENGINE: REFER TO GROUP
13B, THROTTLE BODY

P.13B-1145

).

8. ACCELERATOR PEDAL (BUILT-IN

ACCELERATOR PEDAL POSITION
SENSOR) (REFER TO GROUP 17,
ACCELERATOR PEDAL

P.17-9

).

9. STOPLIGHT SWITCH (REFER TO

GROUP 35A, BRAKE PEDAL

P.35A-24

).

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-77

EMISSION CONTROL

GENERAL DESCRIPTION

M1173000100314

The emission control system consists of the fol-

lowing subsystems:

• Positive crankcase ventilation system

• Evaporative emission system

• Exhaust emission control system

DIAGNOSIS

M1173000700112

SYMPTOM

PROBABLE CAUSE

REMEDY

Engine will not start or hard
to start

Vacuum hose disconnected or damaged Repair or replace
The EGR valve (Stepper Motor) is not
closed.

Repair or replace

Malfunction of the evaporative emission
purge solenoid

Repair or replace

Rough idle or engine stalls

The EGR valve (Stepper Motor) is not
closed.

Repair or replace

Vacuum hose disconnected or damaged. Repair or replace
Malfunction of the positive crankcase
ventilation valve

Replace

Malfunction of the purge control system

Check the system; If there is a
problem, check its component
parts.

Engine hesitates or poor
acceleration

Malfunction of the exhaust gas
recirculation system

Check the system; If there is a
problem, check its component
parts.

Excessive oil consumption

Positive crankcase ventilation line
clogged

Check positive crankcase
ventilation system

Poor fuel mileage

Malfunction of the exhaust gas
recirculation system

Check the system; If there is a
problem, check its component
parts.

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-78

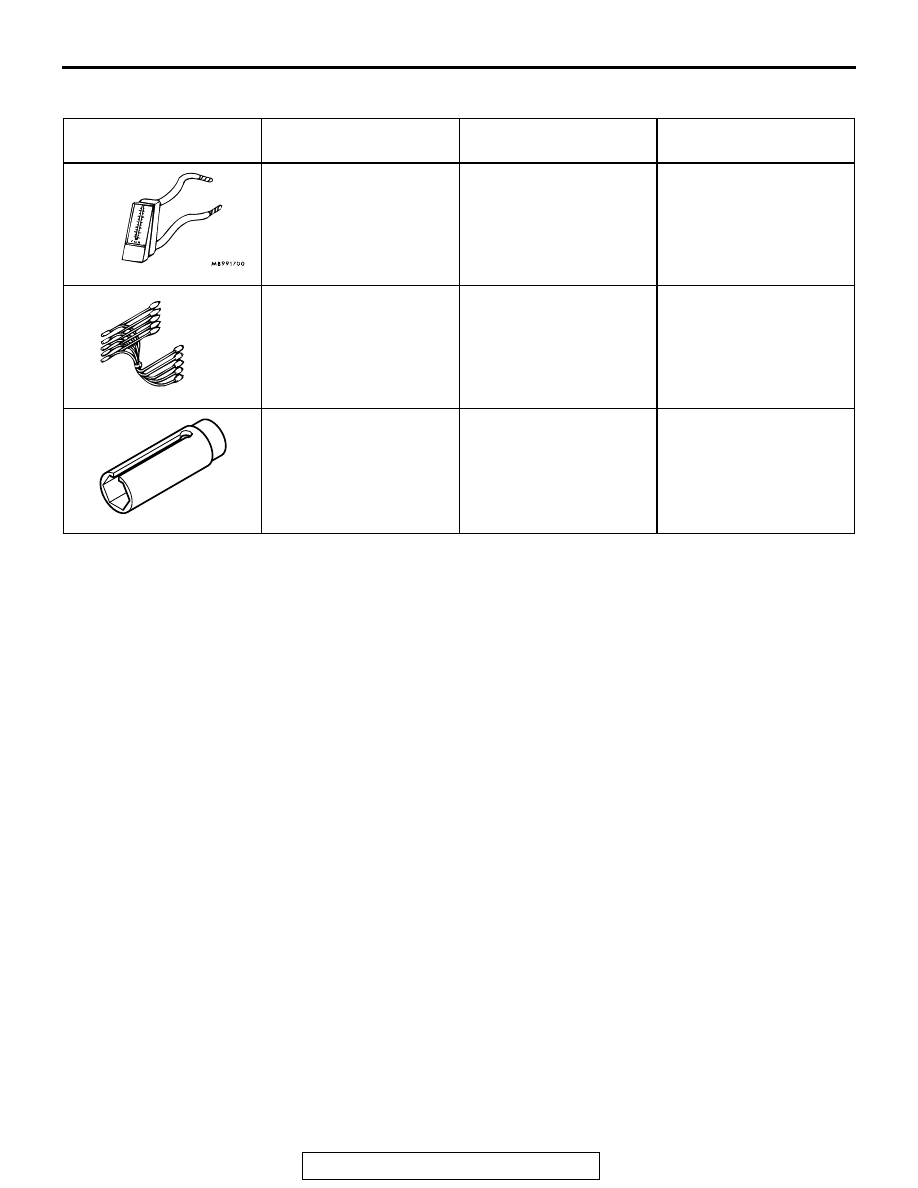

SPECIAL TOOLS

M1173000600193

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB995061
Purge flow indicator

MLR6890A
Part of MIT280220

Inspection of purge
control system

MB991658
Test harness set

Tool not available

Inspection of EGR valve
(Stepper Motor)

MD998770
Oxygen sensor wrench

MD998770-01 or General
service tool

Removal/installation of
heated oxygen sensor

MB991658
