HAZARD WARNING LIGHT SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-131

REMOVAL SERVICE POINT

.

<<A>> HAZARD WARNING LIGHT SWITCH REMOVAL

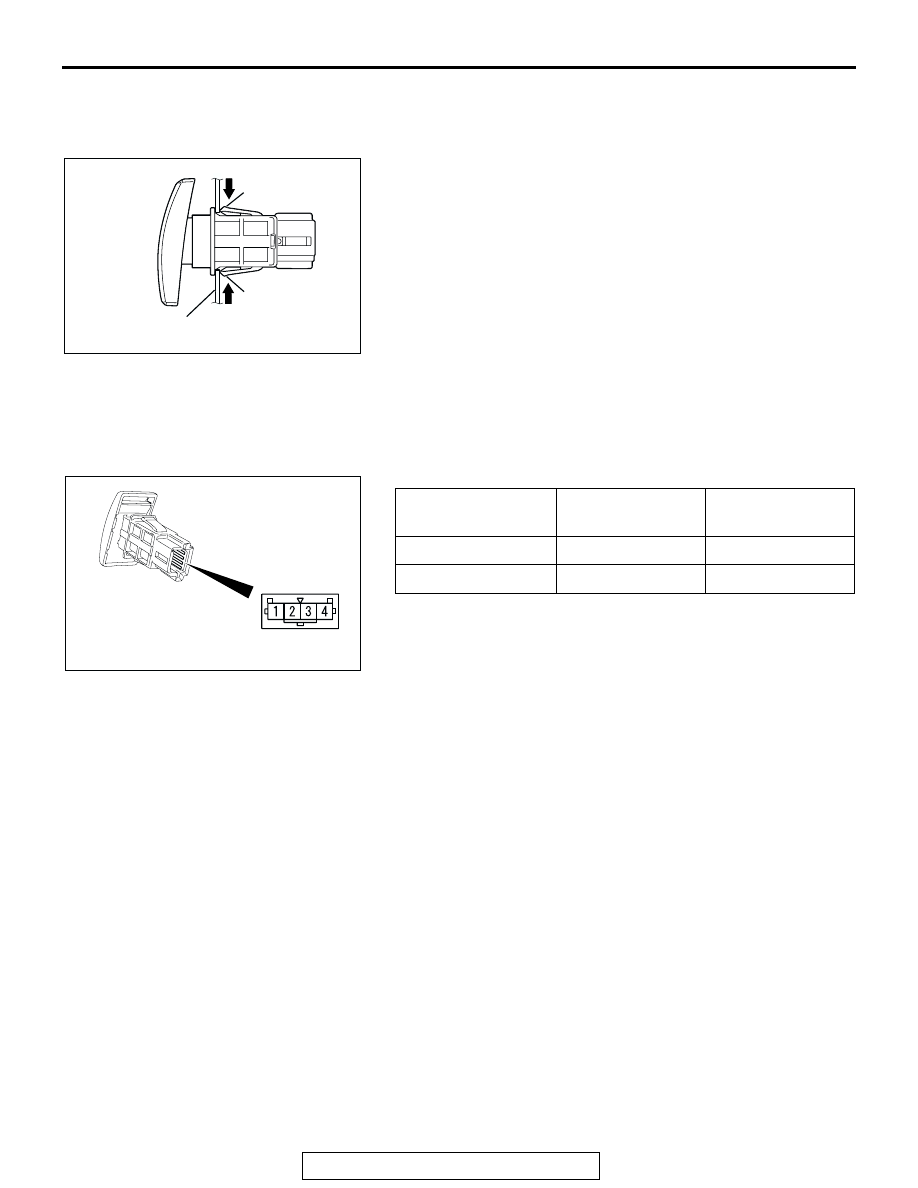

Remove the hazard warning light by pushing the claw toward
the arrow in the illustration.

INSPECTION

M1543019502504

HAZARD WARNING LIGHT SWITCH CONTINUITY
CHECK

AC307133

CLAW

CLAW

CENTER CONSOLE
ASSEMBLY

AB

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

Pressed

1

− 2

Less than 2 ohms

Released

1

− 2

Open circuit

AC307450

COLUMN SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-132

COLUMN SWITCH

REMOVAL AND INSTALLATION

M1543009100457

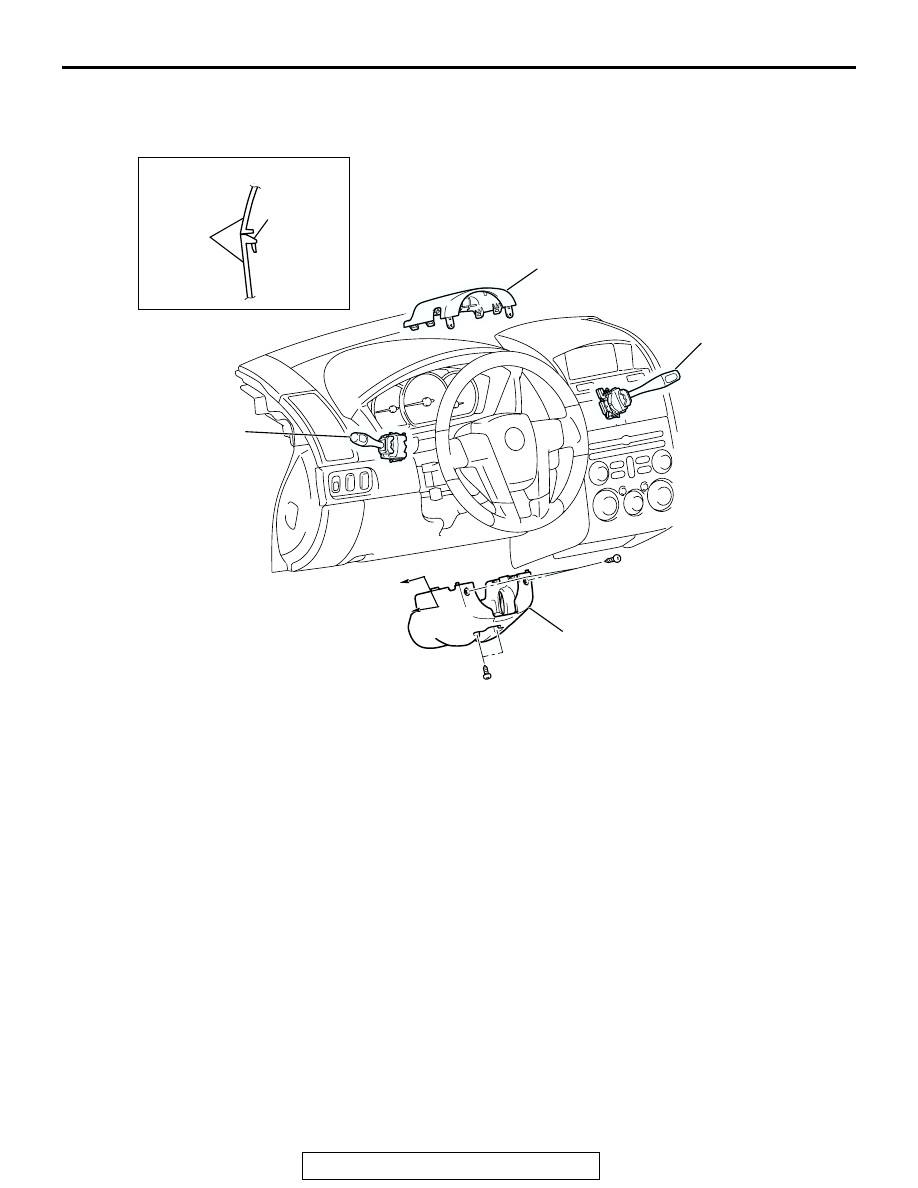

AC308092

1

3

1

2

A

A

AB

SECTION A – A

1

CLAW

REMOVAL STEPS

<<A>>

1. STEERING COLUMN COVER

(REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-3

.)

<<B>>

•

COLUMN SWITCH CONNECTOR

2. TURN-SIGNAL LIGHT AND

LIGHTING SWITCH

3. WINDSHIELD WIPER AND

WINDSHIELD WASHER SWITCH

REMOVAL STEPS (Continued)

COLUMN SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-133

REMOVAL SERVICE POINT

.

<<A>> STEERING COLUMN UPPER COVER/STEERING
COLUMN LOWER COVER REMOVAL

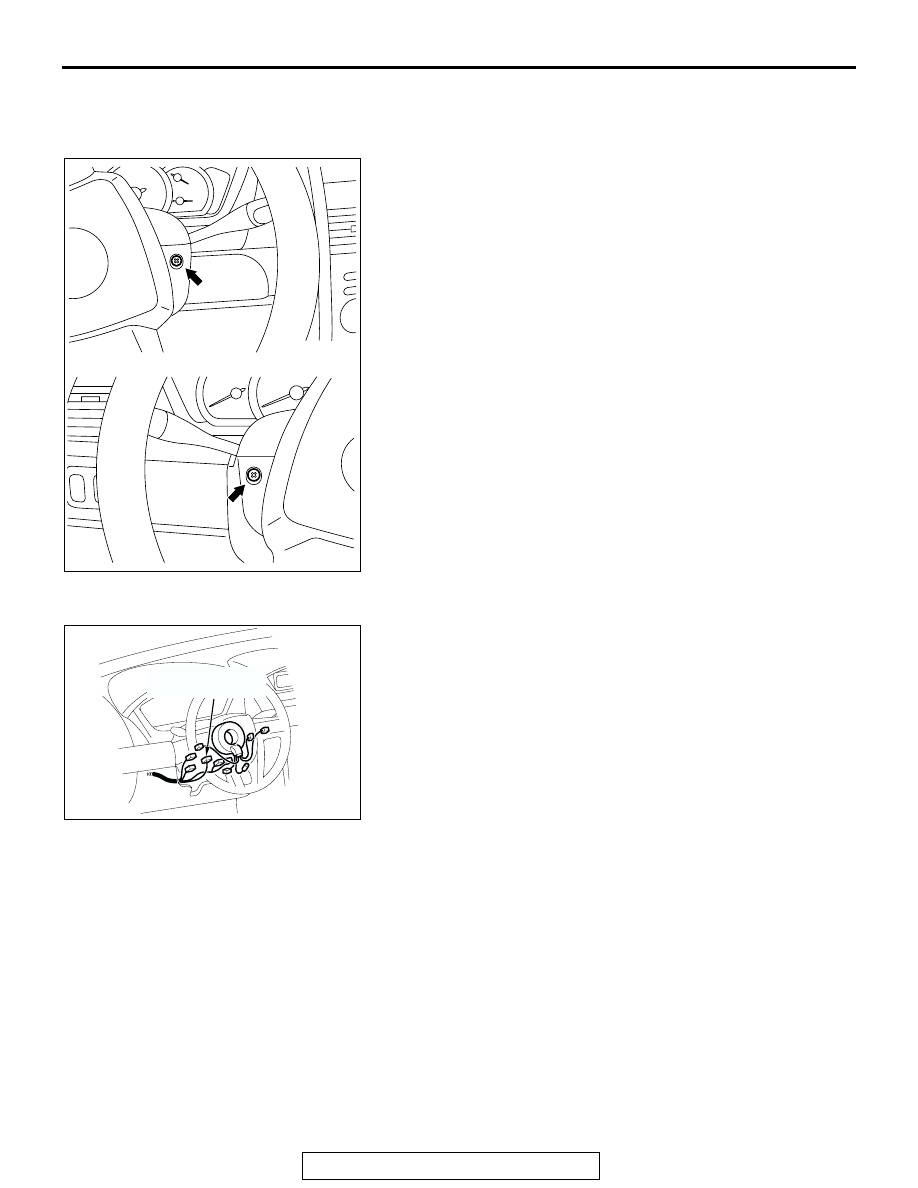

1. Rotate the steering wheel with a slightly side-to-side to

access and remove the mounting screws.

.

<<B>> COLUMN SWITCH CONNECTOR REMOVAL

AC307459 AB

AC307136

COLUMN SWITCH
CONNECTOR

AC

HORN

TSB Revision

CHASSIS ELECTRICAL

54A-134

HORN

DIAGNOSIS <VEHICLE WITH KEYLESS ENTRY SYSTEM>

M1543000701057

The keyless entry system horn answerback are con-
trolled by the Simplified Wiring System (SWS). For
troubleshooting, refer to GROUP 54B, SWS Diagno-
sis

P.54B-59

.

HORN

REMOVAL AND INSTALLATION

M1543007900435

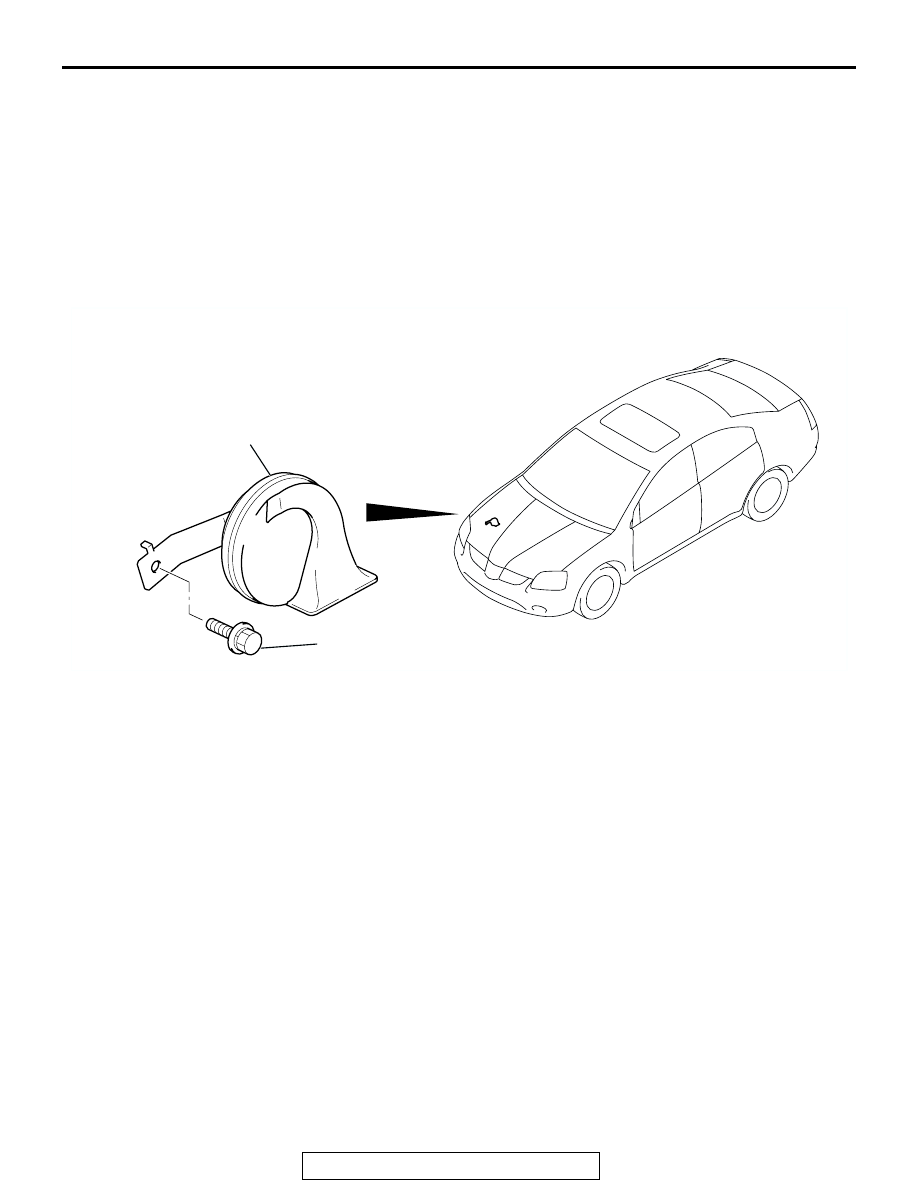

AC306715

21 ± 4 N·m
16 ± 2 ft-lb

HORN

AB
