HIGH-MOUNTED STOPLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-127

HIGH-MOUNTED STOPLIGHT

REMOVAL AND INSTALLATION

M1542005100463

AC307185

2

3

4

4.9 ± 0.7 N·m
44 ± 6 in-lb

4.9 ± 0.7 N·m
44 ± 6 in-lb

AB

1

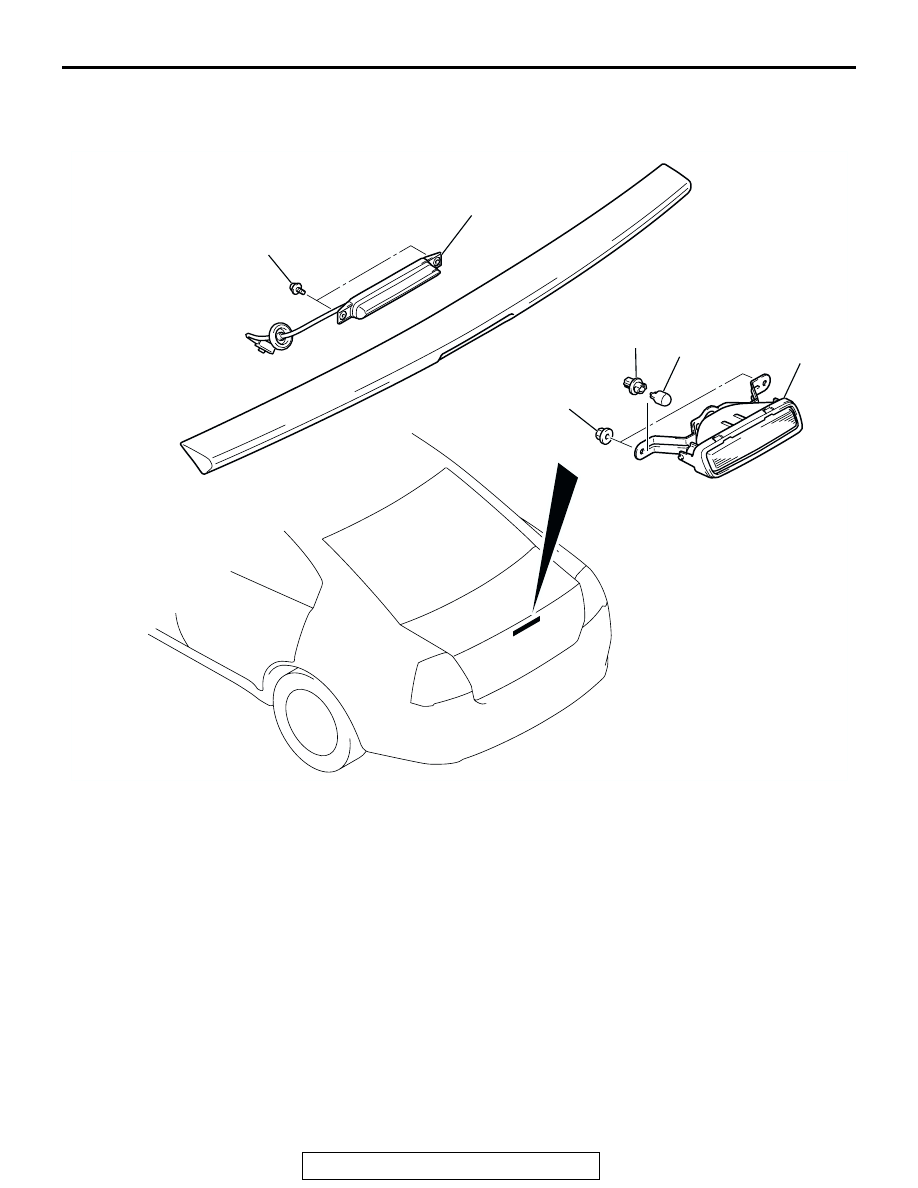

HIGH- MOUNTED STOPLIGHT
<WITH TRUNK LID TYPE>
REMOVAL STEP

1.

HIGH-MOUNTED STOPLIGHT
<WITH TRUNK LID TYPE>

2.

SOCKET <WITH TRUNK LID
TYPE>

3.

BULB <WITH TRUNK LID TYPE>

HIGH- MOUNTED STOPLIGHT
<WITH REAR SPOILER TYPE>
REMOVAL STEP

•

REAR SPOILER ASSEMBLY
(REFER TO GROUP 51, REAR
SPOILER

P.51-9

.)

4.

HIGH-MOUNTED STOPLIGHT
<WITH REAR SPOILER TYPE>

RHEOSTAT

TSB Revision

CHASSIS ELECTRICAL

54A-128

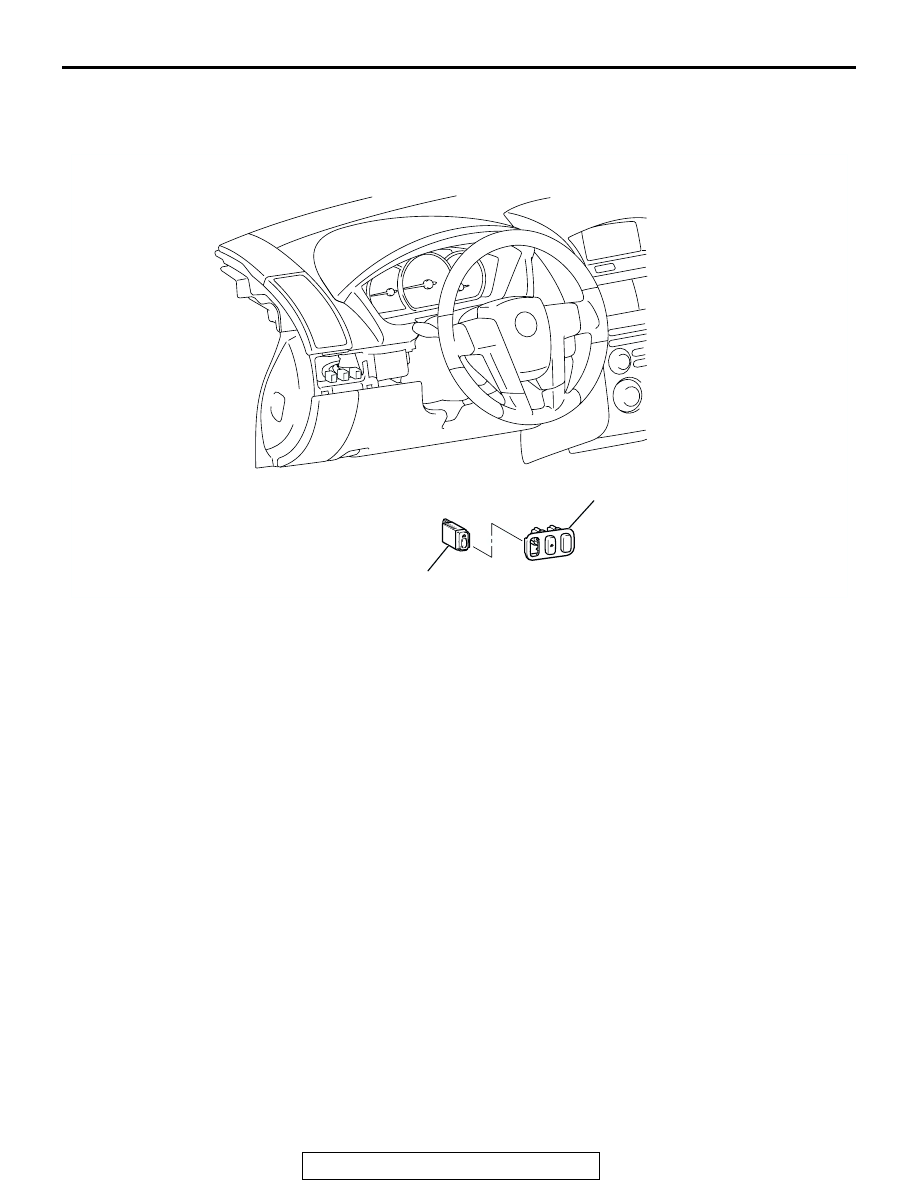

RHEOSTAT

REMOVAL AND INSTALLATION

M1542006000317

AC306975

1

2

AB

REMOVAL STEPS

1.

SWITCH PANEL ASSEMBLY

2.

RHEOSTAT SWITCH

RHEOSTAT

TSB Revision

CHASSIS ELECTRICAL

54A-129

INSPECTION

M1543019502496

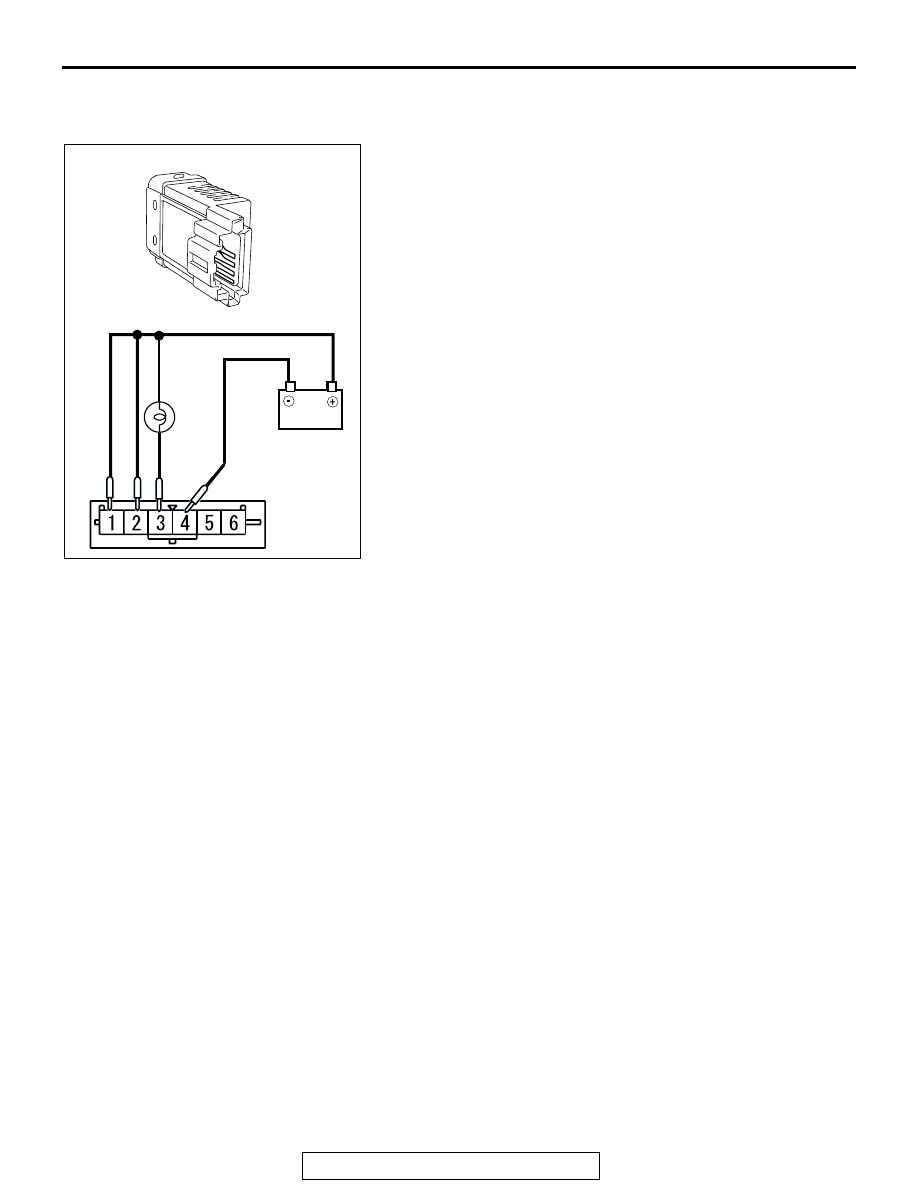

RHEOSTAT SWITCH CHECK

1. Connect the battery and the test bulb (40W) as shown in the

illustration.

2. Operate the rheostat, and if brightness changes smoothly

without switching off, rheostat function is normal.

40W

AC308094

HAZARD WARNING LIGHT SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-130

HAZARD WARNING LIGHT SWITCH

HAZARD WARNING LIGHT DIAGNOSIS

M1542000701399

The hazard warning lights are controlled by the Sim-
plified Wiring System (SWS). For troubleshooting,
refer to GROUP 54B, SWS Diagnosis

P.54B-59

.

HAZARD WARNING LIGHT SWITCH

REMOVAL AND INSTALLATION

M1542006600450

AC306994 AB

2

1

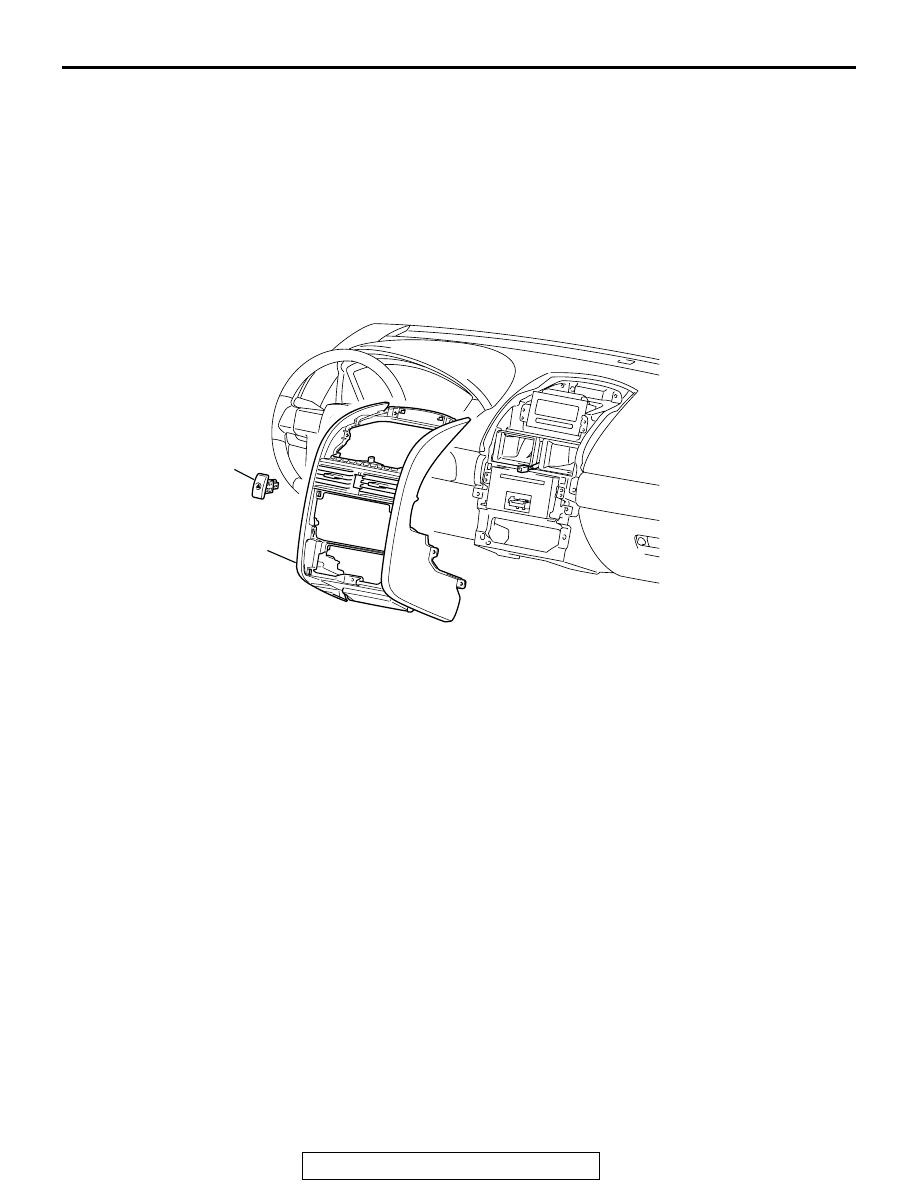

HAZARD WARNING LIGHT SWITCH
REMOVAL STEPS

•

GLOVEBOX ASSEMBLY, INSTRUMENT
PANEL PARCEL BOX (REFER TO GROUP
52A, INSTRUMENT PANEL ASSEMBLY

P.52A-3

.)

•

HOOD LOCK RELEASE HANDLE (REFER TO
GROUP 42, HOOD

P.42-8

.)

•

INSTRUMEN LOWER PANEL, INSTURMENT
CENTER PANEL ASSEMBLY, CONSOLE
METER HOOD (REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-3

.)

1.

CENTER CONSOLE ASSEMBLY (REFER TO
GROUP 52A, INSTRUMENT PANEL
ASSEMBLY

P.52A-3

.)

<<A>>

2.

HAZARD WARNING LIGHT SWITCH
