IGNITION KEY REMINDER TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-262

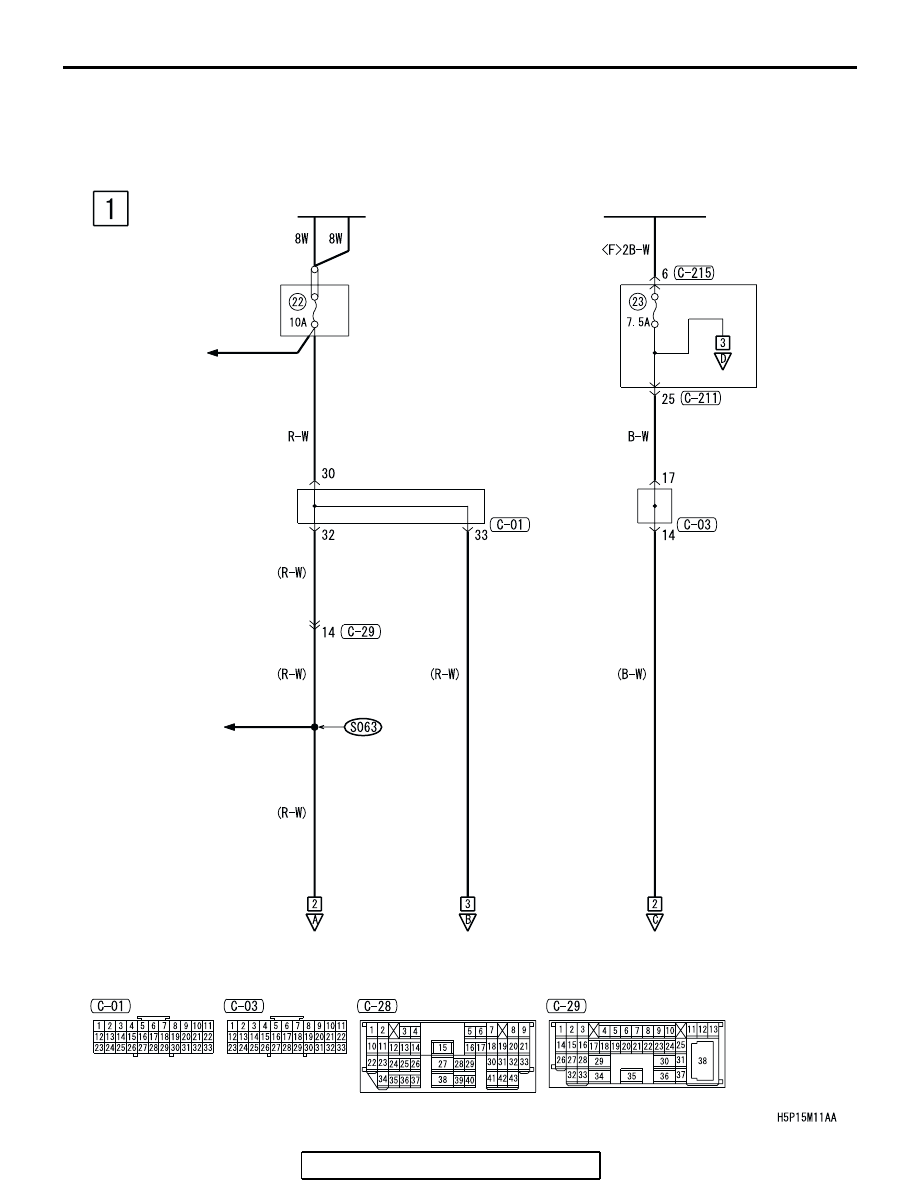

IGNITION KEY REMINDER TONE ALARM

M1901011300735

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

RELAY
BOX

BATTERY

IGNITION
SWITCH (IG1)

POWER
SUPPLY

TONE ALARM

FRONT
DOOR
SWITCH
(LH)

JOINT
CONNECTOR (1)

KEY REMINDER
SWITCH

WHEN KEY
IS REMOVED: ON

JUNCTION BLOCK SIDE

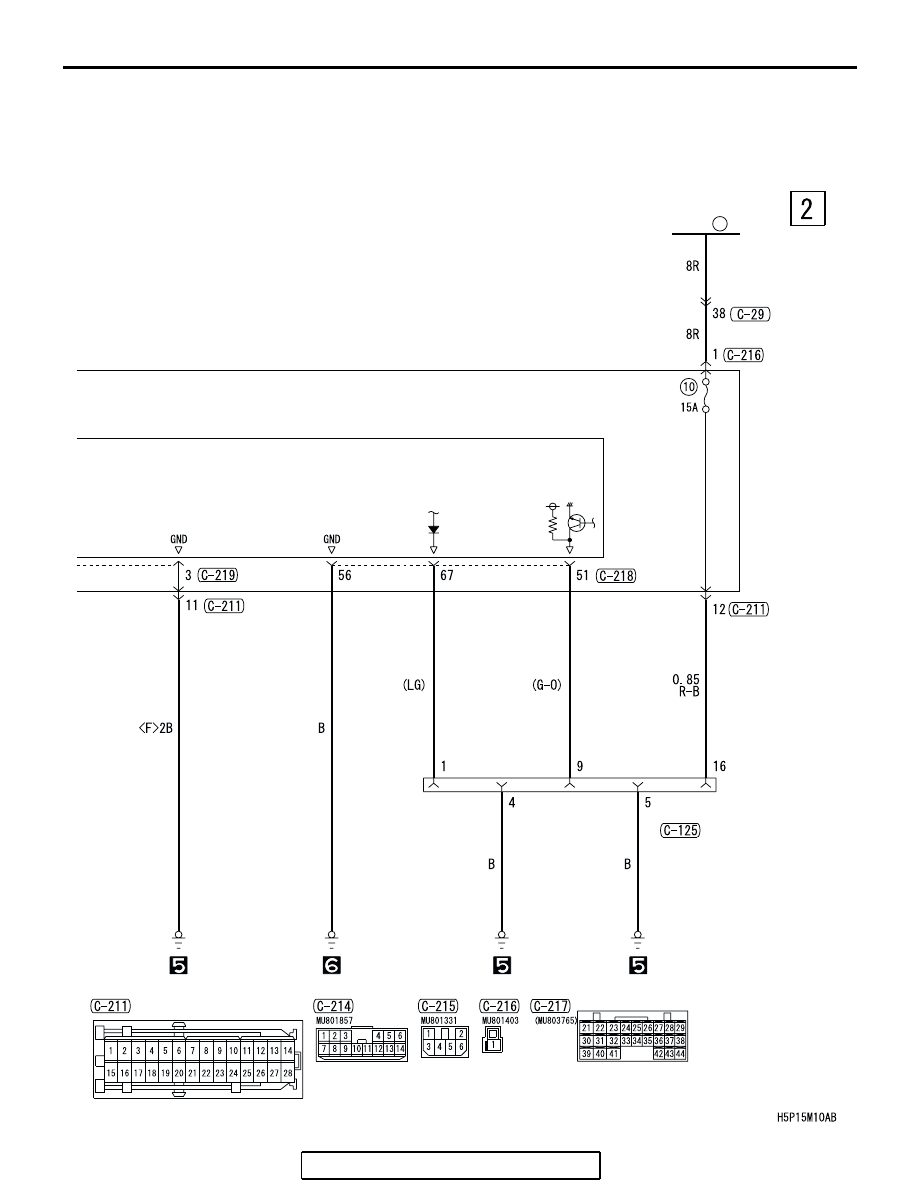

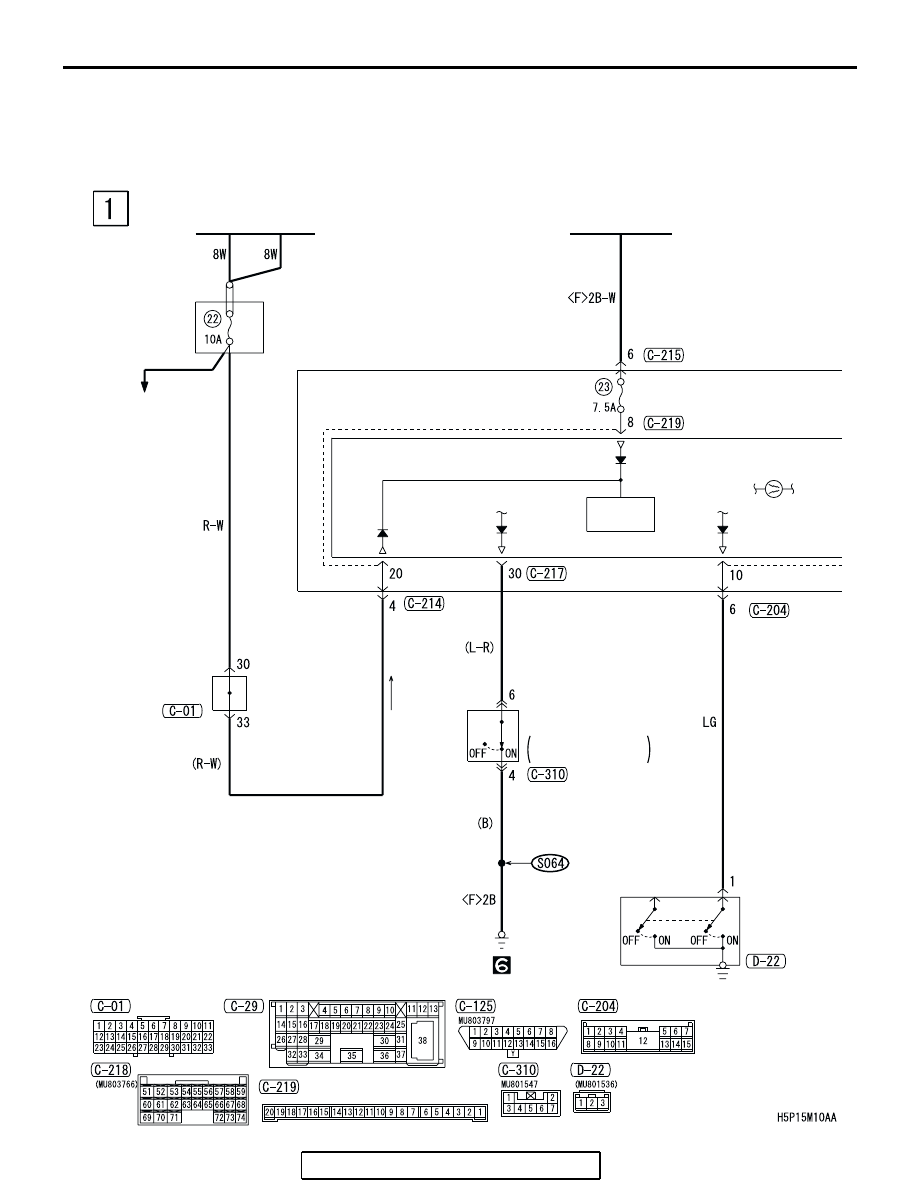

IGNITION KEY REMINDER TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-263

ETACS-ECU

JUNCTION
BLOCK

FUSIBLE
LINK

1

DATA LINK
CONNECTOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

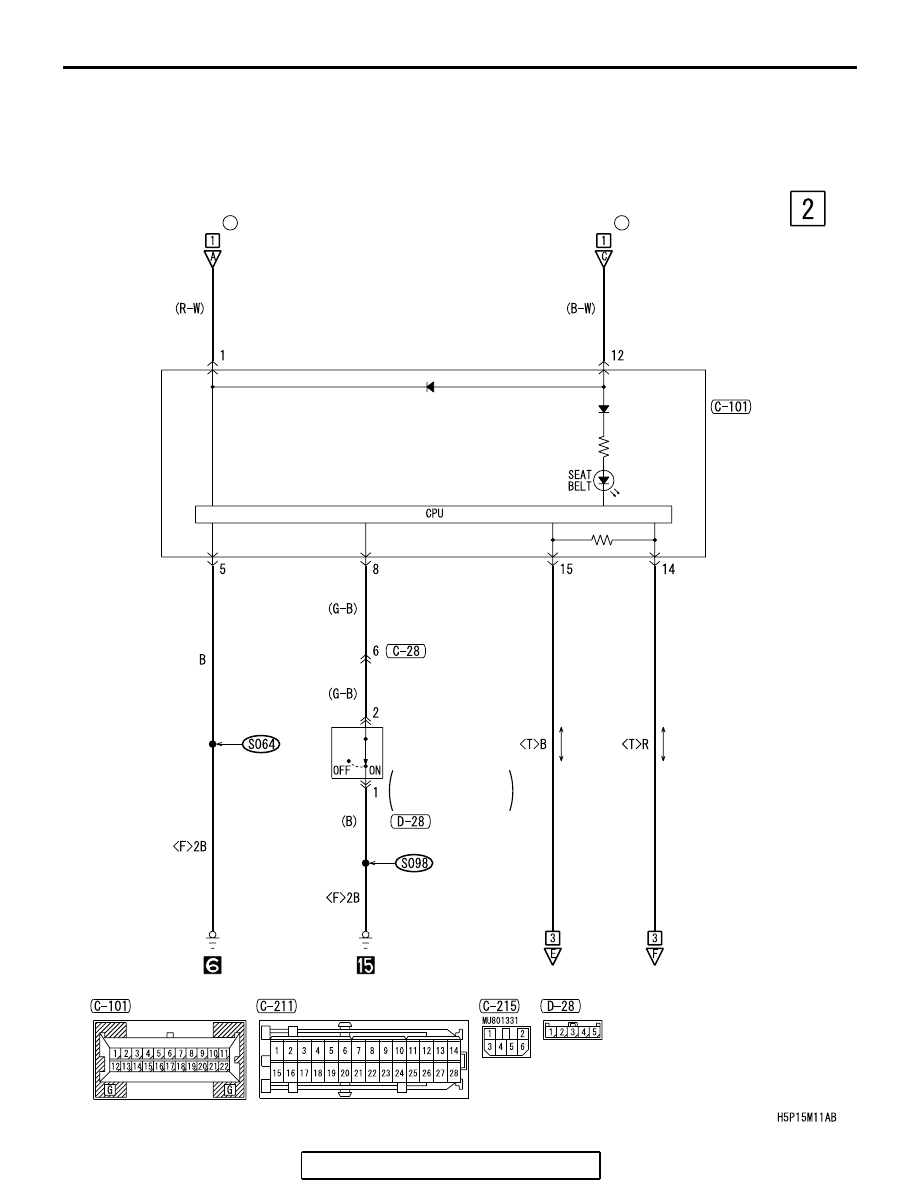

SEAT BELT WARNING TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-264

SEAT BELT WARNING TONE ALARM

M1901011200749

BATTERY

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
 CONDITIONING
 SYSTEM
·MULTI-CENTER
 DISPLAY
·TAILLIGHT, POSITION
 LIGHT, FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL LIGHT
 AND HAZARD
 WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER

JOINT
CONNECTOR (1)

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

RELAY
BOX

SEAT BELT WARNING TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-265

JOINT
CONNECTOR (1)

JOINT
CONNECTOR (2)

COMBINATION
METER

SEAT BELT
BUCKLE SWITCH
(DRIVER' S SIDE)

(FUSE     )

22

(FUSE     )

23

WHEN SEAT
BELT BUCKLE
IS REMOVED: ON
