HEATED SEAT

TSB Revision

CIRCUIT DIAGRAMS

90-254

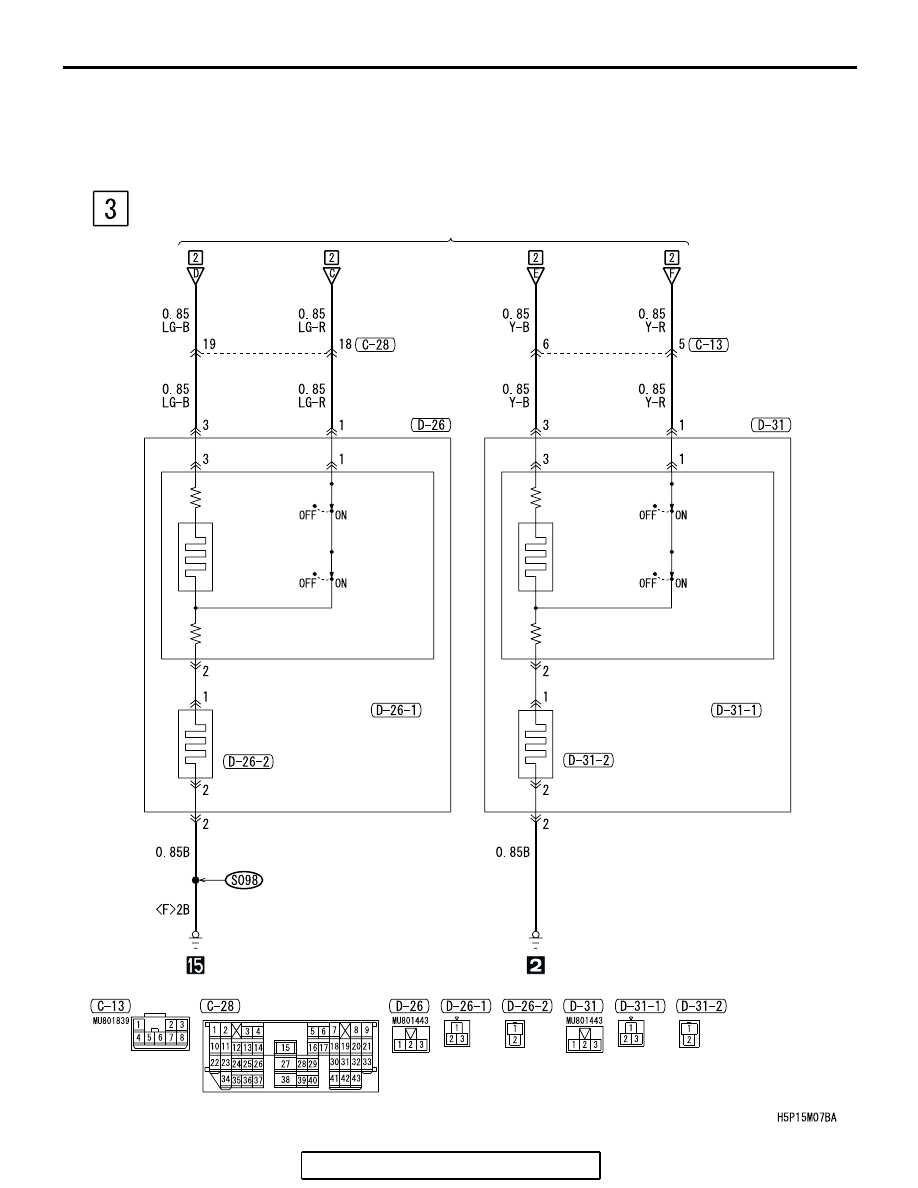

HEATED SEAT (CONTINUED)

HEATED SEAT
SWITCH

HEATED SEAT
ASSEMBLY (LH)

HEATED SEAT
ASSEMBLY (RH)

HEATER

THERMOSTAT

THERMOSTAT

HEATER

THERMOSTAT

THERMOSTAT

SEAT
CUSHION
HEATER

SEAT
BACK
HEATER

SEAT
CUSHION
HEATER

SEAT
BACK
HEATER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

HEATED SEAT

TSB Revision

CIRCUIT DIAGRAMS

90-255

NOTES

FORGOTTEN KEY PREVENTION FUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-256

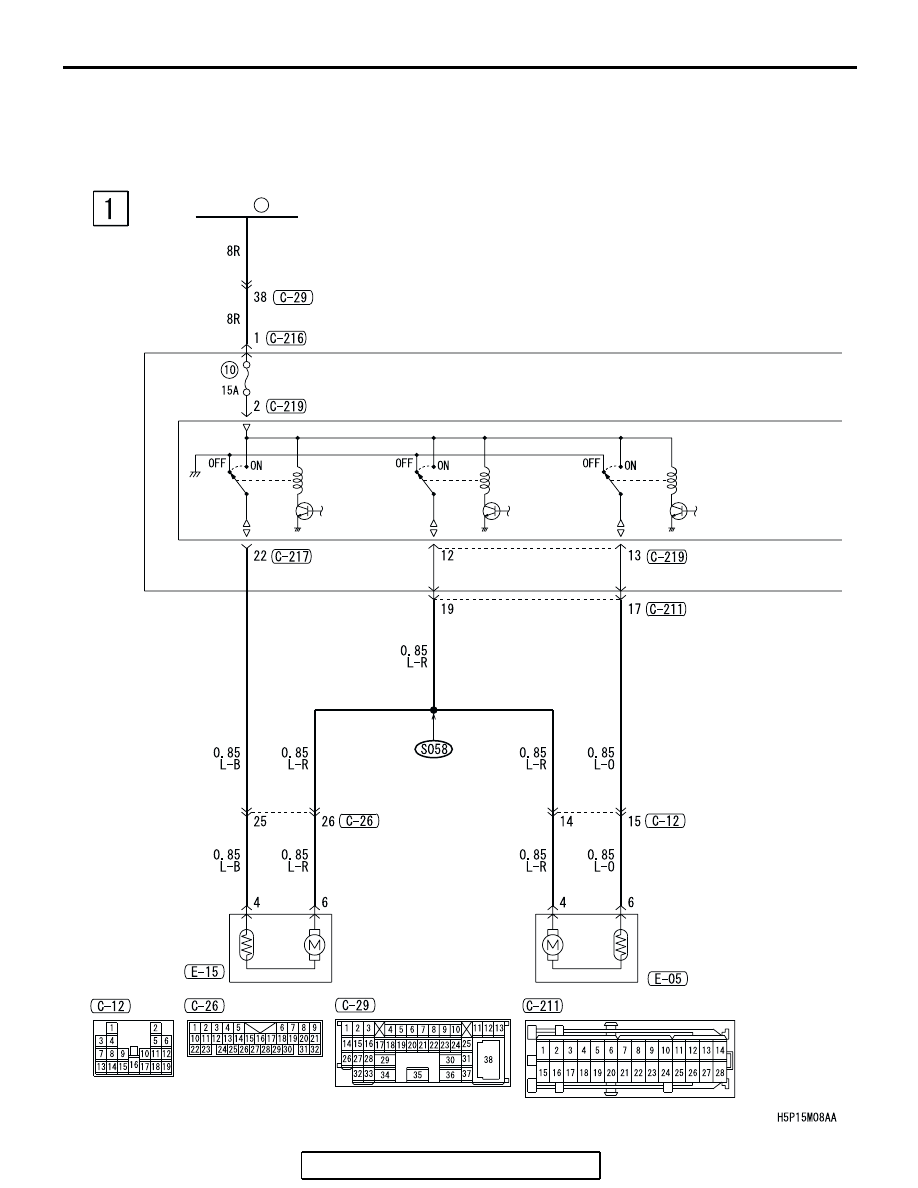

FORGOTTEN KEY PREVENTION FUNCTION

M1901016100361

FUSIBLE
LINK

1

FRONT
DOOR LOCK
ACTUATOR
(RH)

FRONT
DOOR LOCK
ACTUATOR
(LH)

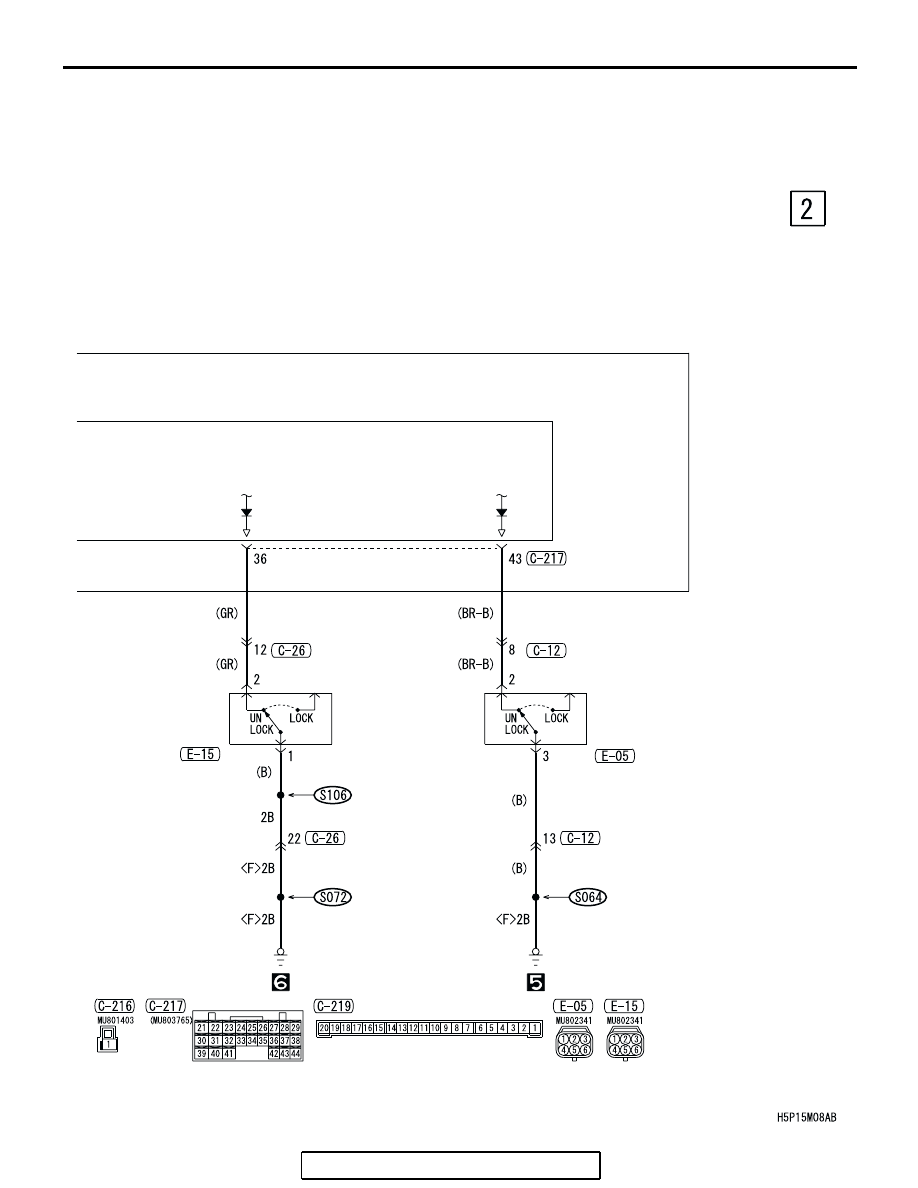

FORGOTTEN KEY PREVENTION FUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-257

JUNCTION BLOCK SIDE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

ETACS-ECU

JUNCTION
BLOCK

FRONT
DOOR LOCK
ACTUATOR
(LH)

FRONT
DOOR LOCK
ACTUATOR
(RH)
