BRAKE WARNING LIGHT, OIL PRESSURE WARNING LIGHT, FUEL WARNING LIGHT
TSB Revision
CIRCUIT DIAGRAMS
90-130

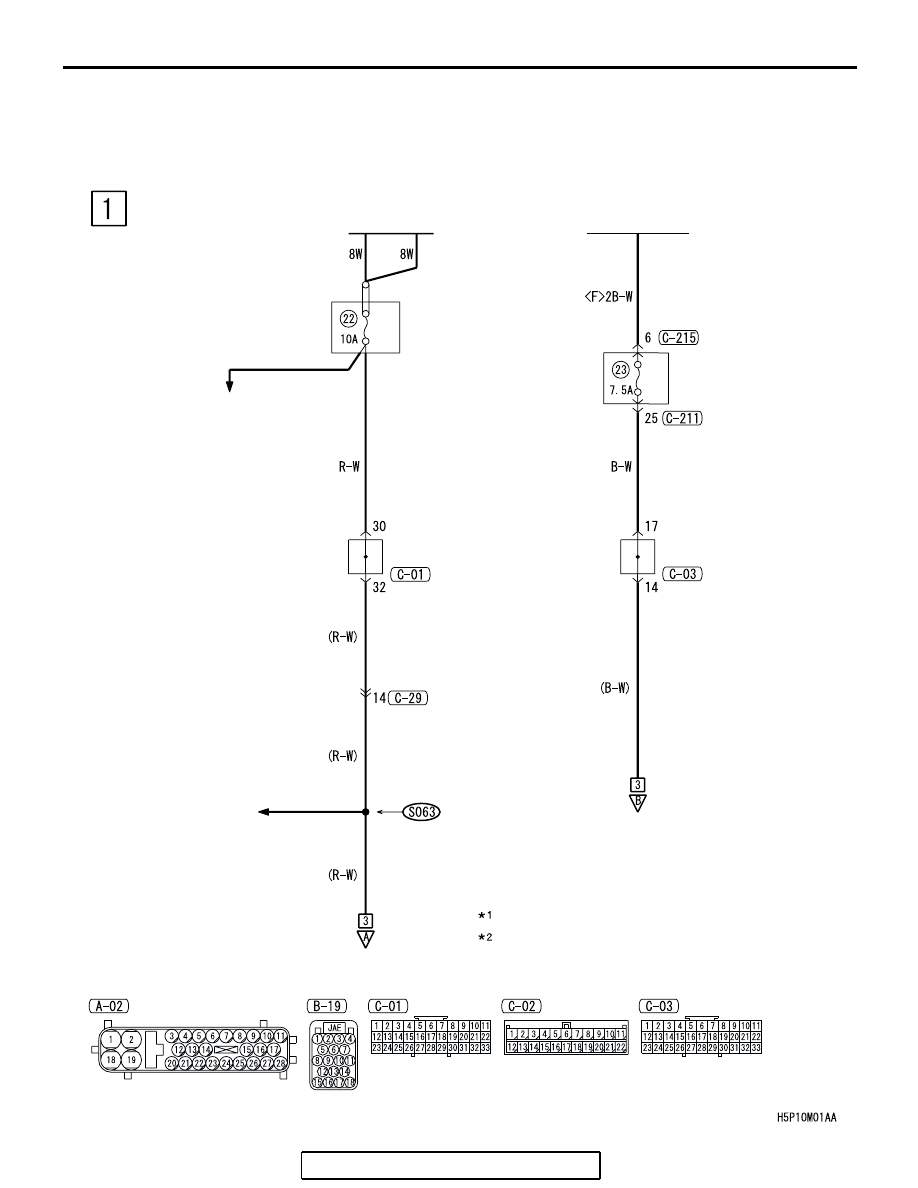

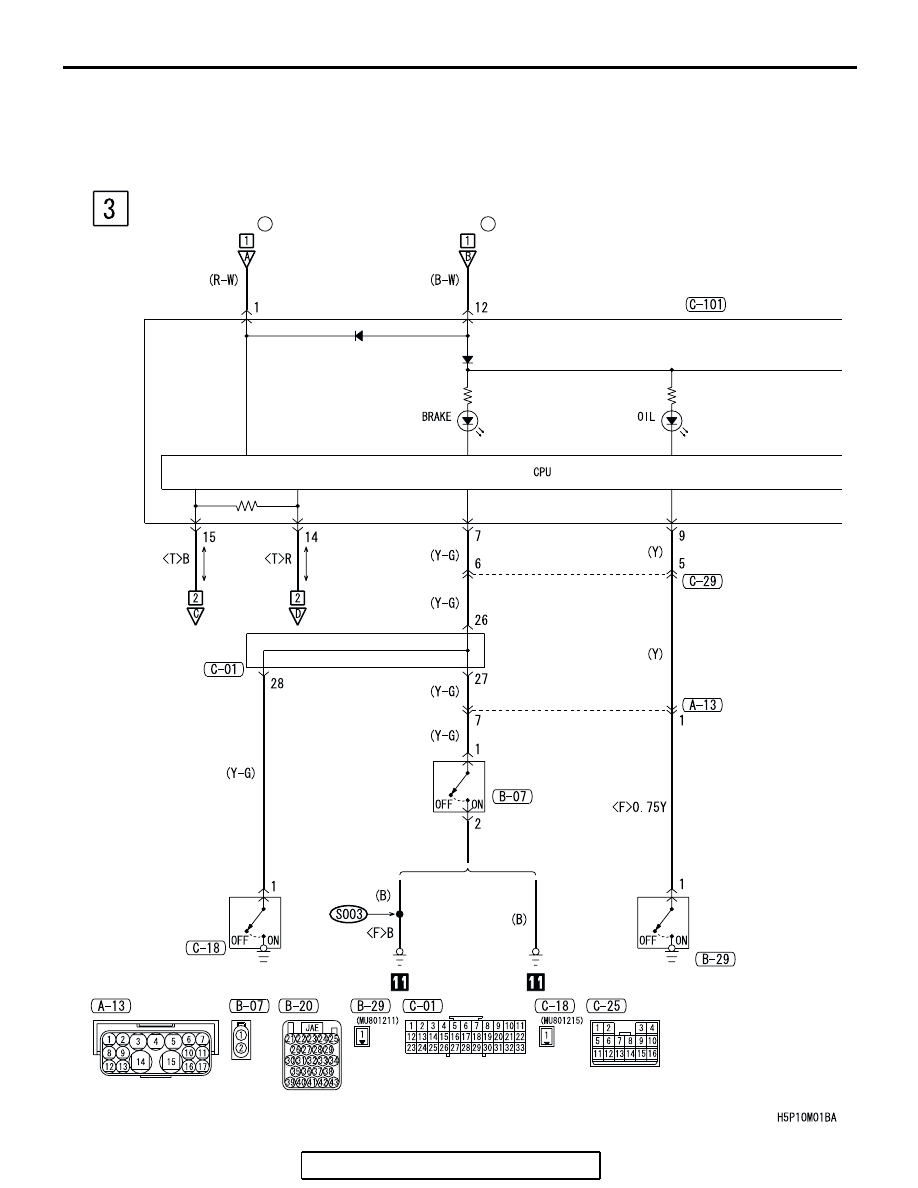

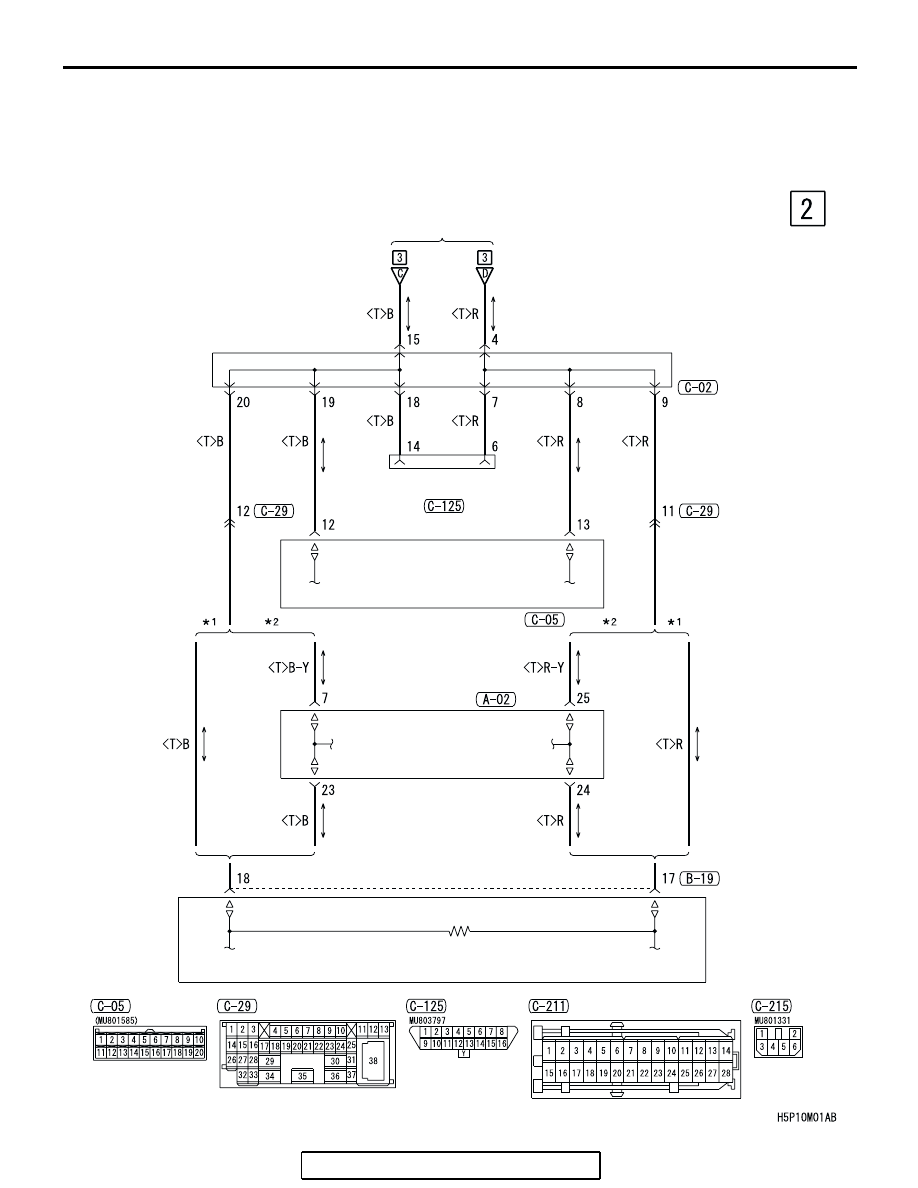

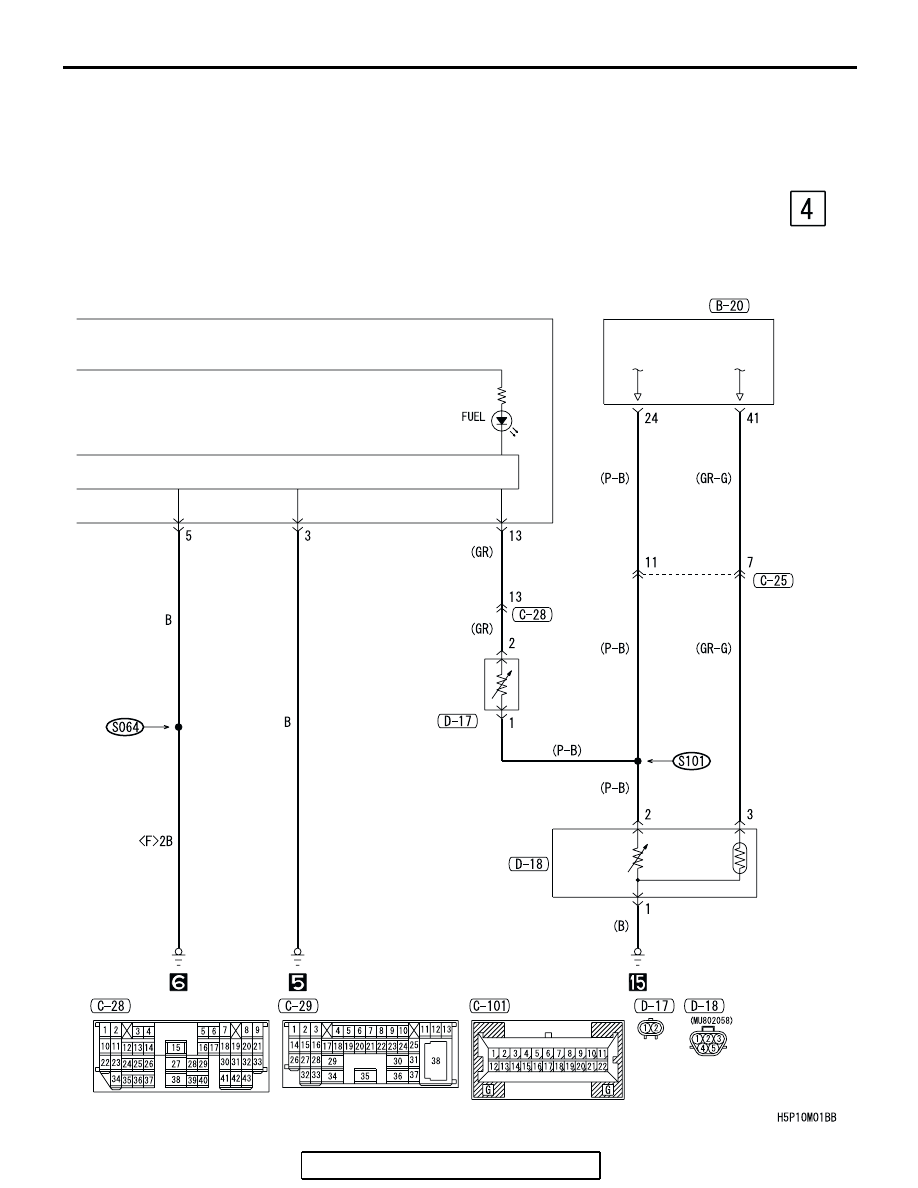

BRAKE WARNING LIGHT, OIL PRESSURE WARNING
LIGHT, FUEL WARNING LIGHT
M1901011800848
NOTE
: WITHOUT ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
AND ANTI-LOCK BRAKING SYSTEM (ABS)
: WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
AND ANTI-LOCK BRAKING SYSTEM (ABS)
BATTERY
RELAY
BOX
JOINT
CONNECTOR (2)
IGNITION
SWITCH (IG1)
JUNCTION
BLOCK
JOINT
CONNECTOR (1)
·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
POSITION LIGHT,
FRONT SIDE
MARKER LIGHT
AND LICENSE
PLATE LIGHT
·TURN-SIGNAL
LIGHT AND
HAZARD
WARNING LIGHT
·WINDSHIELD
WIPER AND
WASHER
·AUDIO SYSTEM
·AUTOMATIC AIR
CONDITIONING
SYSTEM
·CONTROLLER AREA
NETWORK (CAN)
·FOG LIGHT
·FRONT DOME LIGHT,
REAR DOME LIGHT,
TRUNK LIGHT AND
IGNITION KEY HOLE
ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·TAILLIGHT, POSITION
LIGHT, FRONT SIDE
MARKER LIGHT AND
LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
AND WASHER
