STOPLIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-122

STOPLIGHT

M1901003001196

BATTERY

RELAY
BOX

STOPLIGHT
SWITCH

JOINT
CONNECTOR (1)

REAR
COMBINATION
LIGHT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

(LH)

(RH)

HIGH-MOUNTED
STOPLIGHT

TRUNK LID
TYPE

REAR SPOILER
TYPE

     : WITH TRUNK LID TYPE
       HIGH-MOUNTED STOPLIGHT
     : WITH REAR SPOILER TYPE
       HIGH-MOUNTED STOPLIGHT

NOTE

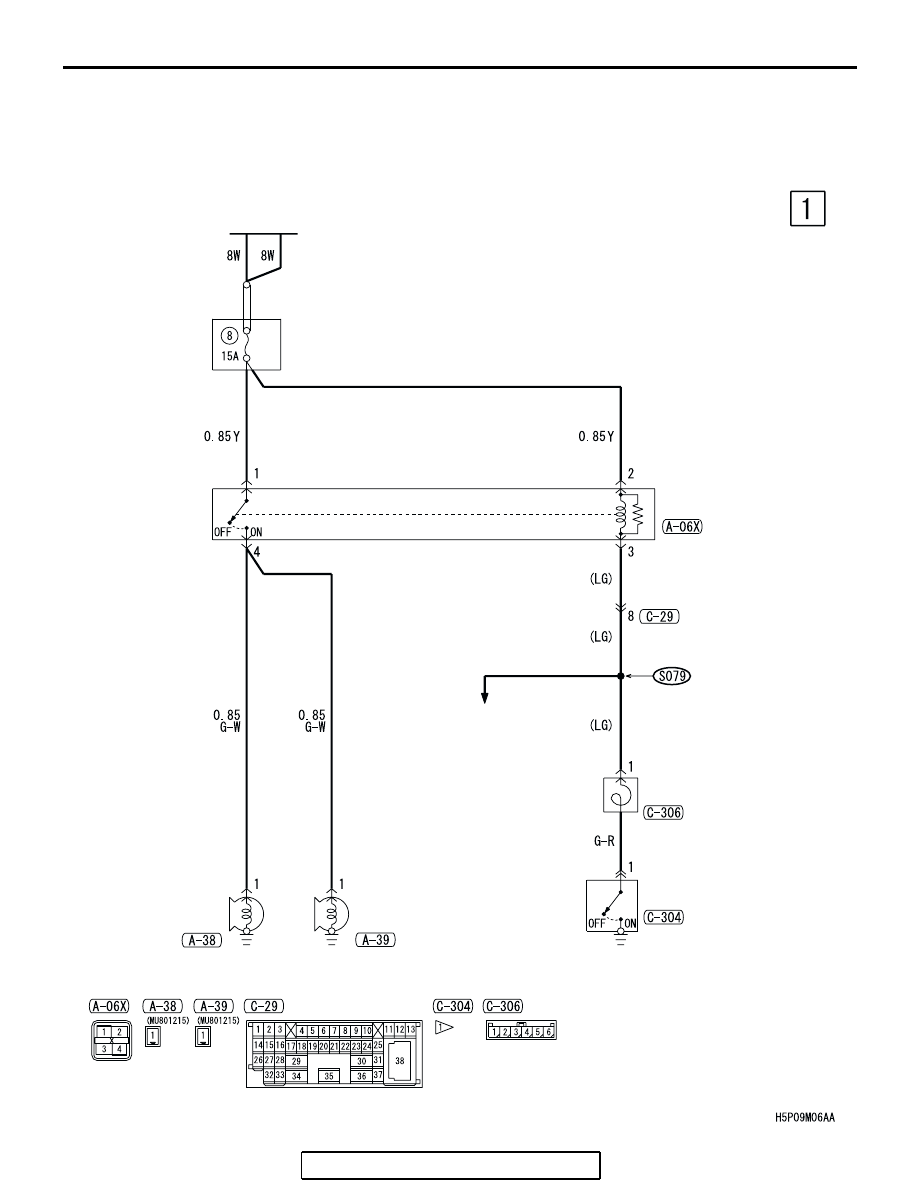

HORN

TSB Revision

CIRCUIT DIAGRAMS

90-123

HORN

M1901003300934

BATTERY

RELAY
BOX

HORN
RELAY

CLOCK
SPRING

HORN
SWITCH

HORN
(LOW)

HORN
(HIGH)

CENTRAL DOOR
LOCKING
SYSTEM

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

METER AND GAUGE

TSB Revision

CIRCUIT DIAGRAMS

90-124

METER AND GAUGE

M1901003501113

BATTERY

FRONT-ECU

TAILLIGHT
RELAY

RELAY
BOX

JOINT
CONNECTOR (1)

JUNCTION
BLOCK

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·TAILLIGHT, POSITION
 LIGHT, FRONT SIDE
 MARKER LIGHT AND
 LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·GLOVE BOX LIGHT
·HEATED SEAT
·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·REAR WINDOW
 DEFOGGER AND
 DOOR MIRROR
 HEATER
·RHEOSTAT
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT

METER AND GAUGE

TSB Revision

CIRCUIT DIAGRAMS

90-125

POWERTRAIN
CONTROL
MODULE

COMBINATION
METER

FUEL LEVEL
SENSOR
(SUB)

FUEL PUMP
MODULE

FUEL TANK
TEMPERATURE
SENSOR

FUEL
LEVEL
SENSOR
(MAIN)

ENGINE
COOLANT
TEMPERATURE
SENSOR

IGNITION
SYSTEM

<2.4L ENGINE>

NOTE
      : 2.4L ENGINE
      : 3.8L ENGINE
