Mitsubishi Galant 9G. Manual - part 189

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-118

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT (CONTINUED)

FUSIBLE
LINK

COLUMN
SWITCH

JUNCTION
BLOCK

JUNCTION BLOCK

(FUSE     )

ETACS-ECU

POWER
SUPPLY

COLUMN
SWITCH

FRONT
-ECU

JOINT
CONNECTOR (2)

DATA LINK
CONNECTOR

JUNCTION BLOCK SIDE

1

23

JOINT
CONNECTOR (1)

(FUSE     )

22

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-119

NOTES

BACKUP LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-120

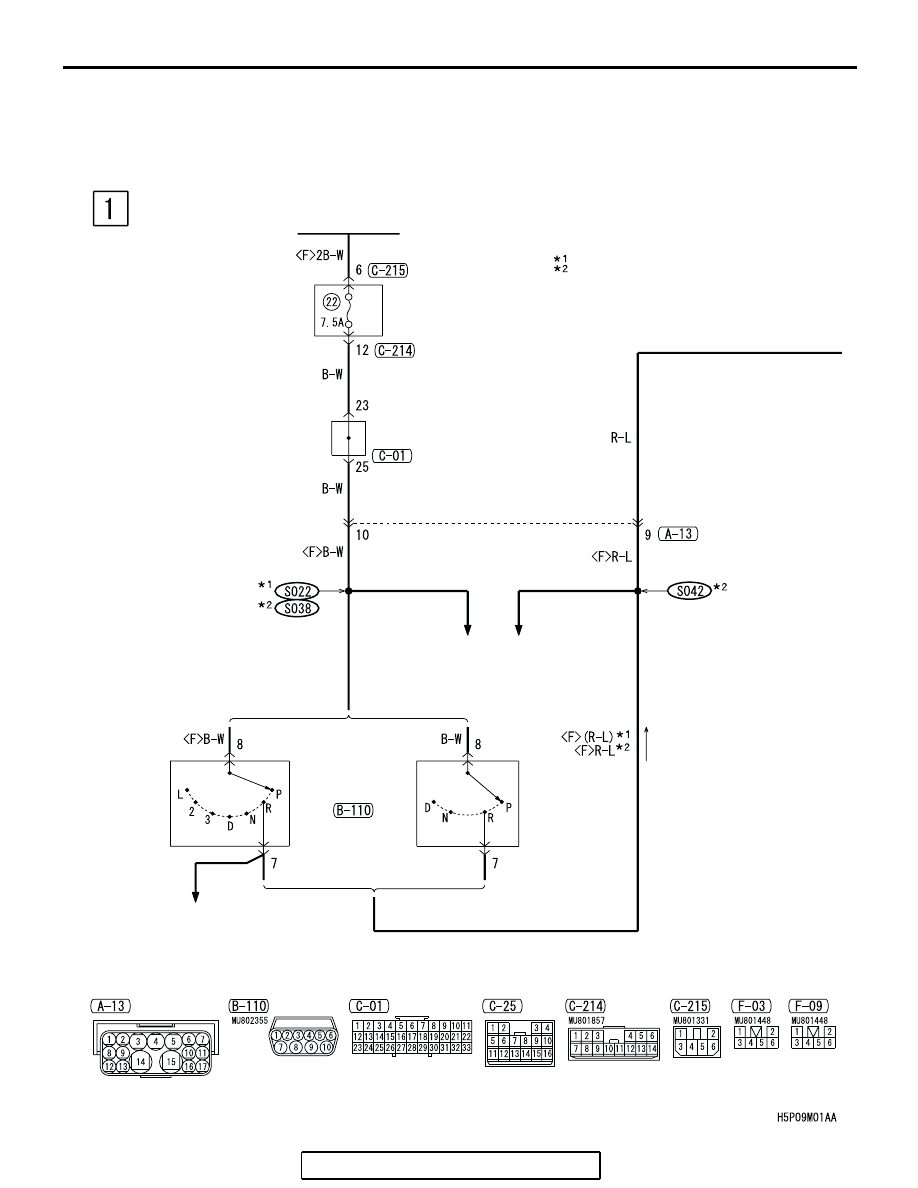

BACKUP LIGHT

M1901003101267

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

TRANSMISSION
RANGE
SWITCH

INVECS-II 4A/T

INVECS-II 4A/T

2.4L ENGINE

3.8L ENGINE

    : 2.4L ENGINE
    : 3.8L ENGINE

NOTE

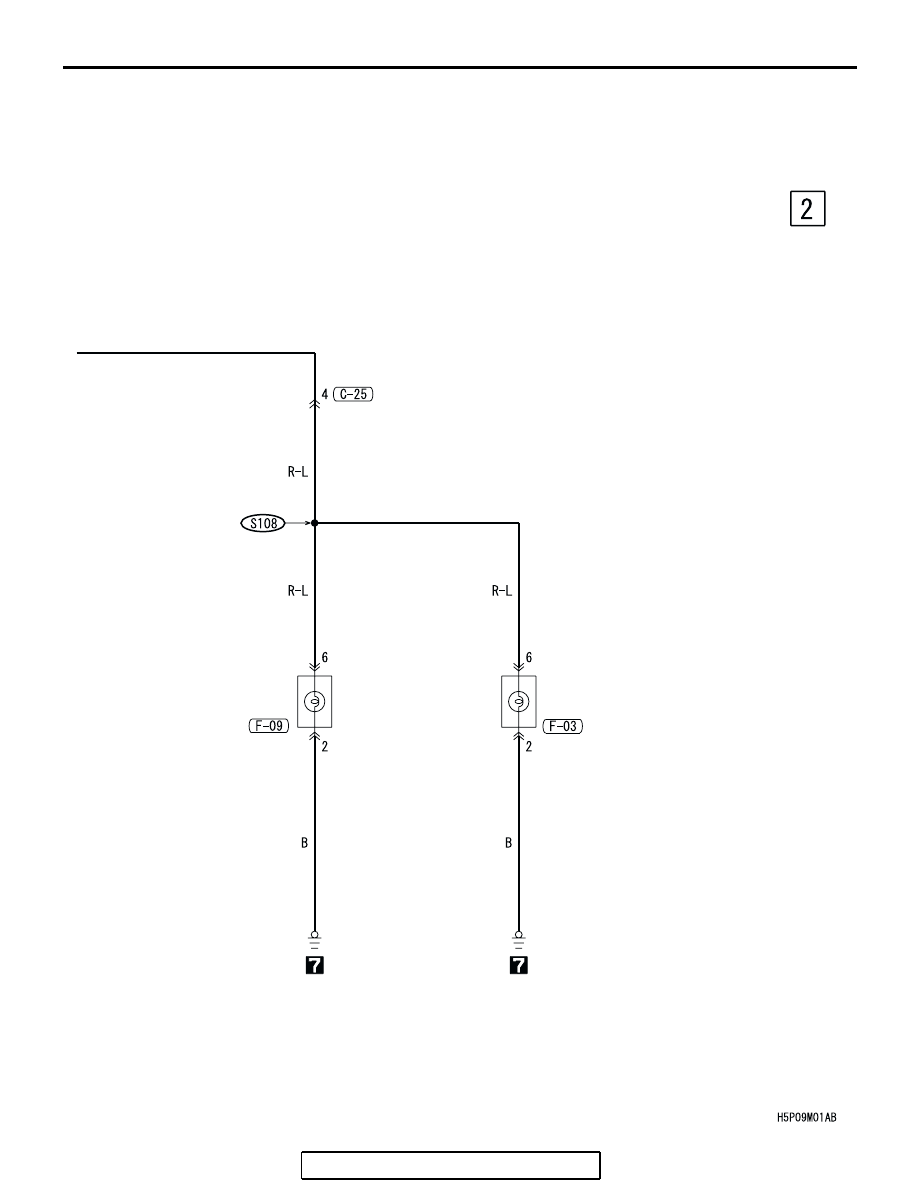

BACKUP LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-121

REAR
COMBINATION
LIGHT (LH)

REAR
COMBINATION
LIGHT (RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET
