HEADLIGHT <4-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-86

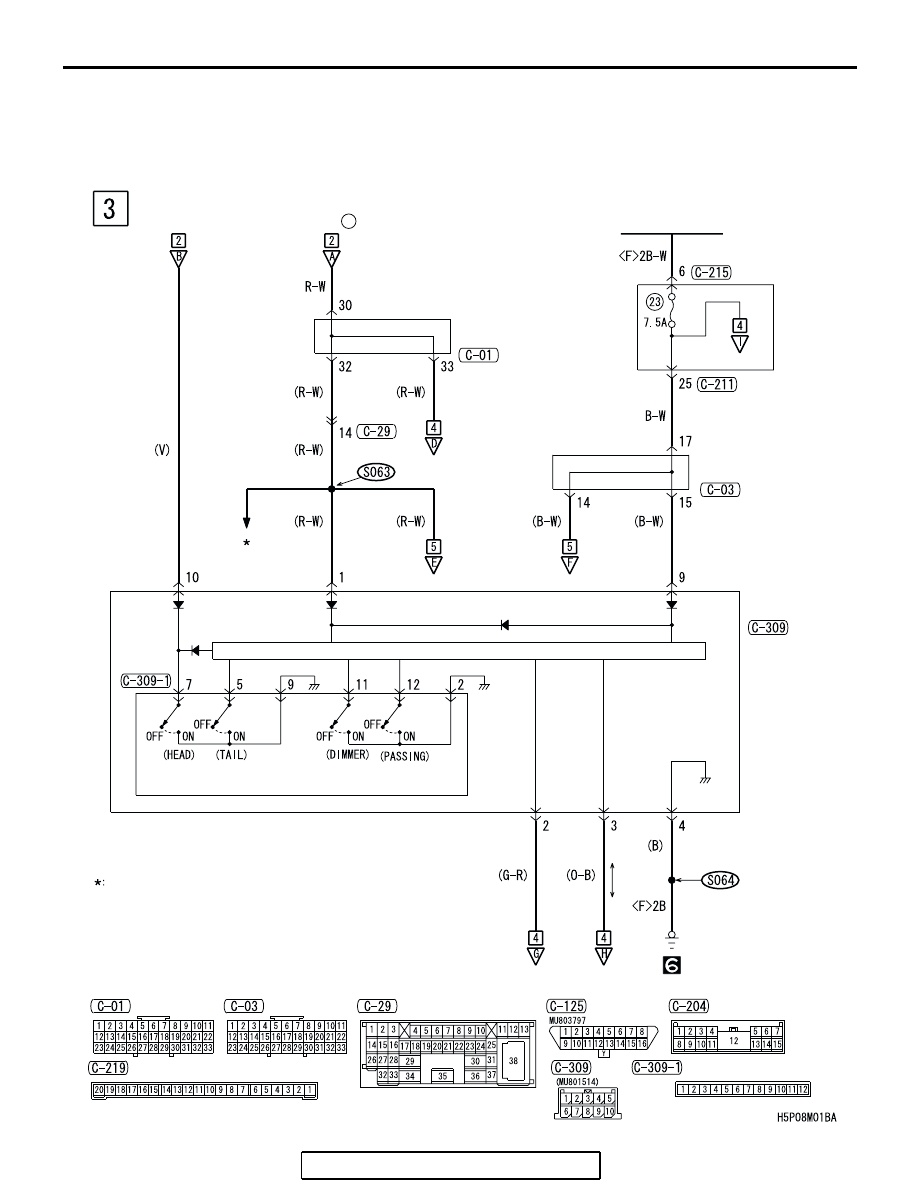

HEADLIGHT <4-BULB TYPE> (CONTINUED)

FRONT-ECU

RELAY BOX
 (FUSE     )

22

JOINT
CONNECTOR (1)

LIGHTING SWITCH

DIMMER·PASSING
SWITCH

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

COLUMN
SWITCH

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)

·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT

·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·VANITY MIRROR LIGHT

NOTE

COLUMN-ECU

JUNCTION BLOCK SIDE

UPPER
SIDE

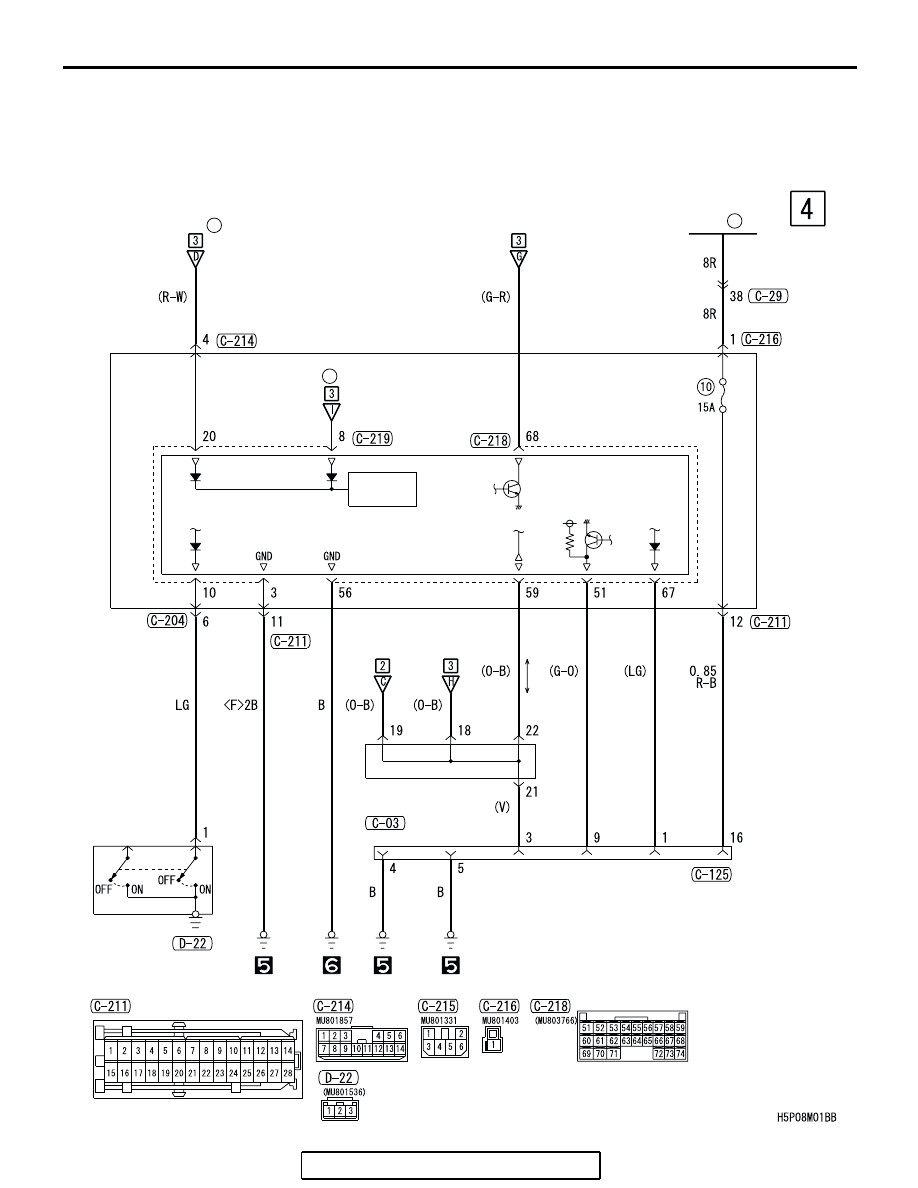

HEADLIGHT <4-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-87

JOINT
CONNECTOR (1)

COLUMN
SWITCH

JUNCTION BLOCK
 (FUSE      )

23

POWER
SUPPLY

JUNCTION
BLOCK

ETACS-
ECU

DATA LINK
CONNECTOR

FRONT
-ECU

COLUMN
SWITCH

JOINT
CONNECTOR (2)

FRONT
DOOR
SWITCH
 (LH)

FUSIBLE
LINK

1

(FUSE     )

22

HEADLIGHT <4-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-88

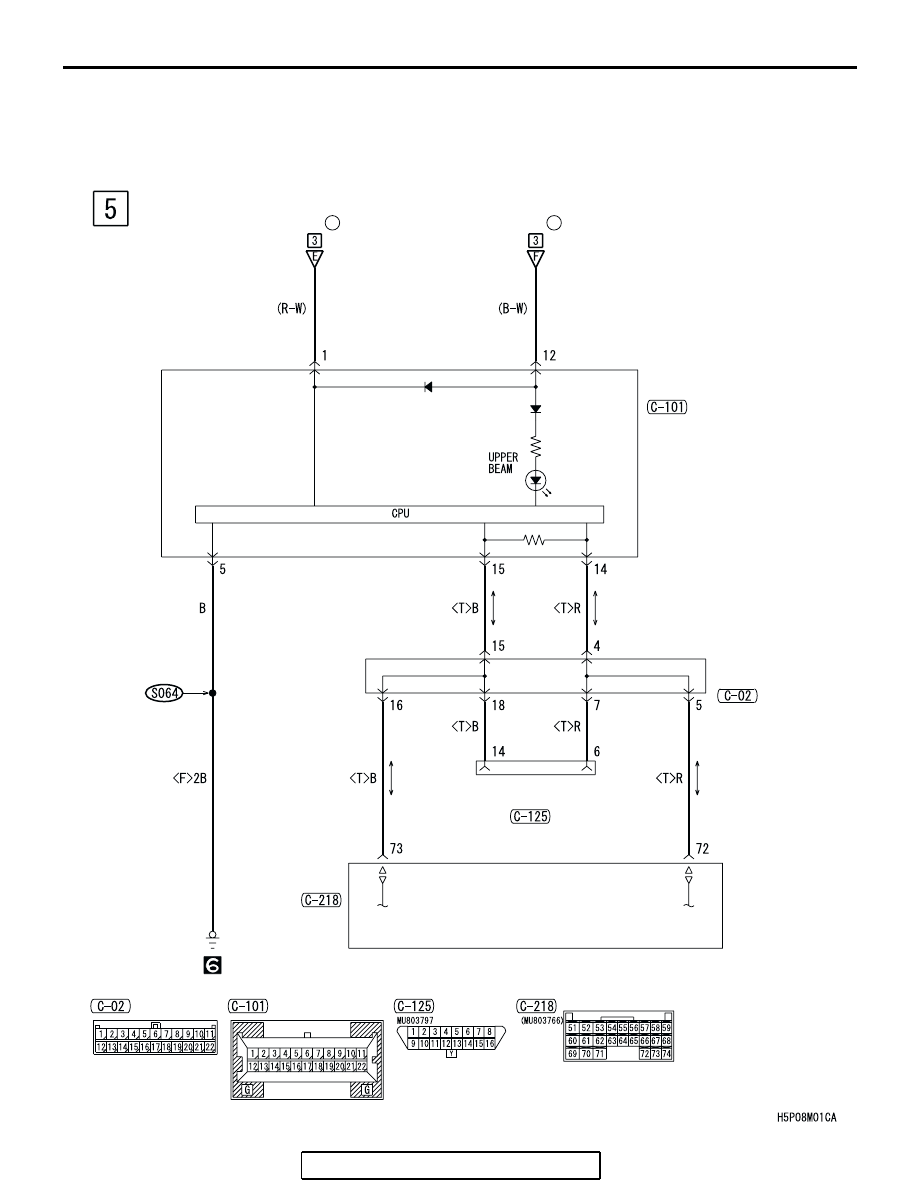

HEADLIGHT <4-BULB TYPE> (CONTINUED)

JOINT
CONNECTOR (2)

JOINT
CONNECTOR (1)

COMBINATION
METER

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

ETACS-
ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

(FUSE     )

22

(FUSE     )

23

HEADLIGHT <4-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-89
