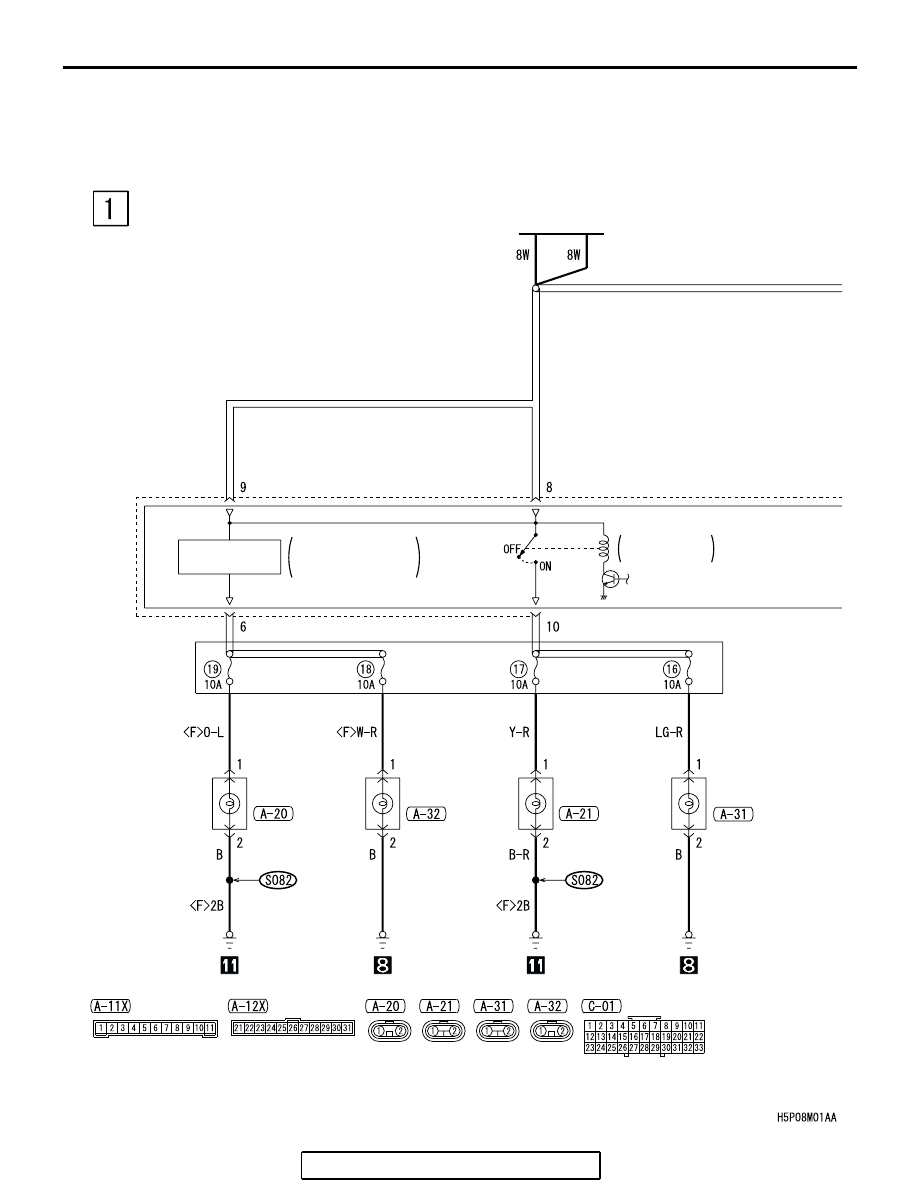

HEADLIGHT <2-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-82

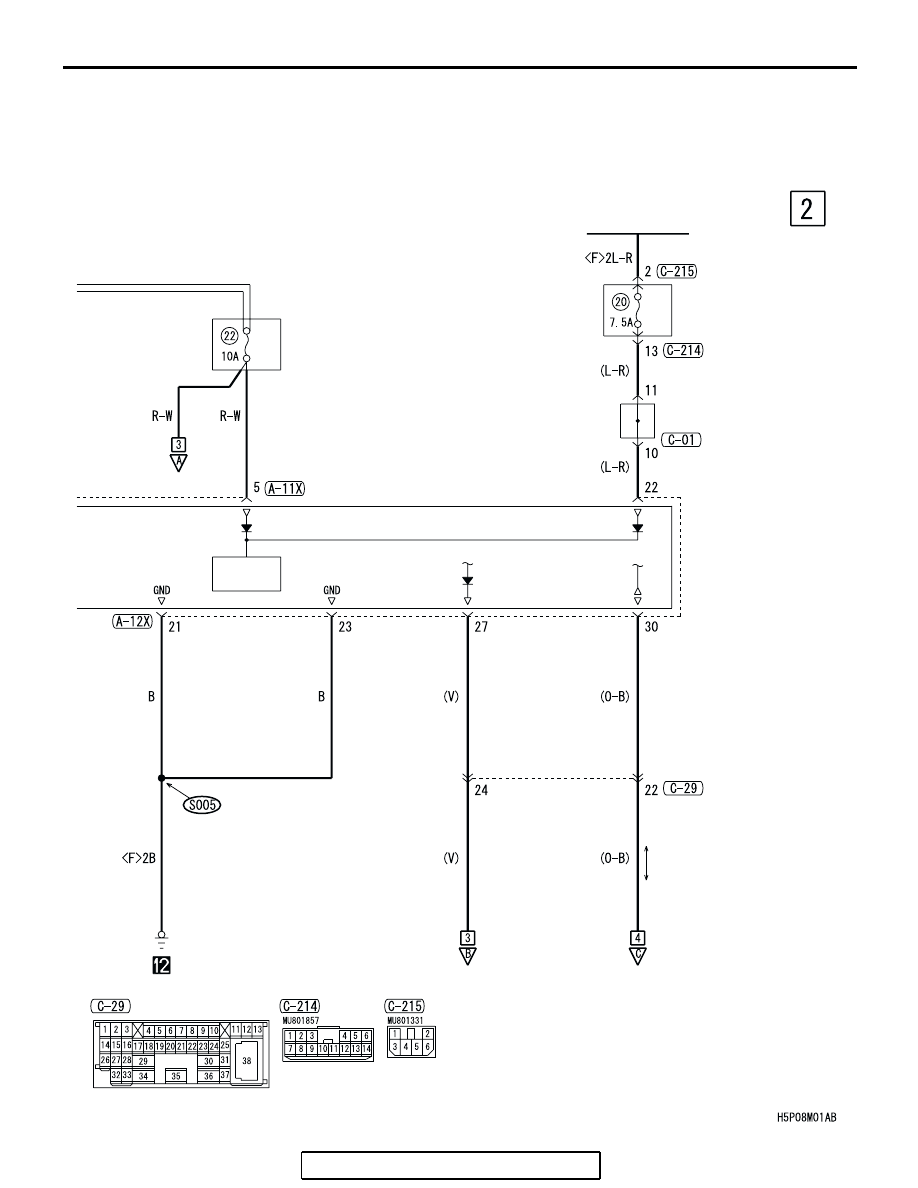

HEADLIGHT <2-BULB TYPE> (CONTINUED)

(FUSE     )

22

(FUSE     )

23

JOINT
CONNECTOR (2)

JOINT
CONNECTOR (1)

COMBINATION
METER

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

ETACS-
ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

HEADLIGHT <2-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-83

NOTES

HEADLIGHT <4-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-84

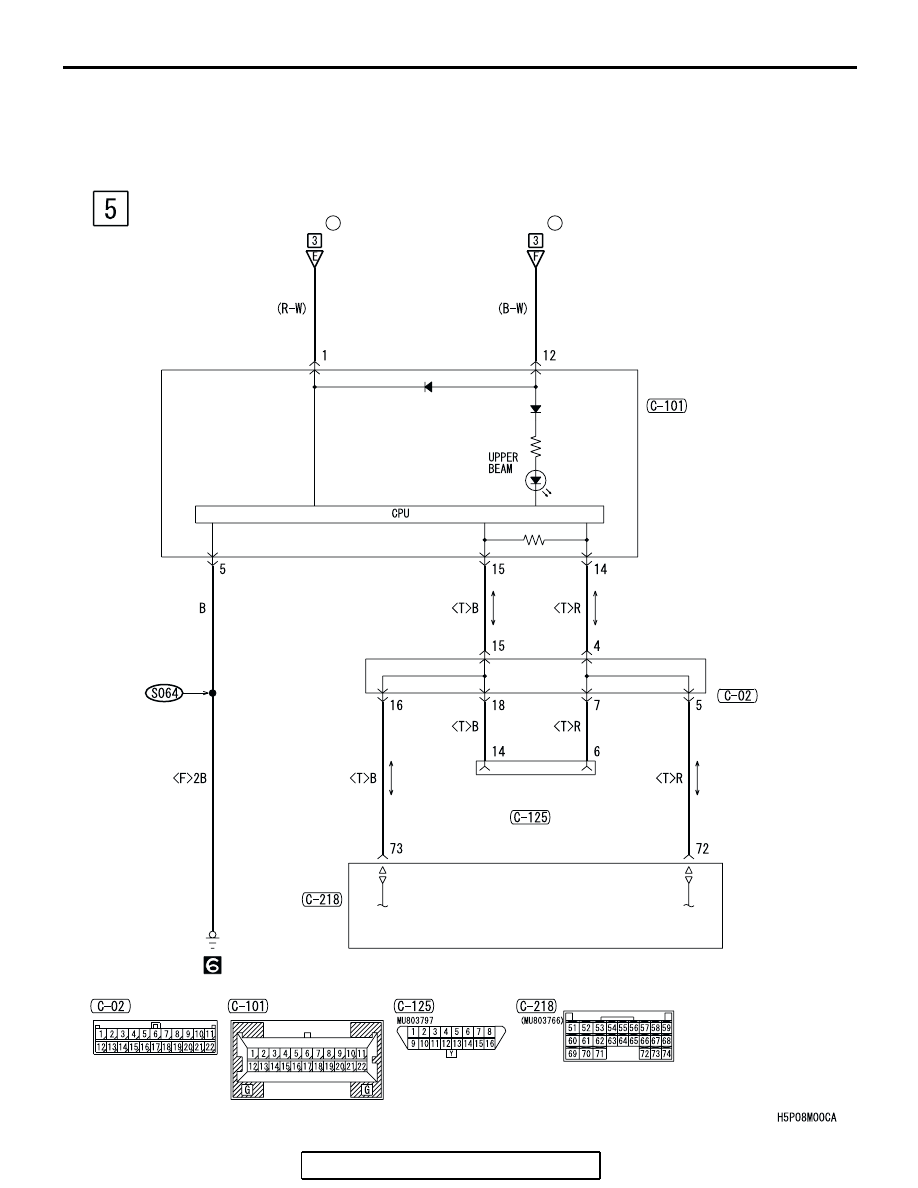

HEADLIGHT <4-BULB TYPE>

M1901001501366

BATTERY

FRONT-
ECU

HEADLIGHT
RELAY: HIGH

PULSE WIDTH
MODULATOR

HEADLIGHT
 (LOW: LH)

HEADLIGHT
 (LOW: RH)

HEADLIGHT
 (HIGH: LH)

HEADLIGHT
 (HIGH: RH)

RELAY
BOX

FIELD EFFECT
TRANSISTOR FOR
HEADLIGHT: LOW

HEADLIGHT <4-BULB TYPE>

TSB Revision

CIRCUIT DIAGRAMS

90-85

RELAY
BOX

POWER
SUPPLY

IGNITION
SWITCH (IG2)

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE
