INVECS-II 4A/T <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-58

INVECS-II 4A/T <2.4L ENGINE>

M1901016201297

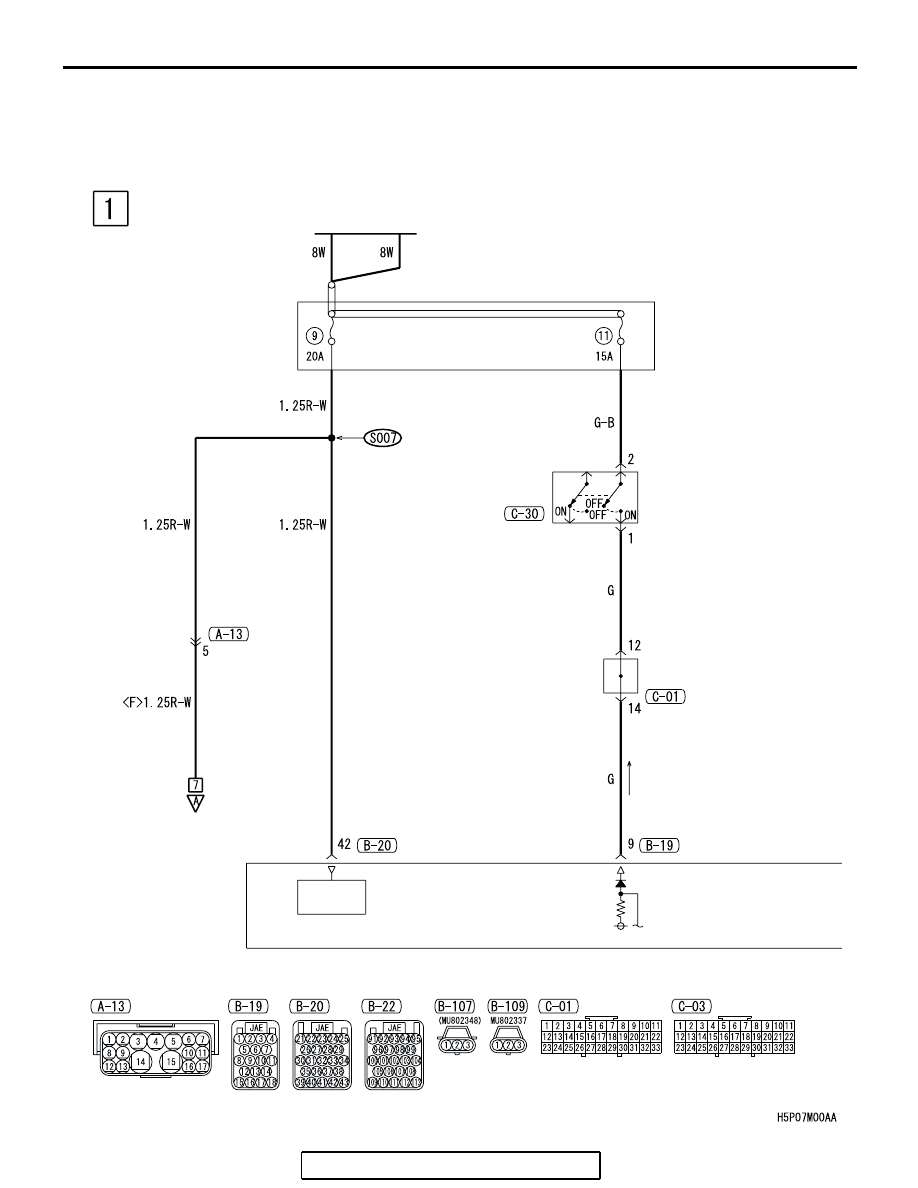

BATTERY

RELAY
BOX

JOINT
CONNECTOR (1)

BATTERY
BACKUP

STOPLIGHT
SWITCH

INVECS-II 4A/T <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-59

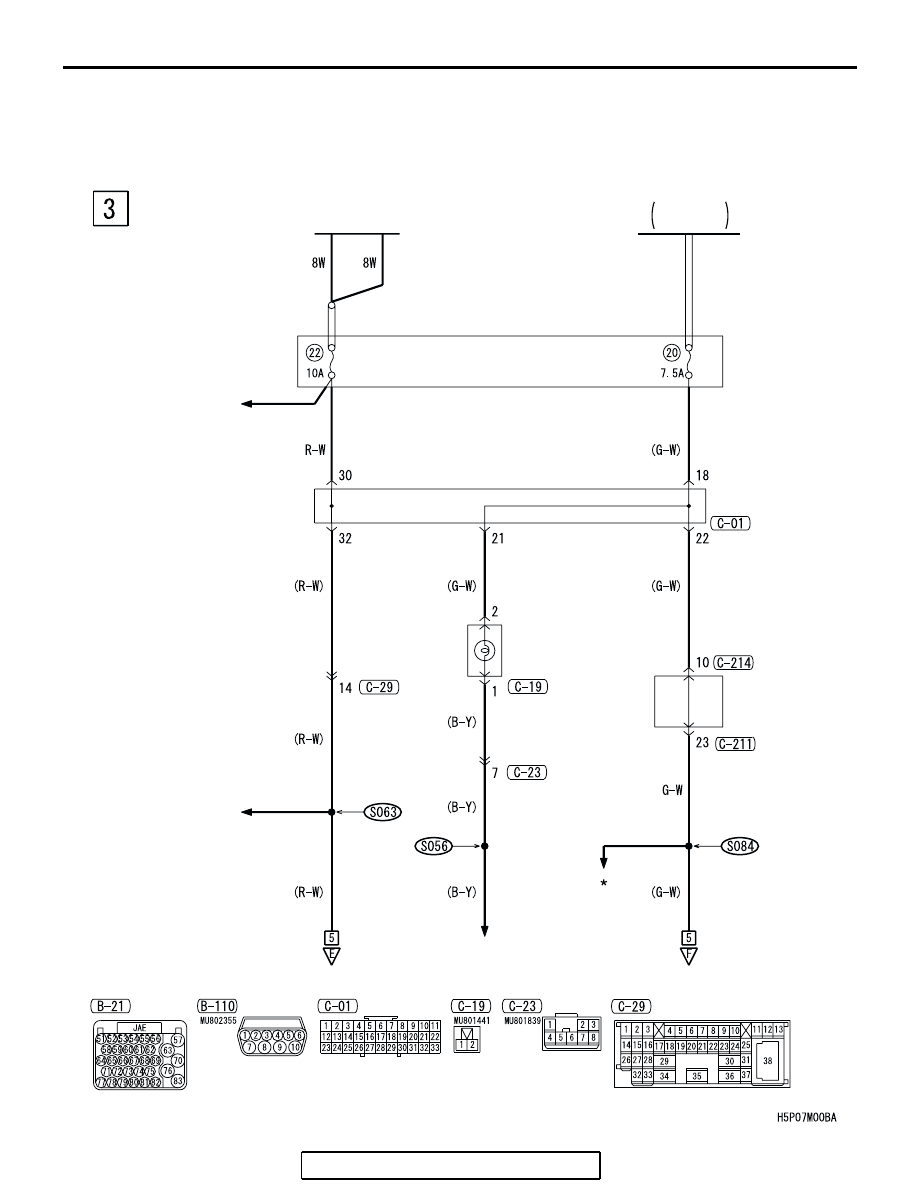

IGNITION
SWITCH (IG1)

JOINT
CONNECTOR (1)

JUNCTION
BLOCK

INPUT
SHAFT
SPEED
SENSOR

OUTPUT
SHAFT
SPEED
SENSOR

POWERTRAIN
CONTROL
MODULE

JOINT
CONNECTOR (2)

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

INVECS-II 4A/T <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-60

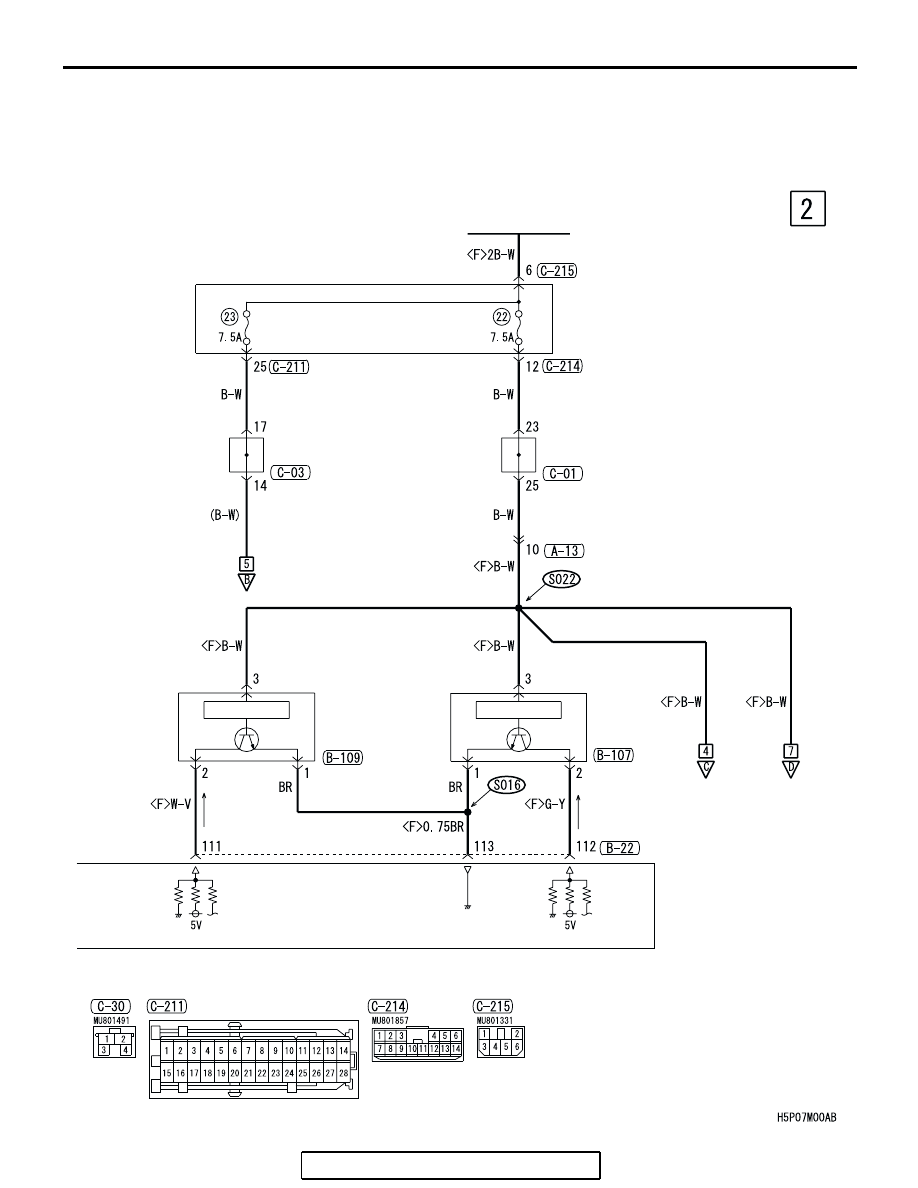

INVECS-II 4A/T <2.4L ENGINE> (CONTINUED)

BATTERY

FRONT-ECU

TAILLIGHT
RELAY

RELAY
BOX

JOINT
CONNECTOR (1)

JUNCTION
BLOCK

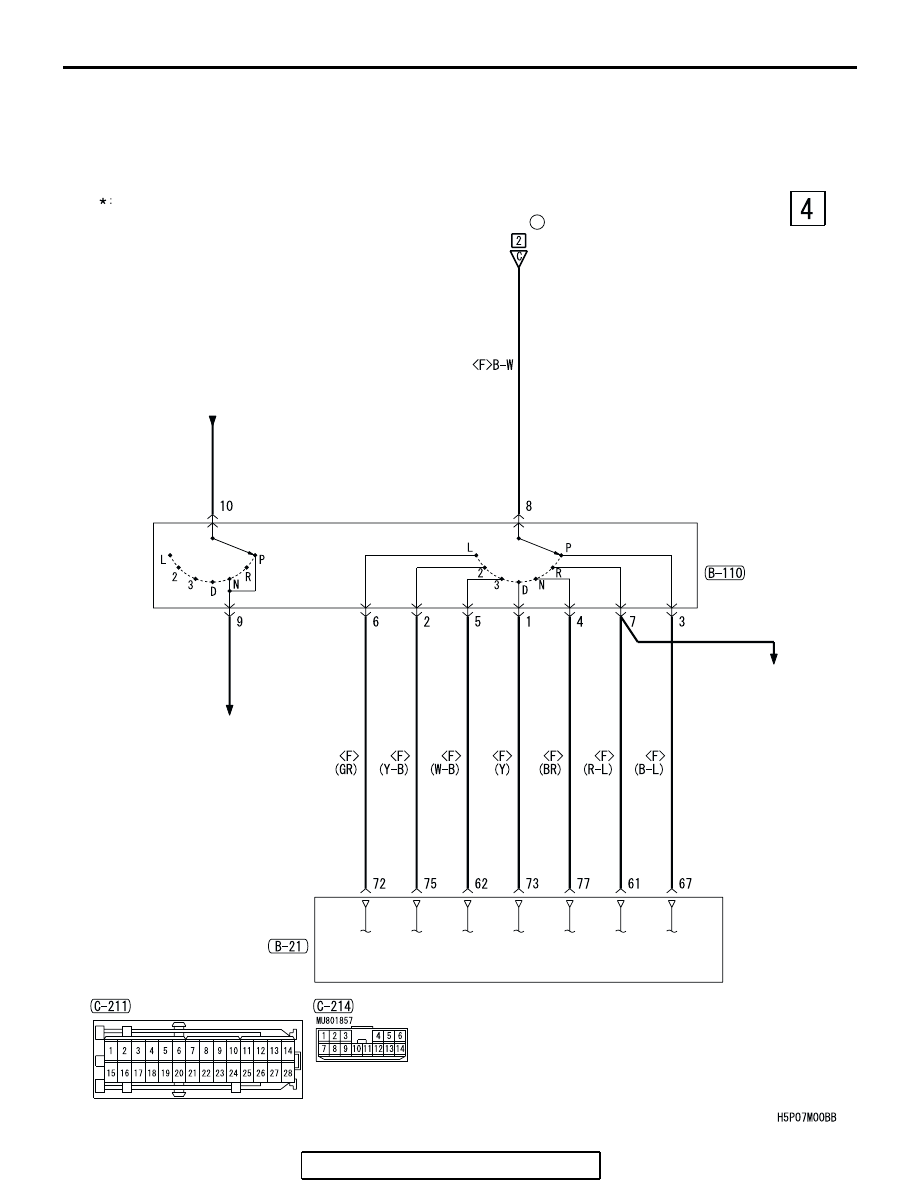

A/T SELECTOR
LEVER POSITION
ILLUMINATION
LIGHT

RHEOSTAT

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·TAILLIGHT, POSITION LIGHT,
 FRONT SIDE MARKER LIGHT
 AND LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·VANITY MIRROR LIGHT
·WINDSHIELD WIPER
 AND WASHER

INVECS-II 4A/T <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-61

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·GLOVE BOX LIGHT
·HEATED SEAT

·MANUAL AIR
 CONDITIONING
 SYSTEM
·MULTI-CENTER
 DISPLAY
·REAR WINDOW
 DEFOGGER AND
 DOOR MIRROR
 HEATER
·RHEOSTAT
·SUPPLEMENTAL RESTRANT
 SYSTEM (SRS)
·TURN-SIGNAL LIGHT
 AND HAZARD WARNING
 LIGHT

NOTE

STARTING
SYSTEM

·MFI SYSTEM
·STARTING
 SYSTEM

POWERTRAIN
CONTROL
MODULE

BACKUP
LIGHT

TRANSMISSION
RANGE
SWITCH

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

(FUSE     )

22

JOINT
CONNECTOR (1)
