FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-116

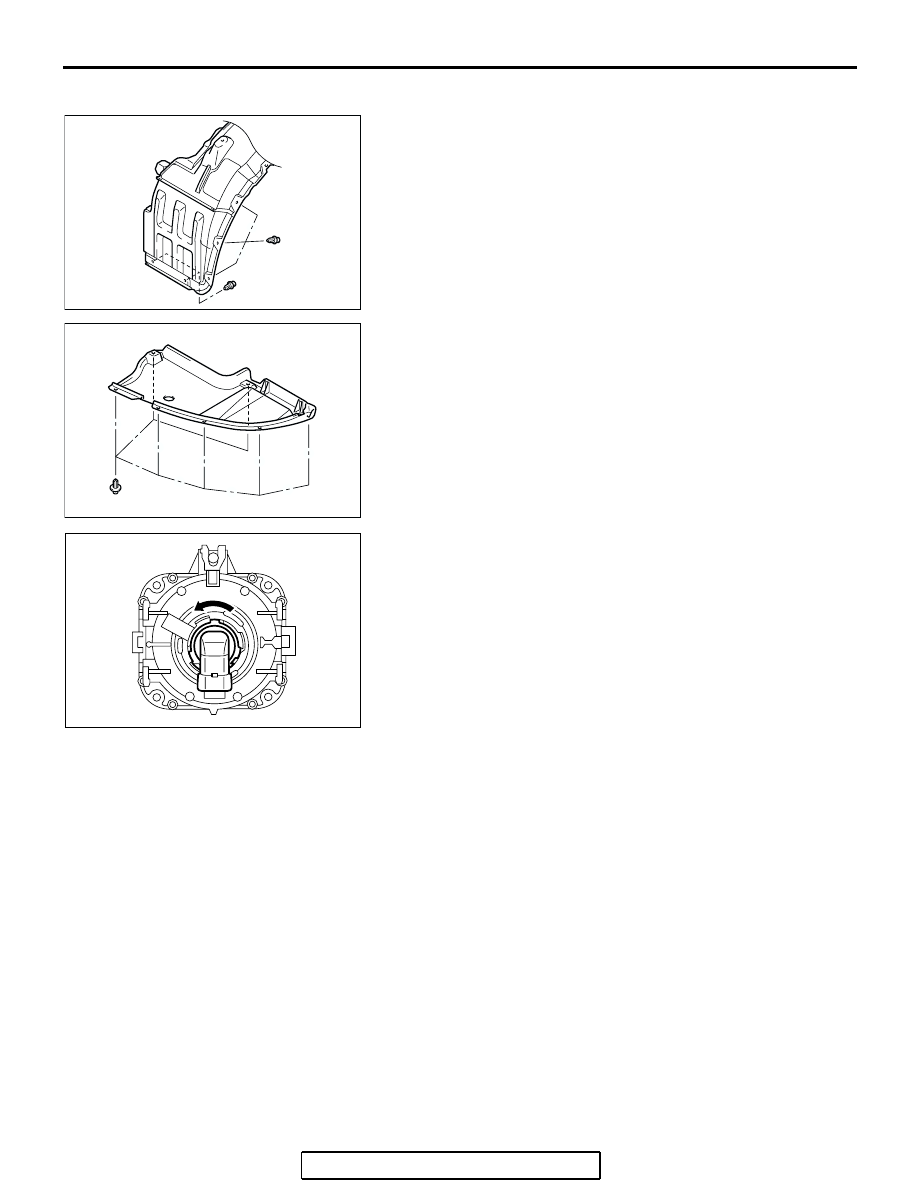

BULB REPLACEMENT

M1542001300692

1. Remove the splash shield mounting clips, then remove the

splash shield.

2. Remove the front bumper under cover mounting clips, then

remove the front bumper under cover.

3. Remove the socket and bulb assembly by twisting it

counterclockwise.

4. Remove the fog light bulb from the connector.
5. Replace the bulb, and then install the socket and bulb

assembly by twisting it clockwise.

AC307660

AC308432

AC307157

AB

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-117

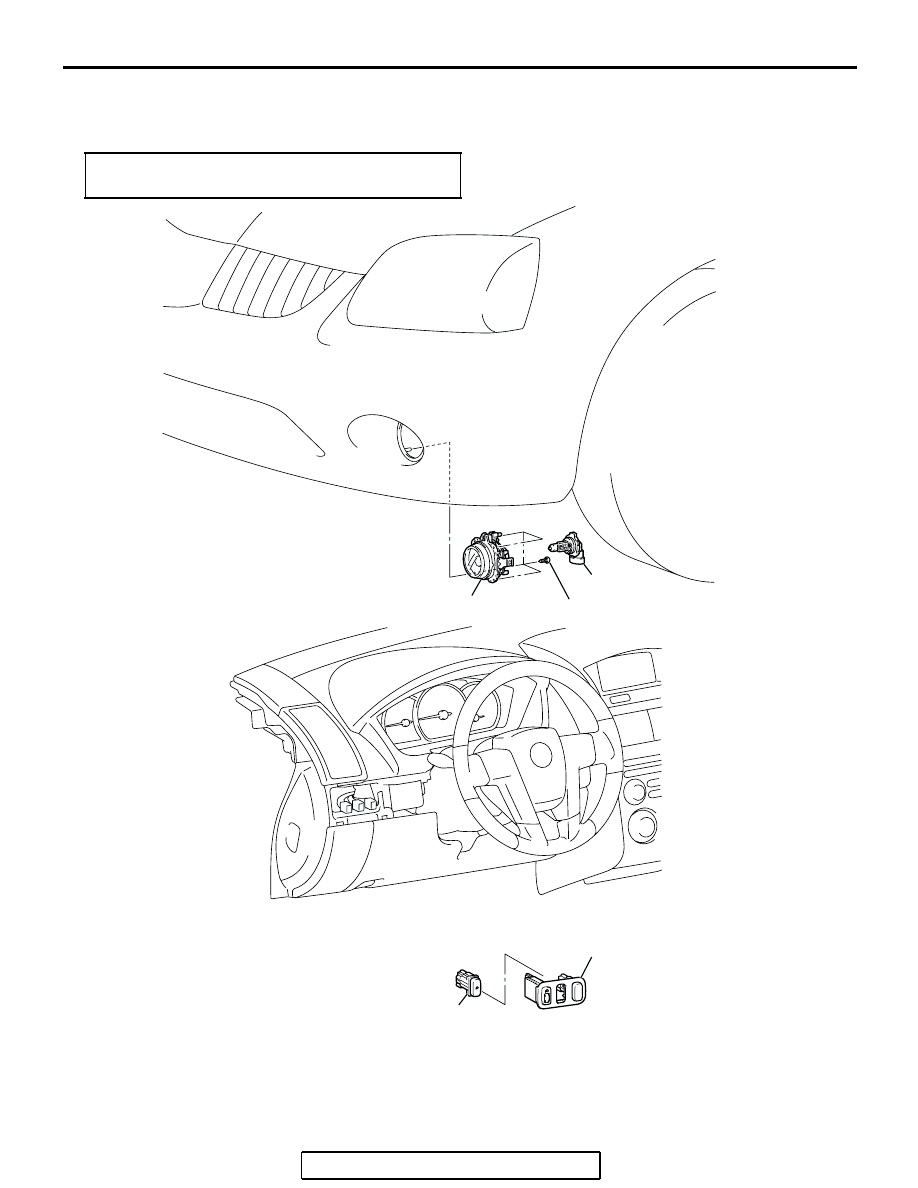

FOG LIGHT

REMOVAL AND INSTALLATION

M1542001500492

Post-installation operation
Fog light aiming (Refer to

P.54A-114

).

AC308091

1

2

4

3

2.5 ± 0.3 N·m
22 ± 3 in-lb

AB

FOG LIGHT REMOVAL STEPS

•

FRONT BUMPER UNDER COVER

(REFER TO GROUP 51, FRONT

BUMPER ASSEMBLY

P.51-2

.)

1.

FOG  LIGHT ASSEMBLY

2.

BLUB

FOG LIGHT SWITCH REMOVAL

STEPS

3.

SWITCH PANEL ASSEMBLY

4.

FOG   LIGHT SWITCH

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-118

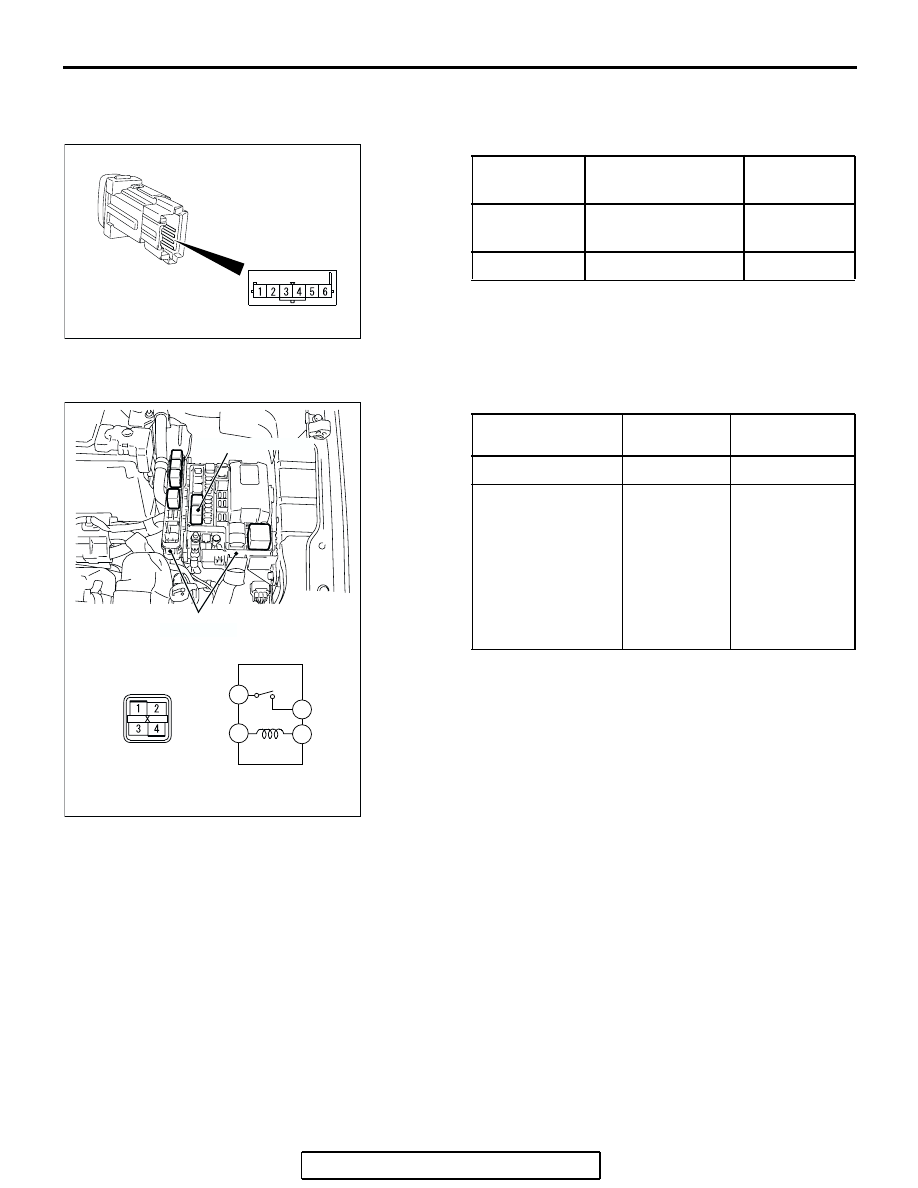

INSPECTION

M1543019502485

FOG LIGHT SWITCH CONTINUITY CHECK

FOG LIGHT RELAY CHECK

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Pressed

1-2

Less than 2
ohms

Released

1-2

Open circuit

AC307001AB

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not supplied

1-4

Open circuit

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 3 to the
negative battery
terminal

1-4

Less than 2
ohms

1

4

3

2

AC307687AB

FOG LIGHT RELAY

RELAY BOX

REAR COMBINATION  LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-119

REAR COMBINATION LIGHT

DIAGNOSIS

M1542000701377

The taillights and turn-signal lights are controlled by
the Simplified Wiring System (SWS). For trouble-
shooting, refer to GROUP 54B, SWS Diagnosis

P.54B-59

.

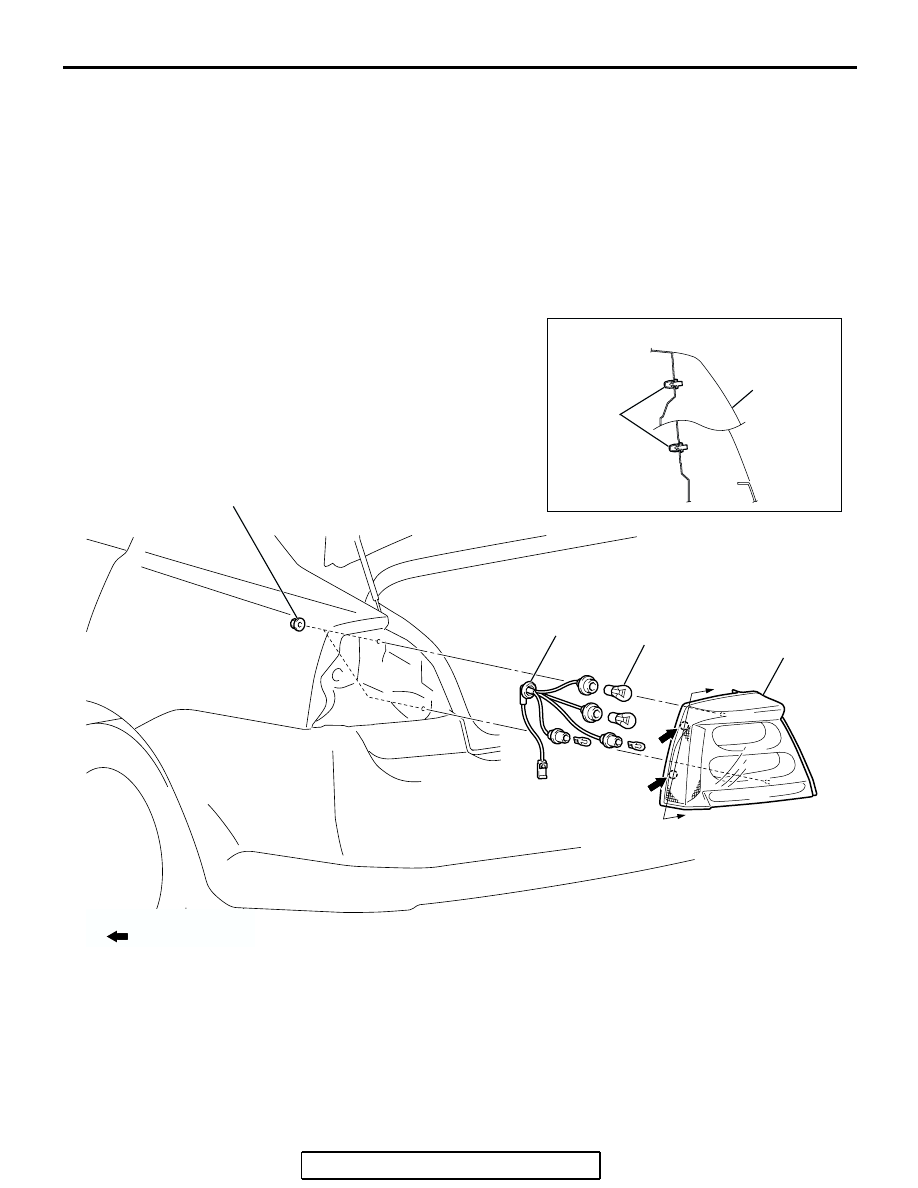

REAR COMBINATION LIGHT

REMOVAL AND INSTALLATION

M1542003900463

AC307165

AB

1

CLIP

SECTION A – A

1

3

2

A

A

4.9 ± 0.7 N·m
44 ± 6 in-lb

NOTE
          : CLIP POSITION

REMOVAL STEPS

•

TRUNK ROOM  FLOOR BOARD,
REAR END TRIMS (REFER TO
GROUP 52A, TRIM

P.52A-10

.)

1.

REAR COMBINATION LIGHT

2.

SOCKET ASSEMBLY

3.

BULB

REMOVAL STEPS (Continued)
