HEADLIGHT, FRONT SIDE MARKER LIGHT AND POSITION LIGHT ASSEMBLY

TSB Revision

CHASSIS ELECTRICAL

54A-112

2. Remove the socket with the bulb by turning it

counterclockwise as shown.

CAUTION

Do not touch the surface of the bulb with hands or  dirty
gloves as the bulb may fail after a short time. If the surface
does become dirty, clean it with alcohol or thinner, and let
it dry thoroughly before installing.
3. Pull out the bulb from the socket, and then replace the bulb.
4. Install the socket to the headlight by push and twisting it

clockwise.

Front Side-marker Light Bulb

1. Disconnect the front side-marker light connector.
2. Remove the socket with the bulb by turning it

counterclockwise as shown.

CAUTION

Do not touch the surface of the bulb with hands or  dirty
gloves as the bulb may fail after a short time. If the surface
does become dirty, clean it with alcohol or thinner, and let
it dry thoroughly before installing.
3. Pull out the bulb from the socket, and then replace the bulb.
4. Install the socket to the headlight by push and twisting it

clockwise.

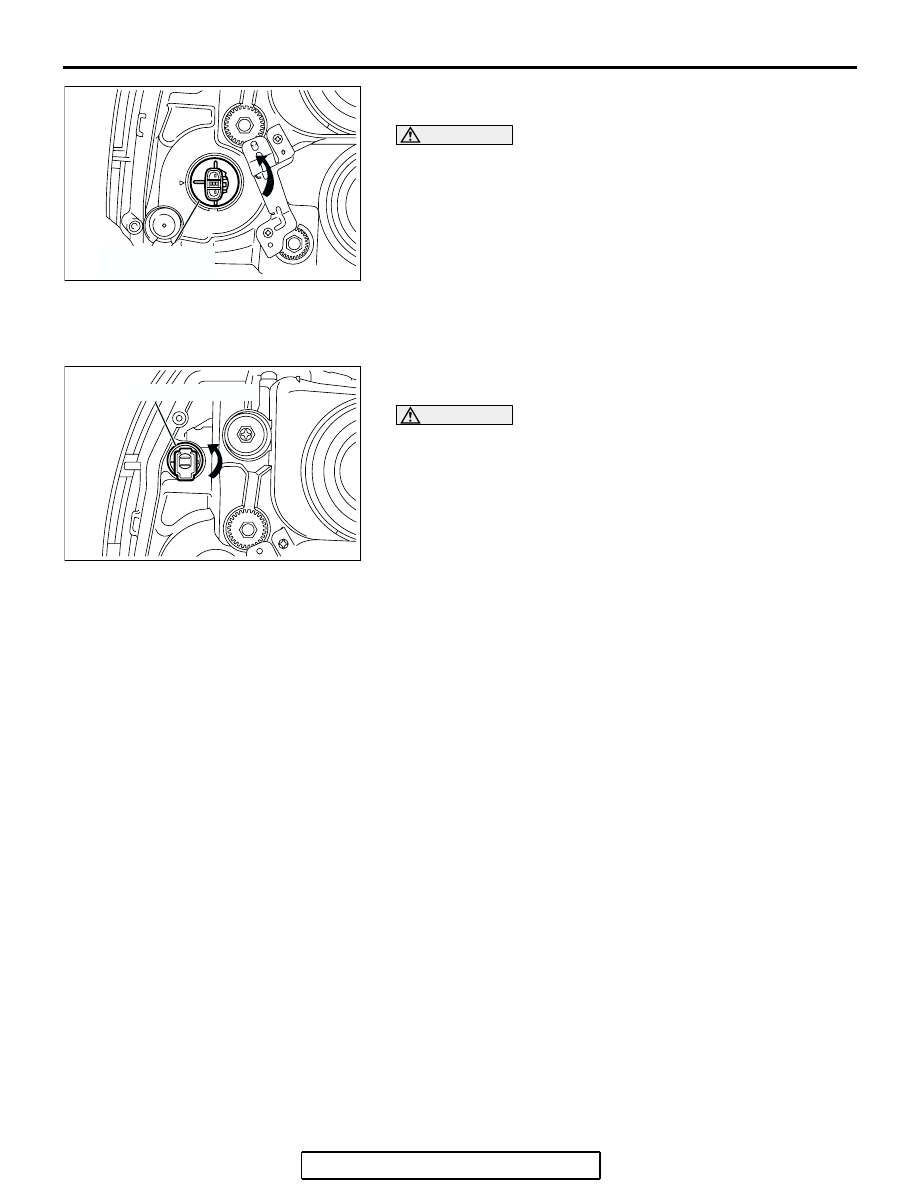

AC307139

FRONT TURN-SIGNAL
AND PARKING LIGHT

AB

AC307140

AB

FRONT SIDE-MARKER LIGHT

HEADLIGHT, FRONT SIDE MARKER LIGHT AND POSITION LIGHT ASSEMBLY

TSB Revision

CHASSIS ELECTRICAL

54A-113

HEADLIGHT AND FRONT COMBINATION LIGHT

REMOVAL AND INSTALLATION

M1542002700358

Post-installation operation
• Headlight aiming adjustment (Refer to

P.54A-107

).

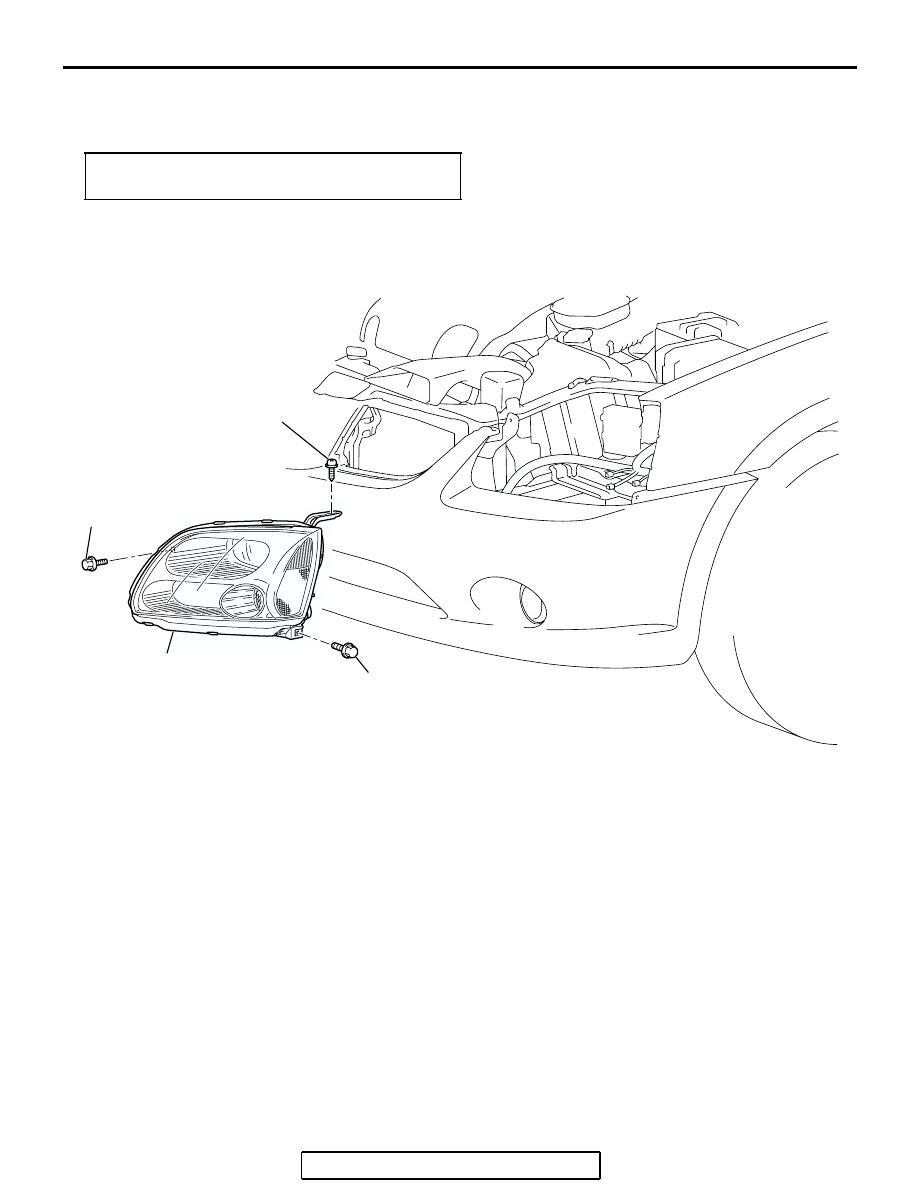

AC307154

1

4.9 ± 0.7 N·m
44 ± 6 in-lb

4.9 ± 0.7 N·m
44 ± 6 in-lb

1.5 ± 0.2 N·m
14 ± 1 in-lb

AB

HEADLIGHT REMOVAL STEPS

•

RADIATOR GRILL (REFER TO
GROUP 51, RADIATOR GRILL

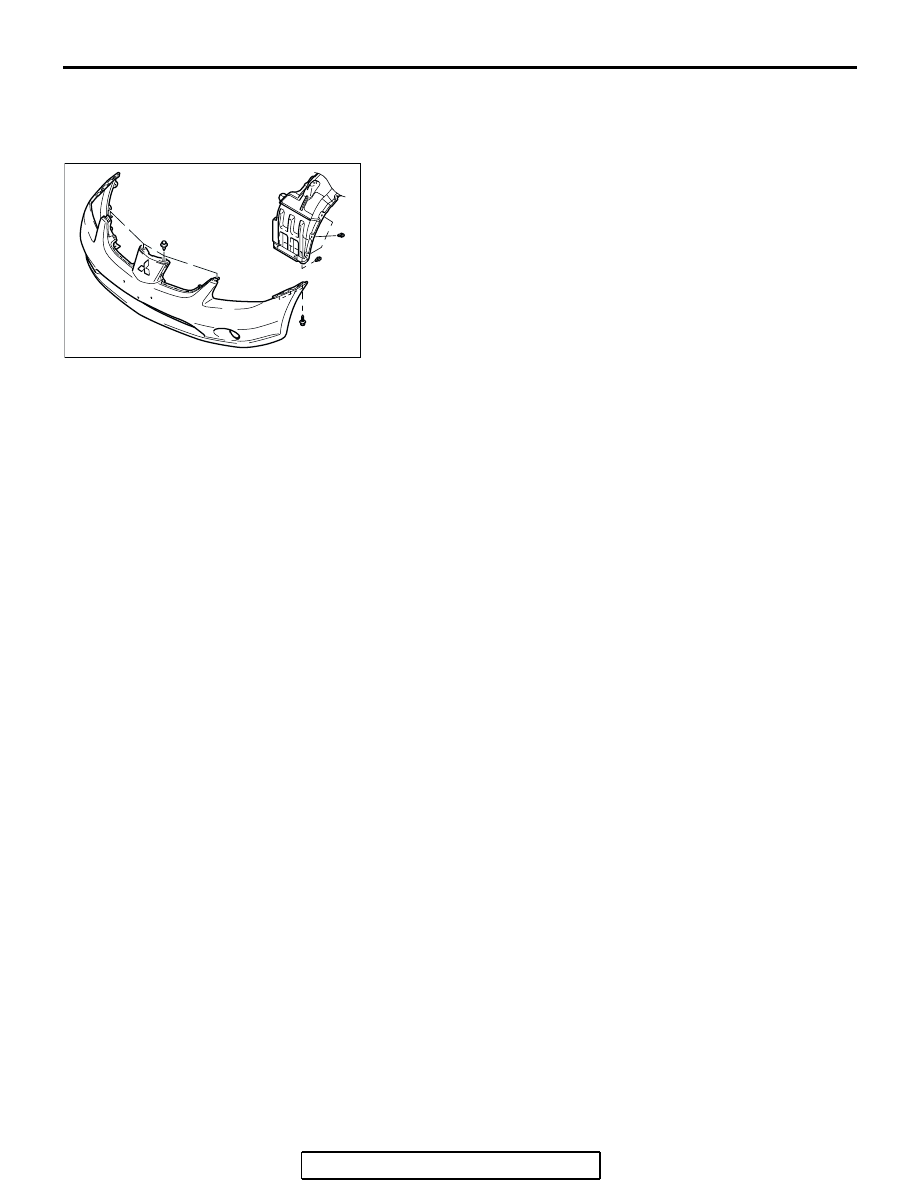

P.51-5

.)

•

SPLASH SHIELD MOUNTING
CLIPS, FRONT BUMPER UNDER
COVER, RUBBER NUT, LICENSE
PLATE GARNISH (REFER TO
GROUP 51, FRONT BUMPER

P.51-2

.)

<<A>>

1.

HEADLIGHT ASSEMBLY

HEADLIGHT REMOVAL STEPS

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-114

REMOVAL SERVICE POINT

.

<<A>> HEADLAIGHT ASSEMBLY REMOVAL

Remove the front bumper mounting screw and clip.

FOG LIGHT

FOG LIGHT DIAGNOSIS

M1542000701366

The fog lights are controlled by the Simplified Wiring
System (SWS). For troubleshooting, refer to GROUP
54B, SWS Diagnosis

P.54B-59

.

ON-VEHICLE SERVICE

FOG LIGHT AIMING

M1542001100472

PRE-AIMING INSTRUCTIONS

1. Inspect for badly rusted or faulty fog light assemblies.
2. These conditions must be corrected before a satisfactory

adjustment can be made.

3. Inspect tire inflation, and adjust if necessary.
4. If the fuel tank is not full, place a weight in the trunk of the

vehicle to simulate weight of a full tank [3 kg (6.5 pounds)
per gallon].

5. There should be no other load in the vehicle other than

driver or substituted weight of approximately 70 kg (150
pounds) placed in driver's position.

6. Thoroughly clean the fog light lenses.
7. Place the vehicle on a level floor, perpendicular to a flat

screen 7.62 meters (25.0 feet) away from the bulb
center-marks on the foglight lens.

8. Rock the vehicle sideways to allow the vehicle to assume its

normal position.

9. Bounce the front suspension through three (3) oscillations

by applying the body weight to the hood or bumper.

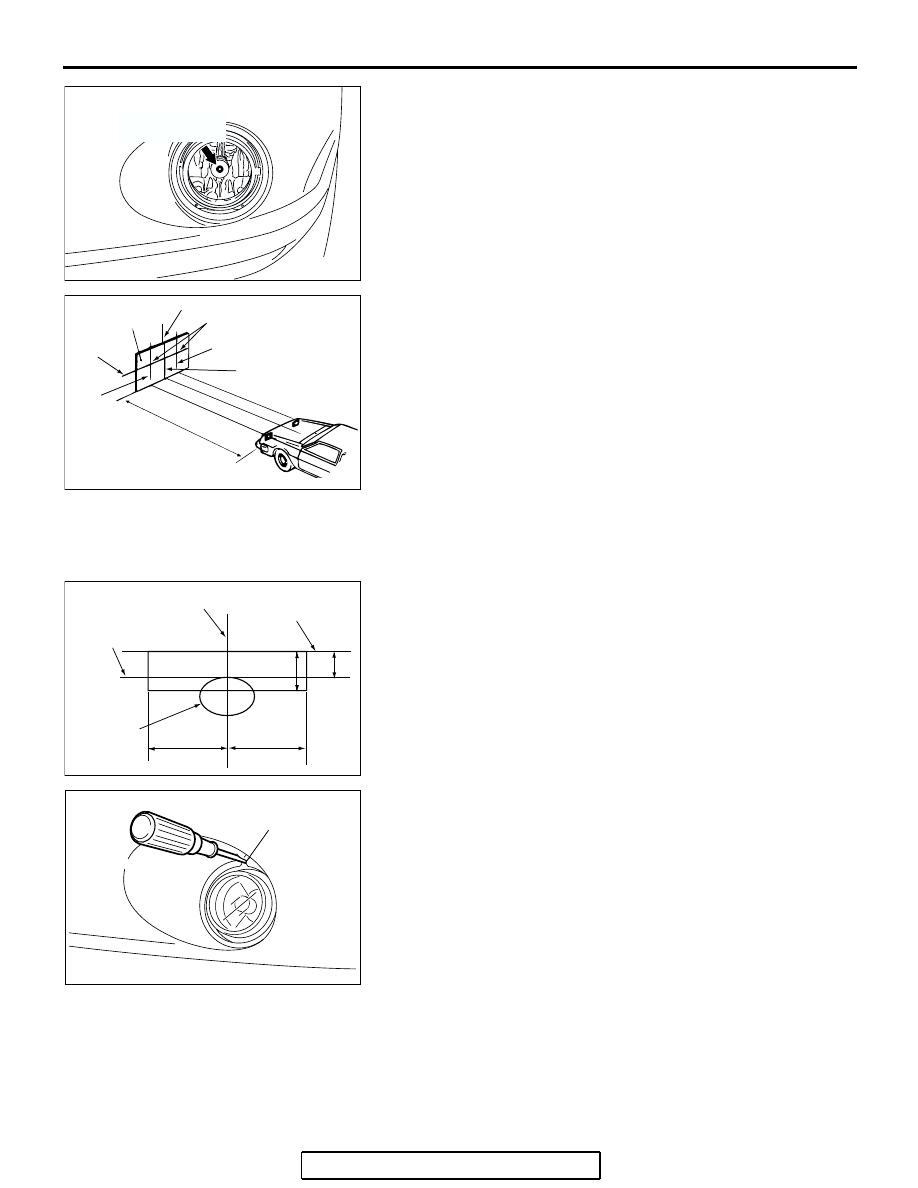

AC307557

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-115

10.Measure the center of the fog lights as shown in the

illustration.

11.Four lines of adhesive tape (or equivalent markings) are

required on screen or wall:

(1) Position a vertical tape or mark so that it is aligned with

the vehicle center line.

(2) Measure the distance from the center of the fog light lens

to the floor. Transfer the measurement to the screen.
Horizontal tape or mark on the screen is for reference of
vertical adjustment.

(3) Measure the distance from the center line of the vehicle

to the center of each fog light. Transfer the measurement
to the screen. Vertical tape or mark on the screen is for
reference to the center line of each fog light.

FOG LIGHT ADJUSTMENT

1. Check if the beam shining onto the screen is at the standard

value.

2. If it is not within the standard value range, adjust by turning

the adjusting screw.

Standard value:

(Vertical direction): Top  of the hot zone should be

101 mm (4.0 inches) (0.76 degrees angle) down-
ward from the height of the fog light center.

Limit:

(Vertical direction): Top  of the hot zone should be

152mm (6.0 inches) (1.14 degrees angle) in maxi-
mum downward from the height of the fog light
center.

NOTE: The horizontal direction is non-adjustable. If deviation of
the light beam axis exceeds the standard value, check that the
mounting location or some other points are not faulty.

AC306966 AB

IN THE CENTER
OF FOG LIGHT

AC307983AB

SCREEN

(1)

(2)

(3)

(3)

FOG LIGHT CENTER

VEHICLE CENTER
LINE

7.62 m (25.0 ft)

AC100547

HEIGHT OF FOG

LIGHT CENTER

VERTICAL CENTER LINE

AHEAD OF FOG LIGHT

UPPER MOST LEVEL

OF HOT ZONE

HOT ZONE

mm (in)

AB

152 (6.0)

101 (4.0)

598 (23.5)

598 (23.5)

AC307156

AB

ADJUSTING SCREW
