ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-22

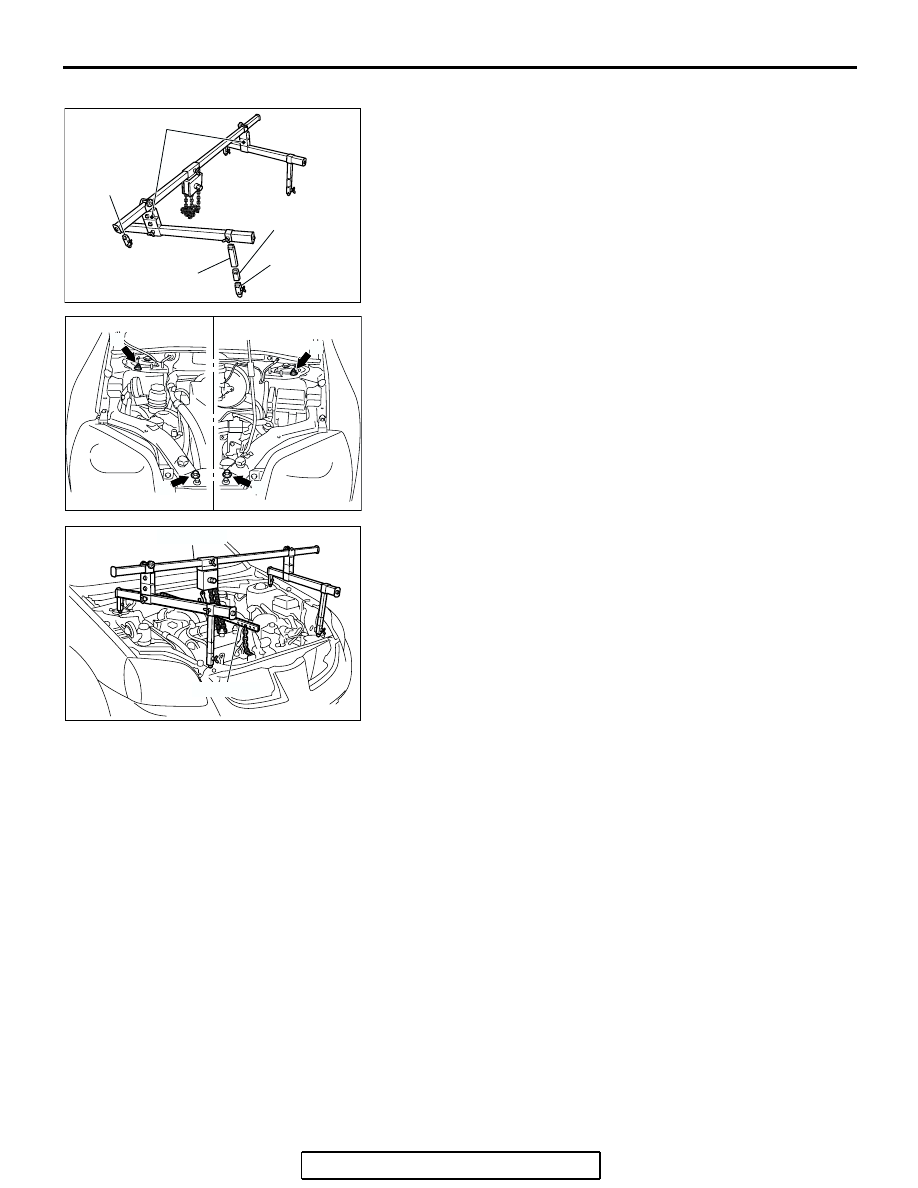

5. <Engine hanger MB991928 is used>

(1) Assemble special tool MB991928. (Set following parts to

the base hanger.)

• SLIDE BRACKET (HI)

• FOOT (STANDARD) (MB991932)

• JOINT (50) (MB991929)

• JOINT (140) (MB991931)

(2) Set special tool MB991928 to the front fender assembling

bolts (A and B) and (C and D) as shown.

(3) Set special tool MB991454 to hold the engine assembly.

NOTE: Adjust the engine hanger balance by sliding the
slide bracket (HI).

.

AC306216

FOOT
(STANDARD)
(MB991932)

FOOT
(STANDARD)
(MB991932)

JOINT (50)
(MB991929)

JOINT (140)
(MB991931)

SLIDE BRACKET (HI)

AB

AC306197

<RH>

<LH>

A

C

B

D

AB

AC306217

AB

MB991454

MB991928

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-23

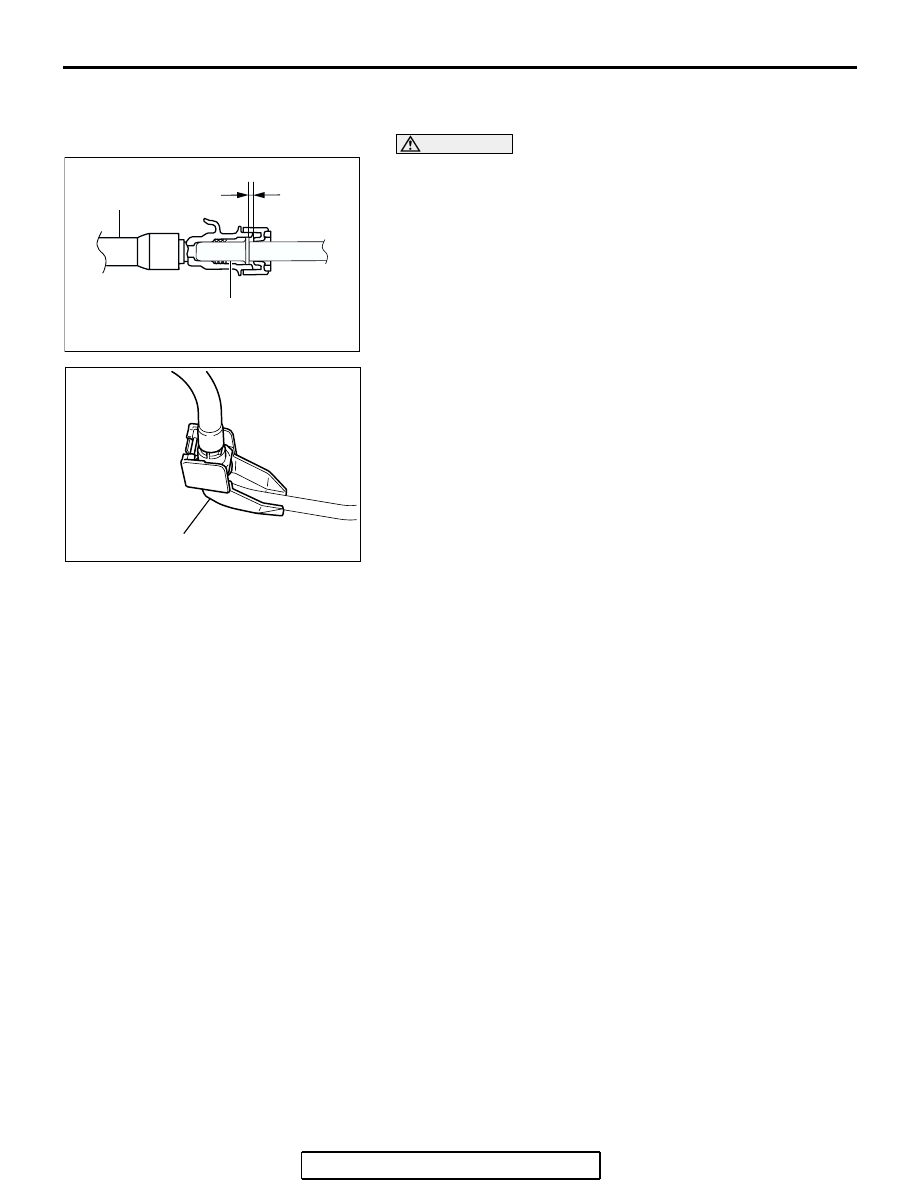

>>C<< FUEL HIGH-PRESSURE HOSE
INSTALLATION

CAUTION

After connecting the fuel high-pressure hose, slightly pull
it to ensure that it is installed securely. Also confirm that
there is a play approximately 3 mm (0.12 inch). Then install
the stopper securely.
Apply a small amount of engine oil to the fuel line pipe and then
install the fuel high-pressure hose.

AC301864AB

3 mm
(0.12 in)

FUEL
HIGH-PRESSURE
HOSE

FUEL LINE PIPE
(ENGINE OIL APPLIED)

AC304583

AB

STOPPER

CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-24

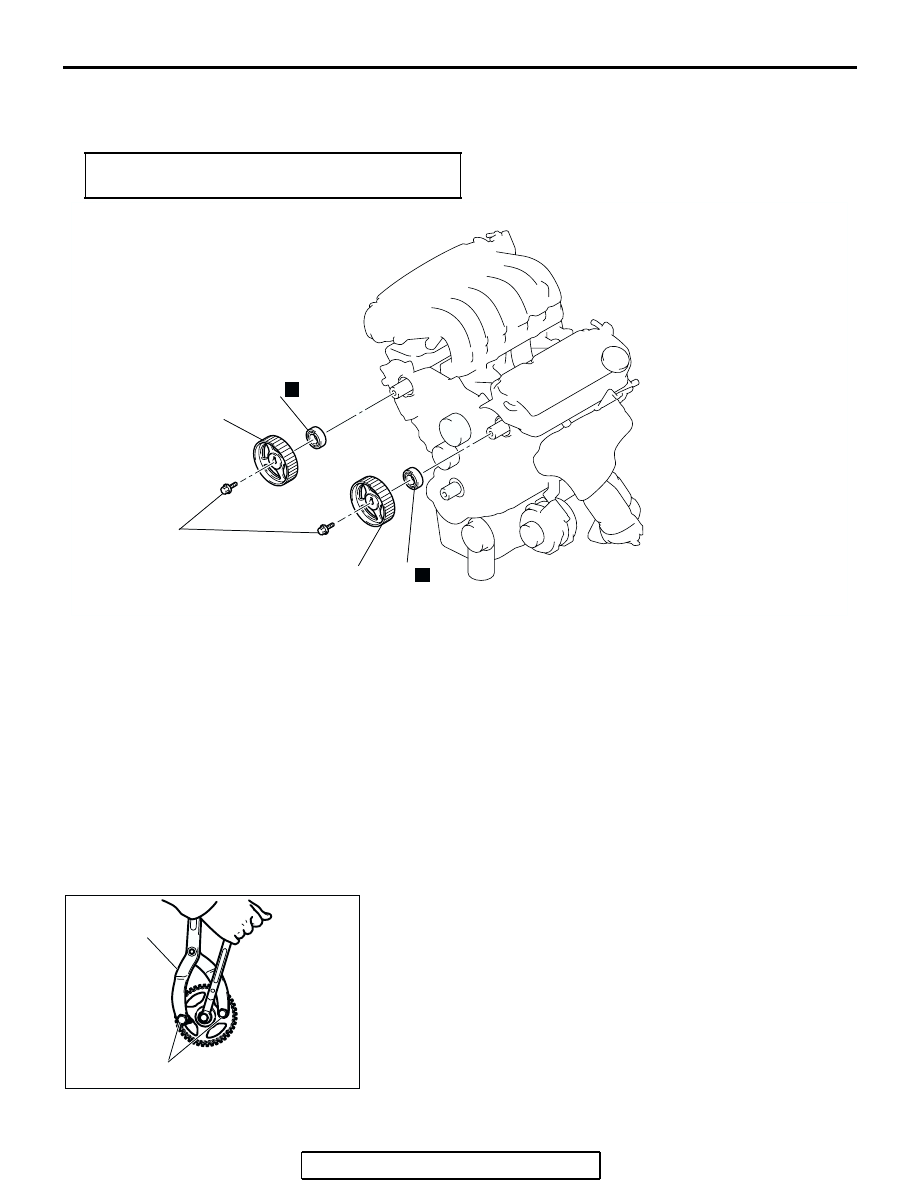

CAMSHAFT OIL SEAL

REMOVAL AND INSTALLATION

M1112002200170

Required Special Tools:

• MB990767: End Yoke Holder

• MB991559: Camshaft Oil Seal Adapter Installer

• MD998713: Camshaft Oil Seal Installer

• MD998715: Crankshaft Pulley Holder Pin

REMOVAL SERVICE POINTS

.

<<A>> CAMSHAFT SPROCKET REMOVAL

Use special tools MD998715 and MB990767 to remove the
camshaft sprocket.

.

Pre-removal and Post-installation Operation
Timing Belt Removal and Installation (Refer to

P.11C-48

.)

AC205540

88 ± 10 N·m
65 ± 7 ft-lb

1

2

3

4

N

N

AB

REMOVAL STEPS

<<A>> >>B<<

1.

LEFT BANK CAMSHAFT
SPROCKET

<<B>> >>A<<

2.

CAMSHAFT OIL SEAL

<<A>>

>>B<<

3.

RIGHT BANK CAMSHAFT
SPROCKET

<<B>>

>>A<<

4.

CAMSHAFT OIL SEAL

REMOVAL STEPS (Continued)

ACX00301AB

MB990767

MD998715

CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-25

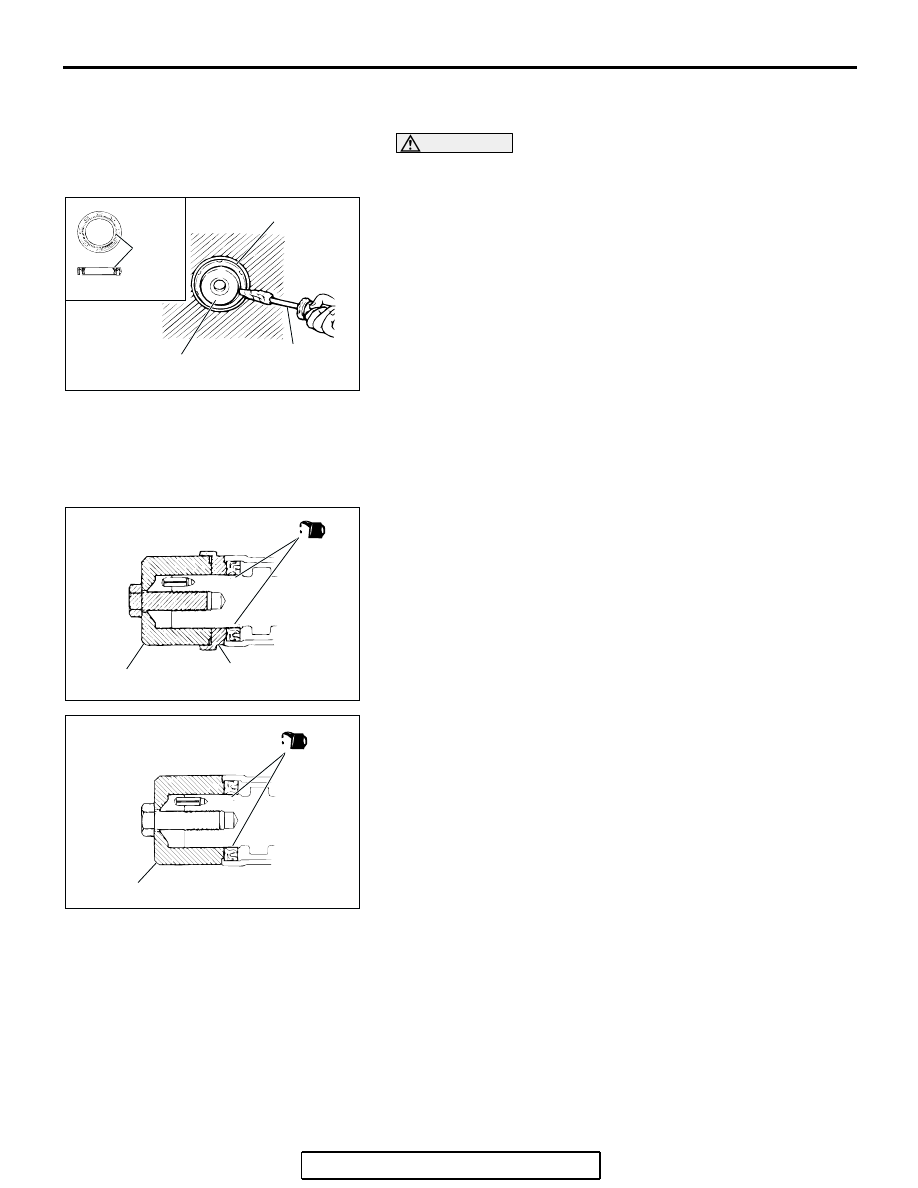

<<B>> CAMSHAFT OIL SEAL REMOVAL

1. Make a notch in the oil seal lip section with a knife, etc.

CAUTION

Be careful not to damage the camshaft and the cylinder
head.
2. Cover the end of a flat-tipped screwdriver with a shop towel

and insert into the notched section of the oil seal, and pry
out the oil seal to remove it.

INSTALLATION SERVICE POINTS

.

>>A<< CAMSHAFT OIL SEAL INSTALLATION

1. Apply engine oil to the camshaft oil seal lip.
2. Use special tools MD998713 and MB991559 to press-fit the

camshaft oil seal.

.

ACX00373AB

FLAT-TIPPED
SCREWDRIVER

CAMSHAFT

OIL SEAL

LIP
SECTION

ACX00371AB

MB991559

MD998713

<LEFT BANK>

ACX00372 AB

MD998713

<RIGHT BANK>
