ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-18

Required Special Tools:

• MB991454: Engine Hanger Balancer

• MB991895: Engine Hanger

• MB991928: Engine Hanger

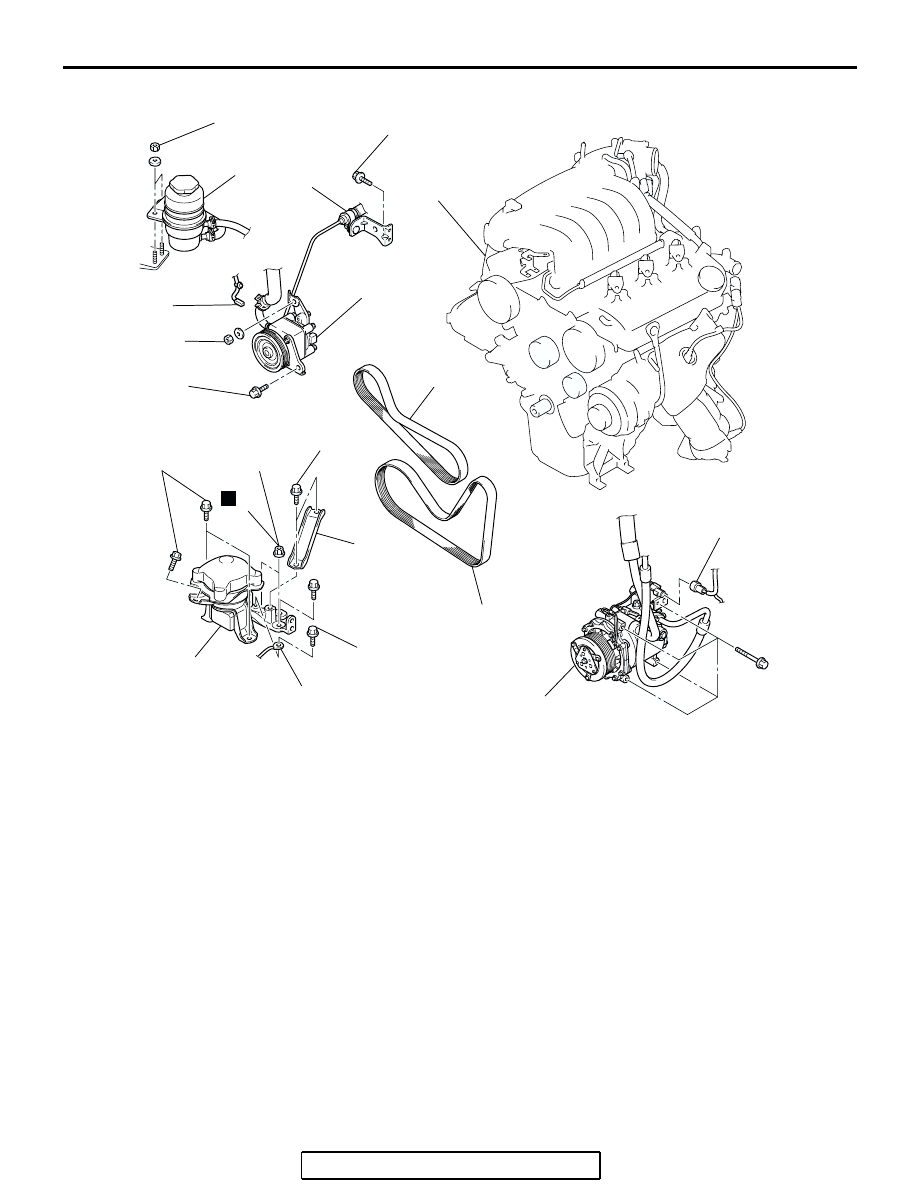

AC306783

12 ± 2 N·m
102 ± 22 in-lb

12 ± 2 N·m
102 ± 22 in-lb

42 ± 7 N·m
31 ± 5 ft-lb

46 ± 8 N·m
34 ± 6 ft-lb

58 ± 7 N·m*
43 ± 5 ft-lb*

83 ± 12 N·m*
61 ± 9 ft-lb*

83 ± 12 N·m*
61 ± 9 ft-lb*

36 ± 6 N·m
27 ± 4 ft-lb

9.0 ± 2.0 N·m
80 ± 17 in-lb

15

18

11

16

13

8

12

7

14

17

9

10

19

N

AB

7.

GENERATOR DRIVE  BELT

8.

POWER STEERING OIL PUMP
DRIVE BELT

9.

A/C COMPRESSOR ASSEMBLY
CONNECTOR

<<C>>

10. A/C COMPRESSOR ASSEMBLY
11. POWER STEERING PRESSURE

SWITCH CONNECTOR

<<D>>

12. POWER STEERING OIL PUMP
13. POWER STEERING PRESSURE

HOSE CLAMP BRACKET

<<E>>

•

RADIATOR (REFER TO GROUP
14, RADIATOR

P.14-11

.)

<<F>>

•

TRANSAXLE ASSEMBLY (REFER
TO GROUP 23A, TRANSAXLE
ASSEMBLY <F4A5A>

P.23A-395

 .)

14. ENGINE MOUNTING STAY
15. GROUNDING CABLE

CONNECTION

16. POWER STEERING OIL

RESERVOIR

17. SELF-LOCKING NUTS

<<G>> >>B<<

18. ENGINE FRONT MOUNTING

BRACKET

<<H>>

>>A<<

19. ENGINE ASSEMBLY

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-19

REMOVAL SERVICE POINTS

.

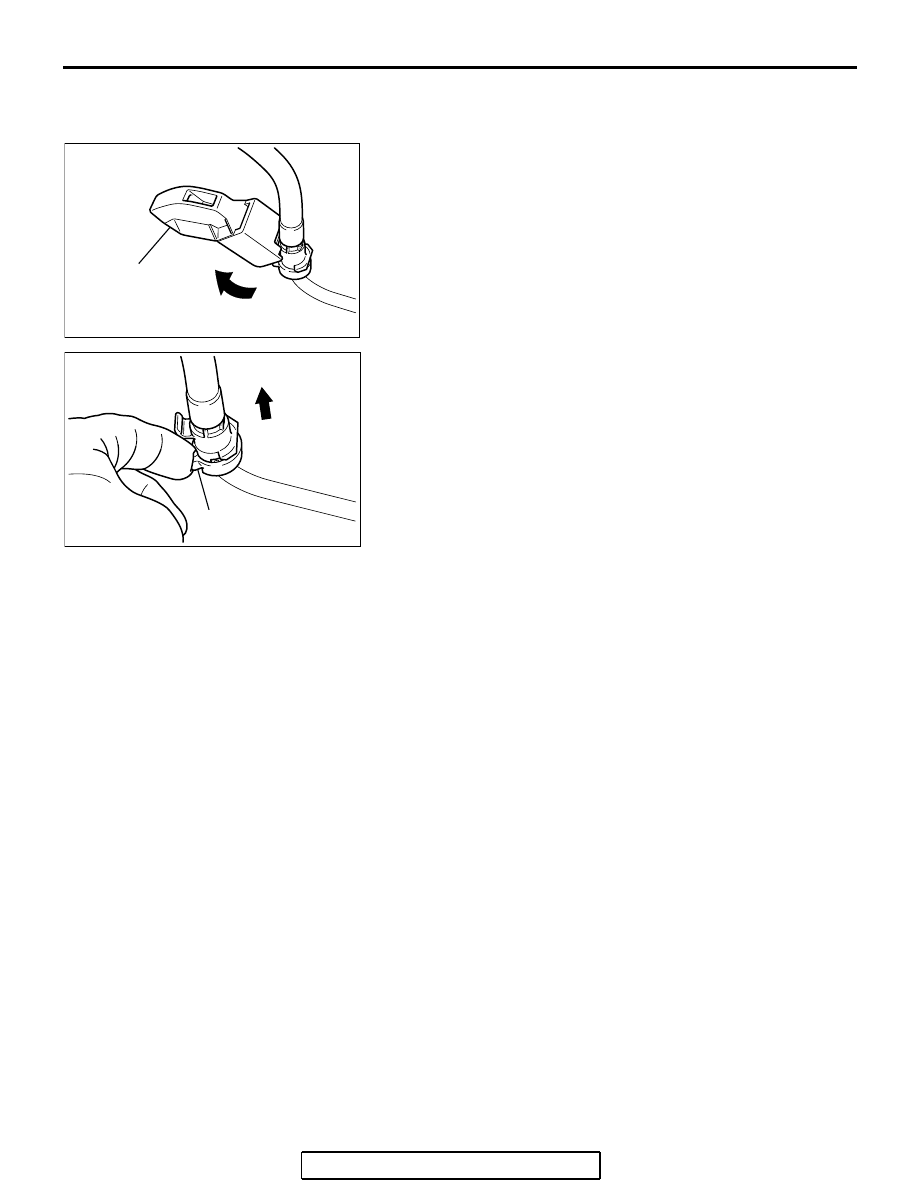

<<A>> FUEL HIGH-PRESSURE HOSE REMOVAL

1. Remove the fuel high-pressure hose stopper.

2. Remove the fuel high-pressure hose in the direction shown

in the figure while the retainer is pulled up.
NOTE: If the retainer is released, install it after removing the
fuel high-pressure hose.

.

<<B>> EXHAUST MANIFOLD (RH) REMOVAL

Do not remove the center exhaust pipe, and pull out the
exhaust manifold (RH) between the crossmember and cylinder
block.

.

<<C>> A/C COMPRESSOR ASSEMBLY REMOVAL

Remove the compressor from the compressor bracket with the
hose still attached.
NOTE: Place the removed A/C compressor where it will not be
a hindrance when removing and installing the engine assembly,
and secure it with a cord or wire.

.

<<D>> POWER STEERING OIL PUMP REMOVAL

Remove the power steering oil pump from the engine with the
hose attached.
NOTE: Place the removed power steering oil pump in a place
where it will not be a hindrance when removing and installing
the engine assembly, and secure it with a cord or wire.

.

AC304581

AB

STOPPER

AC304582

AB

RETAINER

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-20

<<E>> RADIATOR  REMOVAL

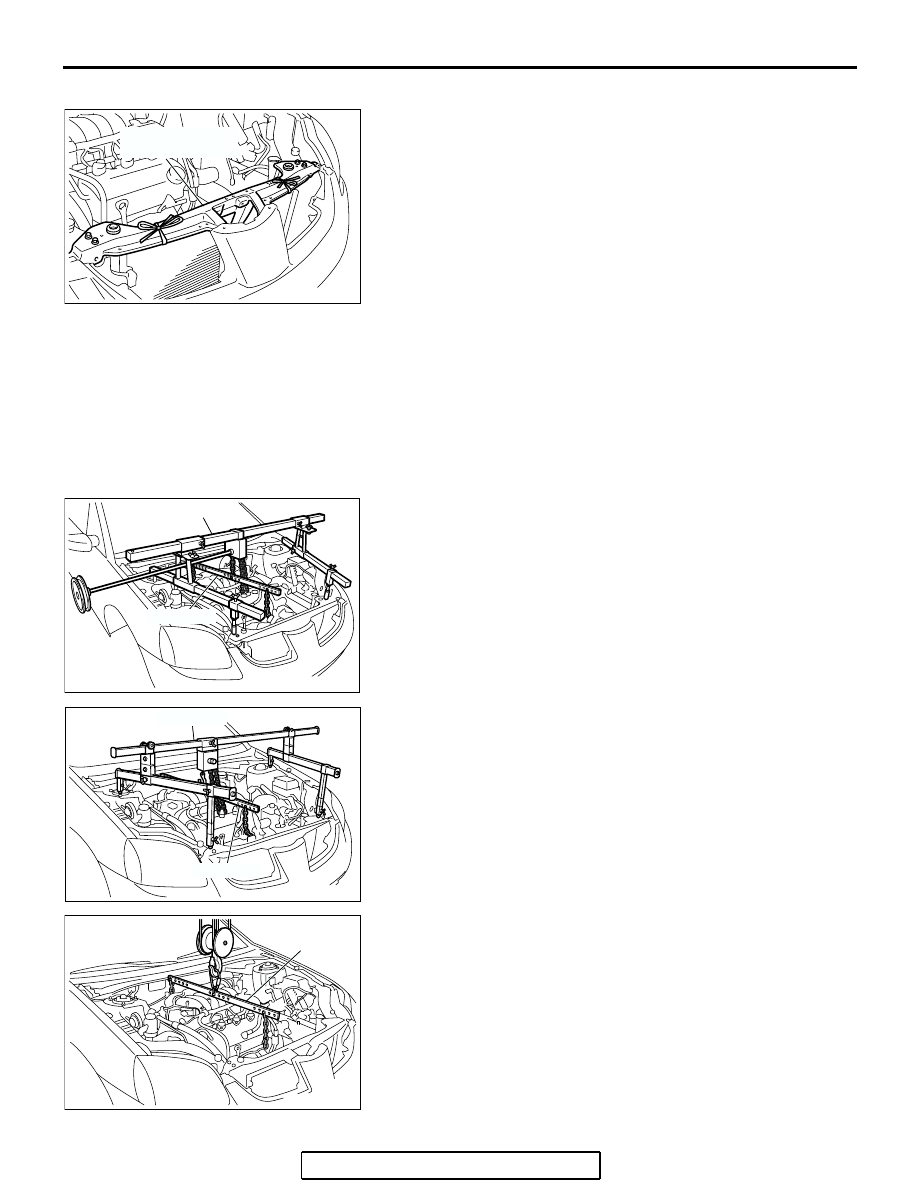

1. Assemble the front end structure bar removed temporarily

and hang the condenser assembly with a cord.

.

<<F>> TRANSAXLE ASSEMBLY REMOVAL

Remove the transaxle assembly. (Refer to GROUP 23A, Tran-
saxle assembly <F4A5A>

P.23A-395

 ).

.

<<G>> ENGINE FRONT MOUNTING BRACKET
REMOVAL

1. Support the engine with a garage jack.
2. <Engine hanger MB991895 is used>

Remove special tool MB991895.

3. <Engine hanger MB991928 is used>

Remove special tool MB991928.

4. Hold the engine assembly with a chain block, etc.
5. Place a garage jack against the engine oil pan with a piece

of wood in between so that the weight of the engine and
transaxle assembly is no longer being applied to the engine
mount.

6. Loosen the engine mount mounting nuts and bolts, and

remove the engine mount.

.

AC306135

AB

FRONT END
STRUCTURE BAR

AC306215

AB

MB991895

MB991454

AC306217

AB

MB991454

MB991928

AC306687

AB

MB991454

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-21

<<H>> ENGINE ASSEMBLY REMOVAL

After checking that all cables, hoses and wiring harness con-
nectors and so on are disconnected from the engine, lift the
chain block slowly to remove the engine assembly upward from
the engine compartment.

INSTALLATION SERVICE POINTS

.

>>A<< ENGINE ASSEMBLY INSTALLATION

Install the engine assembly, being careful not to pinch the
cables, hoses or wiring harness connectors.

.

>>B<< ENGINE RONT MOUNTING BRACKET
INSTALLATION

1. Place a garage jack against the engine oil pan with a piece

of wood in between, and install the engine mount while
adjusting the position of the engine.

2. Support the engine assembly with a garage jack.
3. Remove the chain block.

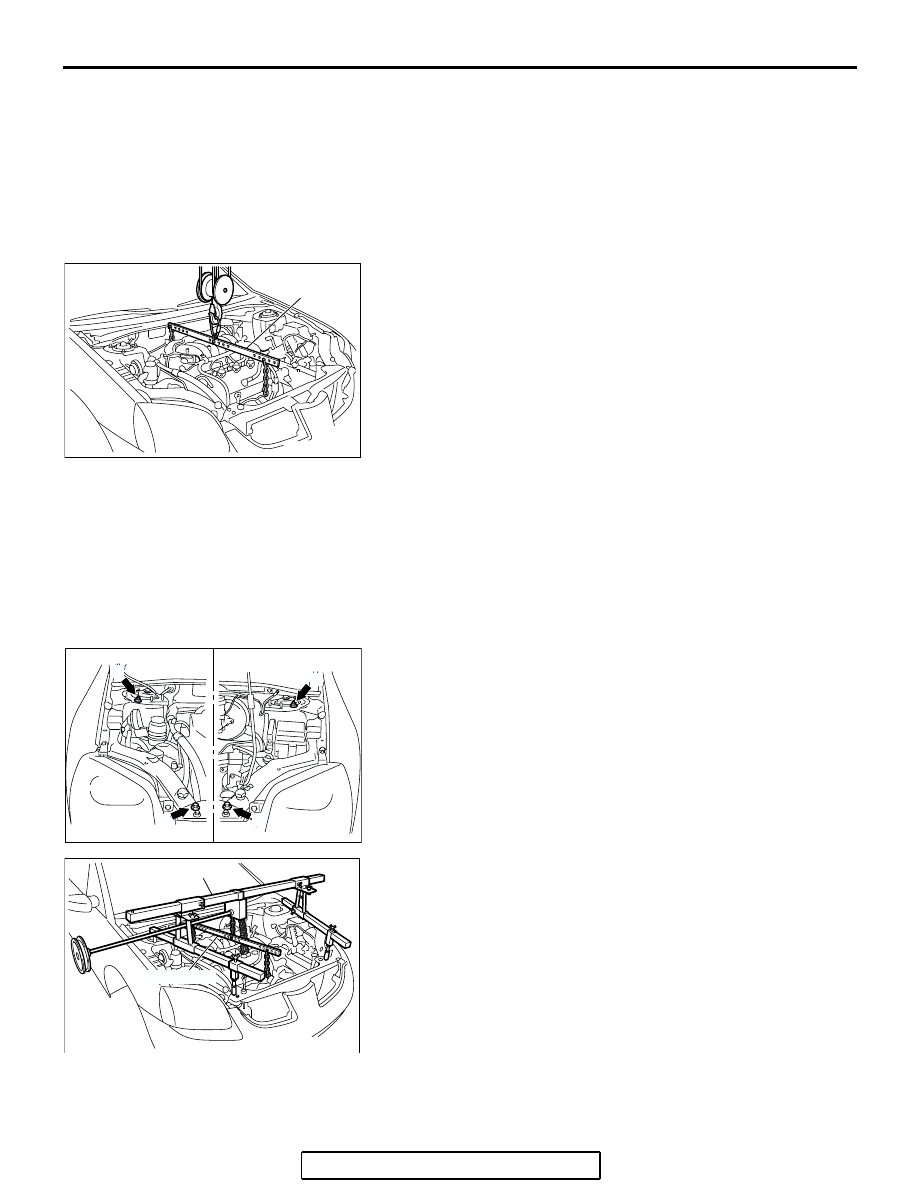

4. <Engine hanger MB991895 is used>

(1) Set special tool MB991895 to the front fender assembling

bolts (A and B) and (C and D) as shown.

(2) Set special tool MB991454 to hold the engine assembly.

AC306687

AB

MB991454

AC306197

<RH>

<LH>

A

C

B

D

AB

AC306215

AB

MB991895

MB991454
