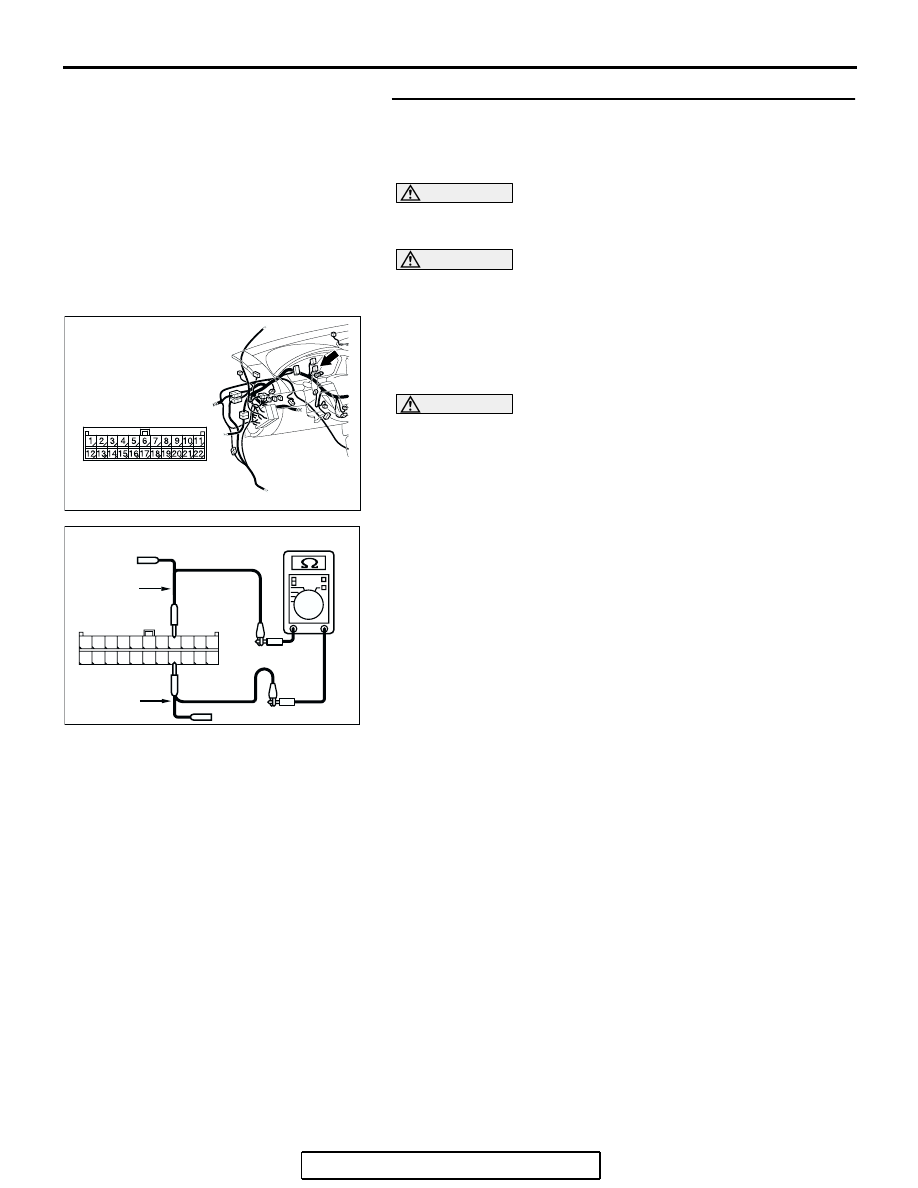

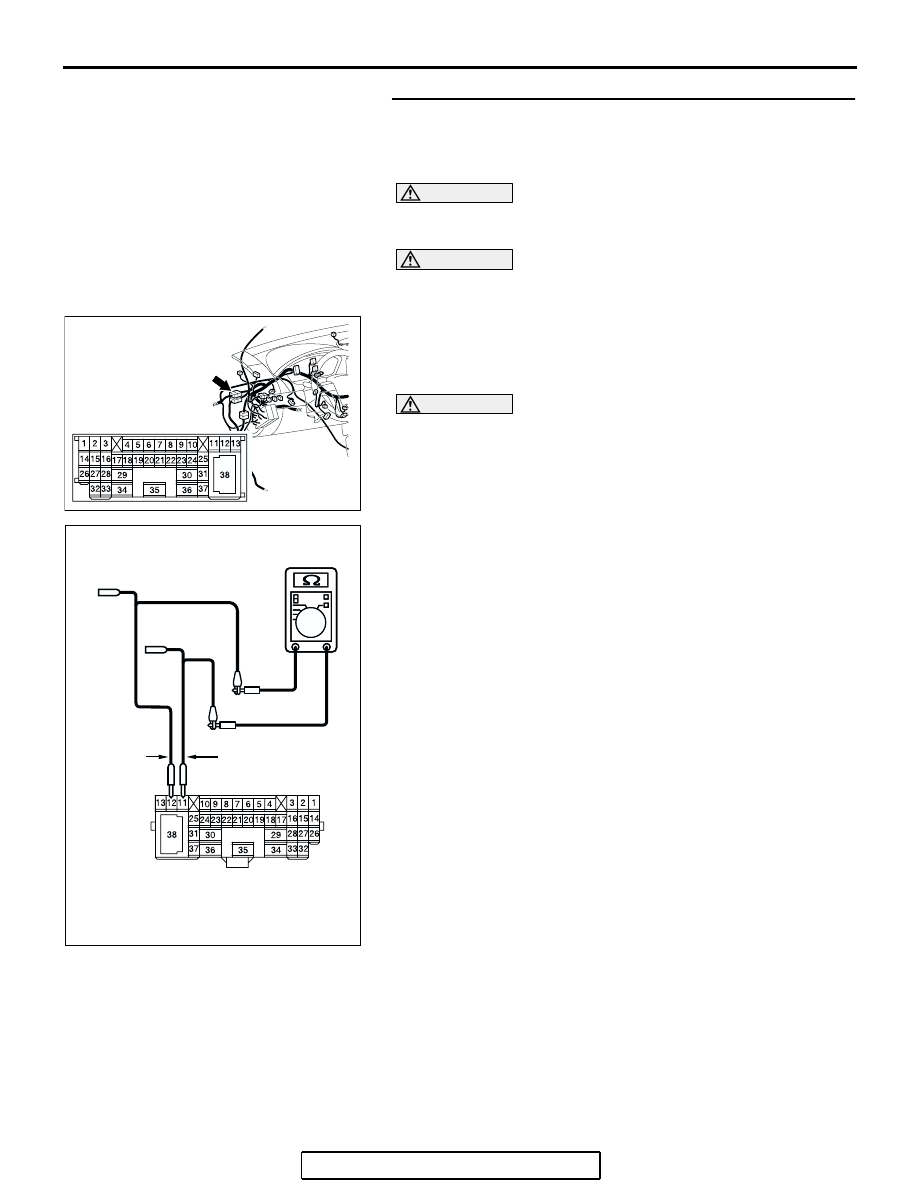

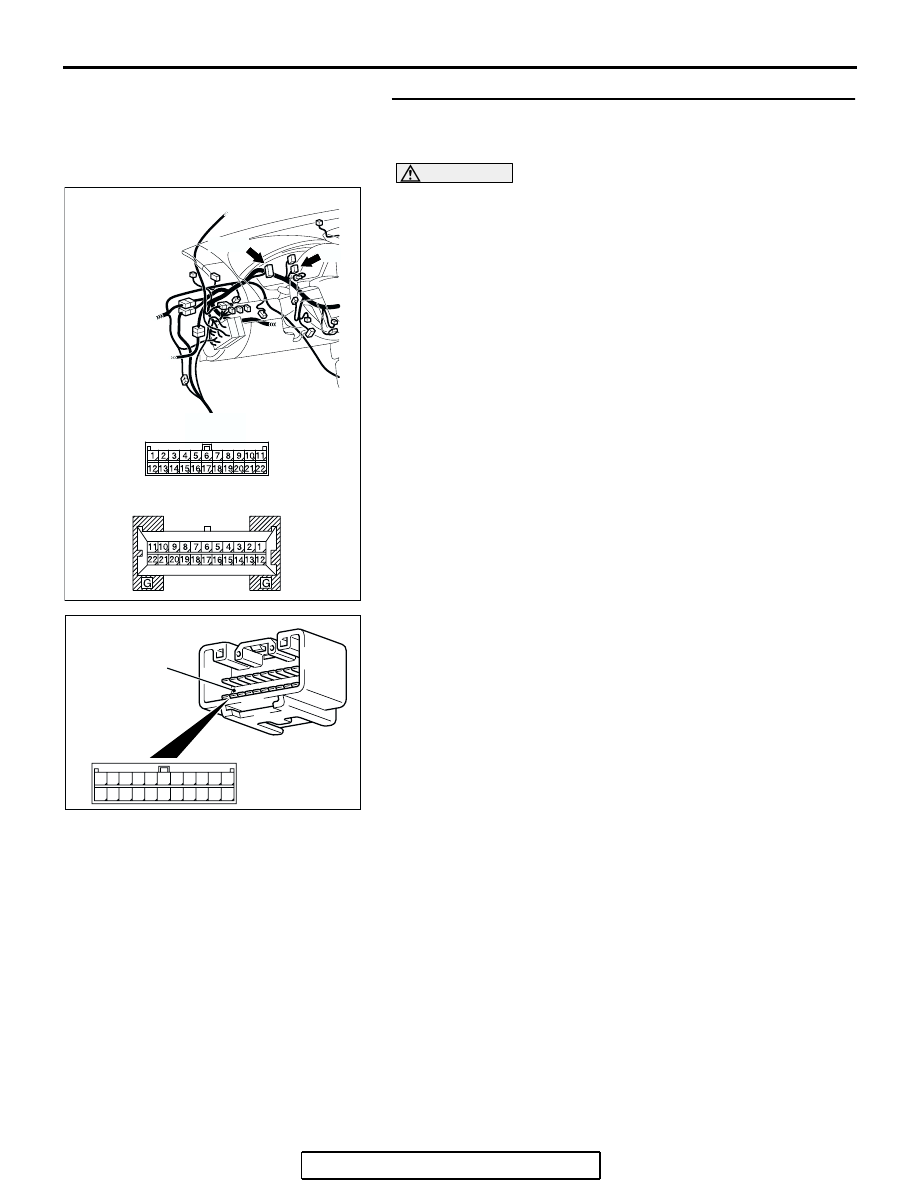

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-392 STEP 2. Check the instrument panel wiring harness side CAUTION A digital multimeter should be used. For details refer to . CAUTION The test wiring harness should be used. For details refer to . (1) Disconnect intermediate connector C-29, and measure the resistance at its female side connector (instrument panel (2) Turn the ignition switch to the "LOCK" (OFF) position. CAUTION Disconnect the negative battery terminal. For details refer (3) Disconnect the negative battery terminal. (4) Measure the resistance between intermediate connector terminals 11 and 12. OK: 120 ± 20 Ω Q: Does the resistance measure 120 ± 20 Ω? YES : If the resistance measures 120 ± 20 Ω, go to Step 8. NO : If the resistance does not measure 120 ± 20 Ω, go to Step 3 . AC305231AI CONNECTOR: C-29 AC204582 AC204582CZ TEST TEST FEMALE SIDE: C-29 |
