HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-145

STEP 2. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-105

."

(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 3.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 3. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.
(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.54A-105

."

(2) Turn the ignition switch to the "ON" position.
(3) Check whether the ETACS-ECU related DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU. Refer to ETACS,

Diagnosis

P.54A-582

.

NO :  Go to Step 4.

STEP 4. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Perform the actuator test for the combination meter, and

check that the high-beam indicator light illuminates (Refer
to combination meter

P.54A-82

).

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normal?

YES : Replace the ETACS-ECU.
NO :  Replace the combination meter.

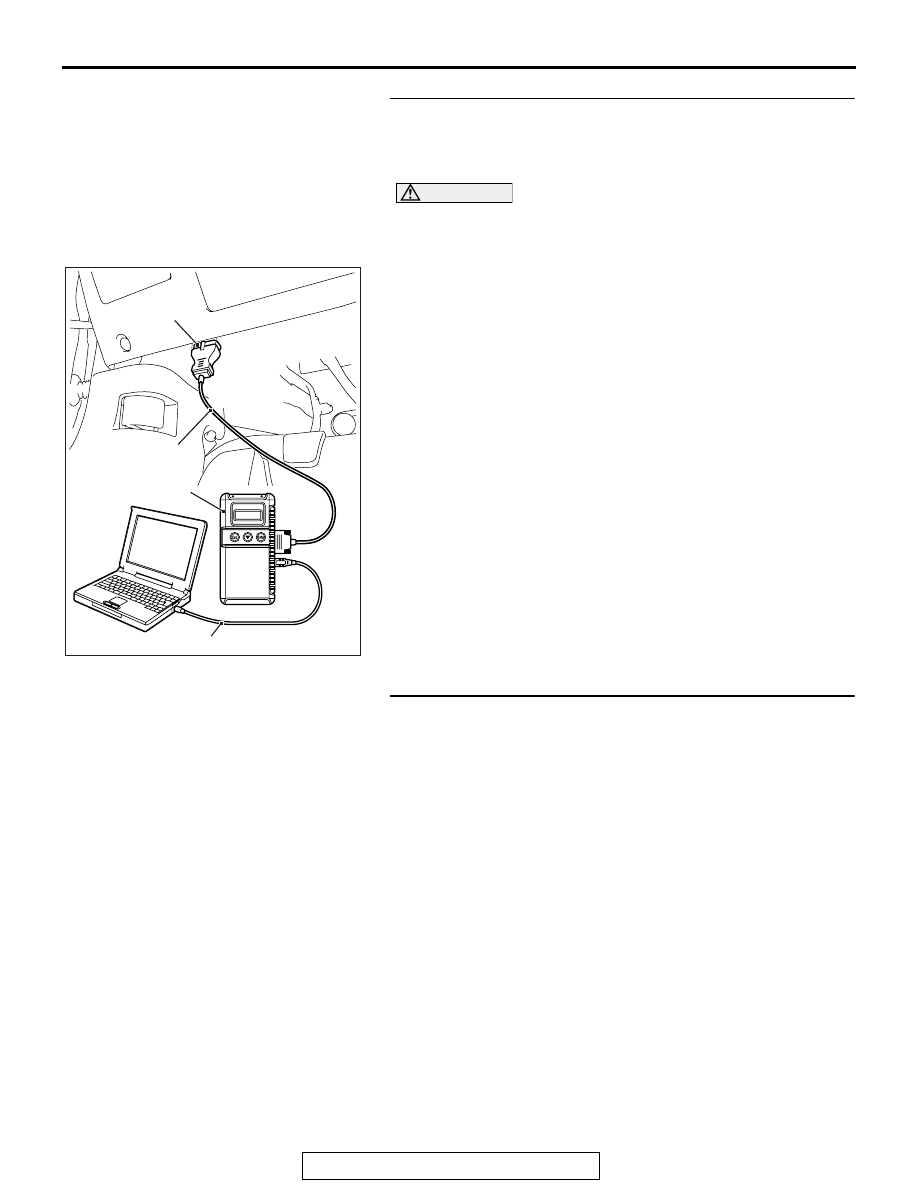

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-146

Inspection Procedure 7: The headlight automatic shutdown function does not work normally.

CAUTION

Whenever the ECU is replaced, ensure that the
power supply circuit, the ground circuit and the
communication circuit are normal.

.

OPERATION

The ETACS-ECU operates this function in accor-
dance with the input signals from column switch
(lighting switch), ignition switch (IG1), and front door
switch (LH).

.

TECHNICAL DESCRIPTION (COMMENT)

If the headlight automatic shutdown function does
not work normally, the above described input circuits
or ETACS-ECU may have a problem. Also, it may be
possible that the headlight automatic shutdown func-
tion is set to "Disable" through configuration function.

.

TROUBLESHOOTING HINTS

• Malfunction of front door switch (LH)

• Malfunction of the ETACS-ECU

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-147

STEP 1. Using scan tool MB991958, Check the
configuration function.
Use the ETACS-ECU configuration function to check that the
"Head light auto cut customize" is set to "C-spec."

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool (M.U.T.-III)

P.54A-105

."

(2) Turn the ignition switch to the "ON" position.
(3) Use the ETACS-ECU configuration function to check that

the "Headlight auto cut customize" is set to "C-spec."

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Use the ETACS-ECU configuration function to set the

"Headlight auto cut customize" to "C-spec." (Refer to

P.54A-183

).

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code.
(1) Turn the ignition switch to the "ON" position.
(2) Check whether the ETACS-ECU related DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to ETACS,

Diagnosis

P.54A-582

).

NO :  Go to Step 3.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-148

STEP 3. Using scan tool MB991958, check data list.
Use the ETACS-ECU service data to check the signals related
to the operation of headlight automatic shutdown function.

• Turn the ignition switch to the LOCK (OFF) position.

• Illuminate the headlights.

• Open the driver's door.

Q: Does scan tool MB991958 display the items "Head light

LO ON duty", "IG voltage" and "Dr door ajar switch" as
normal condition?
YES : Go to Step 4.
NO :  Troubleshoot the ETACS-ECU. Refer to ETACS,

Diagnosis

P.54A-639

.

STEP 4. Retest the system
Check that the headlight automatic shutdown function works
normally.
Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points, How to
Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the ETACS-ECU.

Item No.

Item name

Normal
condition

Item 206

Head light LO ON
duty

100%

Item 254

IG voltage

0 V

Item No.

Item name

Normal
condition

Item 256

Dr door ajar switch

Open
