Mitsubishi Evolution X. Manual - part 503

DOOR

TSB Revision

BODY

42A-115

POWER WINDOW CHECK

M1429004400656

Check the power window as described below. If it does not
work, perform troubleshooting (Refer to

P.42A-57

• Turn off the power window lock switch of the power window

main switch, and operate each of the power window
switches to check that each power window operates.

• Turn on the power window lock switch of the power window

main switch, and operate the front and rear passenger's
power window sub switches to check that the power win-
dows do not work.

• Turn on the power window lock switch of the power window

main switch, and operate the power window main switch to
check that each power window operates.
NOTE: The power window lock switch function can be
adjusted with the customization feature, confirm it before
check (Refer to

P.42A-120

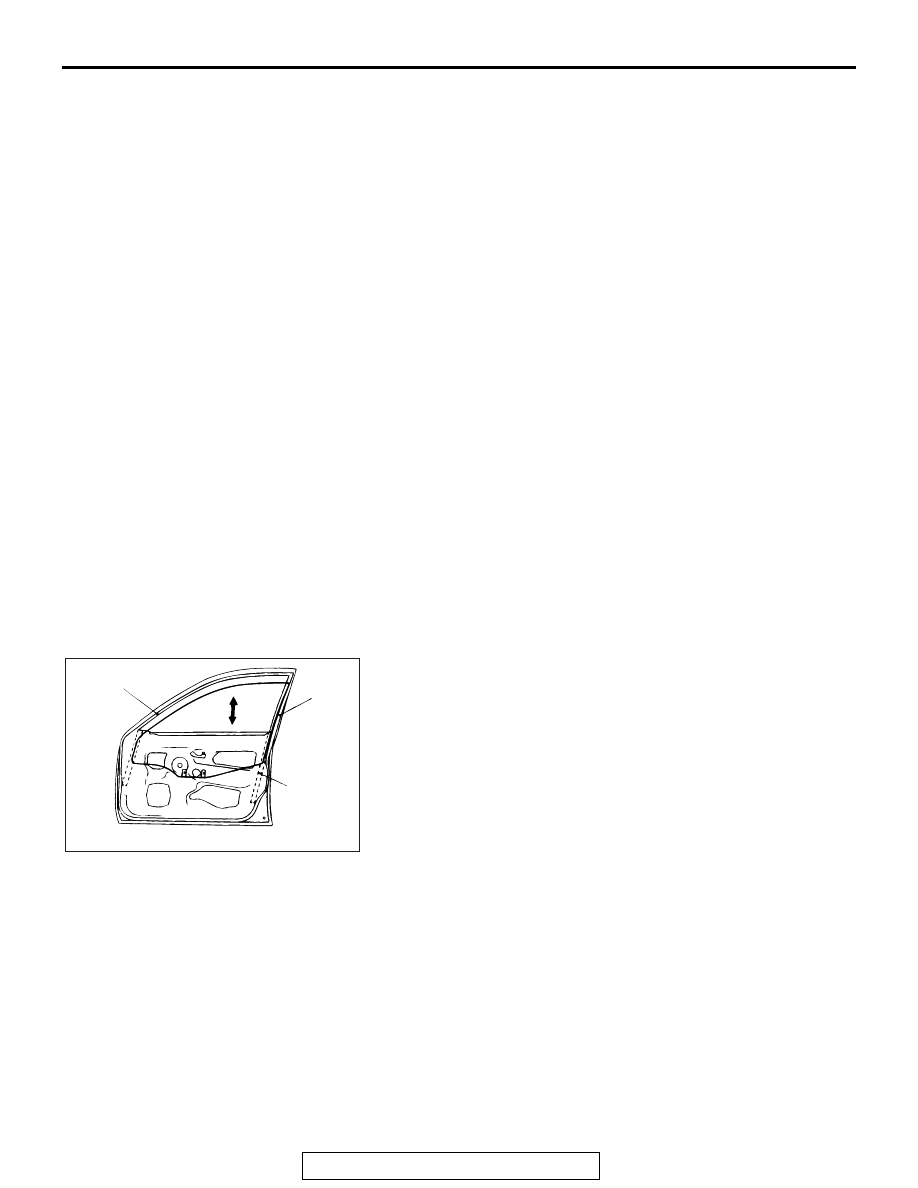

GLASS SLIDING MECHANISM CHECK AND
ADJUSTMENT

M1429000900411

If the door window glass wrongly, automatically lowers while
being raised, adjust or replace as follows:
1. Remove the door trim assembly (Refer to GROUP 52A,

Door Trim

P.52A-15

2. Remove waterproof film (Refer to

P.42A-136

3. Remove the window regulator assembly from the door

window glass, and then raise and lower the door window
glass by hand to check the operation force.

4. If the door window glass does not move up and down

smoothly, check and repair as follows:

• Check the installation condition of the runchannel.

• Straighten twist in the door sash.

• Check the installation condition of the lower sash.

5. If repair or adjustment is impossible, replace the door

assembly.

AC003777

Runchannel

Door
sash

Lower
sash

DOOR

TSB Revision

BODY

42A-116

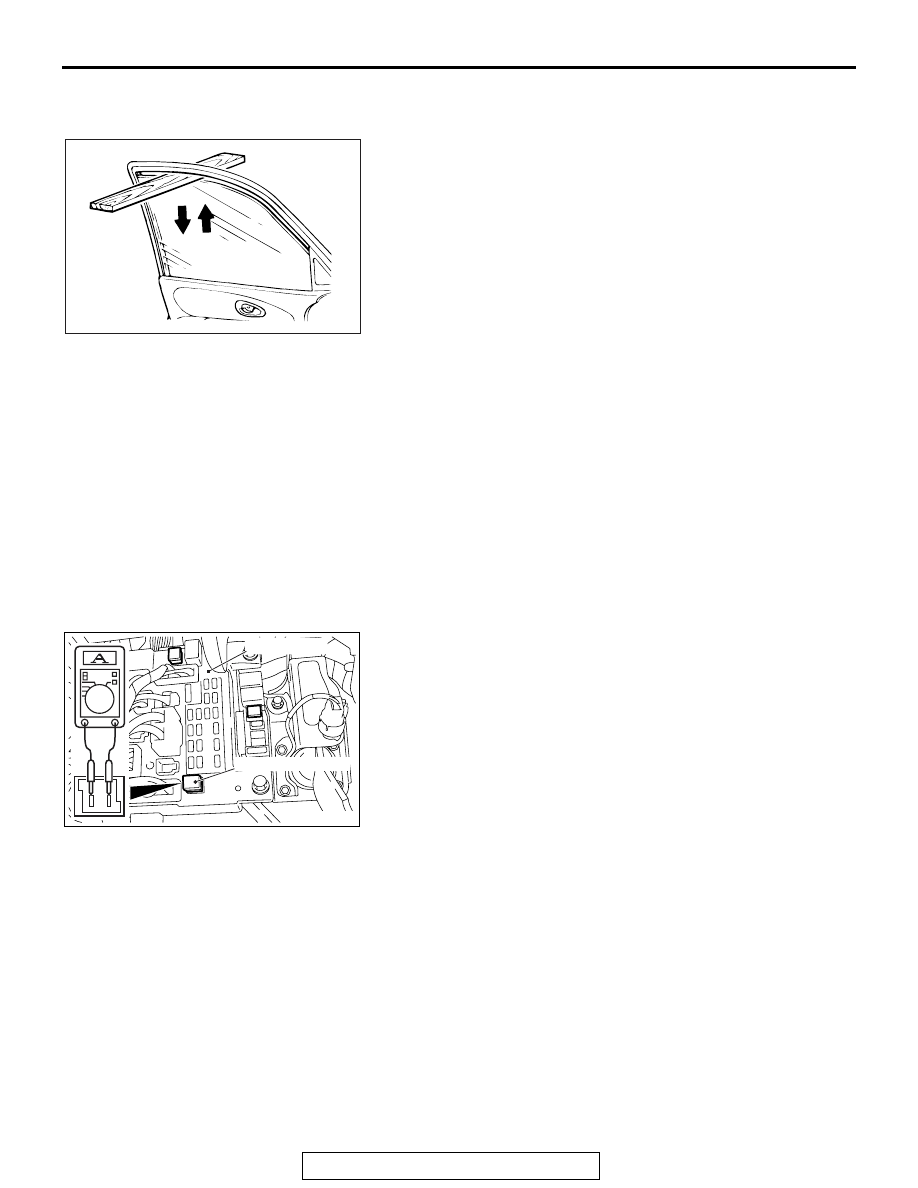

POWER WINDOW SAFETY MECHANISM CHECK
<DRIVER’S SIDE>

M1429013700031

1. Place an approximately 10 mm (0.39 inch) thick wood chip

as shown. Then, raise the window glass.

2. Check that the window lowers by about 150 mm (5.9 inches)

when the window clamps the board. If this doesn't happen,
do troubleshooting. Refer to

P.42A-58

NOTE: If the anti-trap function (safety mechanism) is acti-
vated consecutively three times or more, carry out the learn-
ing procedures of the power window fully closed position
(Refer to

P.42A-117

POWER WINDOW TIMER FUNCTION CHECK

M1429004300585

Check the power window timer as described below. If it does
not work, perform troubleshooting (Refer to

P.42A-57

• Close the door and turn the ignition switch to the LOCK

(OFF) position, and then check that the power windows
operate for 30 seconds.

• Close the door and turn the ignition switch to the LOCK

(OFF) position. While the timer is on, open the driver's door
or front passenger's door, and check that the timer is can-
celled.

POWER WINDOW OPERATING CURRENT CHECK

M1429001100601

1. Remove the power window fuse, and connect a multimeter

as shown in the illustration.

2. Raise the power window to measure the current during

operation.

Standard value (A): 7 A or less [Power supply voltage
14.5

± 0.5V, 25° C (77° F)]

NOTE: If the power supply voltage does not meet the stan-
dard value, check and repair the generator and the battery.
Then carry out this check again.

3. If the operation current is outside the standard value, refer to

P.42A-57

AC605581

AC605695

Power window fuse

ETACS-ECU

DOOR

TSB Revision

BODY

42A-117

LEARNING PROCEDURES OF THE POWER
WINDOW FULLY CLOSED POSITION <DRIVER’S
SIDE>

M1429004600218

LEARNING PROCEDURES OF THE FULLY
CLOSED POSITION WHEN THE POWER WINDOW
SWITCH IS REMOVED, OR THE POWER WINDOW
REGULATOR ASSEMBLY IS REMOVED OR
REPLACED

1. If the anti-trap function (safety mechanism) is activated

consecutively three times or more, the fully closed position
that the power window switch has learned will be erased
(initialized).

2. Operate the power window switch and fully open the door

window glass.

CAUTION

The anti-trap function will not activated until the learning
procedures of the fully closed position have been com-
pleted (because the anti-trap function was reset).
3. Operate the power window switch and fully close the door

window glass. The power window activates for 0.7 seconds
and stops automatically when the power window switch is
pressed once. Repeat this operation until the door window
glass fully closes and release the switch once. Then, hold
the power window switch to the fully closed side again for
one second so that the power window switch completes
learning the fully closed position.
NOTE: If the power window switch is operated to open the
door window glass while the switch is learning, the learning
will be cancelled. If this happens, return to step 2.

LEARNING PROCEDURES WHEN THE POWER
WINDOW SWITCH IS REPLACED WITH A NEW
ONE

CAUTION

The anti-trap function will not activated until the learning
procedures of the fully closed position have been com-
pleted (because the anti-trap function was reset).
Operate the power window switch to fully close the door win-
dow glass by one-shot up action so that the power window
switch will complete learning (no initialization is required).

DOOR

TSB Revision

BODY

42A-118

CENTRAL DOOR LOCKING SYSTEM CHECK

M1427001100553

• Check that the central door locking system works by operat-

ing the door lock switch. If it does not operate, perform trou-
bleshooting. Refer to

P.42A-30

NOTE: When the inside lock knob is operated with the
driver's door opened, the driver's door is not locked.

• Check whether the driver's door is opened when the driver's

door inside handle is pulled with all the doors locked. If it
does not operate, replace the driver's door latch assembly.
Refer to

P.42A-129

CHECK OF KEY LOCK PREVENTION FUNCTION

M1427003300285

Check that the driver's door is not locked when the driver's door
inside lock knob is operated with the driver's door opened. If it
is locked, replace the door latch. Refer to

P.42A-129

SHIFT "P" INTERLINK DOOR UNLOCK FUNCTION
CHECK <VEHICLES WITH TC-SST>

M1427003400237

When the selector is moved to the P (parking) position with the
ignition switch on, all the doors will be unlocked. Carry out trou-
bleshooting if the door is unlocked. Refer to

P.42A-30

NOTE: The selector "P" position-linked door unlocking function
can be switched with the customization function. Confirm it
before check. Refer to

P.42A-120

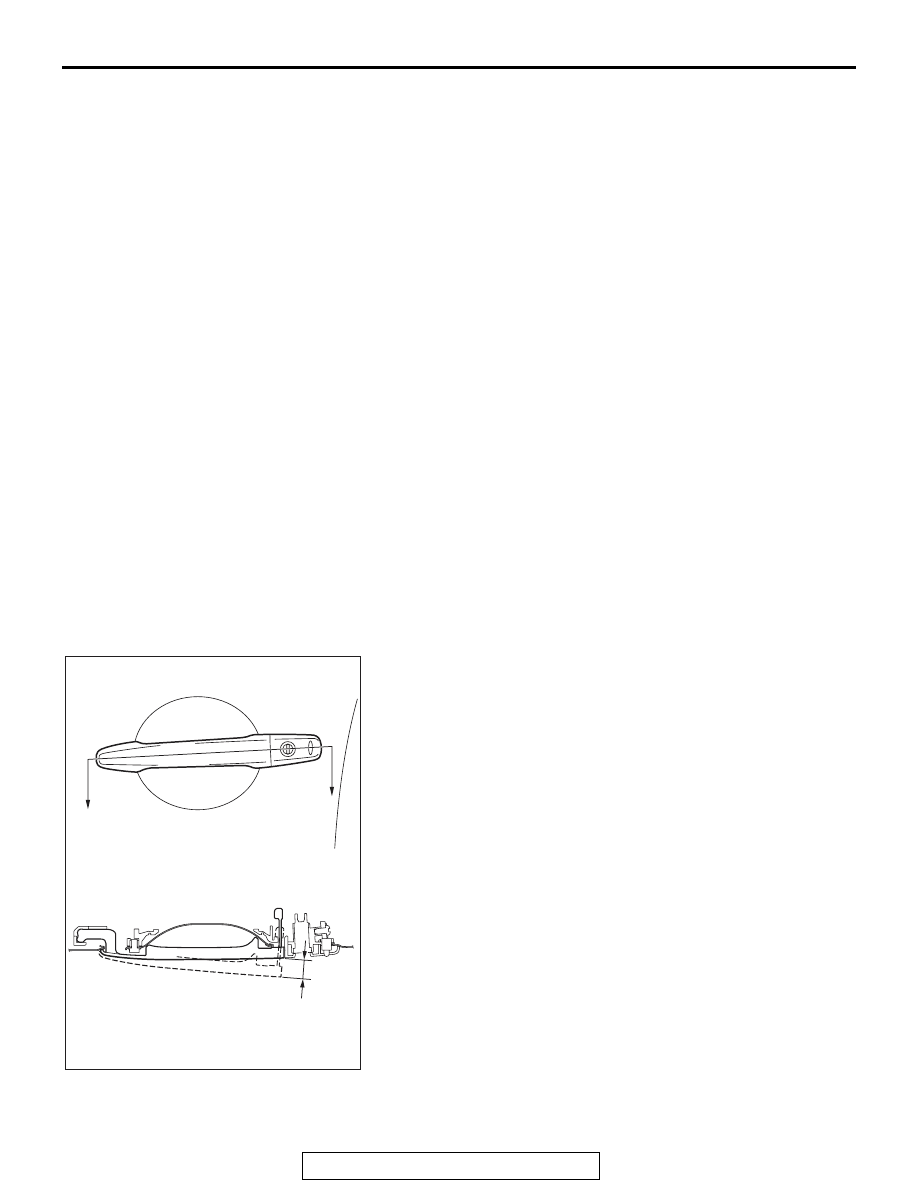

DOOR OUTSIDE HANDLE PLAY CHECK

M1423001600590

1. Check that the door outside handle assembly play meets the

standard value.

Standard value (B): 0.3

− 5.0 mm (0.01 − 0.2 inch) [Target

value: 2.4 mm (0.09 inch)]

2. Check the door outside handle assembly and door latch

assembly, and replace them if they are out of the standard
value.

AC605582

Section A – A
