DOOR

TSB Revision

BODY

42A-107

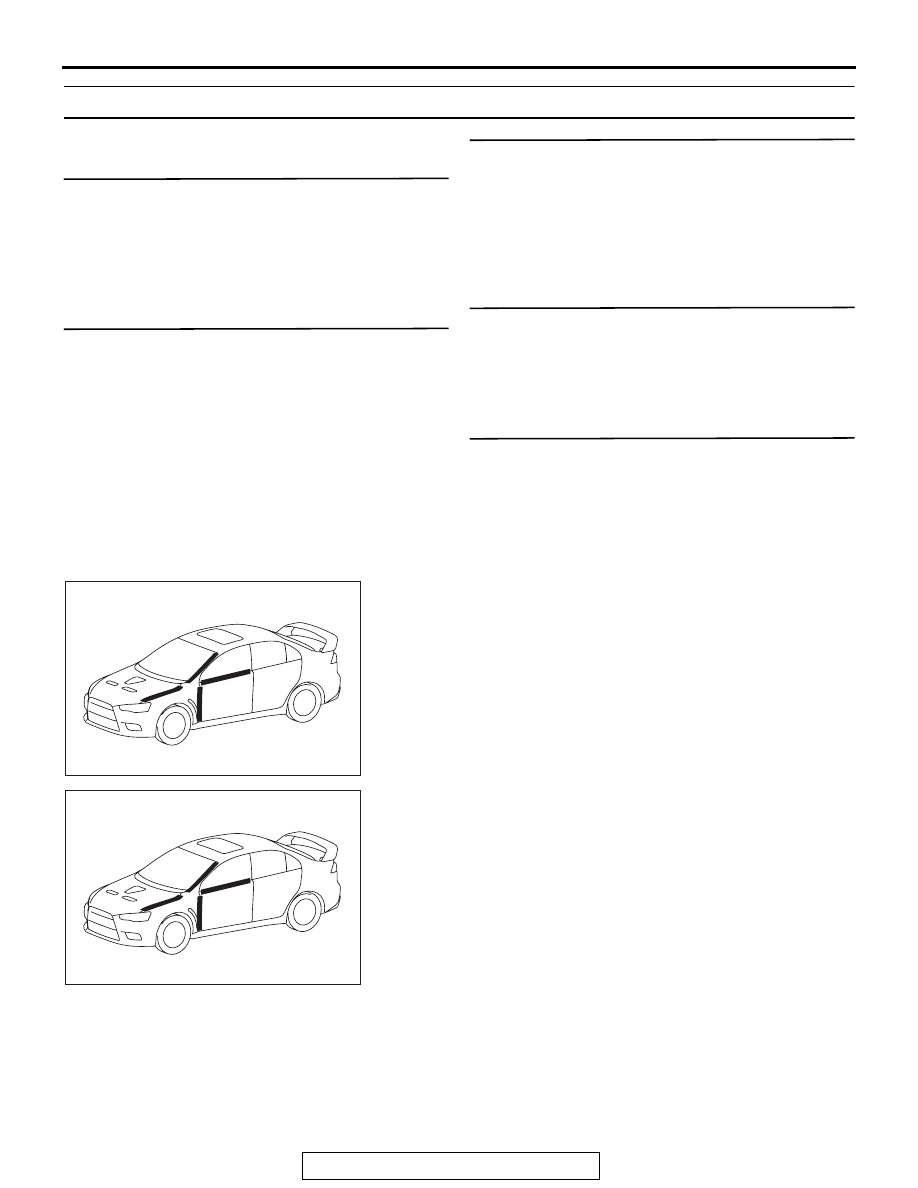

INSPECTION PROCEDURE 8: Wind Noise Around Door

DIAGNOSIS

STEP 1. Check the weatherstrip for holding
condition.

Q: Is the weatherstrip holding firmly?

YES :

Go to Step 2.

NO :

Adjust fit of door. Refer to

P.42A-115

.Then

go to Step 5.

STEP 2. Check the weatherstrip for installation
condition.

Q: Is the weatherstrip for installed properly?

YES :

Go to Step 3.

NO :

Repair or replace the weatherstrip. Then go
to Step 5.

STEP 3. Check the clearance.

Q: Are the door glass and the door weatherstrip

holder assembled correctly?
YES :

Go to Step 4.

NO :

Adjust the door glass and the door
weatherstrip. Refer to

P.42A-115

. Then go

to Step 5.

STEP 4. Check the door.

Q: Is the door deformed?

YES :

Repair or replace the door. then go to Step

5.

NO :

Go to Step 5.

STEP 5. Retest the system.

Q: Has the wind noise been improved?

YES :

Return to Step 1.

NO :

This diagnosis complete.

HOW TO LOCATE WIND NOISE

M1421004200294

1. Attach cloth tape to every place, such as panel seams,

projections, molding seams, glass and body seams, etc.
which might conceivably be the source of wind noise.

2. Then make a road test to check that the places not covered

by tape are not sources of wind noise.

3. Remove the strips of tape one by one, making a road test

after each is removed, until a wind noise source is
discovered.

AC708683

AC708683

DOOR

TSB Revision

BODY

42A-108

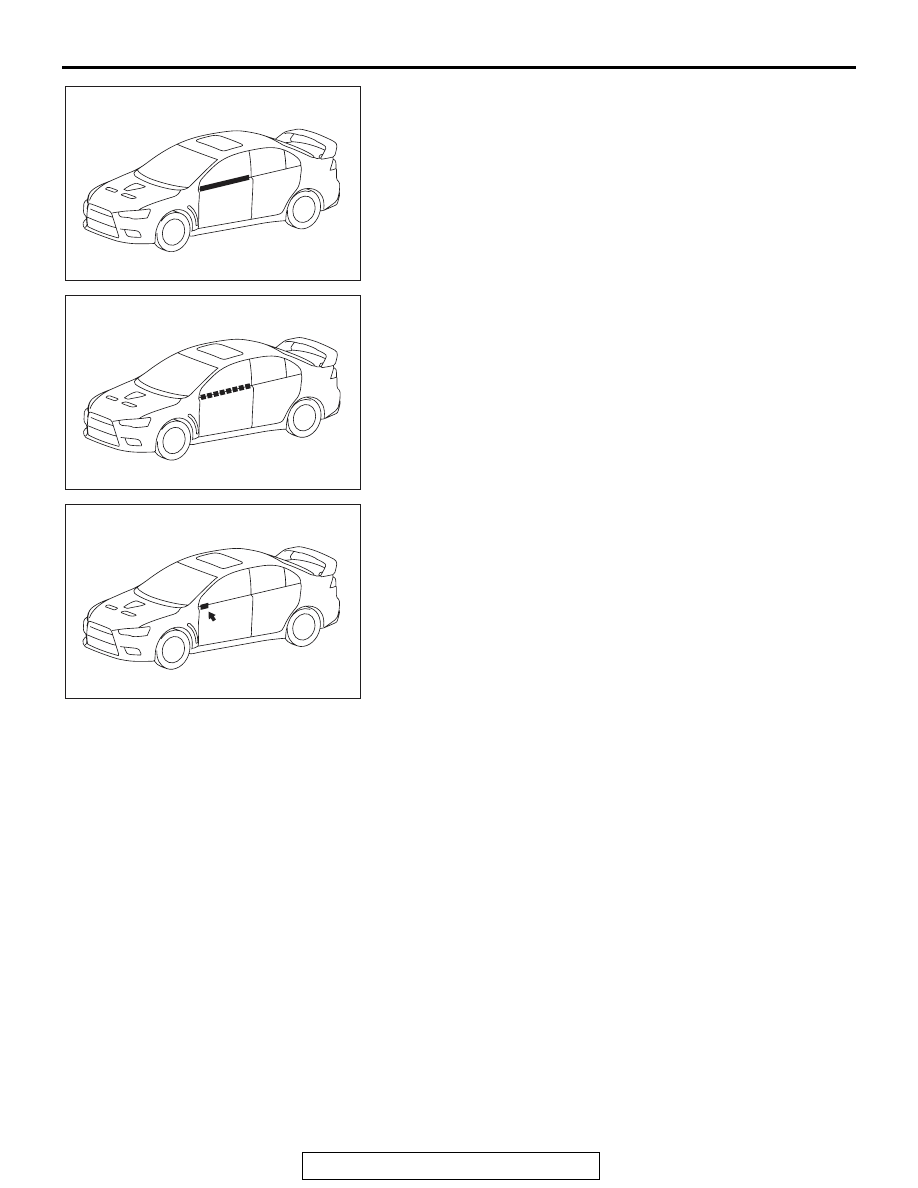

4. When such a place is found, cover it again and repeat the

procedure to check if there are any other noise source.

5. If no others are found, the last remaining tape is the only

source.

6. Cut the remaining piece of tape into smaller pieces, attach it

again as it was before, and then remove the pieces one by
one to narrow down the source.

7. Check that wind noise occurs when the last remaining tape

is removed, and that noise does not occur when it is
re-attached.

8. When the source(s) of the wind noise is finally located,

attach butyl tape, body sealer or similar material to obstruct
this source as much as possible.

AC708684

AC708685

AC708686

DOOR

TSB Revision

BODY

42A-109

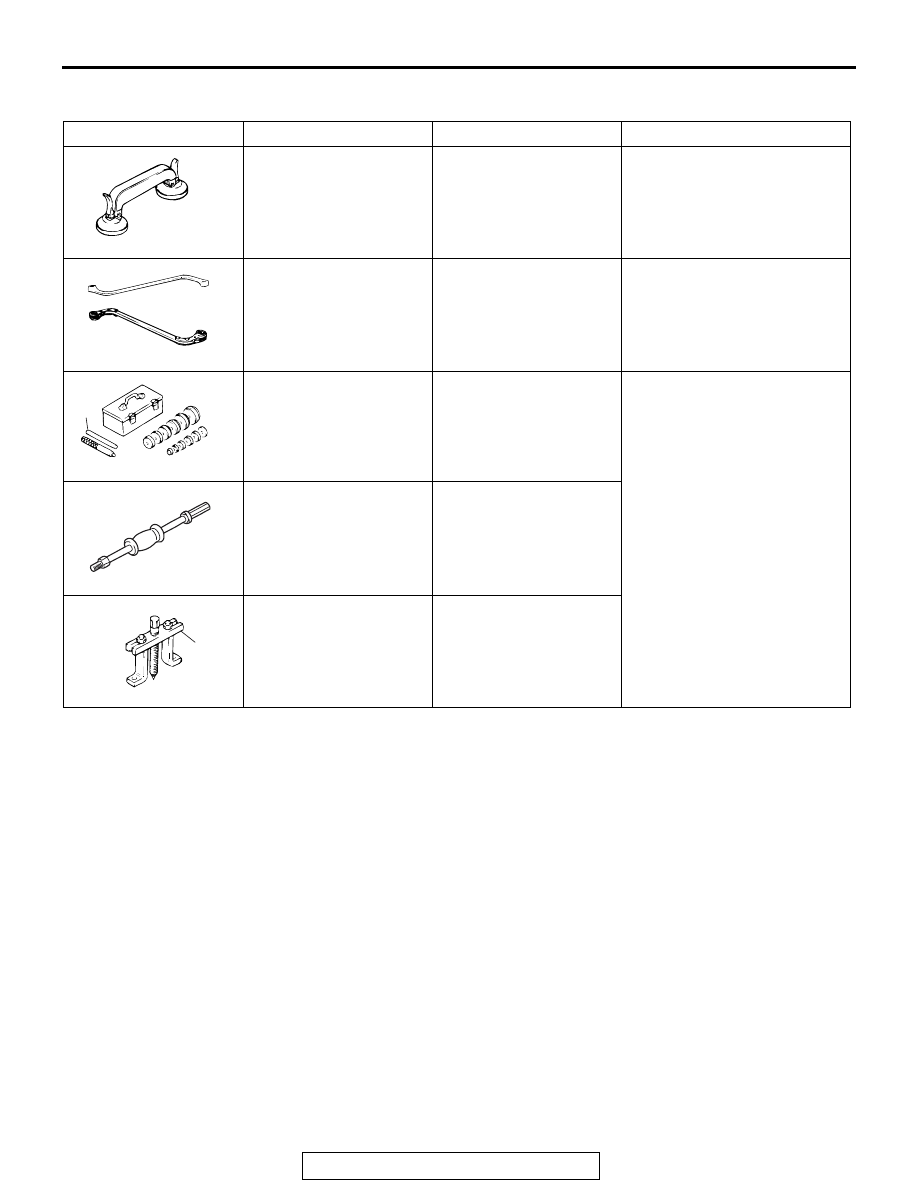

SPECIAL TOOLS

M1423000601006

Tool

Tool number and name Supersession

Application

MB990480 Glass holder General service tool

Removal of power window
regulator assembly

MB990900 or
MB991164 Door
adjusting wrench

MB990900-01

Adjustment of door fit

MB990925 Bearing and
oil seal installer set

a: MB990939 Remover

bar

MB990925-01 or
General service tool

Adjustment of door striker

MB990211 Slider
hammer

MB990211-01

MB990241 Axle shaft
puller

a: MB990243 Body

puller

MB990241-01 or
General service tool

MB990480

MB990900

MB990925AI

a

MB990211

MB990241

a

AI

DOOR

TSB Revision

BODY

42A-110

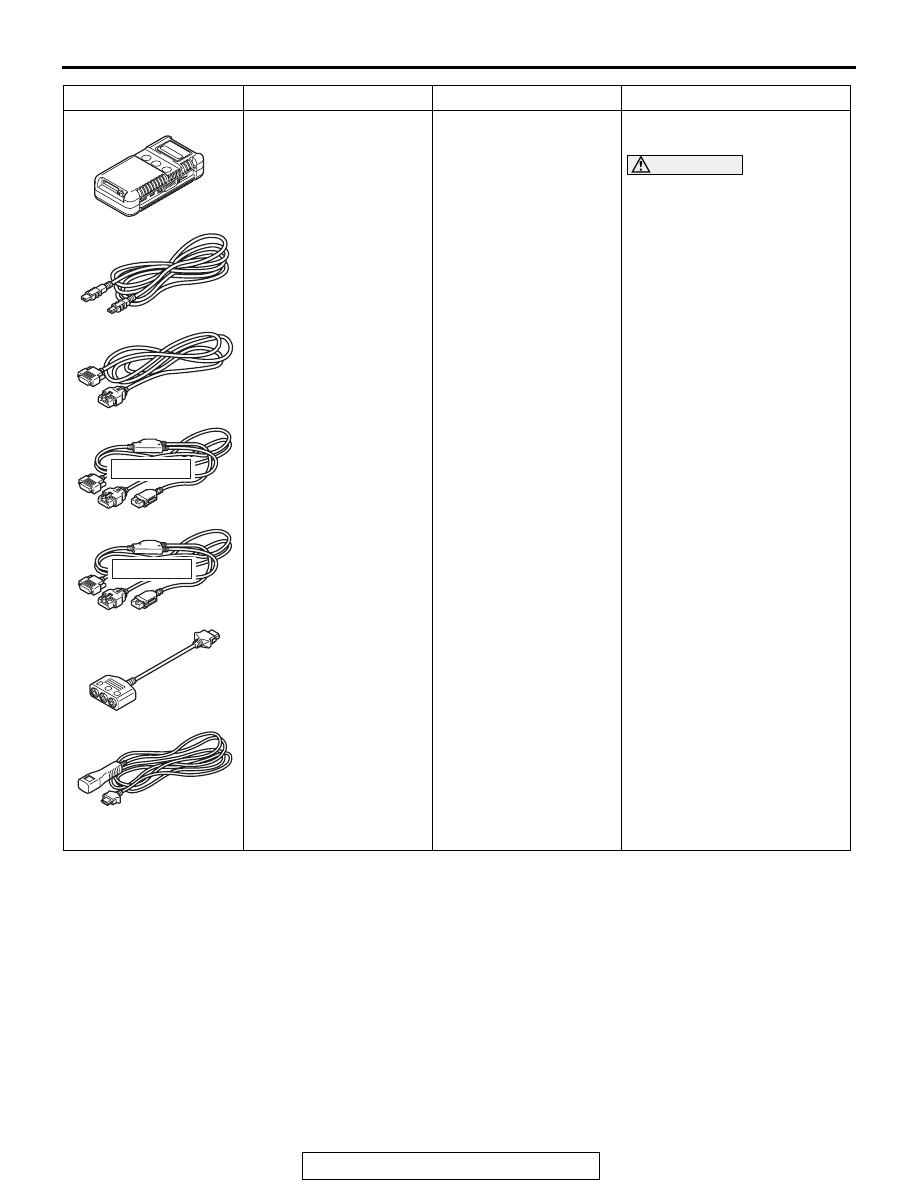

MB991958

a: MB991824
b: MB991827
c: MB991910
d: MB991911
e: MB991914
f: MB991825
g: MB991826

Scan tool (M.U.T.-III sub
assembly)

a: Vehicle

communication
interface (V.C.I.)

b: M.U.T.-III USB cable
c: M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

d: M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

e: M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f: M.U.T.-III

measurement
adapter

g: M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

Communication line check
(ECU check and service data)

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness A to
send simulated vehicle
speed. If you connect
M.U.T.-III main harness B
instead, the CAN
communication does not
function correctly.

Tool

Tool number and name Supersession

Application

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use
