Mitsubishi Evolution X. Manual - part 427

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-165

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P1836: Shift fork 1 malfunction

• P184B: Shift fork 4 malfunction

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

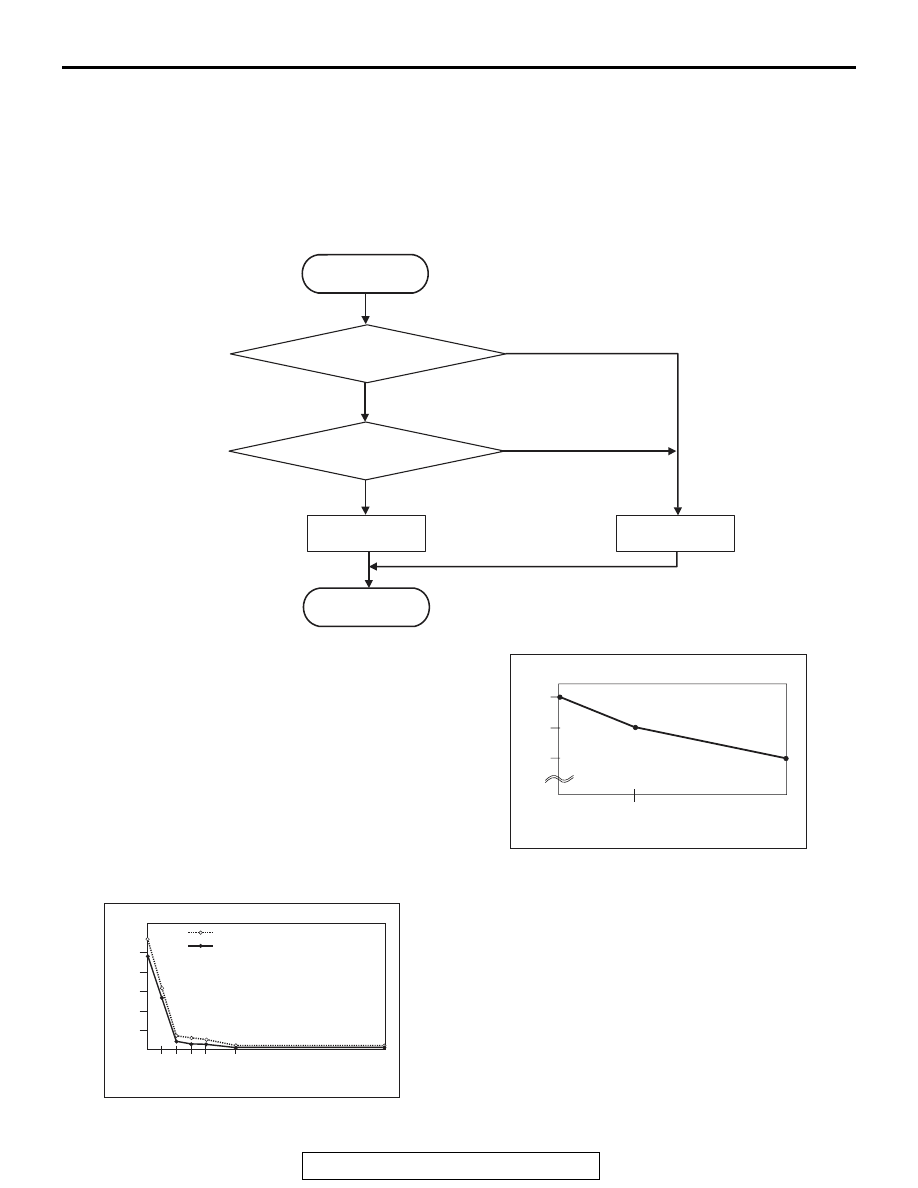

LOGIC FLOW CHARTS (Monitor Sequence) <Functional check - blocked>

.

DTC SET CONDITIONS <FUNCTIONAL
CHECK - BLOCKED>

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

• Engine speed: 500 r/min or more.

• Time since above engine condition: 400 millisec-

ond or more.

• Common high side 1 voltage: 2.5 V or more.

• Common high side 2 voltage: 2.5 V or more.

JUDGMENT CRITERIA

•

• Shift fork operation time: Shift fork operation time

(threshold value) or more. (immediately)

• Shift fork operation time (threshold value): Equal

the maximum allowed time x Coefficient. (imme-
diately)

.

OBD-II DRIVE CYCLE PATTERN
<FUNCTIONAL CHECK - BLOCKED>

The shift fork operation time is threshold value or
less.

.

AC710675

START

No

Good

Malfunction

END

Yes

Malfunction criteria met

Yes

Monitoring condition met

No

AC710827

Maximum allowed time (sec)

25

20

15

10

5

-40

-20

0

20

120

Fluid temperature [˚C (˚F)]

AB

1 Until completion of initial shift fork action
2 After completion of initial shift fork action

(-40)

(-4)

(32)

(68)

(248)

AC710826

1.5

4,000

8,000

16,000

Line pressure (mbar)

1.25

1

Coefficient

AB

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-166

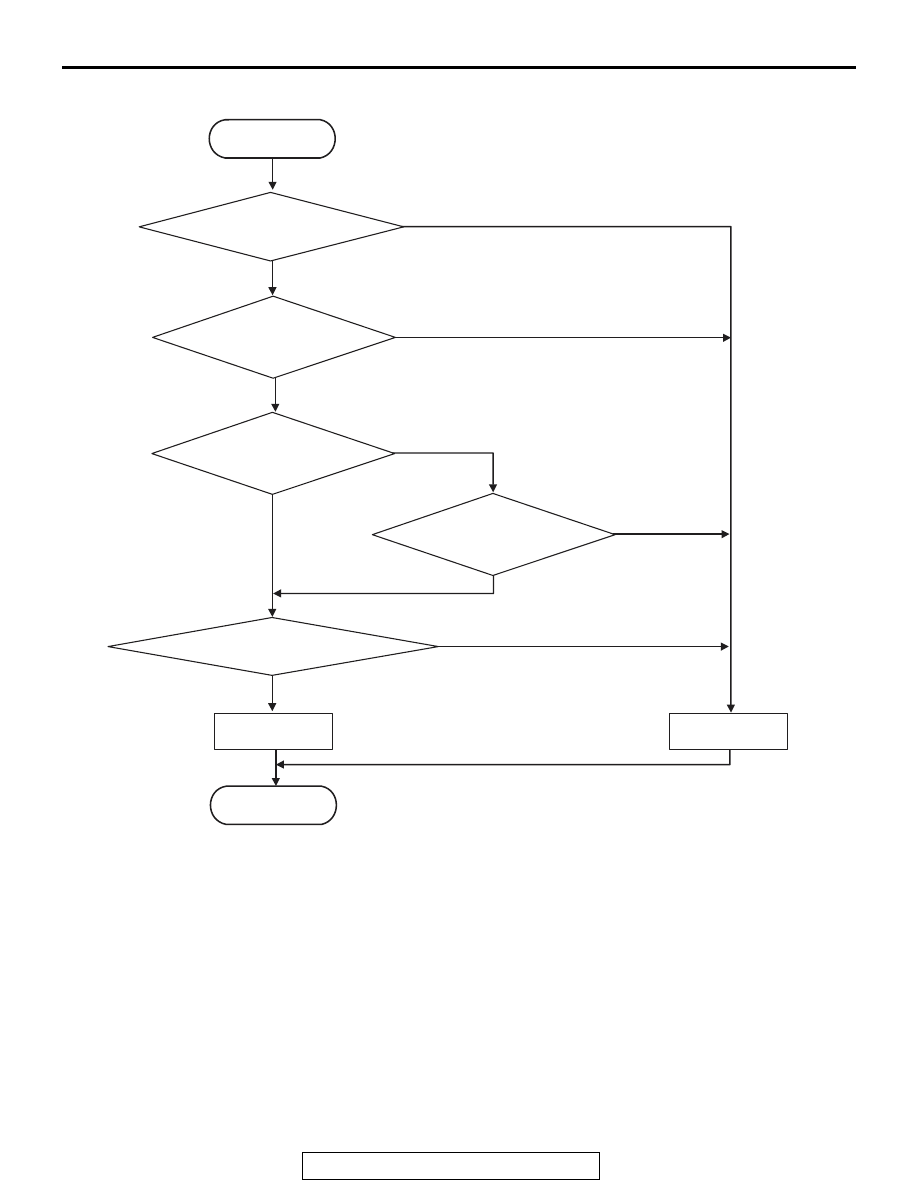

LOGIC FLOW CHARTS (Monitor Sequence) <Functional check - 6th gear>

.

DTC SET CONDITIONS <FUNCTIONAL
CHECK - 6TH GEAR>

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

• Engine speed: 500 r/min or more.

• Time since above engine condition: 400 millisec-

ond or more.

• Shift fork 3 current gear: 6th gear.

JUDGMENT CRITERIA

• Shift fork position: −6 mm (−0.24 inch) or more,

and input shaft 2 (even) speed: 500 r/min or
more, or synchro (6th gear) slip speed: 80 r/min
or more. (400 millisecond)

.

OBD-II DRIVE CYCLE PATTERN
<FUNCTIONAL CHECK - 6TH GEAR>

The status with the shift fork position

−6 mm (−0.24

inch) or less, or with the input shaft 2 (even) speed
500 r/min or less and with the synchro (6th gear) slip
speed 80 r/min or less continues for 400 millisec-
onds.

.

AC710711

START

No

Good

Malfunction

END

Continuous failure
for 400 msec

No

Yes

Yes

Yes

No

No

Input shaft 2 speed
> 500 r/min

Yes

Synchro slip speed
> 80 r/min

Monitoring condition met

Yes

No

Shift fork position
> -6 mm (-0.24 inch)

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-167

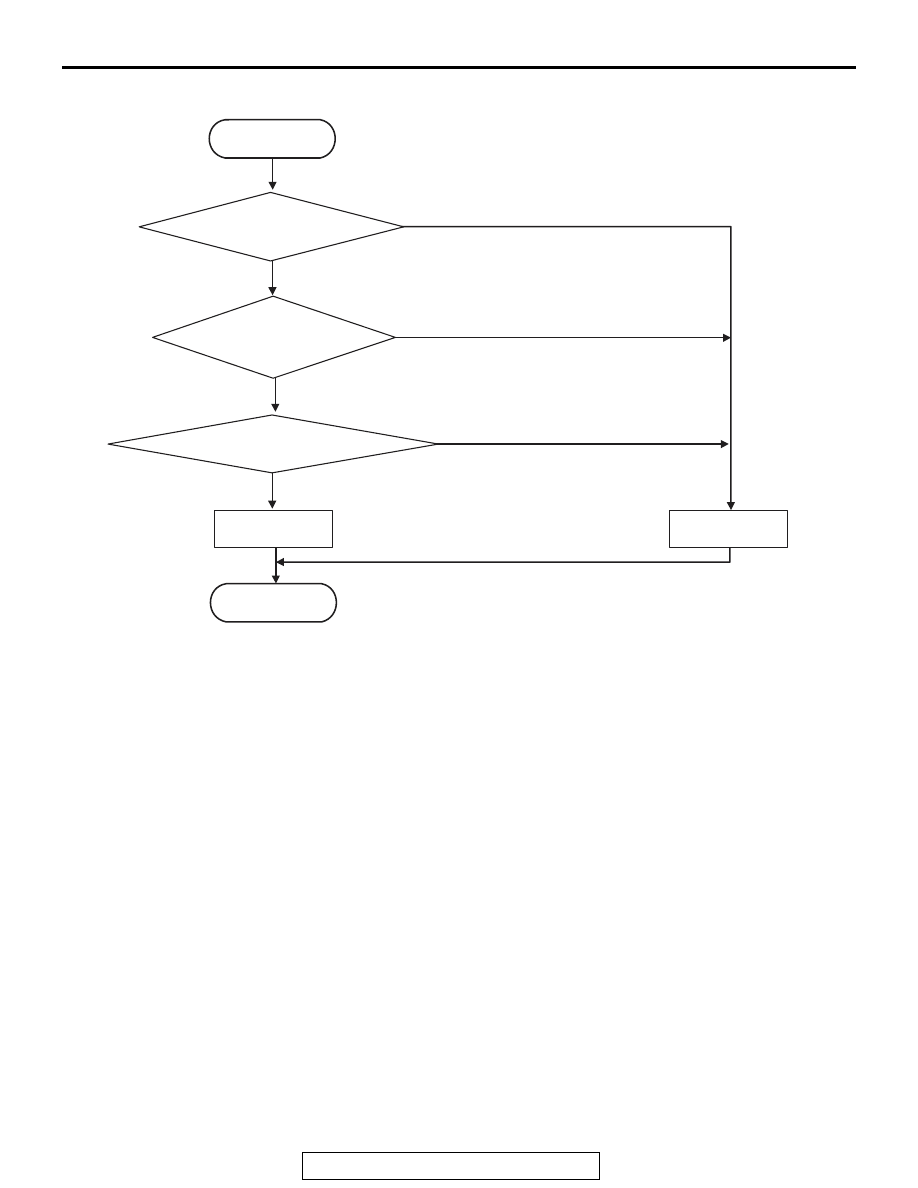

LOGIC FLOW CHARTS (Monitor Sequence) <Functional check - Neutral>

.

DTC SET CONDITIONS <FUNCTIONAL
CHECK - NEUTRAL>

Check Conditions

• Voltage of battery: 8 V or more.

• Voltage of battery: 16.5 V or less.

• Engine speed: 500 r/min or more.

• Time since above engine condition: 400 millisec-

ond or more.

• Shift fork 3 current gear: Neutral.

JUDGMENT CRITERIA

• Shift fork position: 1.8 mm (0.071 inch) or more.

(250 millisecond)

.

OBD-II DRIVE CYCLE PATTERN
<FUNCTIONAL CHECK - NEUTRAL>

The shift fork position remains 1.8 mm (0.071 inch)
or less for 250 milliseconds.

.

AC710686

START

No

Good

Malfunction

END

Continuous failure
for 250 msec

No

Yes

Yes

Monitoring condition met

Yes

No

|Shift fork position|
> 1.8 mm (0.071 inch)

DIAGNOSIS <TC-SST>

TSB Revision

TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST)

22C-168

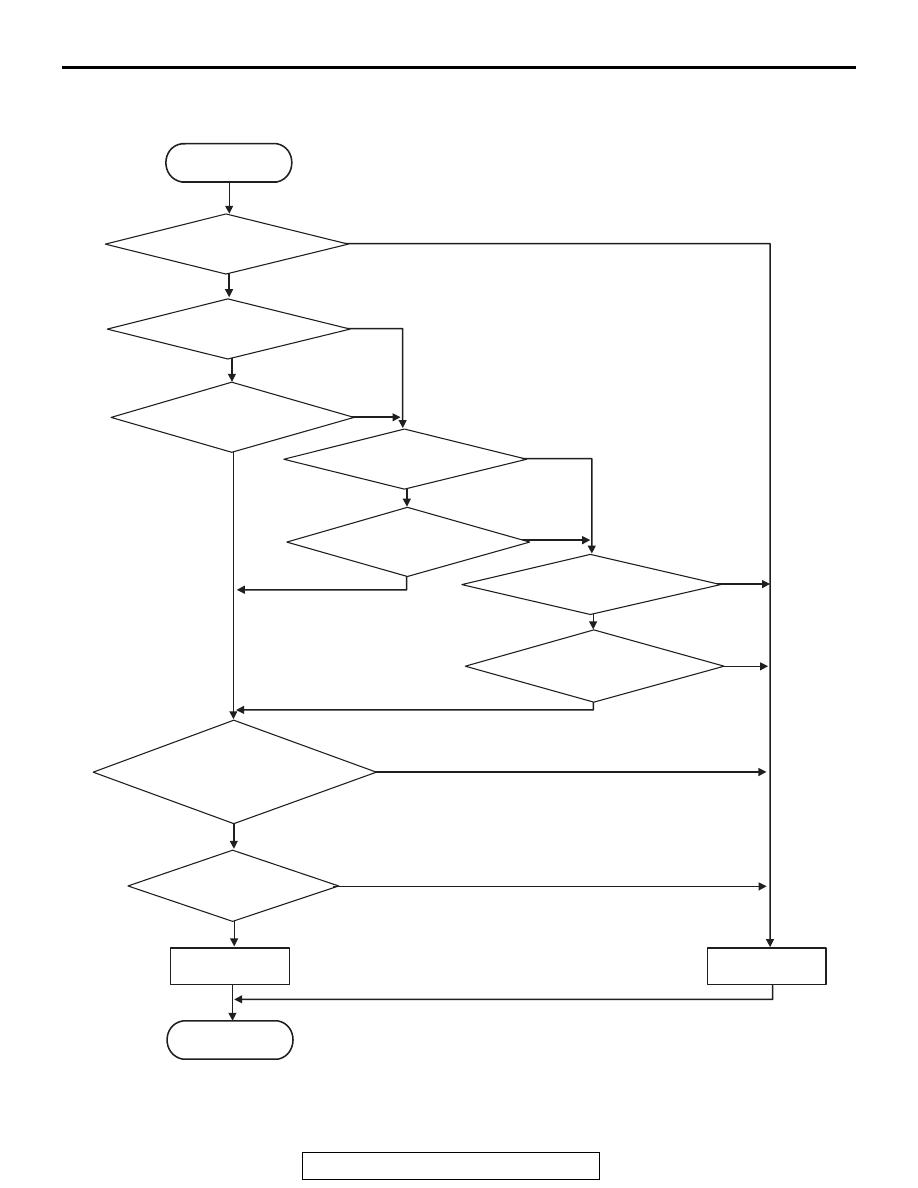

LOGIC FLOW CHARTS (Monitor Sequence)



<Functional check - Shift fork 3 requested but shift fork 1 movement>

.

AC710712

START

No

Good

Malfunction

END

No

Yes

Yes

Yes

No

Yes

Yes

No

Yes

No

Yes

No

Continuous failure
for 200 msec

Yes

Yes

No

No

Monitoring condition met

|Initialized fork position -
shift fork 3 position|
< 2.5 mm (0.098 inch)

Shift fork 1 position
1st gear side

Shift fork 1 position
 < 6 mm (0.24 inch)

Shift fork 1 position
R gear side

Shift fork 1 position
> -6 mm (-0.24 inch)

No

Shift fork 1 position
neutral position

|Shift fork 1 position|
> 1.8 mm (0.071 inch)
