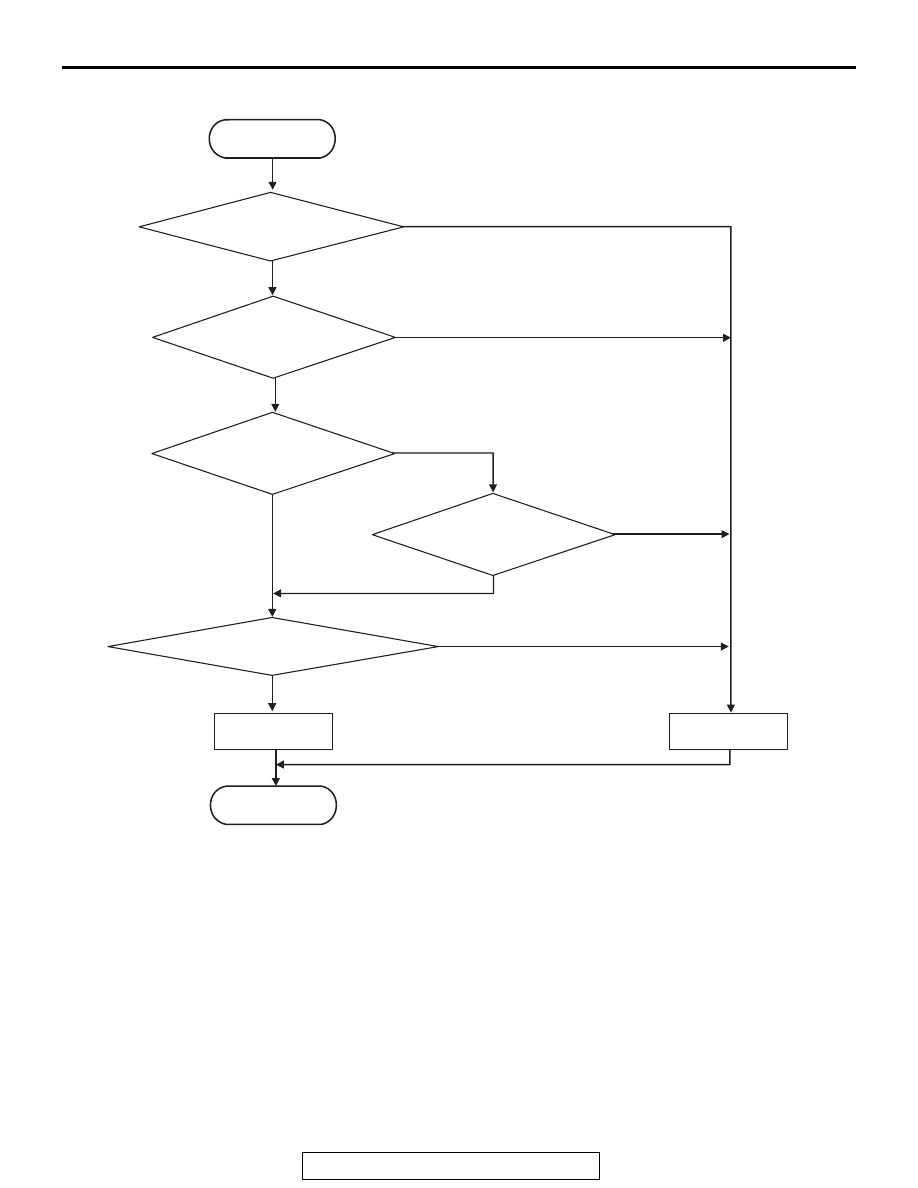

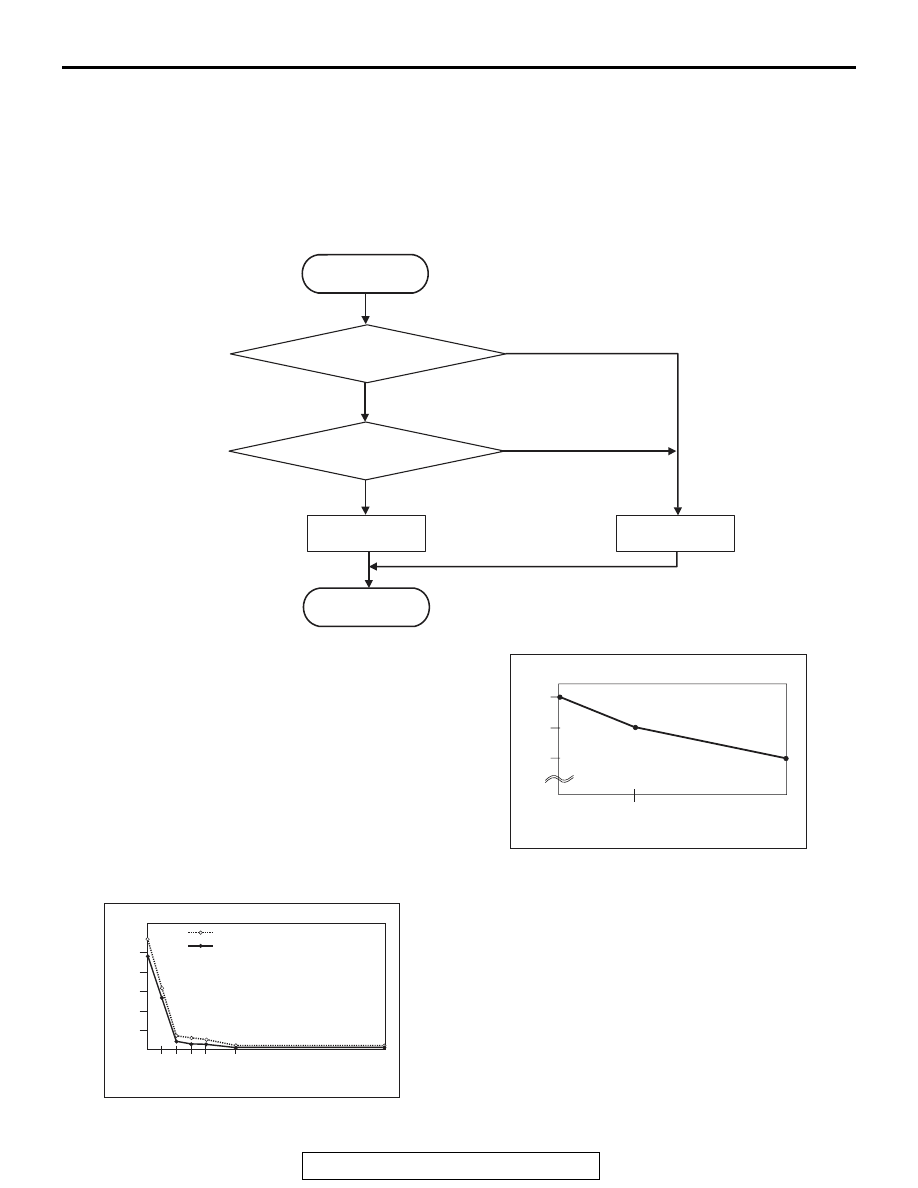

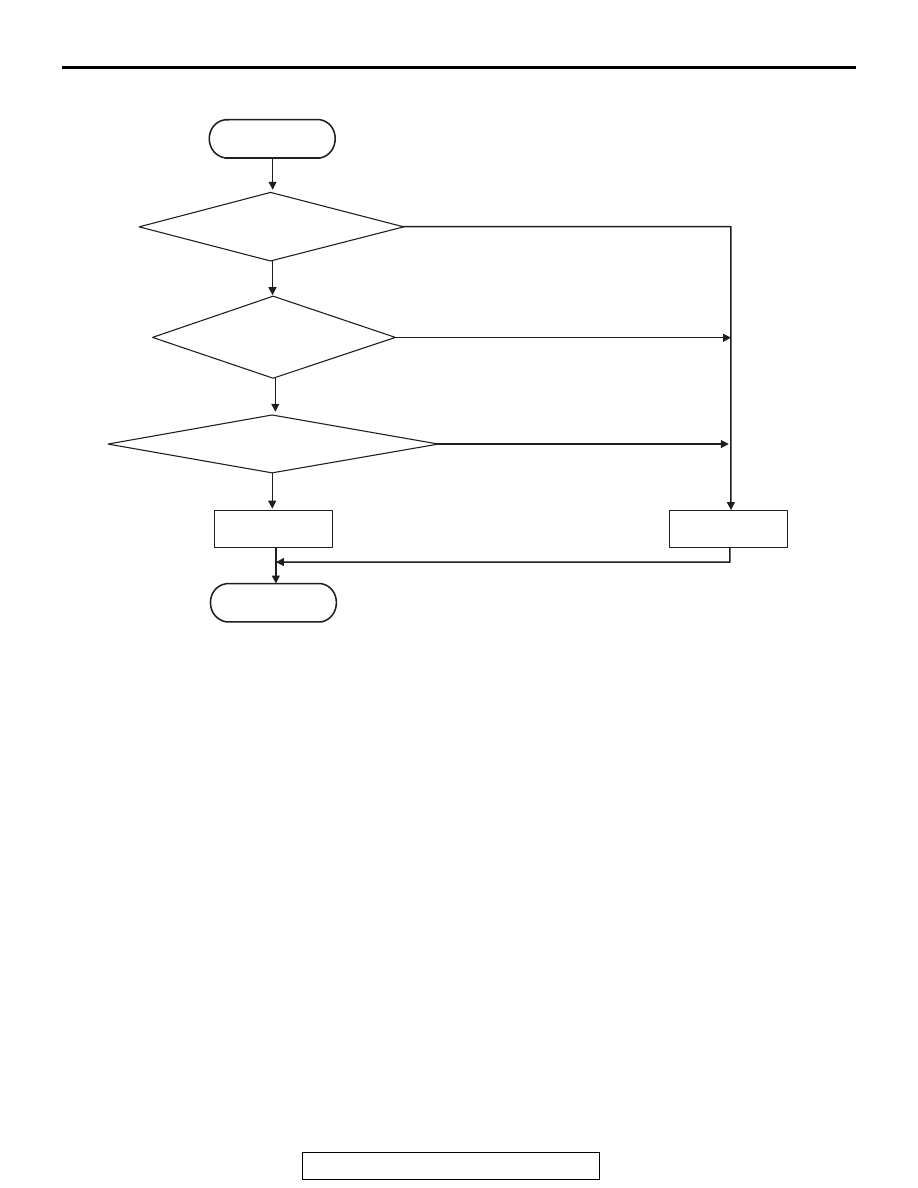

DIAGNOSIS <TC-SST> TSB Revision TWIN CLUTCH- SPORTRONIC SHIFT TRANSMISSION (TC-SST) 22C-157 MONITOR EXECUTION CONDITIONS Other Monitor (There is no temporary DTC stored in memory for the item monitored below) • P1836: Shift fork 1 malfunction Sensor (The sensor below is determined to be normal) • Not applicable . LOGIC FLOW CHARTS (Monitor Sequence) <Functional check - blocked> . DTC SET CONDITIONS <FUNCTIONAL Check Conditions • Voltage of battery: 8 V or more. • Voltage of battery: 16.5 V or less. • Engine speed: 500 r/min or more. • Time since above engine condition: 400 millisec- ond or more. • Common high side 1 voltage: 2.5 V or more. • Common high side 2 voltage: 2.5 V or more. Judgement Criteria • • • Shift fork operation time: Shift fork operation time (threshold value) or more. (immediately) • Shift fork operation time (threshold value): Equal the maximum allowed time x Coefficient. (imme- . OBD-II DRIVE CYCLE PATTERN The shift fork operation time is threshold value or . AC710675 START No Good Malfunction END Yes Malfunction criteria met Yes Monitoring condition met No AC710827 Maximum allowed time (sec) 25 20 15 10 5 -40 -20 0 20 120 Fluid temperature [˚C (˚F)] AB 1 Until completion of initial shift fork action (-40) (-4) (32) (68) (248) AC710826 1.5 4,000 8,000 16,000 Line pressure (mbar) 1.25 1 Coefficient AB |
