CENTER DIFFERENTIAL

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-53

CENTER DIFFERENTIAL

DISASSEMBLY AND ASSEMBLY

M1222010600074

AK703150

AC

3

4

1

2

133 ± 4 N·m
98 ± 2 ft-lb

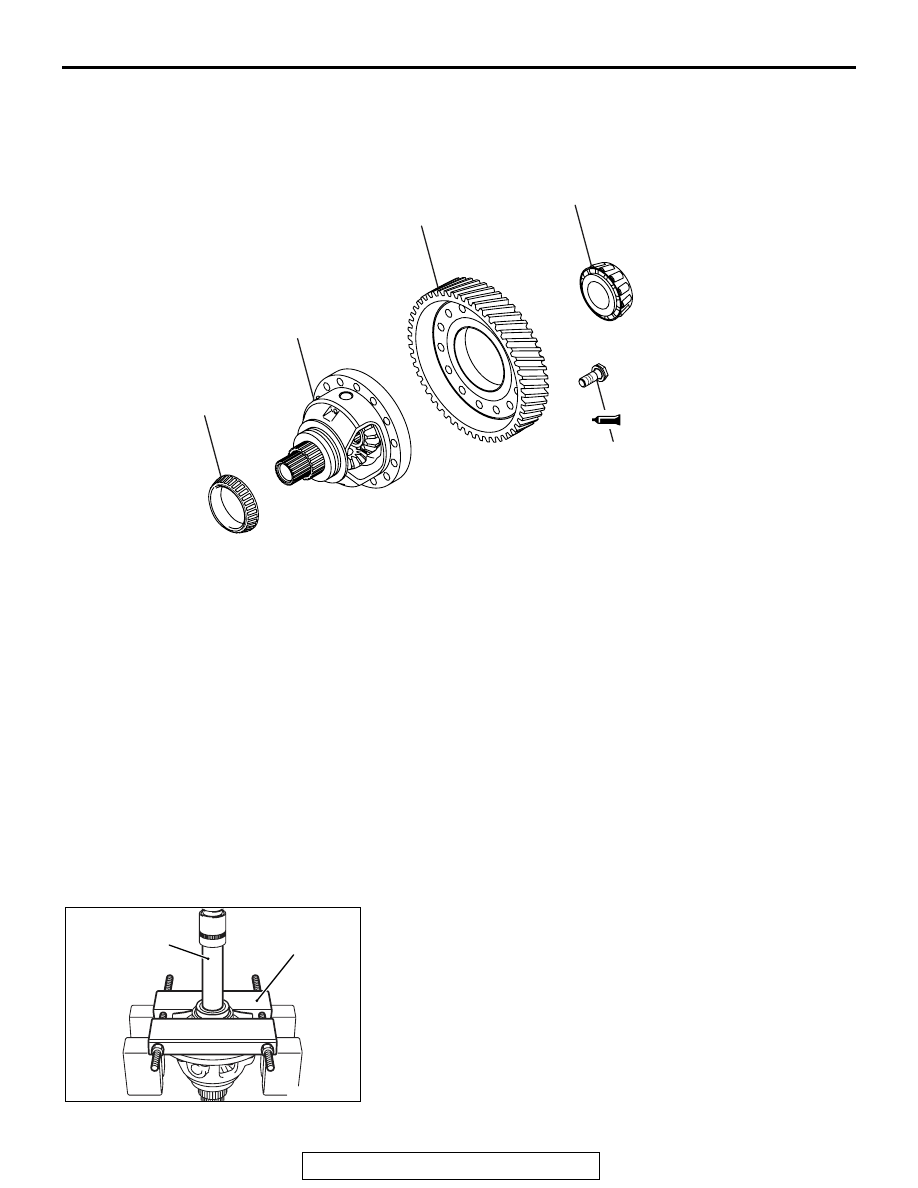

Removal steps

>>C<<

1. Center differential drive gear

<<A>>

>>B<<

2. Taper roller bearing

<<B>>

>>A<<

3. Taper roller bearing
4. Center differential assembly

Required Special Tools:

• MD998917: Bearing remover

• MD999547: Oil seal installer

• MD998812: Installer cap

• MD998813: Installer-100

• MD998830: Installer adapter (66)

• MD992272: Bearing installer

• MB990847: Rear suspension bushing remover

and installer base

DISASSEMBLY SERVICE POINTS

.

<<A>> TAPER ROLLER BEARING REMOVAL

1. Using a chisel or the like, knock off the roller cage of the

taper roller bearing.

AK703314AC

MD998917

MD999547

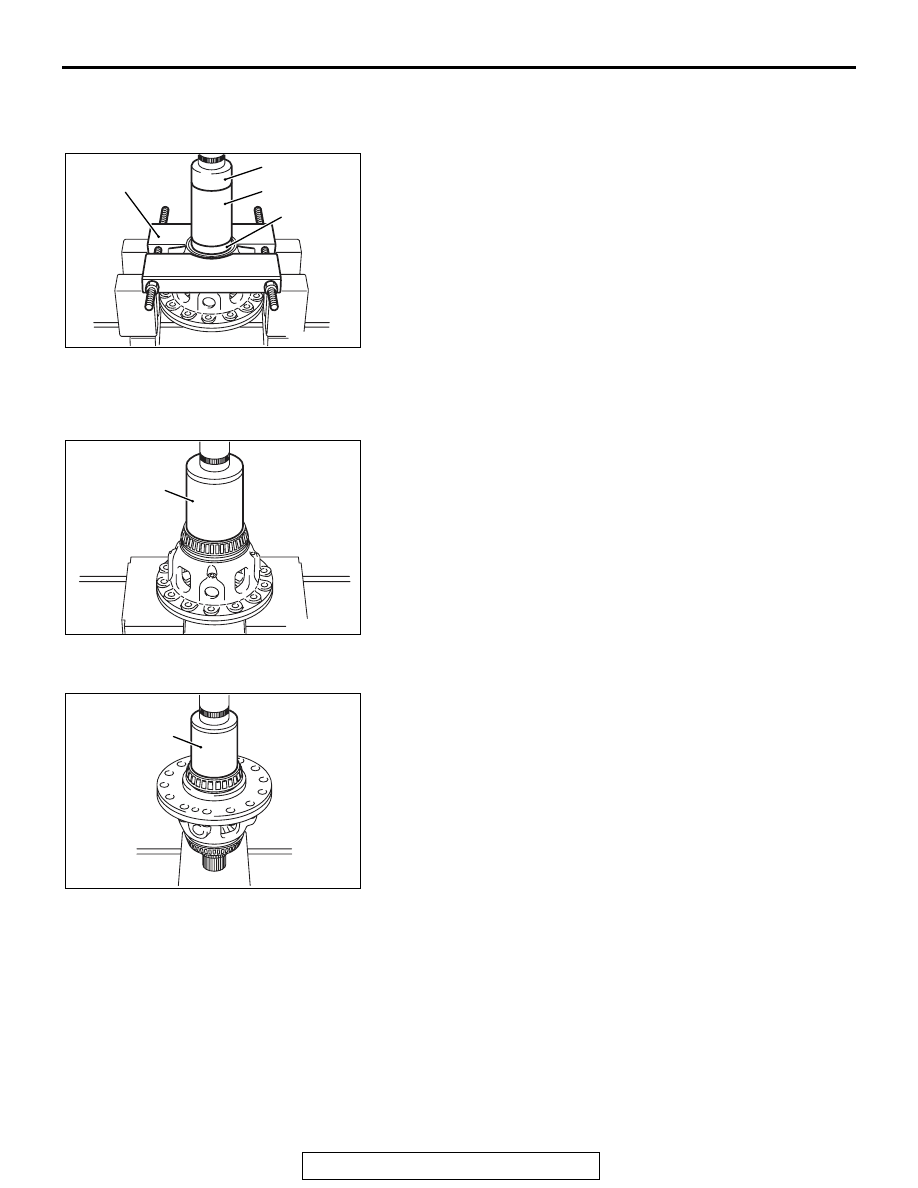

2.  Using the special tools, MD998917 and MD999547,

indicated below, remove the taper roller bearing.

.

Removal steps (Continued)

CENTER DIFFERENTIAL

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-54

<<B>> TAPER ROLLER BEARING REMOVAL

1. Using a chisel or the like, knock off the roller cage of the

taper roller bearing.

AK703316AC

MD998812

MD998813

MD998830

MD998917

2. Using the special tools, MD998917, MD998812, MD998813

and MD998830, indicated below, remove the taper roller
bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< TAPER ROLLER BEARING INSTALLATION

AK703317AC

MB992272

Using special tool, MB992272, install the taper roller bearing.

.

>>B<< TAPER ROLLER BEARING INSTALLATION

AK703315AC

MB990847

Using special tool, MB990847, install the taper roller bearing.

.

CENTER DIFFERENTIAL

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-55

>>C<< CENTER DIFFERENTIAL DRIVE GEAR
INSTALLATION

AK204150AD

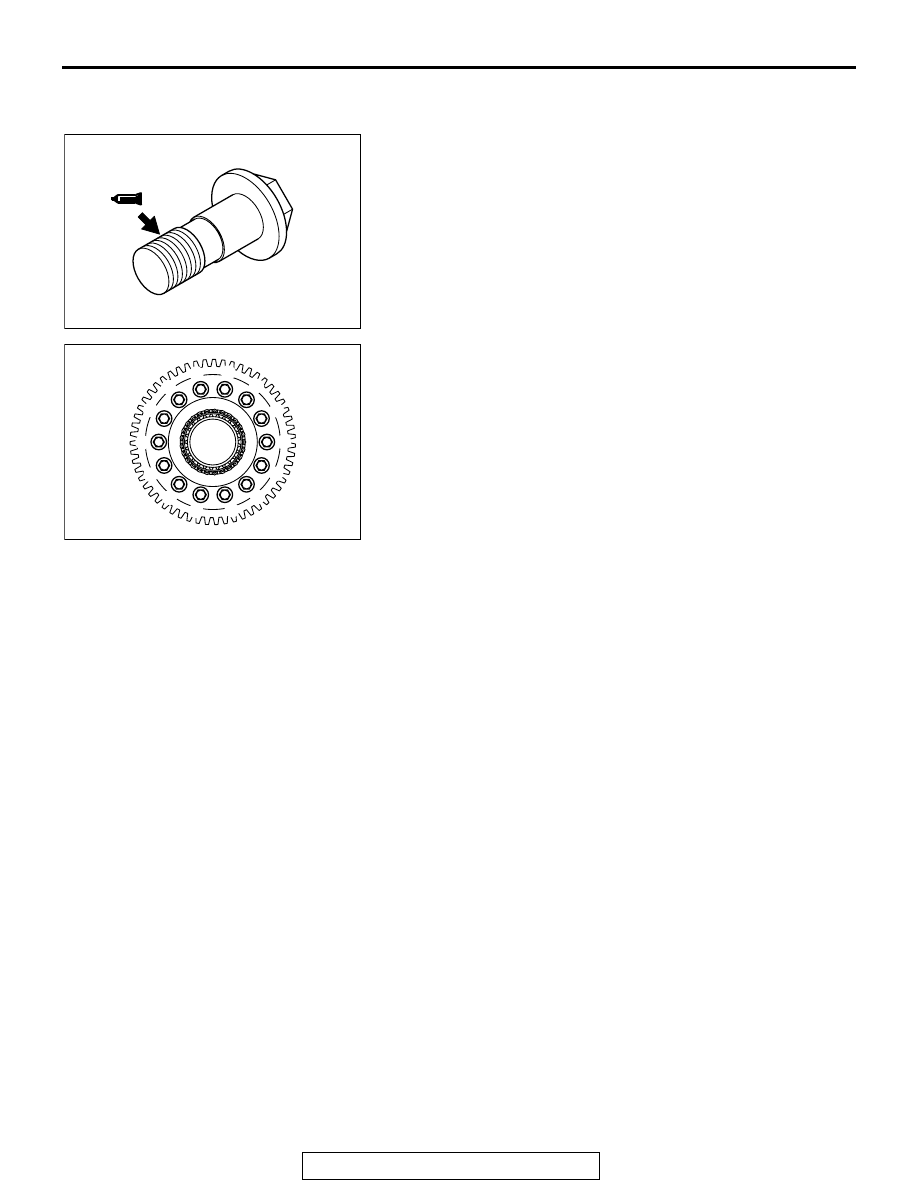

1. Apply specified sealant to the entire threaded portion of the

bolt.

Specified sealant:

3M

™STUD Locking No.4710 or equivalent

AK204149AD

4

5

6

1

2

3

7

8

9

14

11

12

13

10

2. Tighten the bolts to the specified torque of 133

± 4 N⋅ m (98

± 2 ft-lb) in fthe illustrated order.

TRANSFER

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-56

TRANSFER

DISASSEMBLY AND ASSEMBLY

M1222004000385

AK704422AC

2

1

10 ± 2 N·m
88 ± 17 in-lb

9.0 ± 1.0 N·m
79 ± 8 in-lb

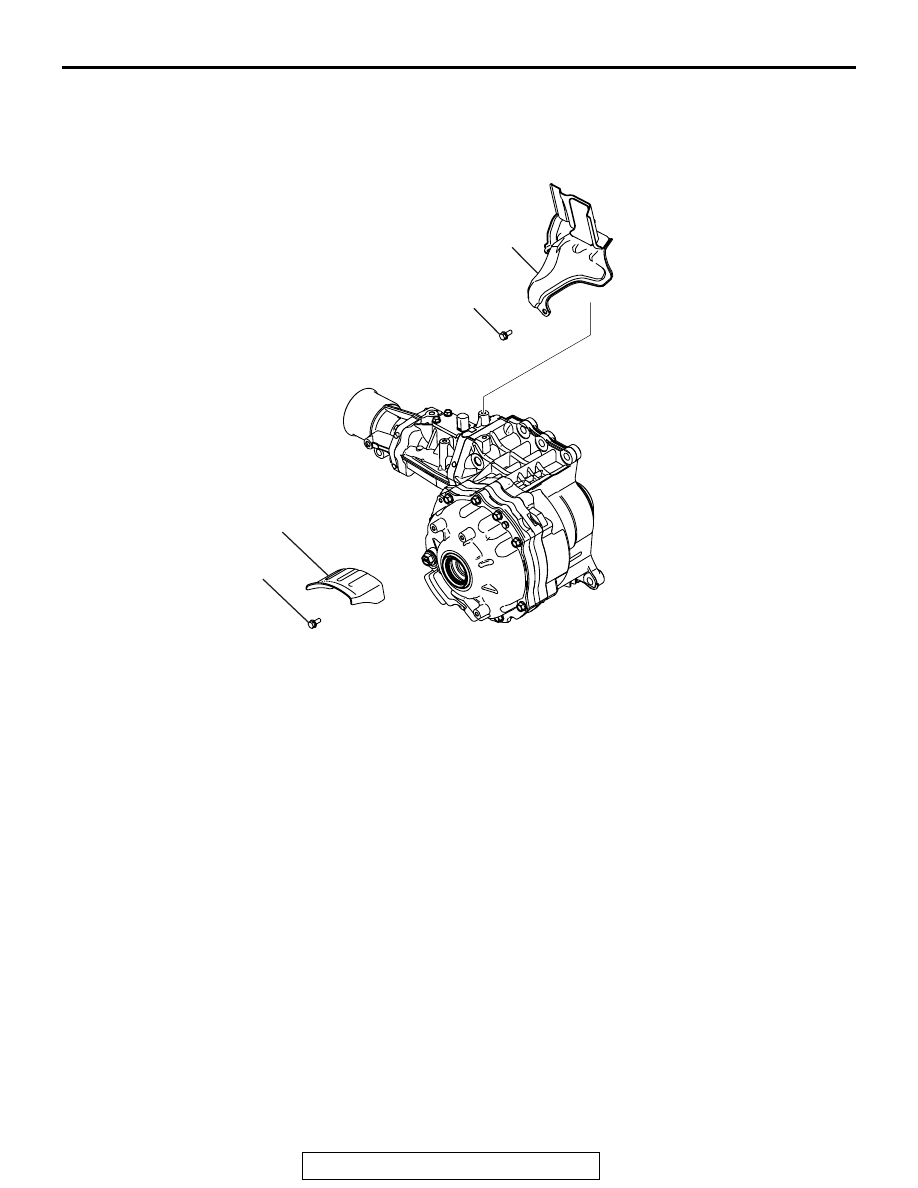

Removal steps

1. Drive shaft heat protector
2. Transfer heat protector
