TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-49

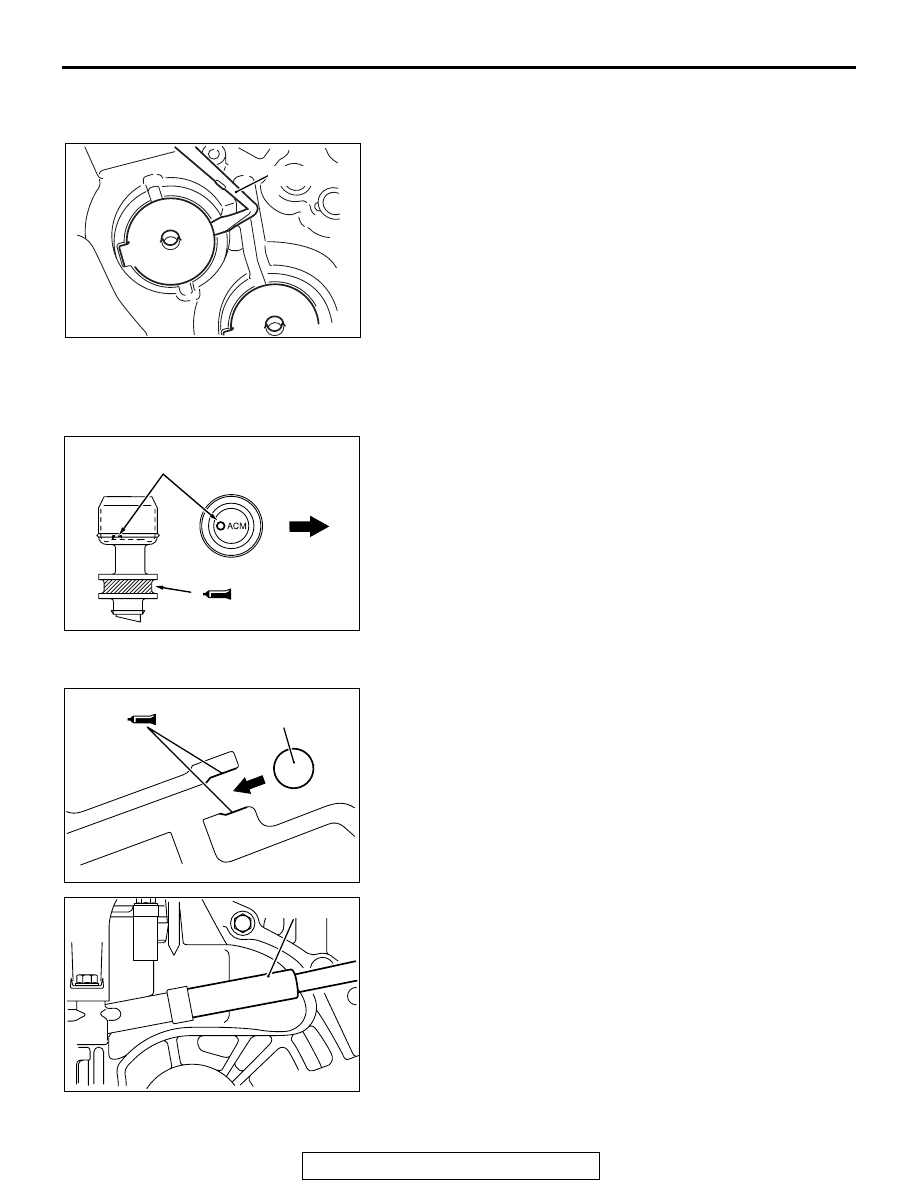

DISASSEMBLY SERVICE POINTS

.

<<A>> OIL GUIDE REMOVAL

AK703404AC

MB991946

Using special tool, MB991946, remove the oil guides from the
transaxle case.

ASSEMBLY SERVICE POINTS

.

>>A<< AIR BREATHER INSTALLATION

AK703373

AC

Identification mark

Clutch housing
side

1. Apply specified sealant to the periphery of the air breather

insertion part.

Specified sealant:
Three bond 1501 or equivalemt

2. Install the air breather to the transaxle case in accordance

with the illustrated identification mark.

.

>>B<< STEEL BALL INSTALLATION

AK703371AC

Steel ball

1. Apply specified sealant to the periphery of the transaxle

case where the steel ball is installed, then install the steel
ball onto the transaxle case.

Specified sealant:
3M

™STUD Locking No.4710 or equivalent

AK703372

AC

MB990883

2. Using special tool, MB990883, install the steel ball.

.

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-50

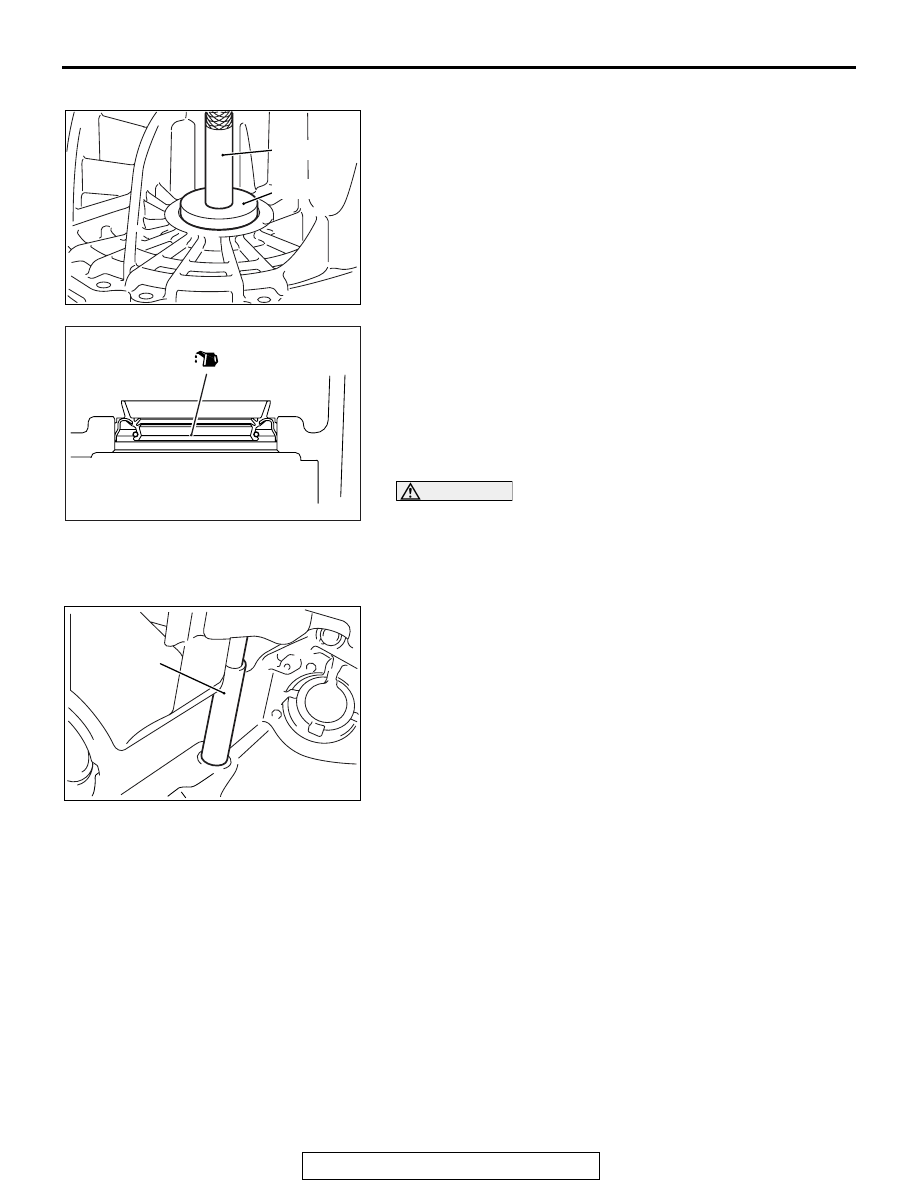

>>C<< OIL SEAL INSTALLATION

AK703406AC

MB991115

MB990938

1. Using the special tools, MB991115 and MB990938,

indicated below, install the oil seal to the transaxle case.

AK703405 AC

2. Apply specified transaxle oil to the oil seal lip area.

Specified transaxle oil:
Mitsubishi Genuine DiaQueen New Multi Gear Oil SAE
75W-80 (GL-3)

.

>>D<< SLIDE BALL BEARING (FOR CONTROL
SHAFT) INSTALLATION

CAUTION

• Normally, it is not necessary to disassemble the slide

ball bearing. Install it only when the transaxle case is
replaced with a new one.

•

AK703370

AC

MB990883

Install the bearing with the stamped mark facing
upward.

Using special tool, MB990883, install the slide ball bearing (for
control shaft) to the new transaxle case.

.

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-51

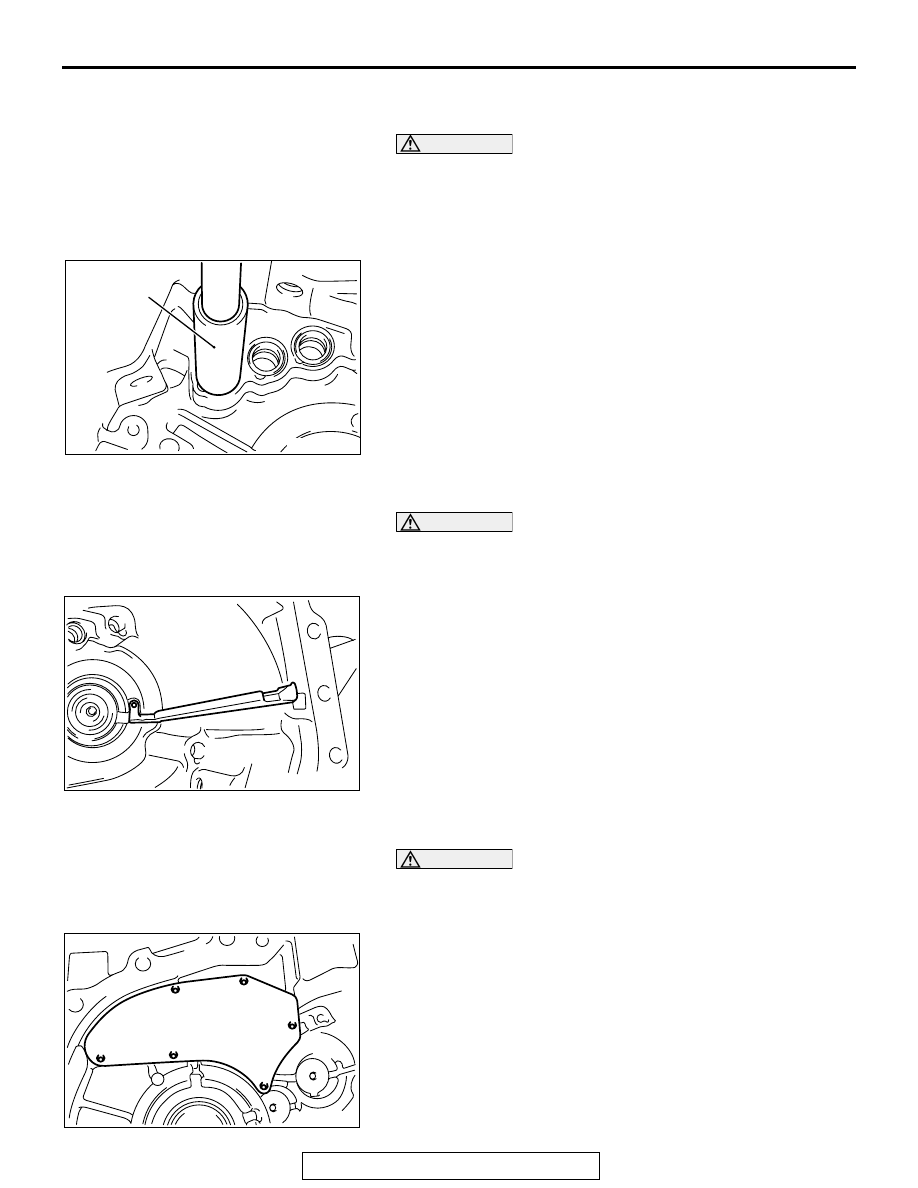

>>E<< SLIDE BALL BEARING (FOR SHIFT RAIL)
INSTALLATION

CAUTION

• Normally, it is not necessary to disassemble the slide

ball bearing. Install it only when the transaxle case is
replaced with a new one.

•

AK703338

AC

MB990883

Install the bearing with the stamped mark facing
upward.

Using special tool, MB990883, install the slide ball bearing (ror
shift rail) to the new transaxle case.

.

>>F<< OIL GUIDE A INSTALLATION

CAUTION

Normally, it is not necessary to disassemble the oil guide
A. Install the oil guide only when the transaxle case is
replaced with a new one.

AK703339

Install the oil guide A to the new transaxle case. Stake at the
illustrated point to secure the oil guide in position.

.

>>G<< OIL TANK COVER INSTALLATION

CAUTION

Normally, it is not necessary to disassemble the oil tank
cover. Install the cover only when the transaxle case is
replaced with a new one.

AK703340

Install the oil tank cover onto the new transaxle case. Stake at
the illustrated six points to secure the cover in position.

TRANSAXLE CASE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-52

.

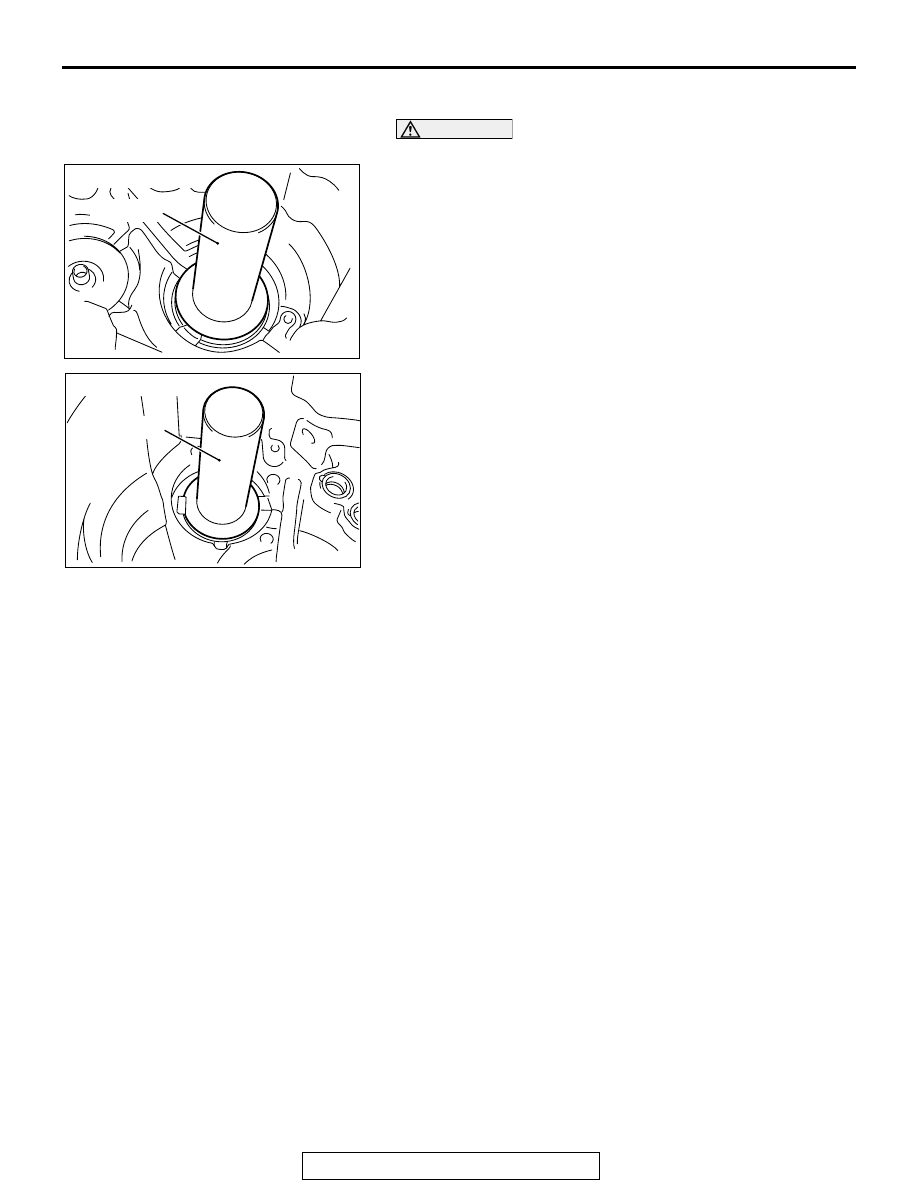

>>H<< OIL GUIDE INSTALLATION

CAUTION

Install the oil guide squarely.

AK703368

AC

MD999547

<Input shaft side>

AK703369

AC

MD999547

<Output shaft side>

Using special tool, MD999547, drive the oil guide all the way
into place to the end face of the transaxle case.
