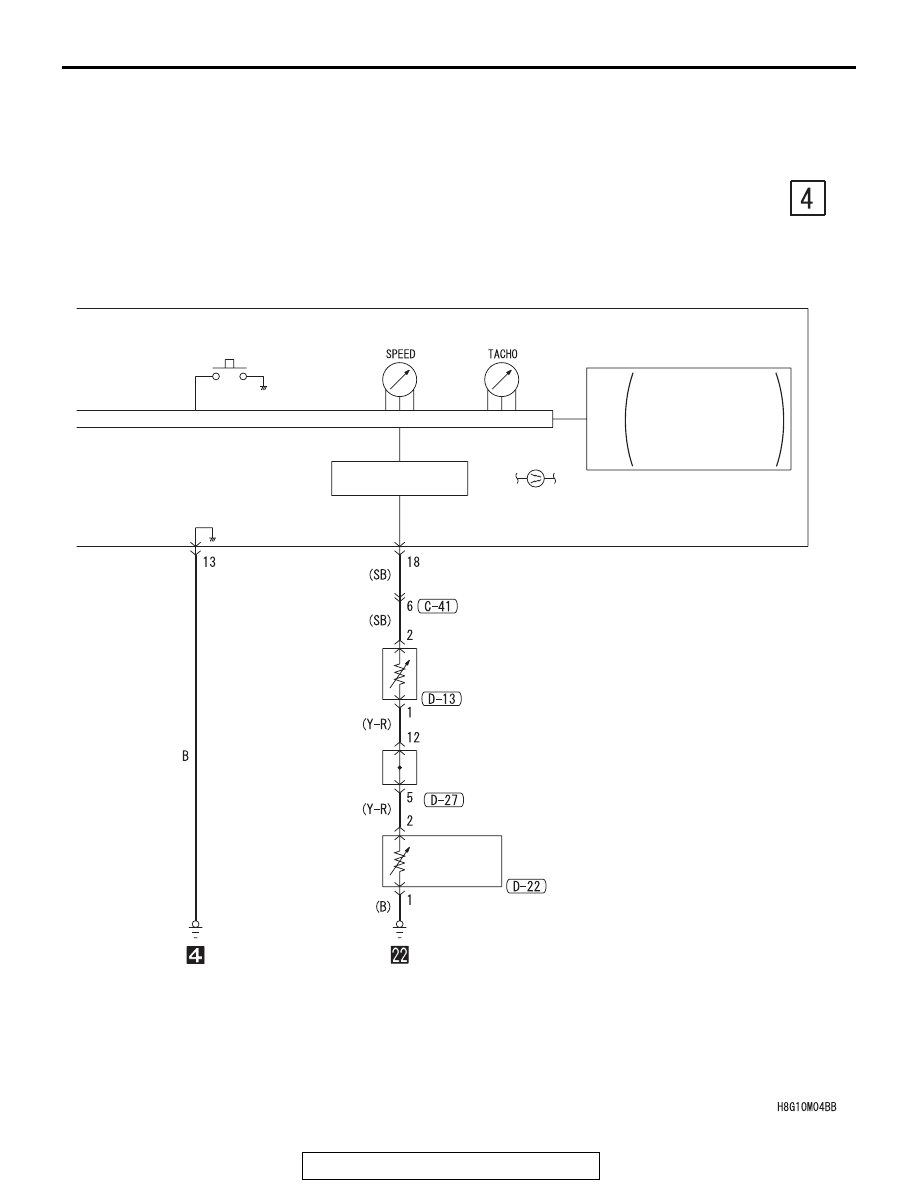

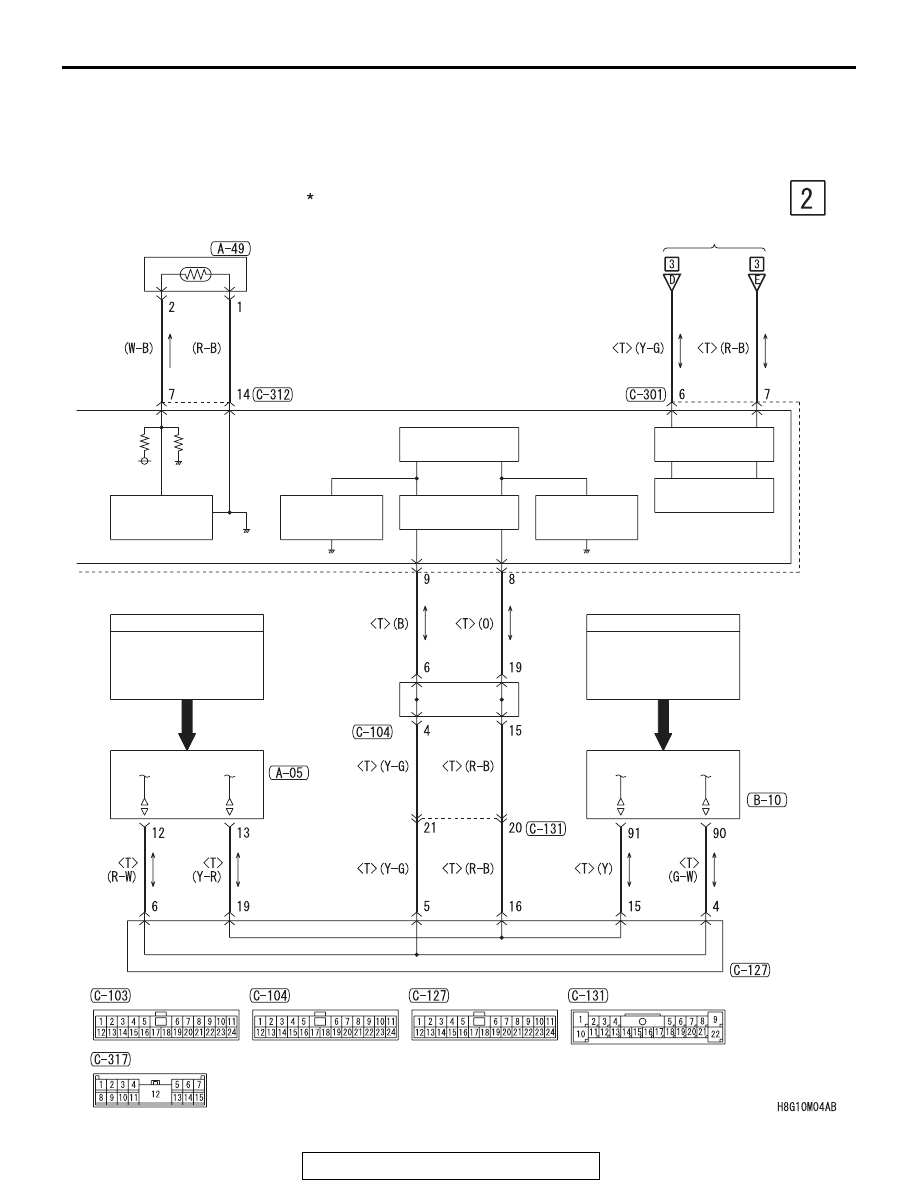

METER AND GAUGE <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-141

INPUT SIGNAL

ANALOG
INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ENGINE
CONTROL
MODULE

·CRANKSHAFT
 POSITION SENSOR
·ENGINE COOLANT
 TEMPERATURE
 SENSOR

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

NOTE

JOINT
CONNECTOR
(CAN1)

JOINT
CONNECTOR
(CAN3)

JOINT
CONNECTOR
(CAN2)

AMBIENT AIR
TEMPERATURE
SENSOR

:

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

ASC-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE
Y : YELLOW     SB : SKY BLUE     BR :BROWN     O : ORANGE     GR : GRAY
R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

·ABS, ASC, ACD,
 AYC AND S-AWC
·AIR CONDITIONING
 SYSTEM
·CENTRAL DOOR
 LOCKING SYSTEM
·DAYTIME RUNNING
 LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT
 AND IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·HEADLIGHT
·HEATED SEAT
·IGNITION KEY REMINDER
 TONE ALARM
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING
 SYSTEM (KOS)

·REAR WINDOW DEFOGGER
·SEAT BELT WARNING
 TONE ALARM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR
 TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE
 MONITORING
 SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD
 WIPER AND WASHER

METER AND GAUGE <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-142

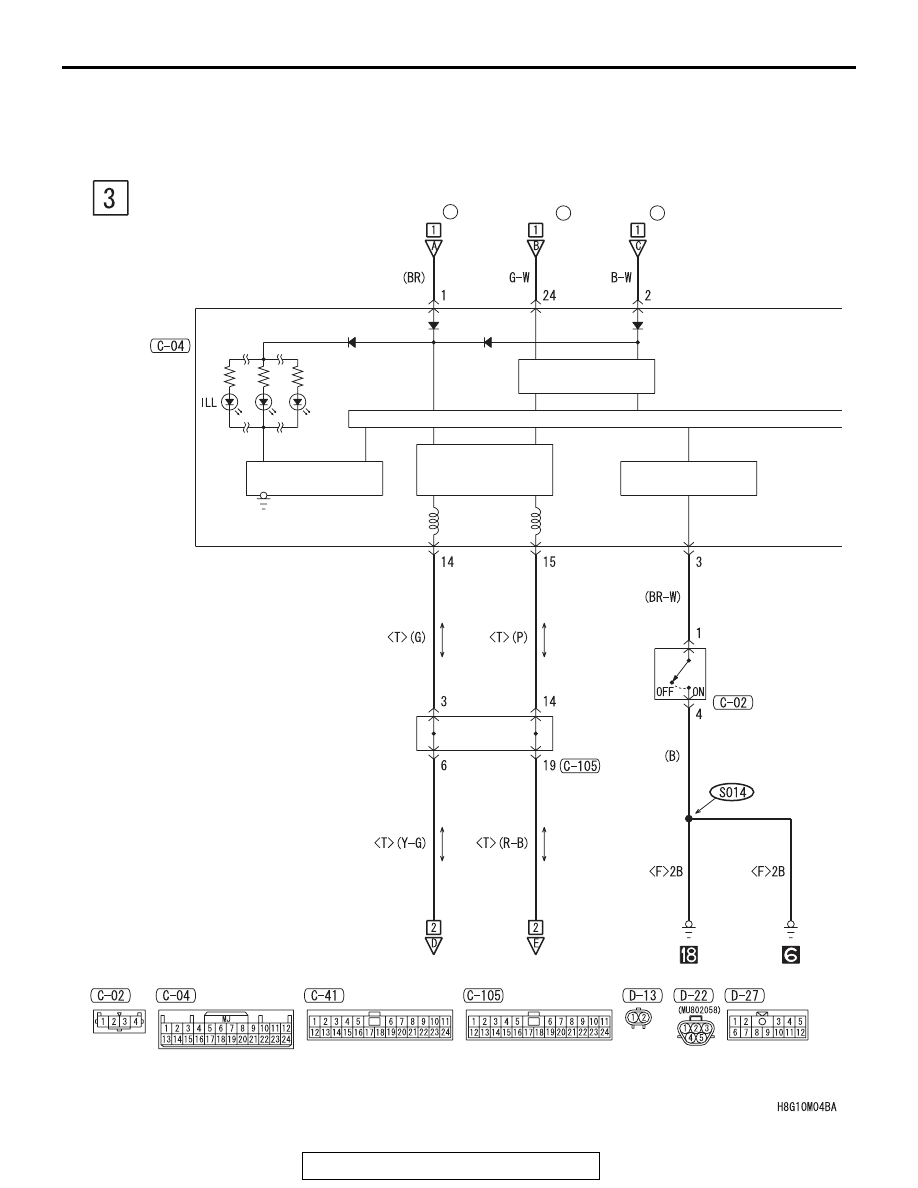

METER AND GAUGE <M/T> (CONTINUED)

INTERFACE
CIRCUIT

LED DRIVE
CIRCUIT

INTERFACE
CIRCUIT

COMBINATION
METER

CAN
TRANSCEIVER
CIRCUIT

ETACS-ECU

(FUSE     )

8

JOINT
CONNECTOR
(3) (FUSE     )

9

METER
INFORMATION
SWITCH

(FUSE     )

12

ETACS-ECU

JOINT
CONNECTOR
(CAN1)

METER AND GAUGE <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-143

INTERFACE
CIRCUIT

CPU

RHEOSTAT

FUEL
PUMP
MODULE

FUEL LEVEL
SENSOR
(MAIN)

FUEL LEVEL
SENSOR
(SUB)

TONE ALARM

·ODO/TRIP
·FUEL GAUGE
·TEMPERATURE
 GAUGE
·SERVICE REMINDER
·OUTSIDE
 TEMPERATURE

LCD

JOINT
CONNECTOR
(5)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

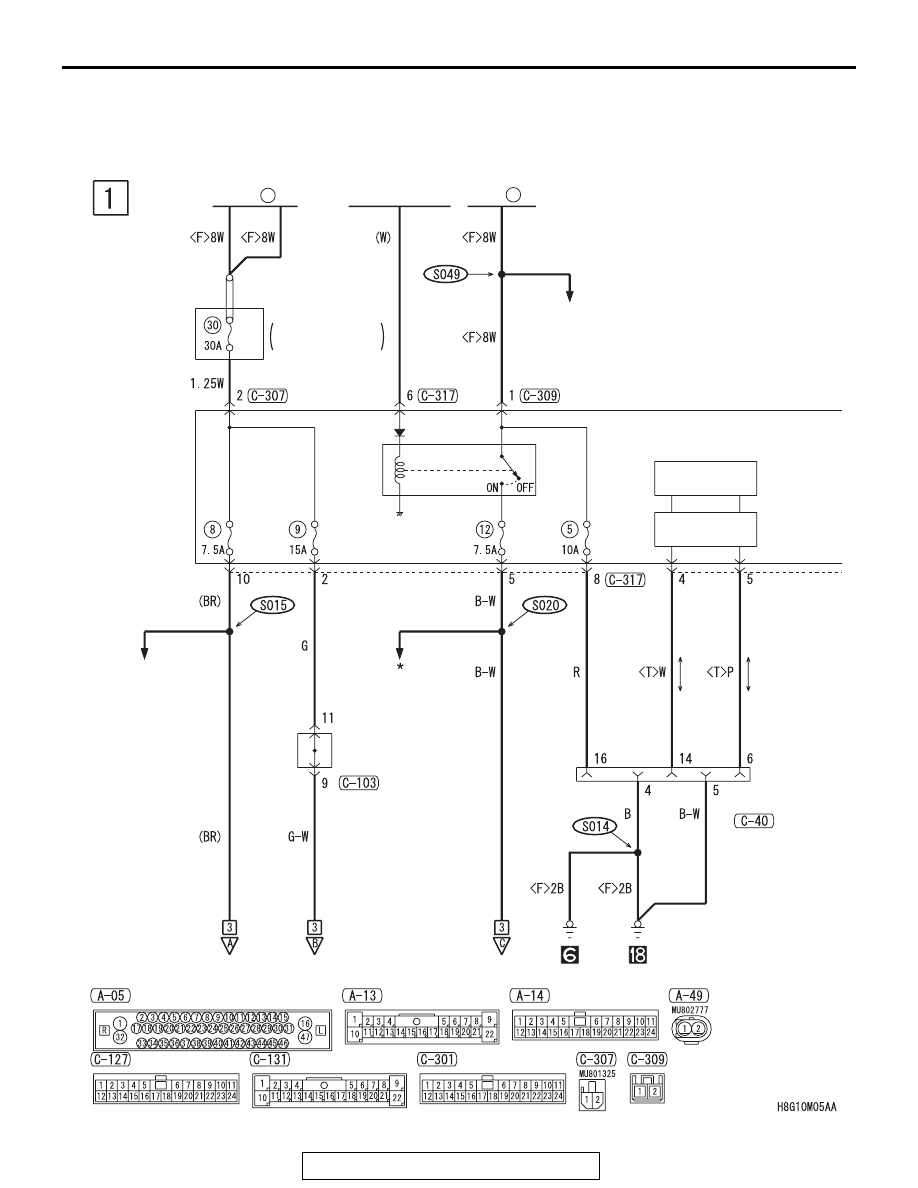

METER AND GAUGE <TC-SST>

TSB Revision

CIRCUIT DIAGRAMS

90-144

METER AND GAUGE <TC-SST>

M1901003503733

DATA LINK
CONNECTOR

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ETACS-
ECU

IG1
RELAY

FUSIBLE
LINK

36

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

34

RELAY BOX

ENGINE
COMPARTMENT

JOINT
CONNECTOR
(3)

·AIR CONDITIONING
 SYSTEM
·CENTRAL DOOR
 LOCKING SYSTEM
·DAYTIME RUNNING
 LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER
 TONE ALARM
 <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·KEYLESS OPERATION
 SYSTEM (KOS)
·TAILLIGHT, POSITION
 LIGHT, LICENSE PLATE
 LIGHT AND LIGHTING
 MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE
 MONITORING
SYSTEM (TPMS)
·TRUNK LID OPENER
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD
 WIPER AND WASHER

HEATED
SEAT
