CONTROLLER AREA NETWORK (CAN)

54C-3

STRUCTURE

• A gateway function has been integrated to

ETACS-ECU as the network central ECU.

• The CAN system consists of the following three

networks: CAN-B (middle-speed body network),
CAN-C (high-speed power train network), and the
diagnosis CAN-C (diagnosis exclusive network).
Each ECU is connected to one of the networks
depending on its functions.

• The CAN bus line consists of two lines, CAN_L

and CAN_H (CAN Low and CAN High, respec-
tively), as well as two terminal resistors (A
twisted-pair cable, highly resistant to noise, is
used for the communications line).

• The CAN bus line connecting two dominant

ECUs is the main bus line, and the CAN bus line
connecting each ECU is the sub-bus line.

• With CAN-C, the terminal resistors are incorpo-

rated in ECU. Resistors with approximately 120
ohms is used for the dominant ECU, and that with

3.0 kiloohms is used for the non-dominant ECU.
NOTE:

.

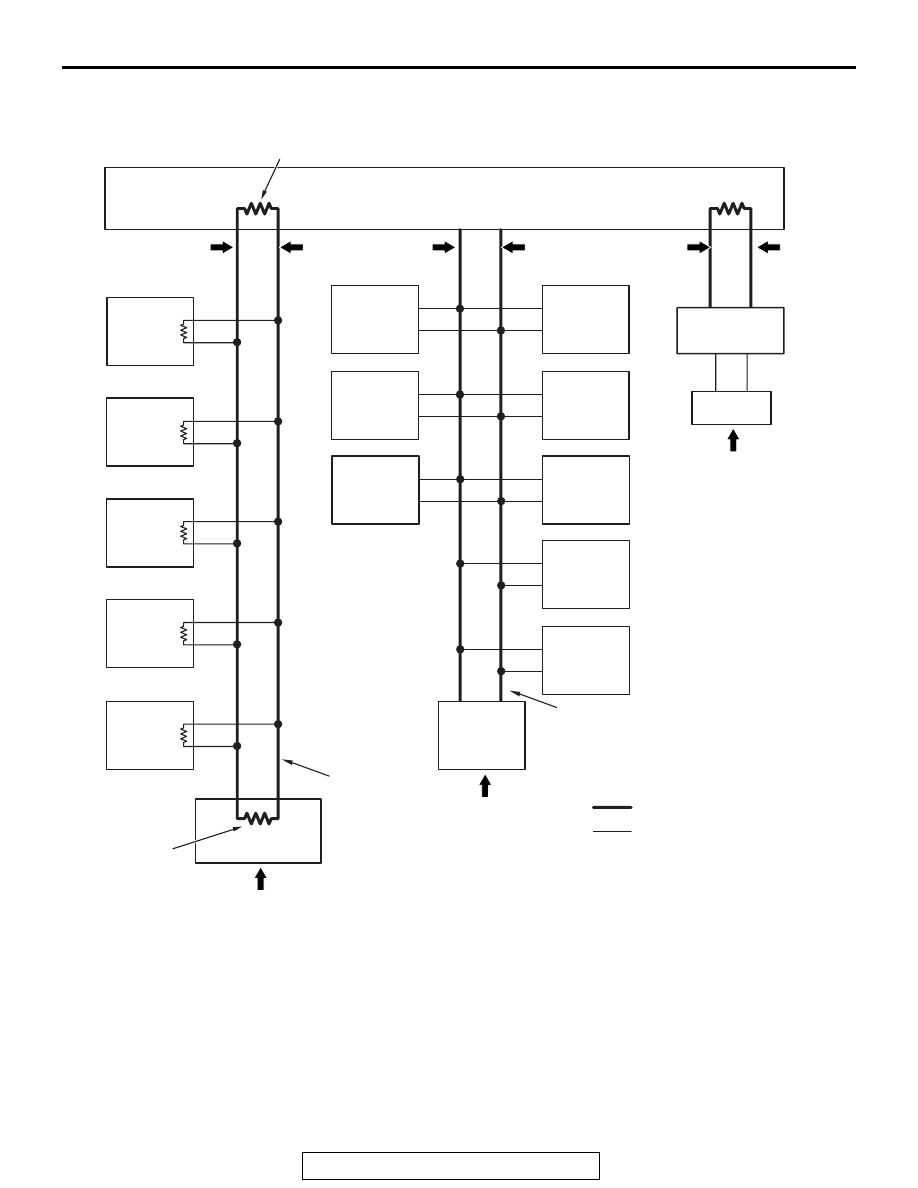

AC709105

ECM

SRS-ECU

A/C-ECU

CAN box
unit

Satellite
radio tuner

Hands free
module

Radio and
CD player or
CD changer

Combination
meter

WCM OR
KOS-ECU

Scan tool

Data link
connector

ETACS-ECU

ASC-ECU

CAN_H

CAN_L

Main bus line

CAN_H

CAN_L

CAN_H

CAN_L

CAN-C

CAN-B

Diagnosis CAN-C

AB

Terminal resistor

Terminal
resistor

: Indicates main bus line

: Indicates sub bus line

Occupant
classification-
ECU

Main bus line

TC-SST-
ECU

Shift lever

S-AWC-
ECU

Steering
wheel
sensor

GENERAL INFORMATION

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-4

•

Dominant ECU: ETACS-ECU and engine
ECU

•

Non-dominant ECU: ECU and sensor on
CAN-C network, excluding ETACS-ECU and
engine ECU

• To the CAN bus line, ECU, sensor, and data link

connector are connected as follows for each net-
work.
CAN-B

• Wireless control module (WCM) <vehicles

without KOS>

• KOS-ECU <vehicles with KOS>

• SRS-ECU

• Occupant classification-ECU

• A/C-ECU

• Radio and CD player or CD changer <vehi-

cles without Mitsubishi Multi-Communication
System (MMCS)>

• CAN box unit <vehicles with Mitsubishi

Multi-Communication System (MMCS)>

• Hands free module <vehicles with hands-free

system>

• Satellite radio tuner <vehicles with satellite

radio>

• Combination meter

CAN-C

• ASC-ECU

• TC-SST-ECU <TC-SST>

• Shift lever <TC-SST>

• S-AWC-ECU

• Steering wheel sensor

• Engine control module (ECM)

Diagnosis CAN-C

• Data link connector

SPECIAL TOOLS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-5

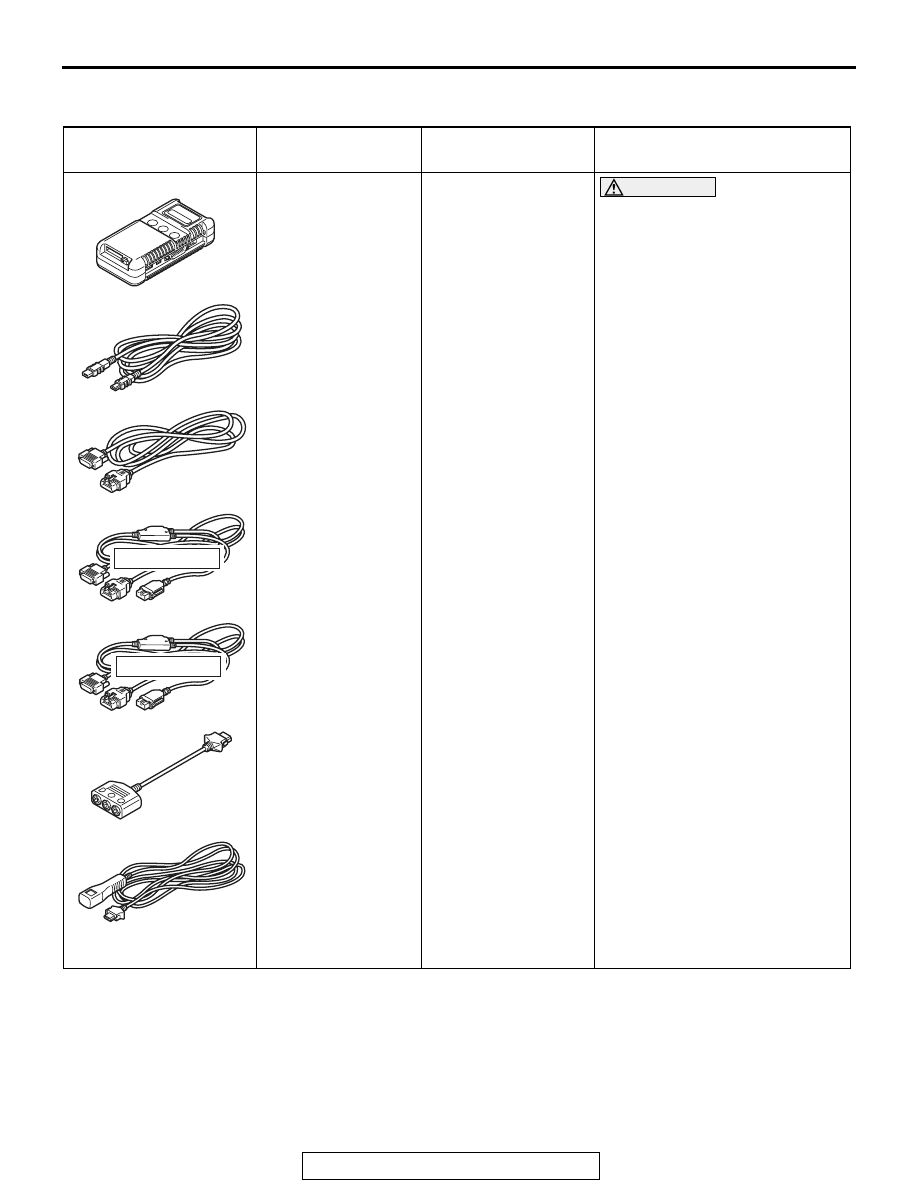

SPECIAL TOOLS

M1548304200477

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
CAN bus diagnostics

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

TEST EQUIPMENT

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-6

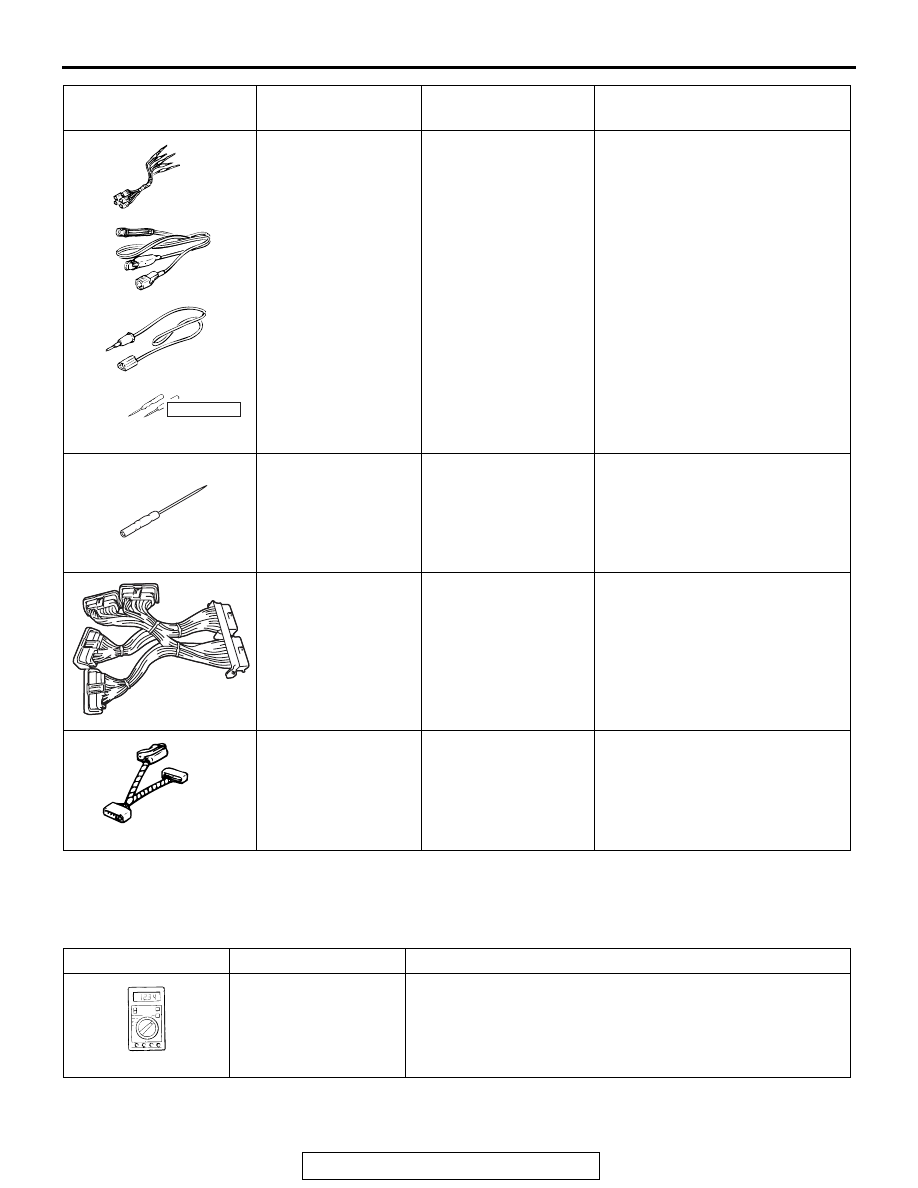

TEST EQUIPMENT

M1548304300258

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness

adaptor

d. Probe

General service tools Continuity check and voltage

measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

a. Connector pin contact

pressure inspection

b. Power circuit inspection
c. Power circuit inspection
d. Commercial tester connection

MB992006
Extra fine probe

−

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

MB992110
Power plant ECU
check harness

−

Measure the voltage and
resistance at the engine control
module (ECM)

MB991997
ASC check harness

−

Measure the voltage and
resistance at the ASC-ECU

Tool

Tool number and
name

Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

MB992110

MB991997

Test equipment

Name

Use

Digital multimeter

Checking CAN bus circuit (for resistance and voltage
measurements)

AC000019
